Five Fingers Details
| Property | Value |
|---|---|
| Rupture Count | 123 |
| Ruptures Above Sect Min Mag | 121 |
| Ruptures w/ Nonzero Rates | 79 |
| Magnitude Range | [6.95, 8.45] |
| Length Range | [22, 731] km |
| Total Rate | 1.9781652E-7 /yr |
| Multi-Fault Rate | 1.8843726E-7 /yr (95.26%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 17 |
Table Of Contents

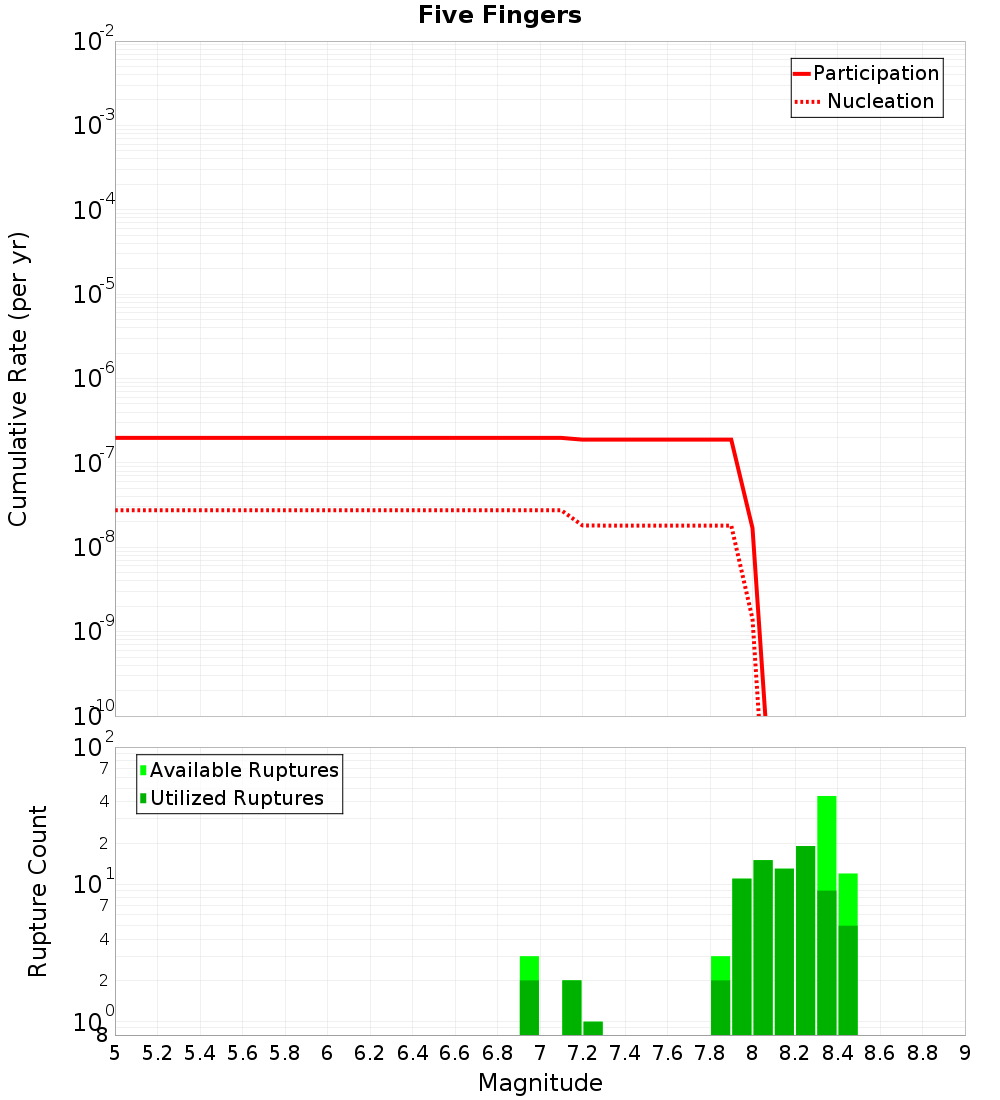

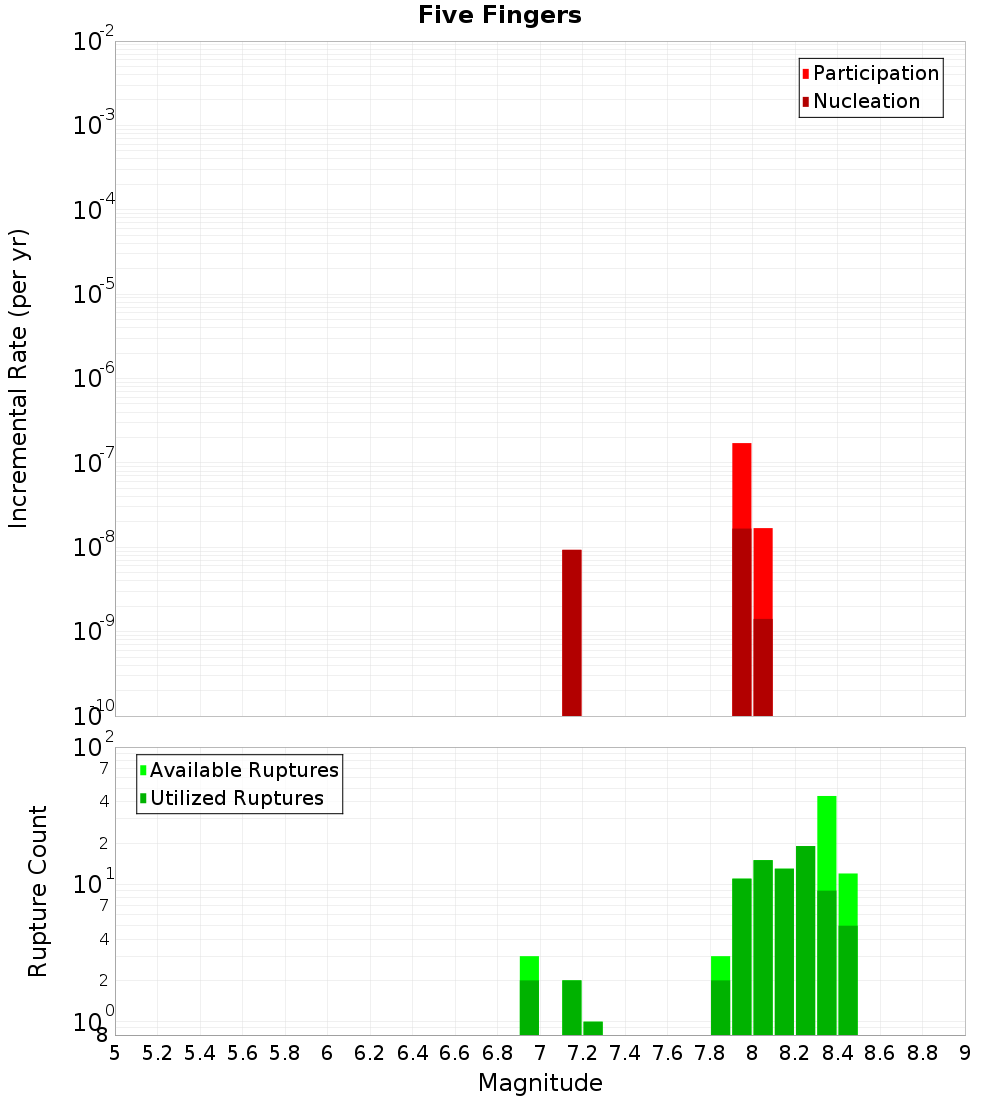

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

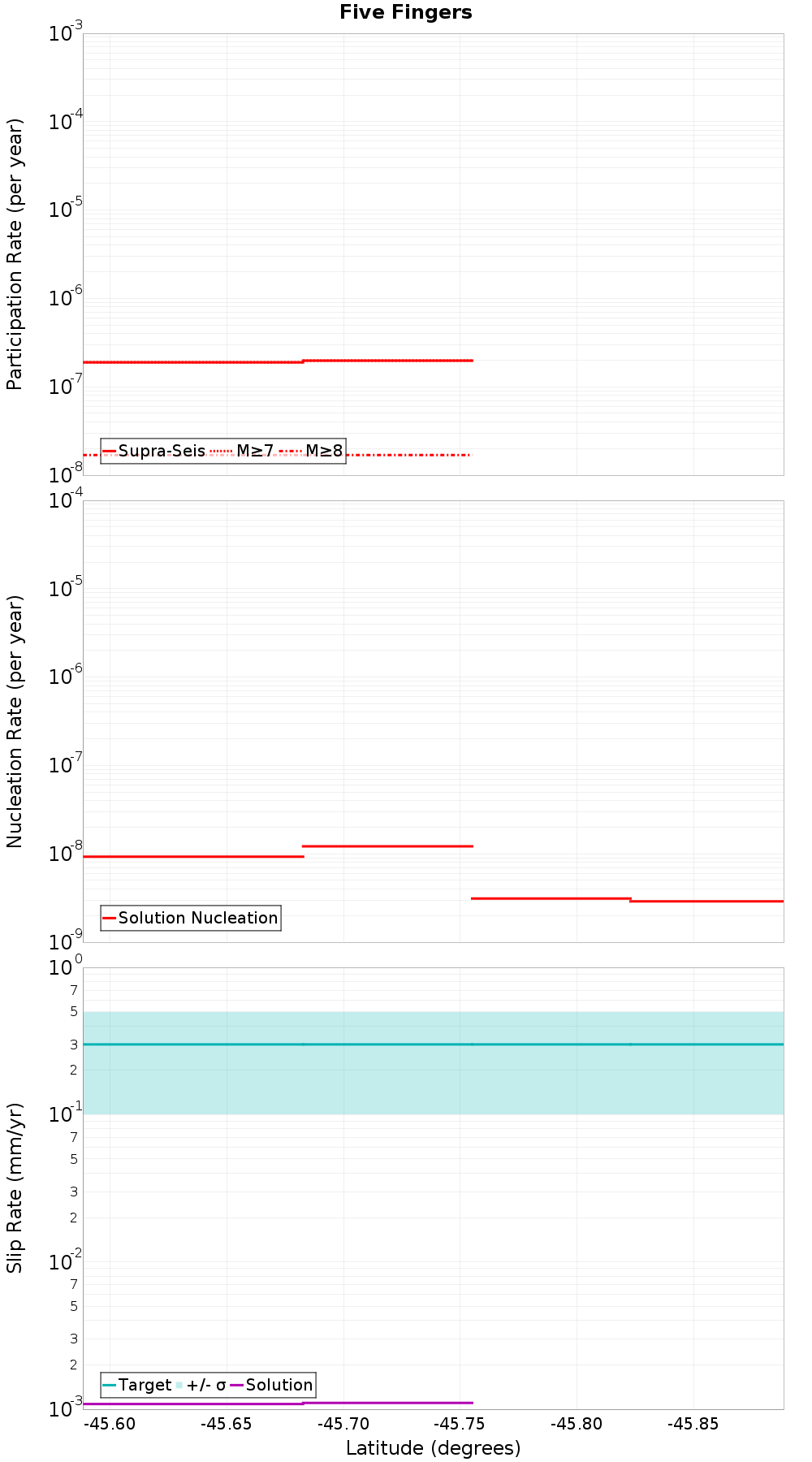

Along-Strike Values
Moment-Rates and b-Values

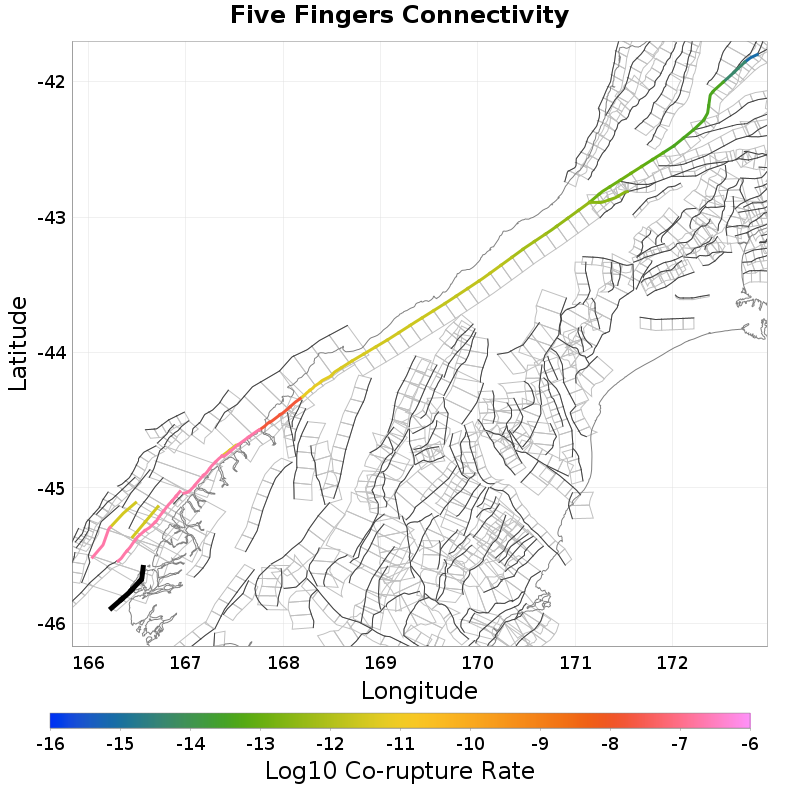

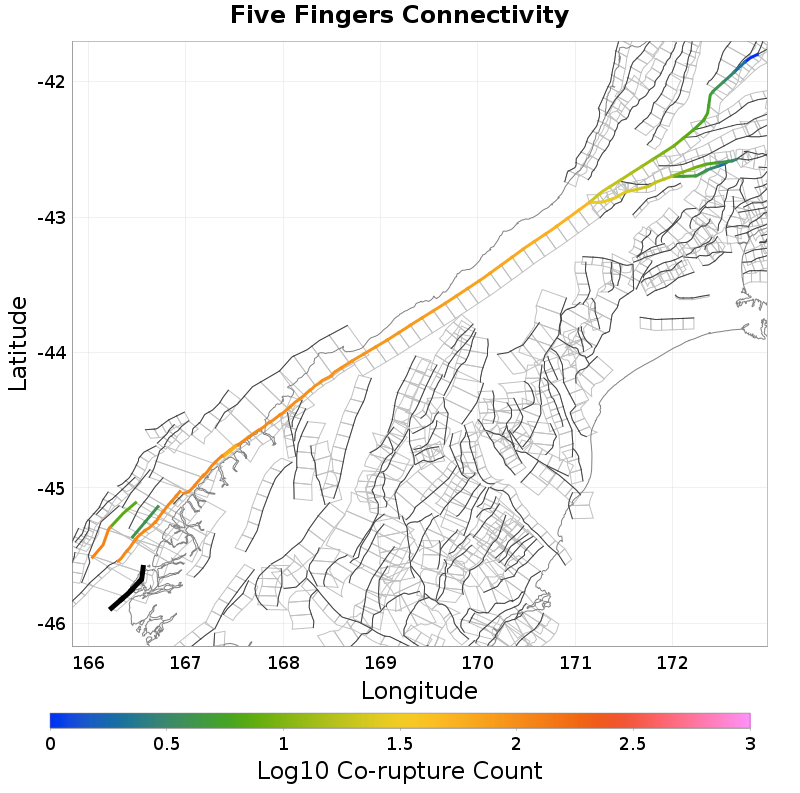

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| South Wedge 5, 0.14 km away |
| South Wedge 3-6-10, 0.3 km away |
| South Wedge 1, 16.41 km away |
| Alpine: Resolution - Dagg, 18.37 km away |
South Wedge 5, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
South Wedge 3-6-10, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 117 |
| Co-rupture Rate | 1.8843726E-7 |
South Wedge 1, 16.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 2.8620847E-12 |
Alpine: Resolution - Dagg, 18.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 111 |
| Co-rupture Rate | 1.8843416E-7 |
