Lyell Details
| Property | Value |
|---|---|
| Rupture Count | 58 |
| Ruptures Above Sect Min Mag | 57 |
| Ruptures w/ Nonzero Rates | 48 |
| Magnitude Range | [6.88, 8.09] |
| Length Range | [20, 334] km |
| Total Rate | 3.2275722E-5 /yr |
| Multi-Fault Rate | 2.0983789E-8 /yr (0.07%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 13 |
Table Of Contents

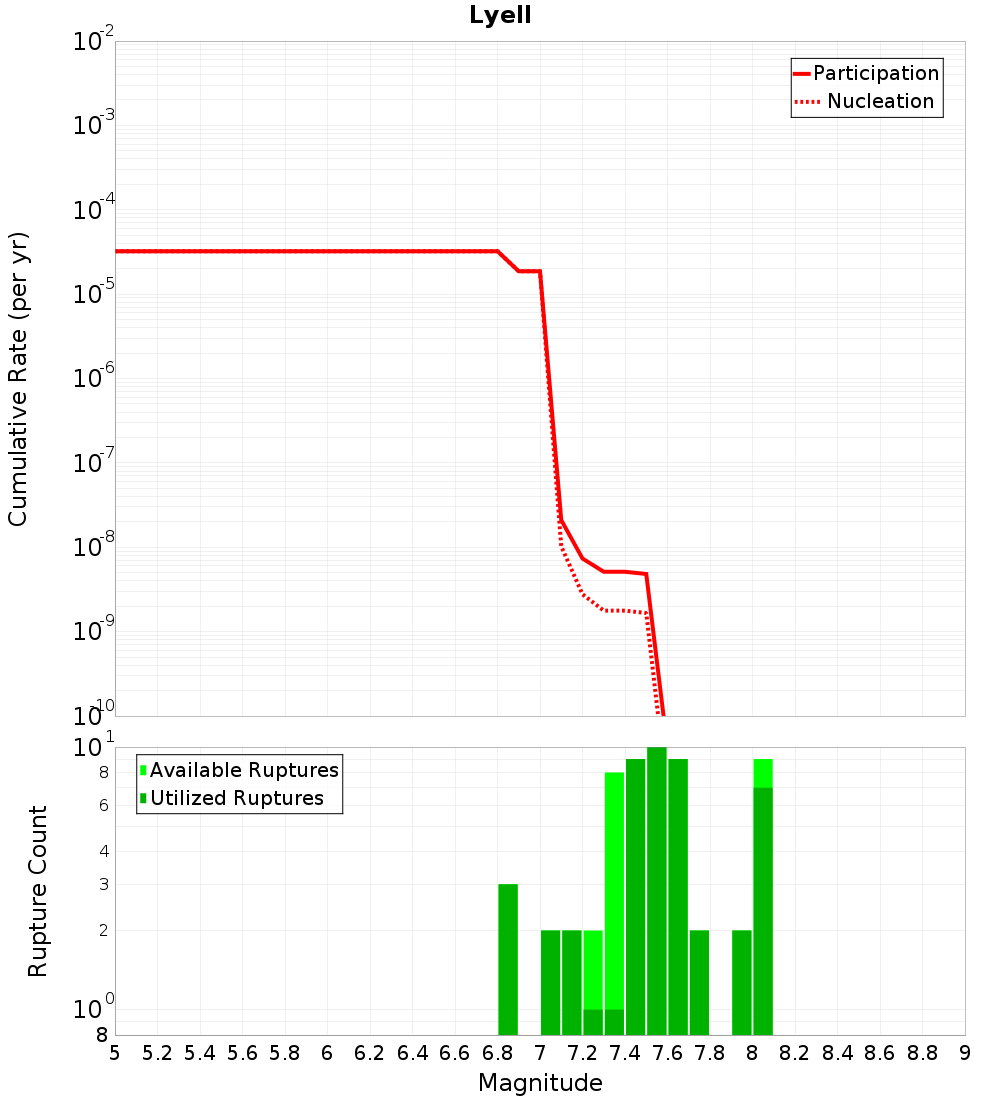

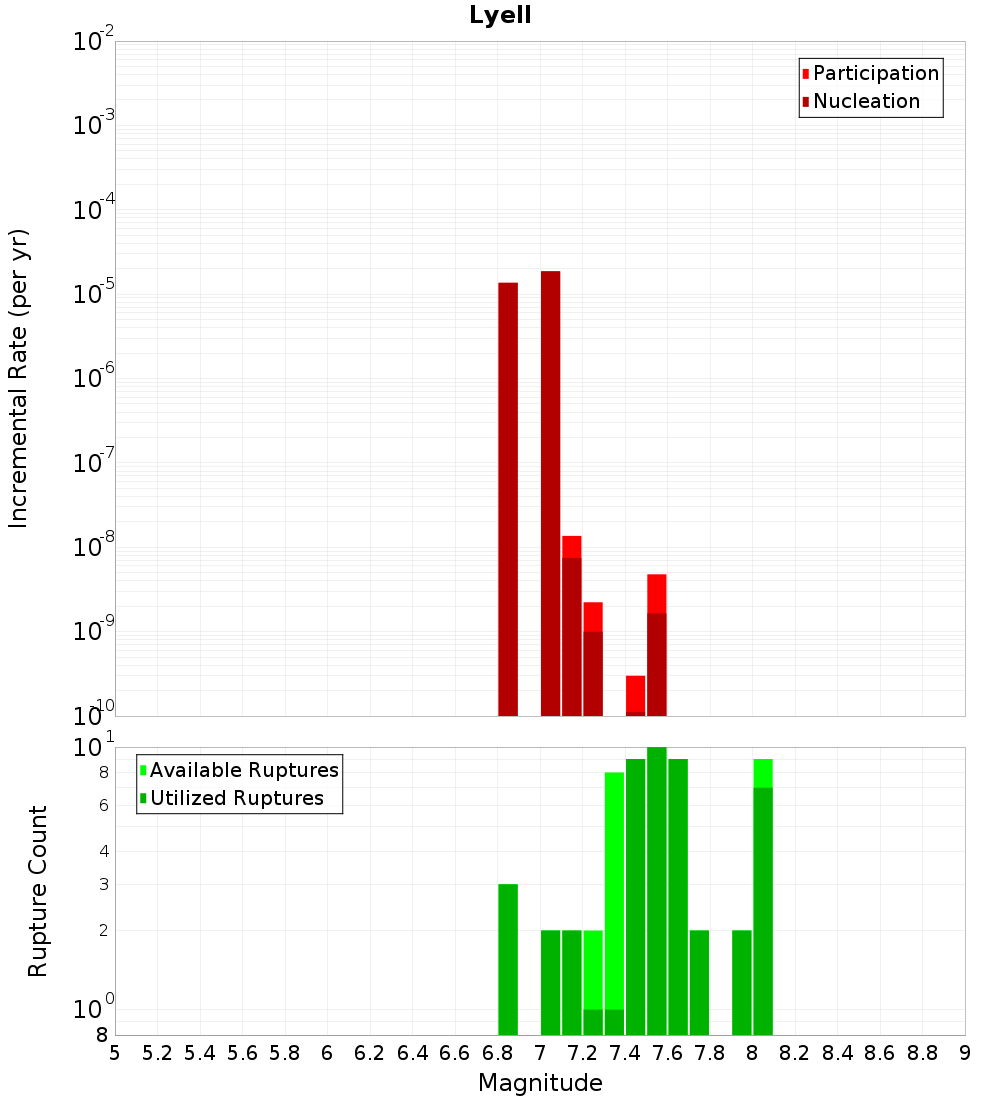

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

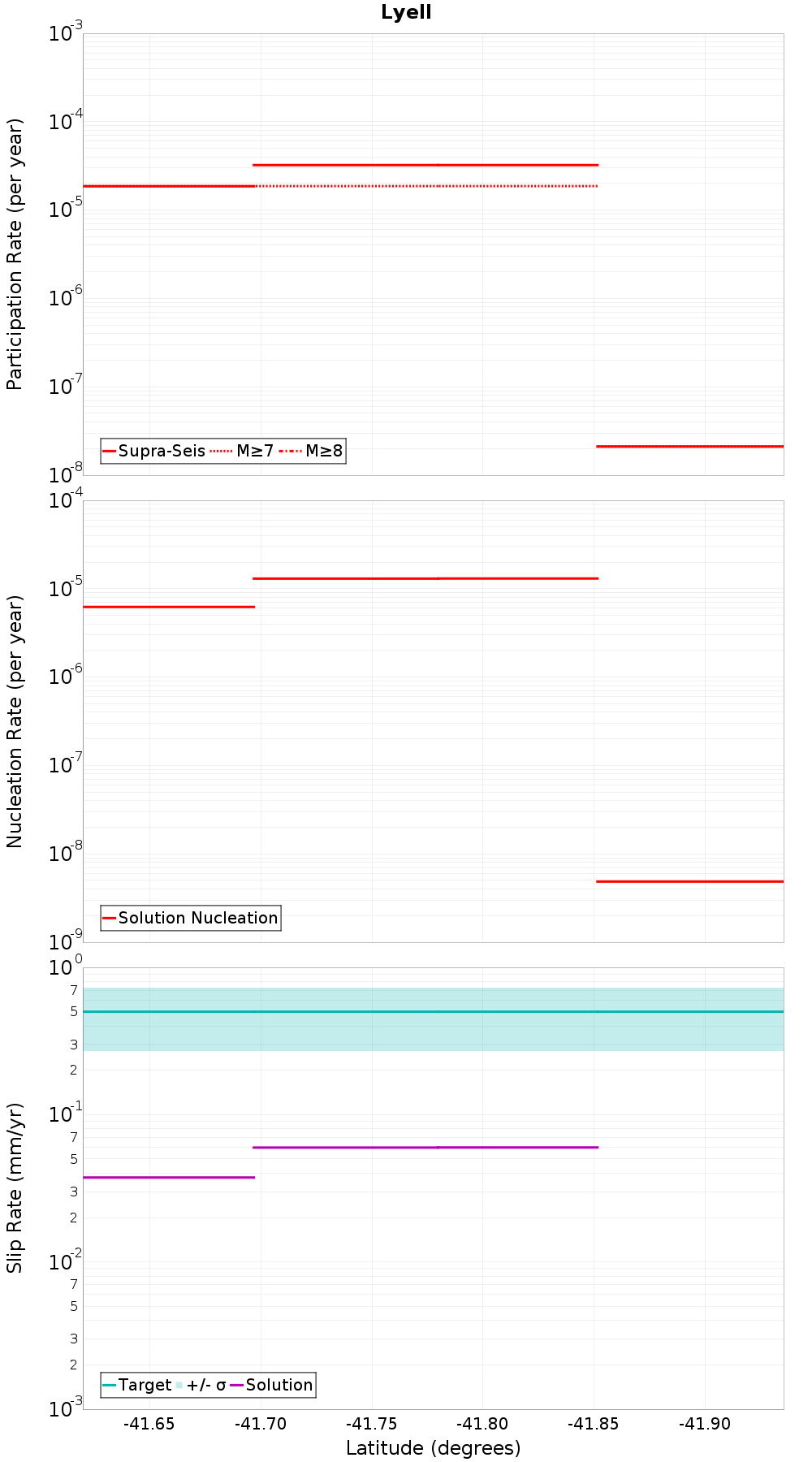

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| White Creek, 0.23 km away |
| Lyell South, 1.51 km away |
| Inangahua, 5.51 km away |
| Maimai: North, 7.56 km away |
| Kohaihai South, 16.55 km away |
White Creek, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lyell South, 1.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 52 |
| Co-rupture Rate | 2.0983789E-8 |
Inangahua, 5.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maimai: North, 7.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 8.09322E-12 |
Kohaihai South, 16.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
