Ohiwa 1 Details

PropertyValue
Rupture Count16,685
Ruptures Above Sect Min Mag16,685
Ruptures w/ Nonzero Rates272
Magnitude Range[6.53, 8.34]
Length Range[9, 608] km
Total Rate8.454732E-5 /yr
Multi-Fault Rate6.724675E-5 /yr (79.54%)
Directly-Connected Faults3
All Co-Rupturing Faults87

Table Of Contents

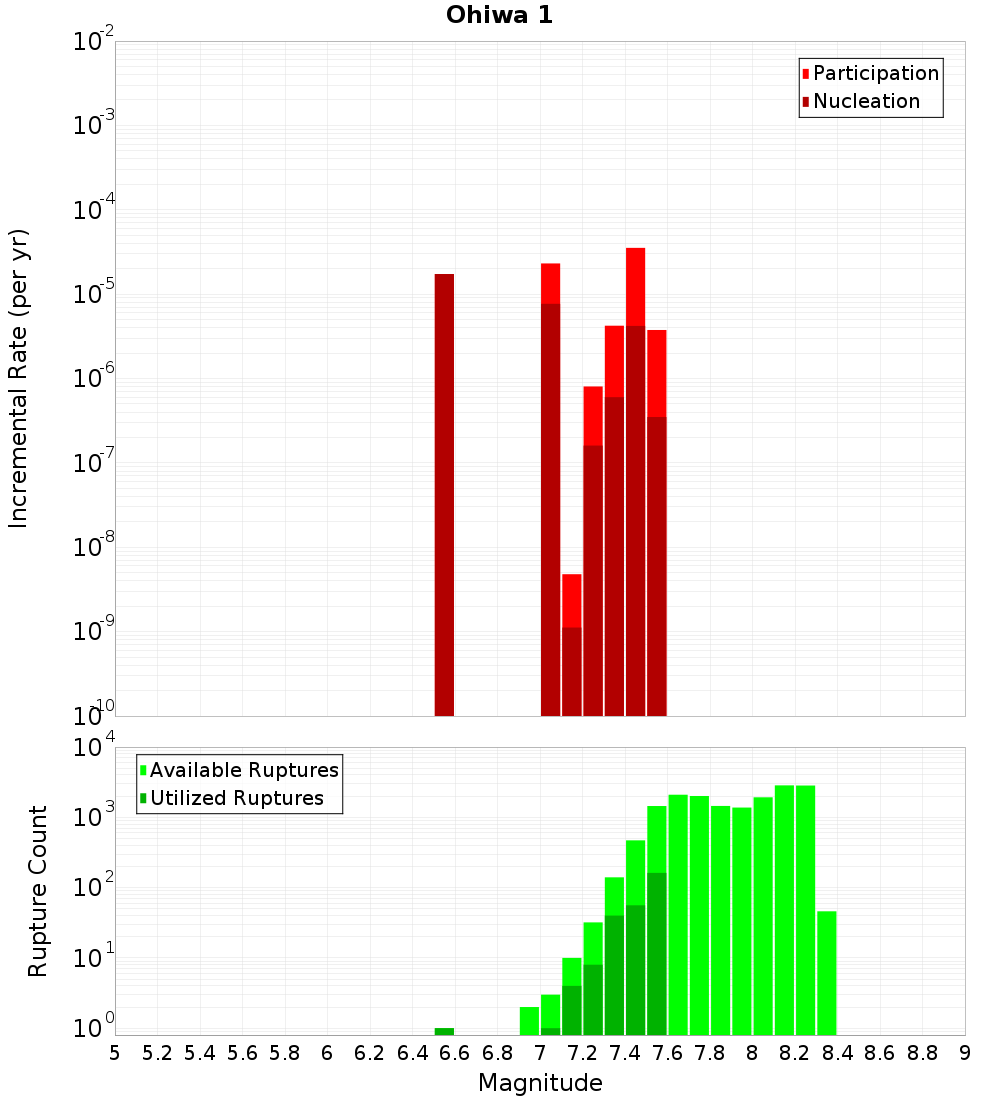

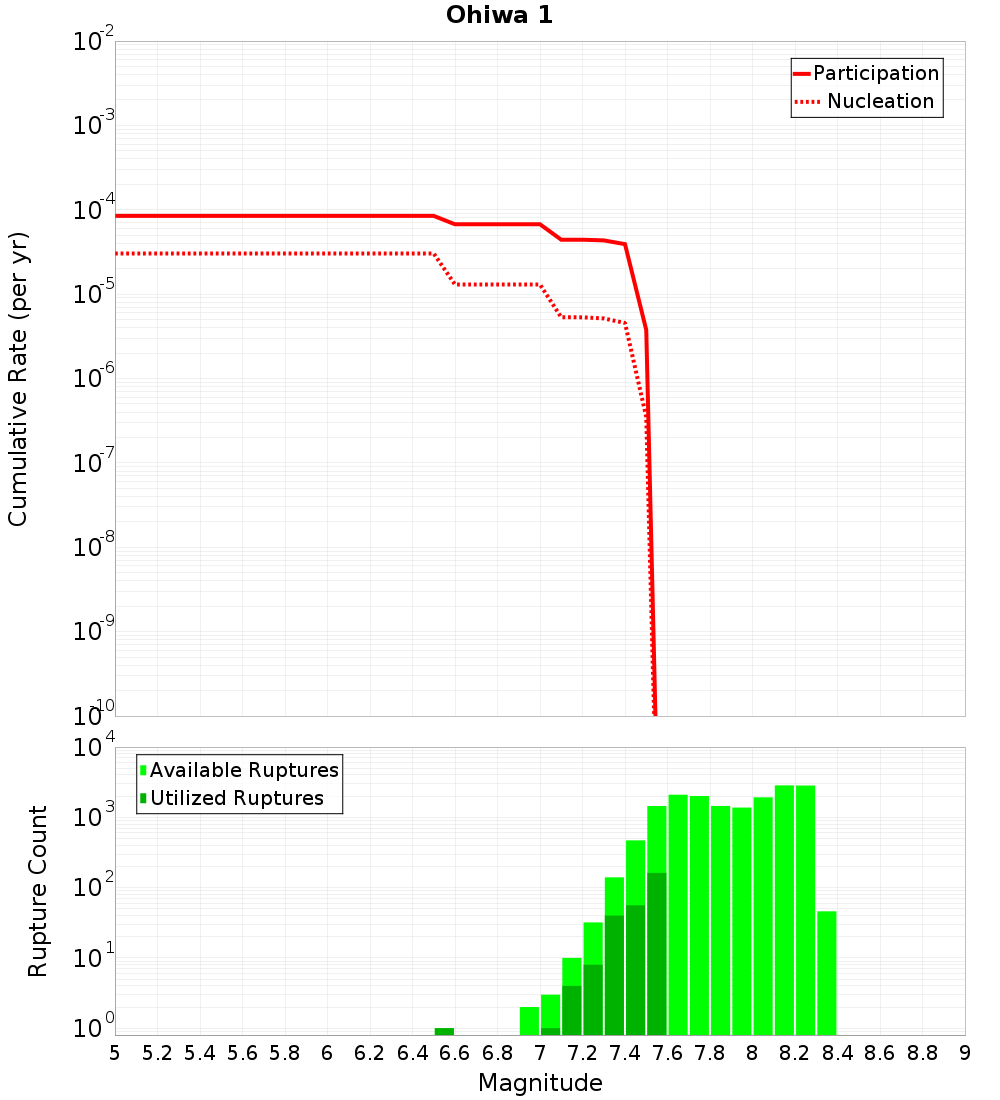

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

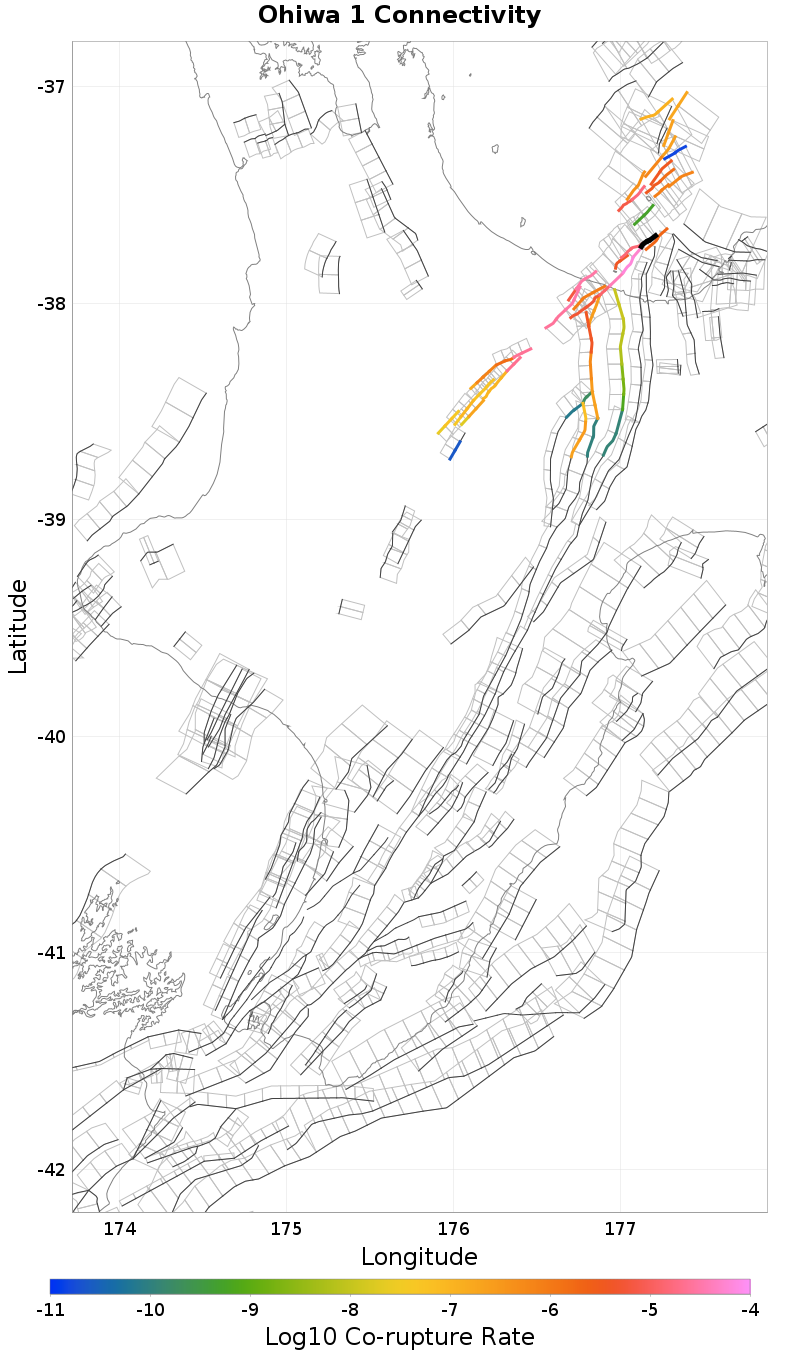

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Whakaari 4, 0.14 km awayOhae 1, 8.74 km away
White Island 1, 0.17 km awayTuatoru 1, 11.29 km away
Rangitaiki 2, 0.42 km awayOhae 2, 14.04 km away
White Island 2, 0.88 km awayWaiotahi: North, 14.52 km away
Waimanawa - Waikaremoana, 4.14 km awayTe Arawa 2, 14.95 km away
Calypso 2, 8.32 km awayHariki, 16.12 km away
Opotiki 3, 8.42 km awayOpape 1, 16.67 km away
Te Arawa 1, 8.65 km awayVolkner 3, 17.93 km away
Waimana: North, 8.65 km awayOpotiki 2, 19.25 km away
Rangitaiki 1, 8.72 km away

Whakaari 4, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?true
Directly Connected?true
Co-rupture Count13,601
Co-rupture Rate1.5950905E-5

White Island 1, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?true
Directly Connected?true
Co-rupture Count16,015
Co-rupture Rate6.317833E-5

Rangitaiki 2, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?true
Directly Connected?true
Co-rupture Count3,225
Co-rupture Rate1.4329645E-5

White Island 2, 0.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?true
Directly Connected?false
Co-rupture Count512
Co-rupture Rate1.9584036E-6

Waimanawa - Waikaremoana, 4.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate5.104534E-10

Opotiki 3, 8.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 1, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?true
Directly Connected?false
Co-rupture Count4,042
Co-rupture Rate3.3622287E-6

Waimana: North, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 8.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?true
Directly Connected?false
Co-rupture Count599
Co-rupture Rate3.840361E-6

Ohae 1, 8.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?true
Directly Connected?false
Co-rupture Count1,715
Co-rupture Rate8.5277253E-7

Ohae 2, 14.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 2, 14.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?true
Directly Connected?false
Co-rupture Count3,540
Co-rupture Rate3.722313E-6

Hariki, 16.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opape 1, 16.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 3, 17.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?true
Directly Connected?false
Co-rupture Count522
Co-rupture Rate4.230221E-7

Opotiki 2, 19.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
