Rahotu Details

Property	Value
Rupture Count	87
Ruptures Above Sect Min Mag	86
Ruptures w/ Nonzero Rates	66
Magnitude Range	[6.63, 7.77]
Length Range	[11, 147] km
Total Rate	3.326926E-4 /yr
Multi-Fault Rate	3.326926E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	14

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

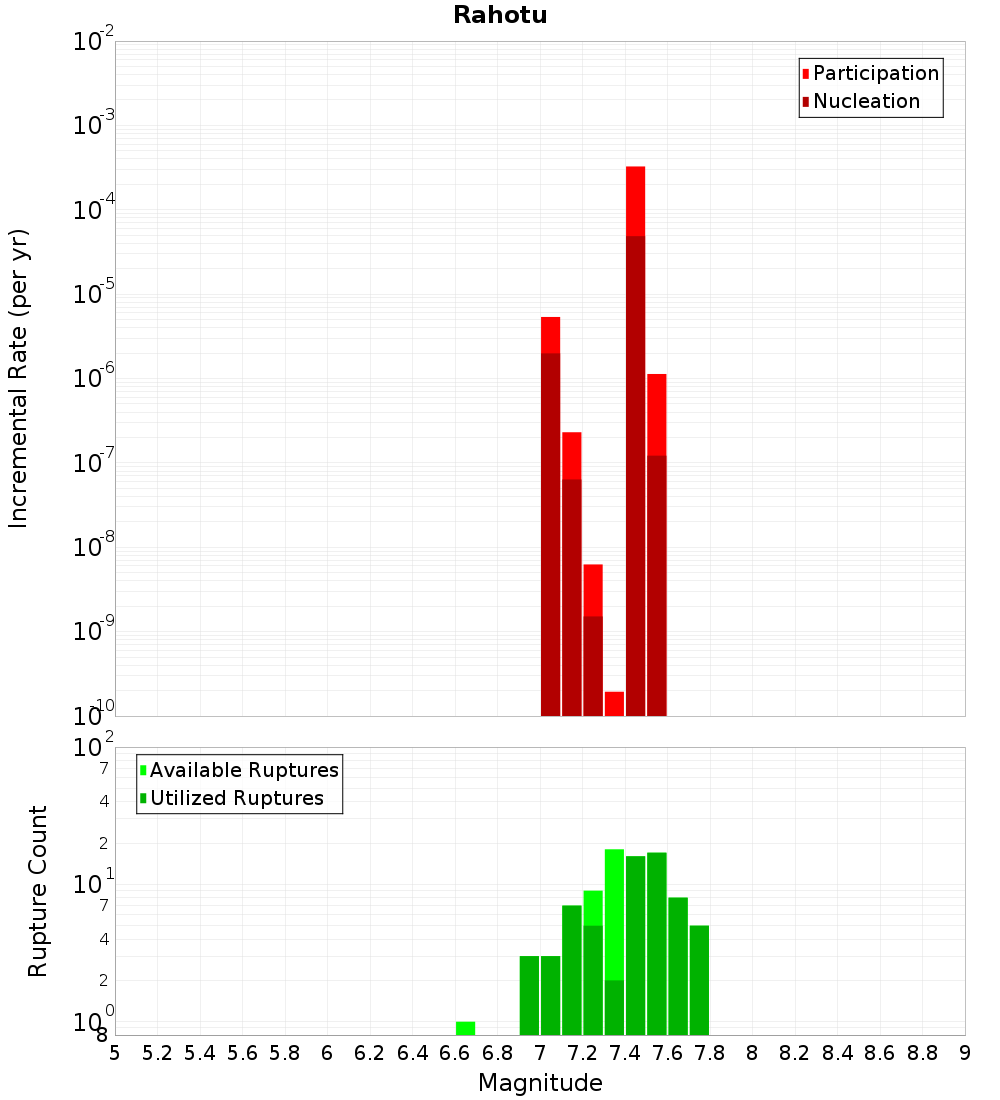

Magnitude-Frequency Distribution

Incremental	Cumulative

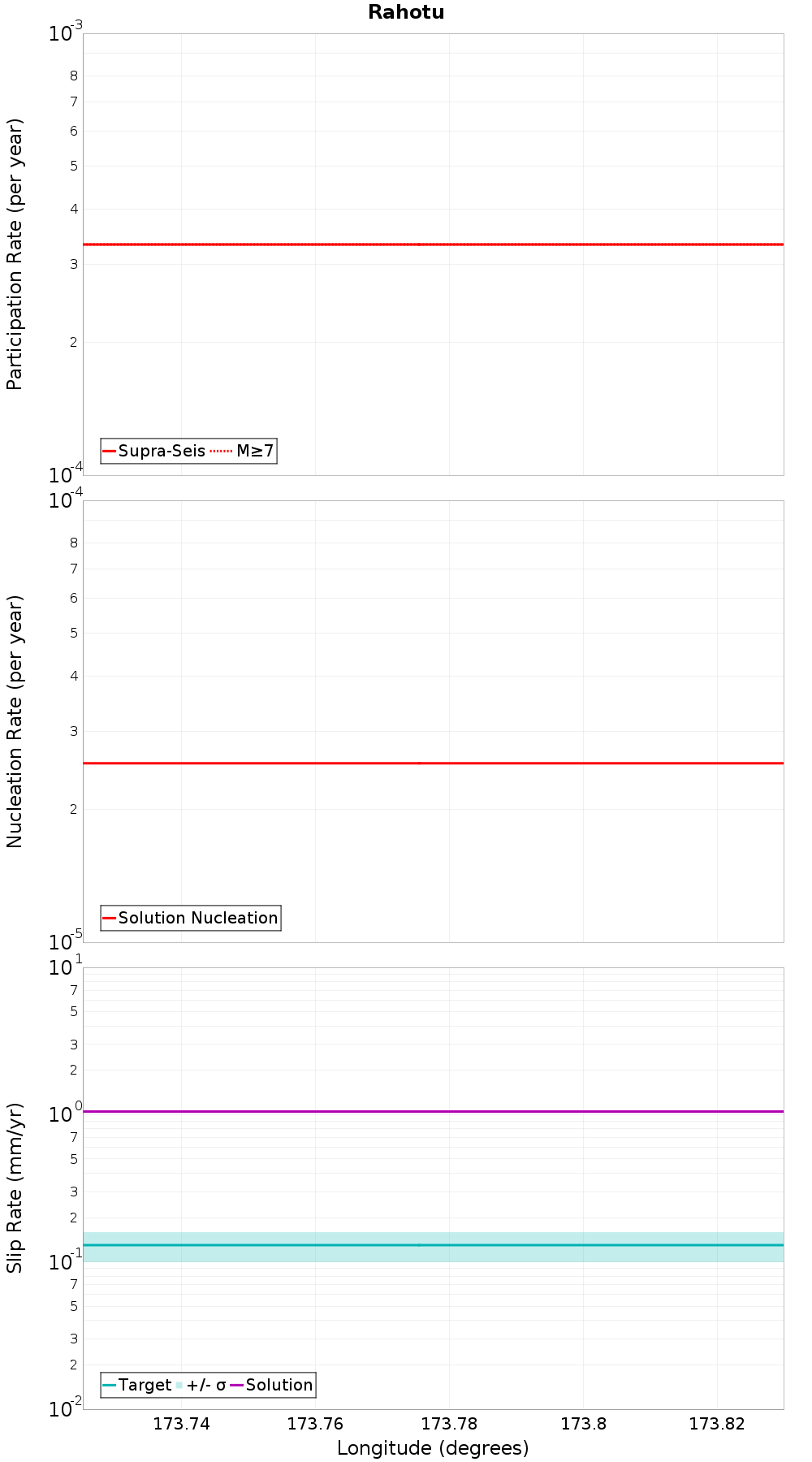

Along-Strike Values

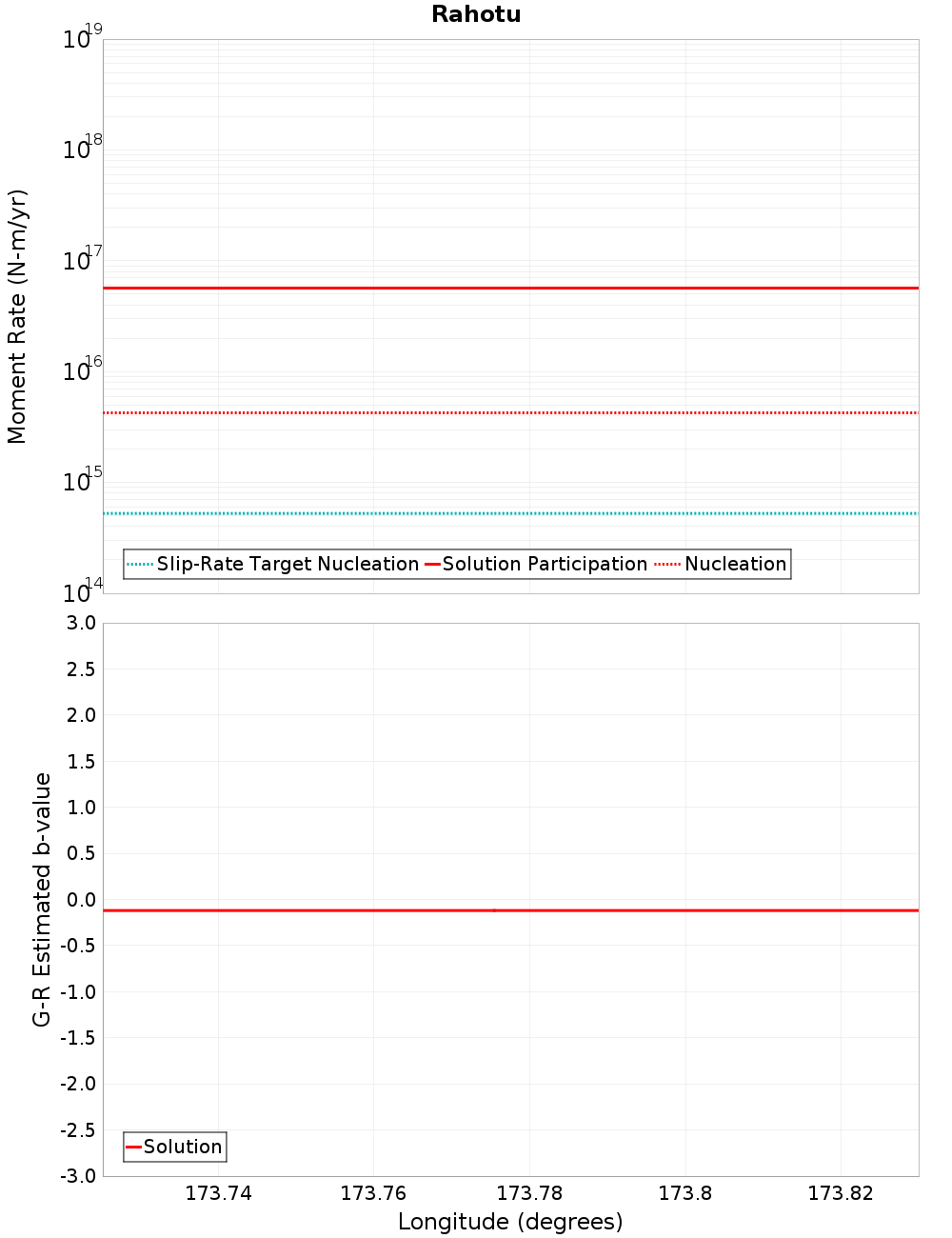

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Oaonui, 0.25 km away
Kiri, 0.4 km away
Ihaia, 0.43 km away
Pihama, 1.64 km away
Cape Egmont: North, 1.9 km away
Manahi 2, 2.03 km away
Warea, 5.06 km away
Manahi 1, 5.59 km away
Cape Egmont: Central, 9.89 km away

Oaonui, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	7.0530415E-11

Kiri, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?	true
Directly Connected?	true
Co-rupture Count	21
Co-rupture Rate	3.259703E-4

Ihaia, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?	true
Directly Connected?	false
Co-rupture Count	25
Co-rupture Rate	1.1350672E-6

Pihama, 1.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?	true
Directly Connected?	false
Co-rupture Count	11
Co-rupture Rate	1.1647917E-9

Cape Egmont: North, 1.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?	true
Directly Connected?	true
Co-rupture Count	53
Co-rupture Rate	2.697332E-4

Manahi 2, 2.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	5.363057E-6

Warea, 5.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?	true
Directly Connected?	true
Co-rupture Count	54
Co-rupture Rate	6.431225E-5

Manahi 1, 5.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?	true
Directly Connected?	true
Co-rupture Count	22
Co-rupture Rate	3.4212422E-9

Cape Egmont: Central, 9.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NTYuMFhqTDRx
Connected?	true
Directly Connected?	false
Co-rupture Count	28
Co-rupture Rate	2.6300788E-4
