Fox Peak Details

Property	Value
Rupture Count	31
Ruptures Above Sect Min Mag	29
Ruptures w/ Nonzero Rates	5
Magnitude Range	[7.13, 7.91]
Length Range	[28, 199] km
Total Rate	2.503404E-6 /yr
Multi-Fault Rate	2.1980763E-6 /yr (87.80%)
Directly-Connected Faults	3
All Co-Rupturing Faults	8

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

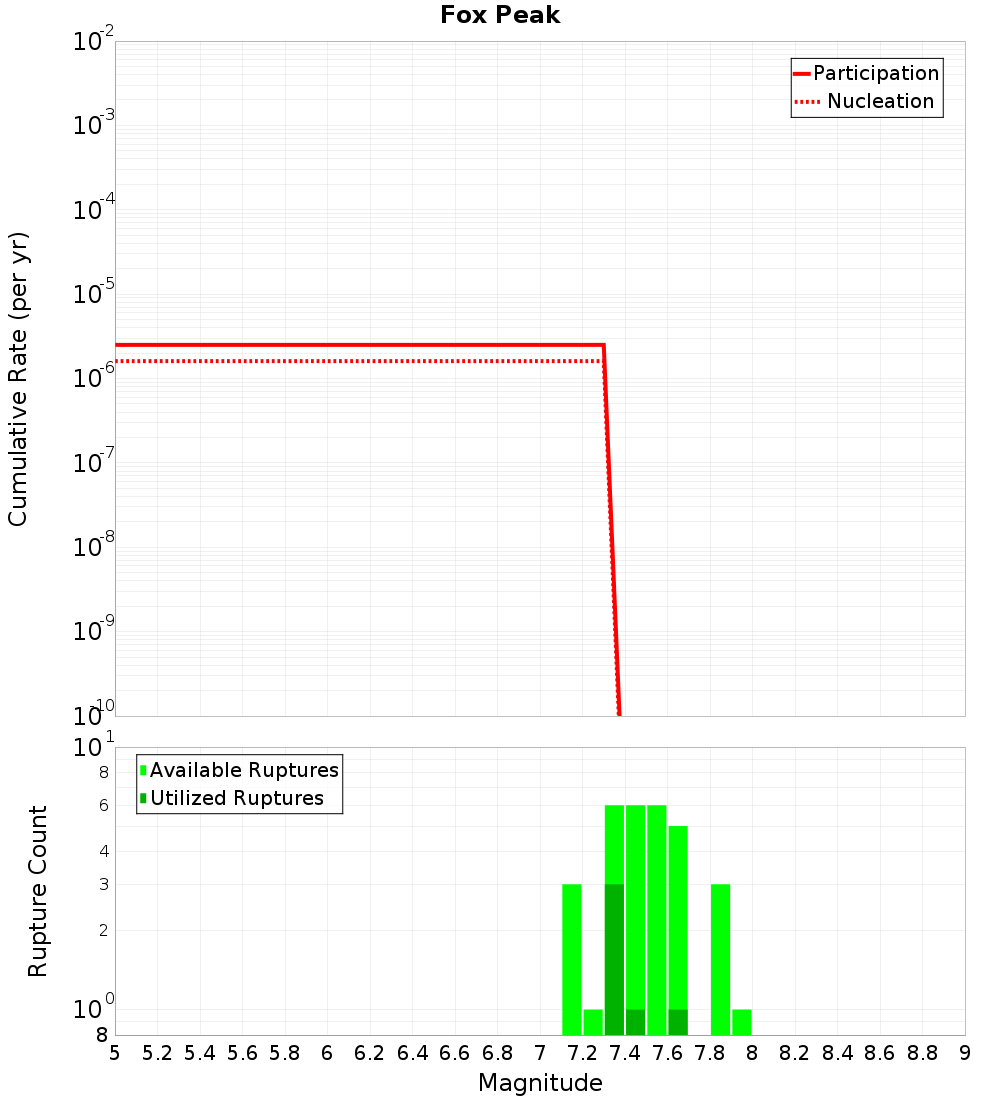

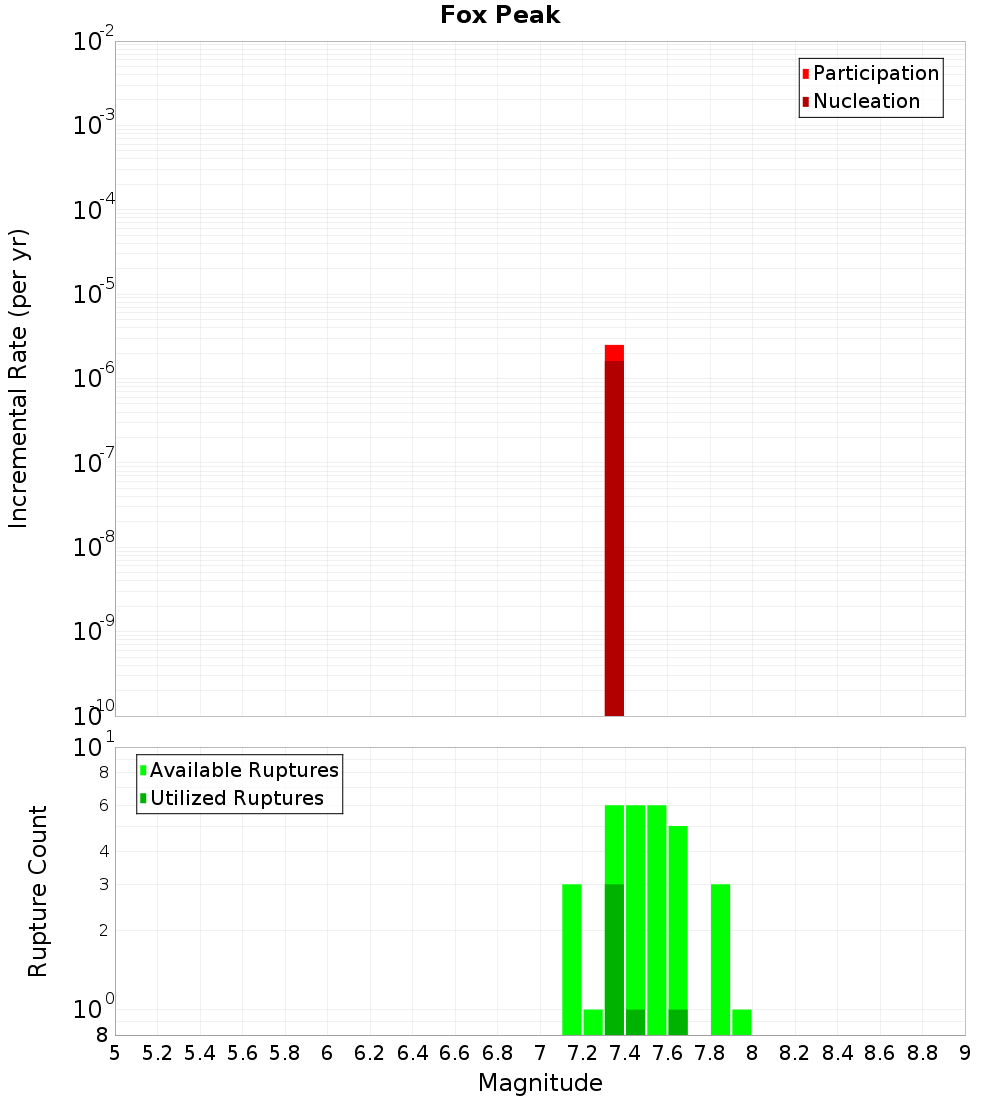

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

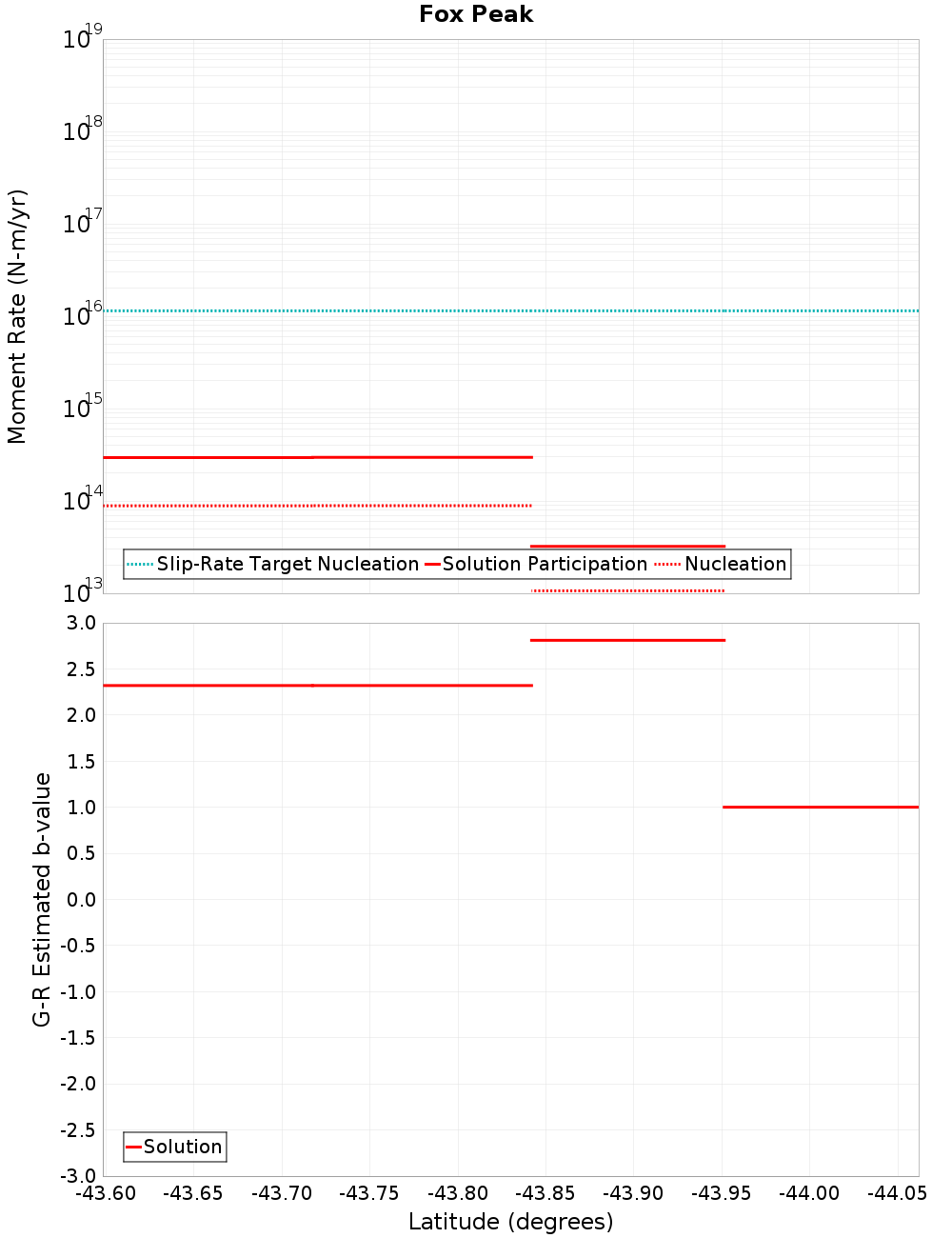

Moment-Rates and b-Values

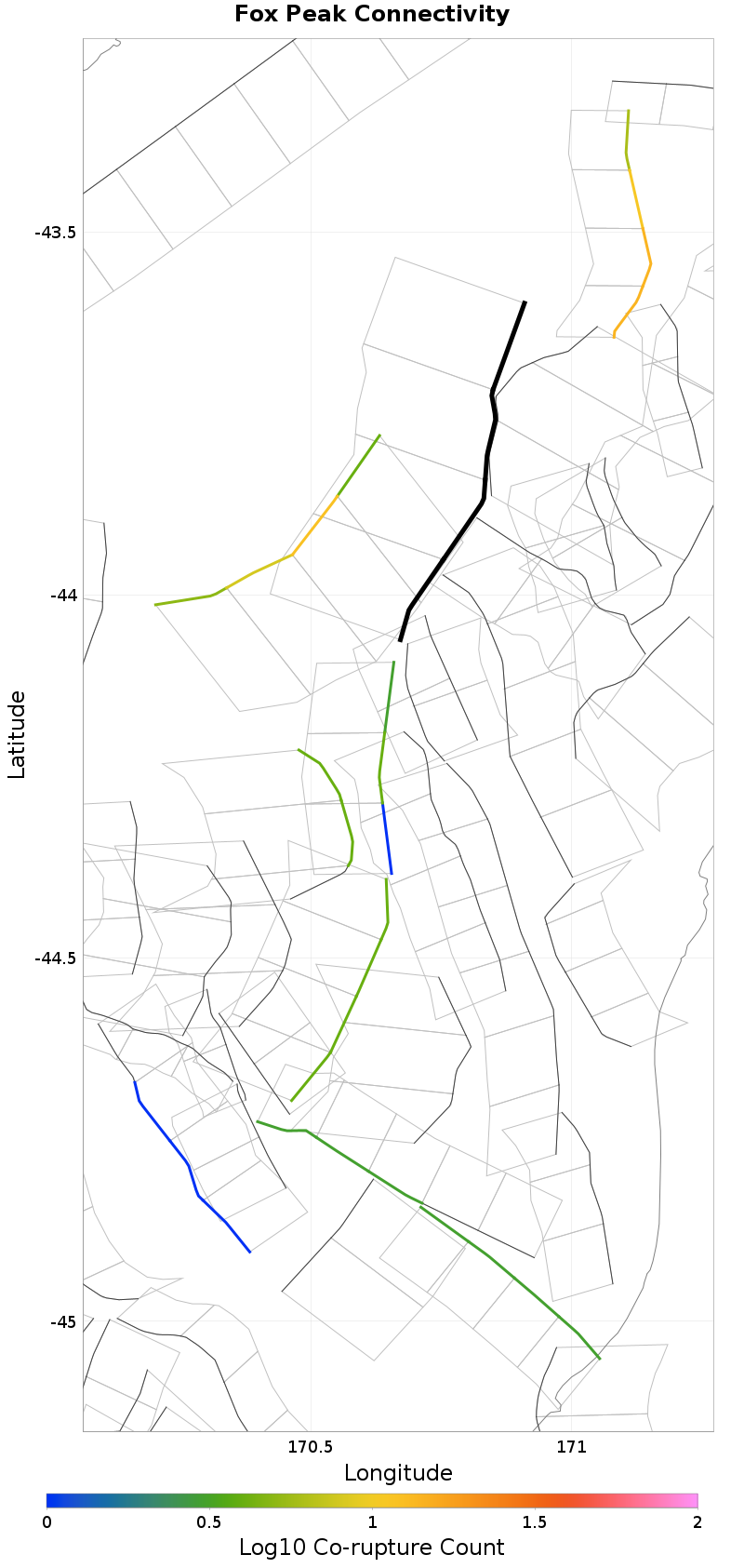

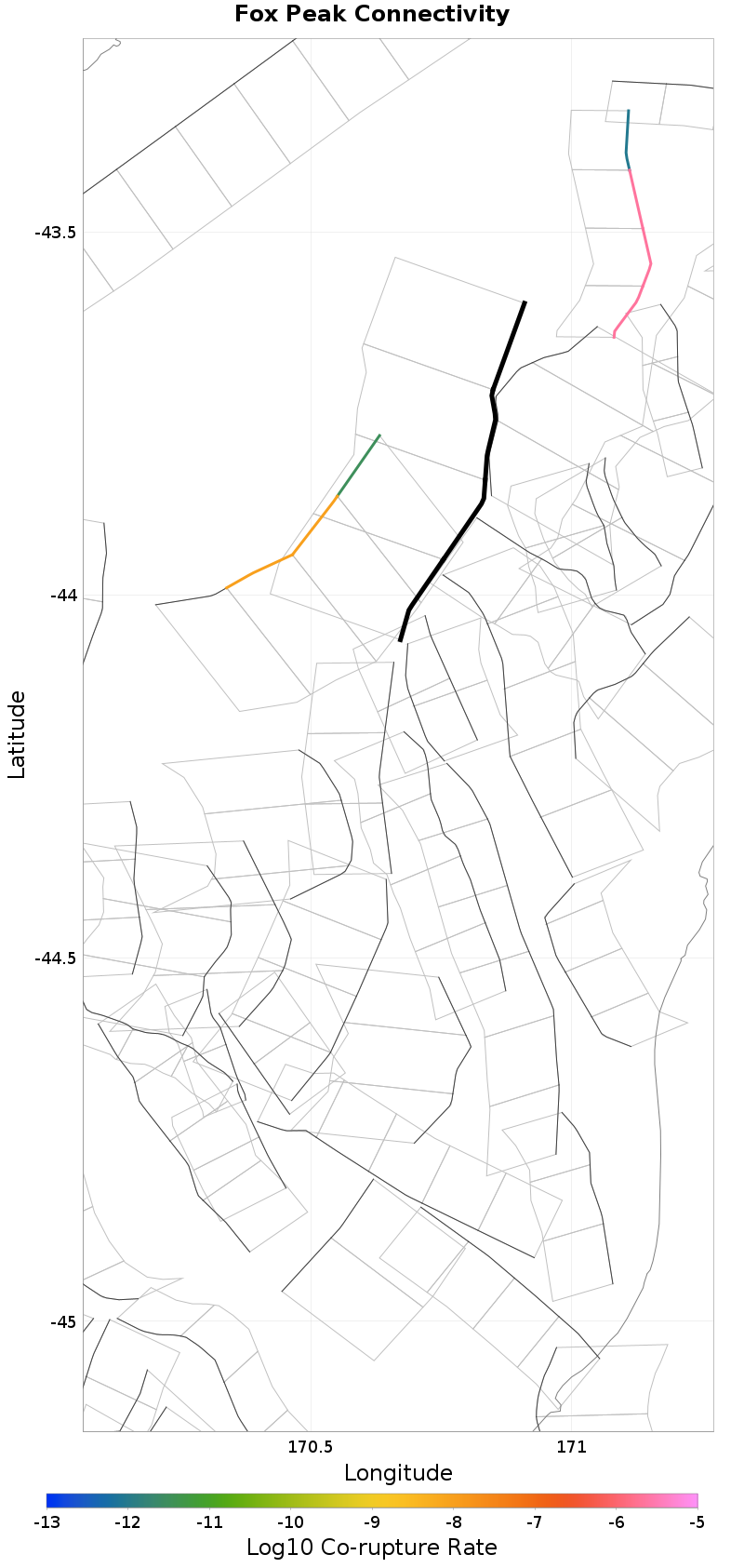

Connectivity

Nearby Sections

Fault Section
Irishman Creek, 0.28 km away
Ben McLeod, 0.38 km away
Sugarloaf, 0.68 km away
Opawa, 1.29 km away
Brothers, 1.31 km away
Albury, 2.46 km away
Dalgety, 3.59 km away
Lake Heron, 13.35 km away
Catherine, 13.66 km away
Chamberlain, 14.1 km away
Edith, 16.42 km away

Irishman Creek, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjEuMEdRR3dQ
Connected?	true
Directly Connected?	true
Co-rupture Count	12
Co-rupture Rate	9.7581925E-9

Ben McLeod, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjEuMEdRR3dQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Sugarloaf, 0.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjEuMEdRR3dQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opawa, 1.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjEuMEdRR3dQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Brothers, 1.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjEuMEdRR3dQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Albury, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjEuMEdRR3dQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dalgety, 3.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjEuMEdRR3dQ
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	0.0

Lake Heron, 13.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjEuMEdRR3dQ
Connected?	true
Directly Connected?	true
Co-rupture Count	14
Co-rupture Rate	2.188319E-6

Catherine, 13.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjEuMEdRR3dQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Chamberlain, 14.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjEuMEdRR3dQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Edith, 16.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjEuMEdRR3dQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
