Backbone Details

PropertyValue
Rupture Count325
Ruptures Above Sect Min Mag325
Ruptures w/ Nonzero Rates299
Magnitude Range[7.07, 8.10]
Length Range[24, 255] km
Total Rate9.85532E-6 /yr
Multi-Fault Rate7.332711E-6 /yr (74.40%)
Directly-Connected Faults4
All Co-Rupturing Faults31

Table Of Contents

Magnitude-Frequency Distribution

(top)

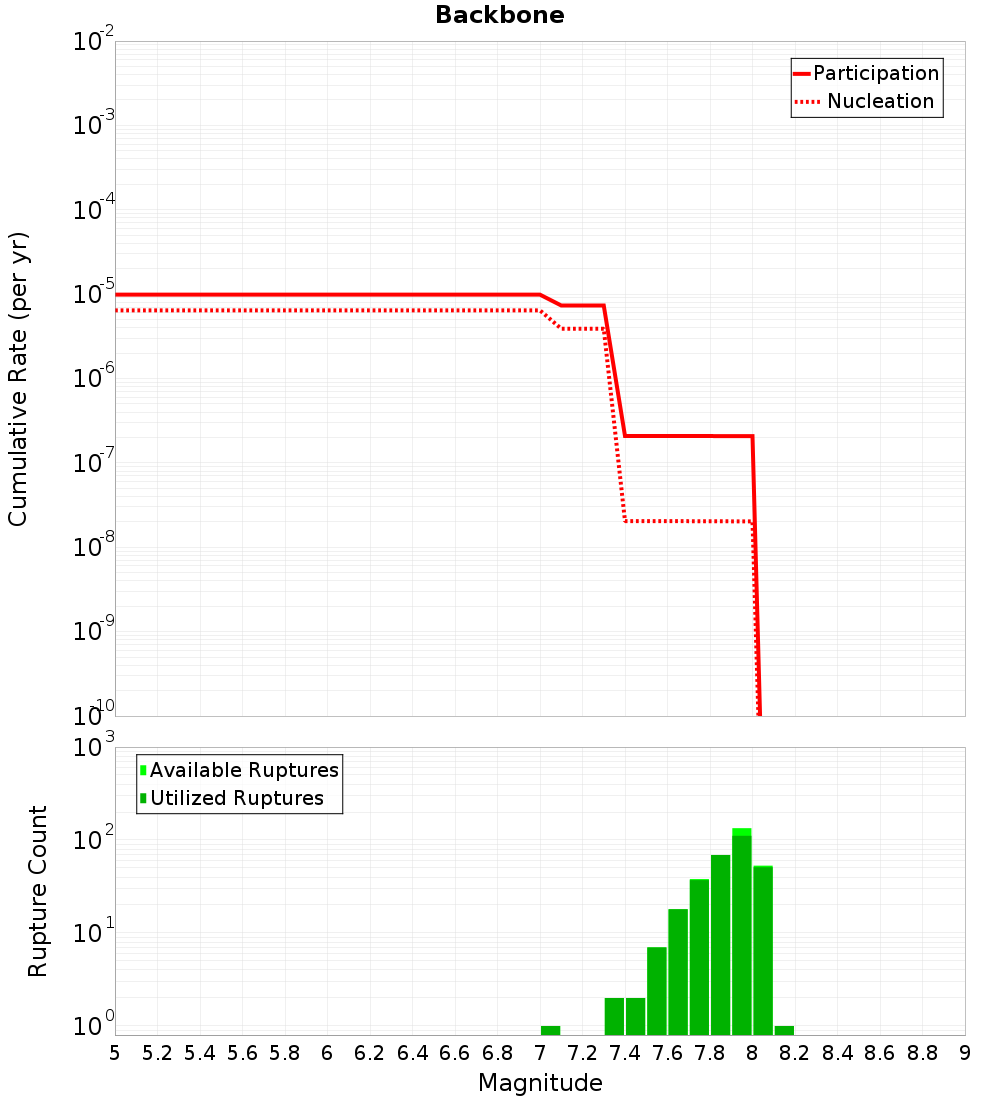

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Little Valley, 0.55 km awayWendon Valley, 10.78 km away
Beaumont River, 0.6 km awayWaikaia, 14.16 km away
Blue Mountain, 1.02 km awayPylap, 15.99 km away
Tuapeka, 1.03 km awayGalloway, 16.03 km away
Logan Burn, 2.62 km awayLong Valley, 16.09 km away
Lake Onslow, 3.64 km awayHyde North, 16.61 km away
Spylaw, 4.47 km awayOld Man, 17.65 km away
Hyde South - The Twins, 6.59 km awayGarvie, 17.84 km away
Teviot, 8.3 km away

Little Valley, 0.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?true
Co-rupture Count242
Co-rupture Rate2.0812176E-7

Beaumont River, 0.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?true
Co-rupture Count57
Co-rupture Rate2.3423404E-11

Blue Mountain, 1.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?true
Co-rupture Count254
Co-rupture Rate2.07938E-7

Tuapeka, 1.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Logan Burn, 2.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate3.4773423E-12

Lake Onslow, 3.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?true
Co-rupture Count46
Co-rupture Rate7.1245686E-6

Spylaw, 4.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate9.129755E-12

Hyde South - The Twins, 6.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate5.9085744E-12

Teviot, 8.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate2.420183E-12

Wendon Valley, 10.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waikaia, 14.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pylap, 15.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate3.4018801E-12

Galloway, 16.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate4.4827825E-10

Long Valley, 16.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count76
Co-rupture Rate6.337688E-10

Hyde North, 16.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate7.212125E-12

Old Man, 17.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garvie, 17.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
