Gable End South Details

PropertyValue
Rupture Count30
Ruptures Above Sect Min Mag28
Ruptures w/ Nonzero Rates23
Magnitude Range[6.62, 7.59]
Length Range[14, 129] km
Total Rate8.063445E-8 /yr
Multi-Fault Rate7.9528064E-8 /yr (98.63%)
Directly-Connected Faults2
All Co-Rupturing Faults5

Table Of Contents

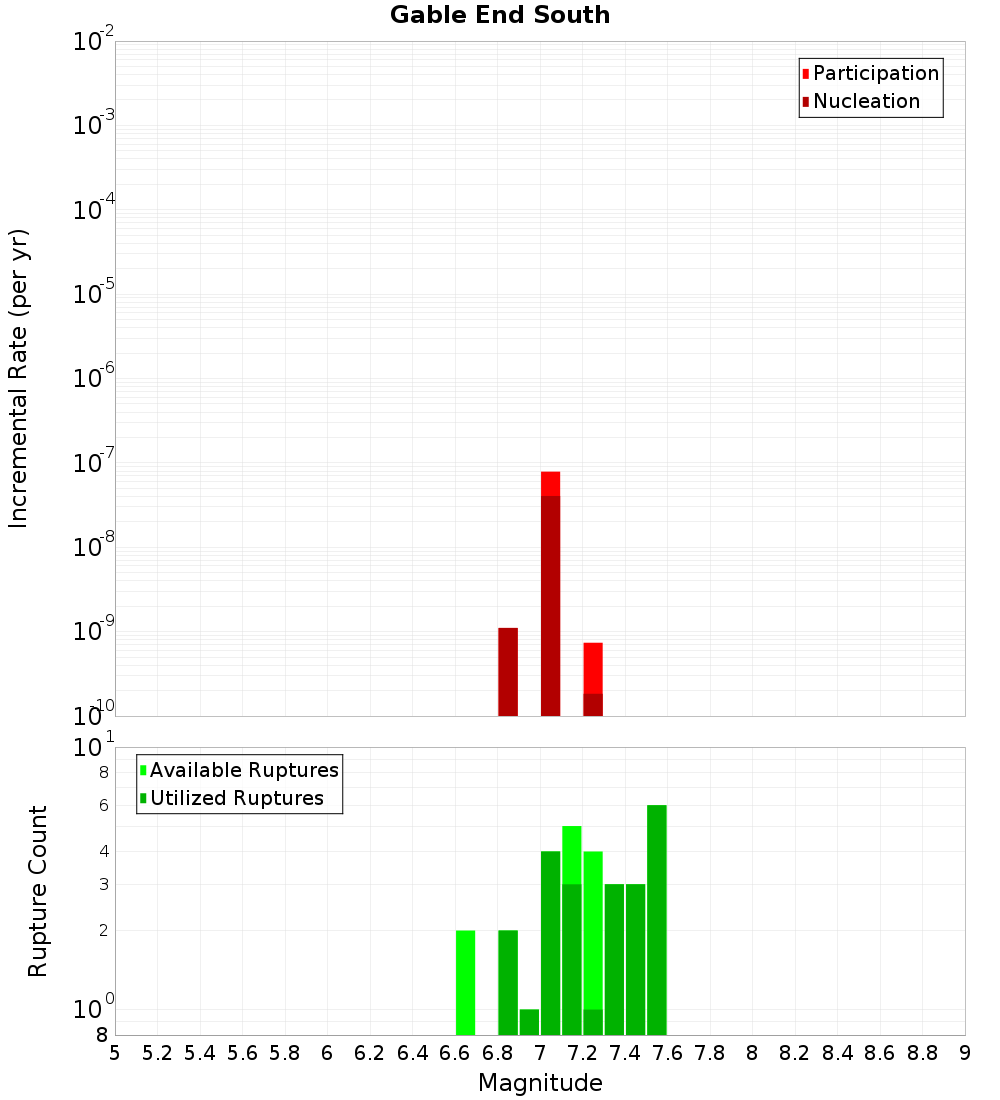

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

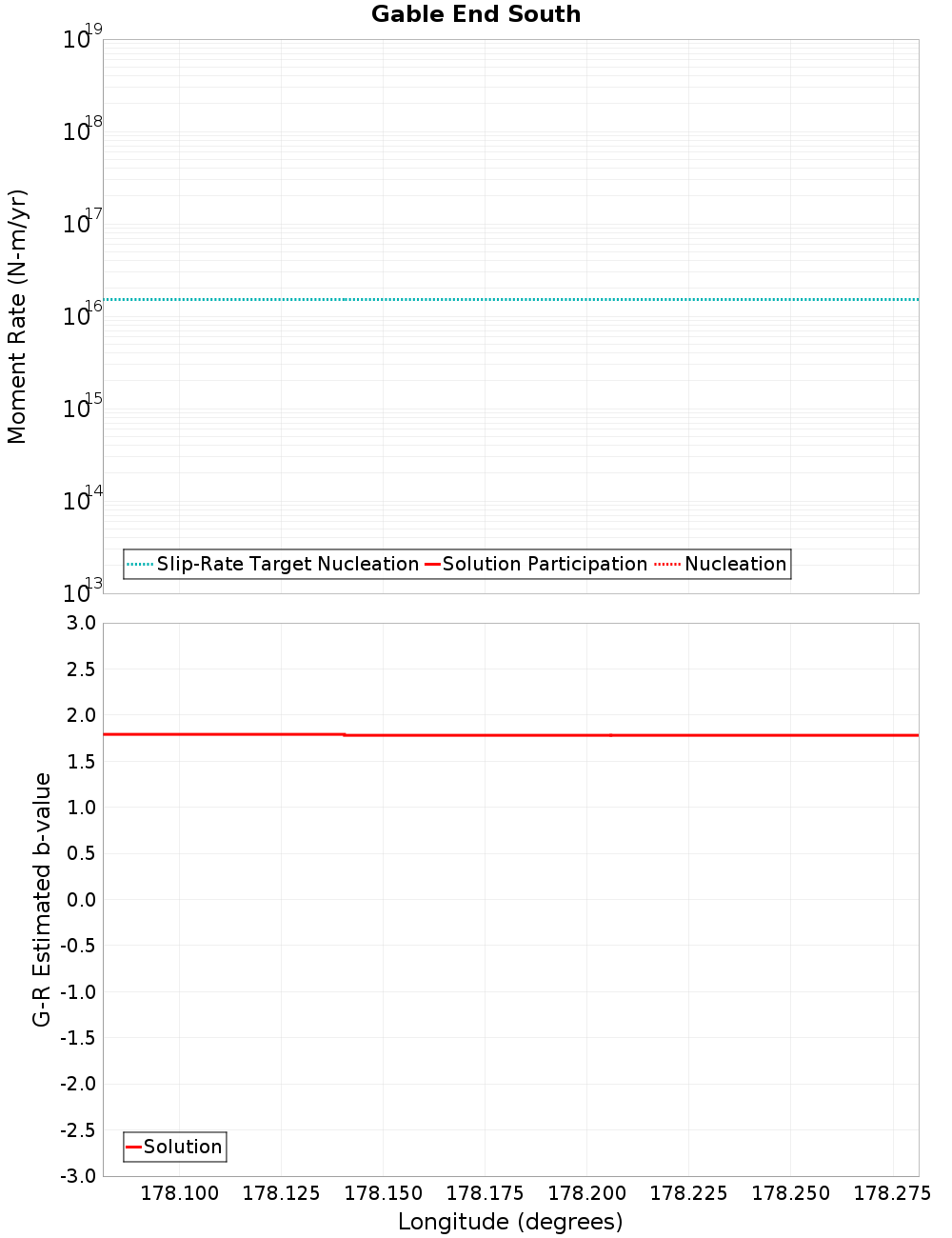

Moment-Rates and b-Values

(top)

Along-strike plot

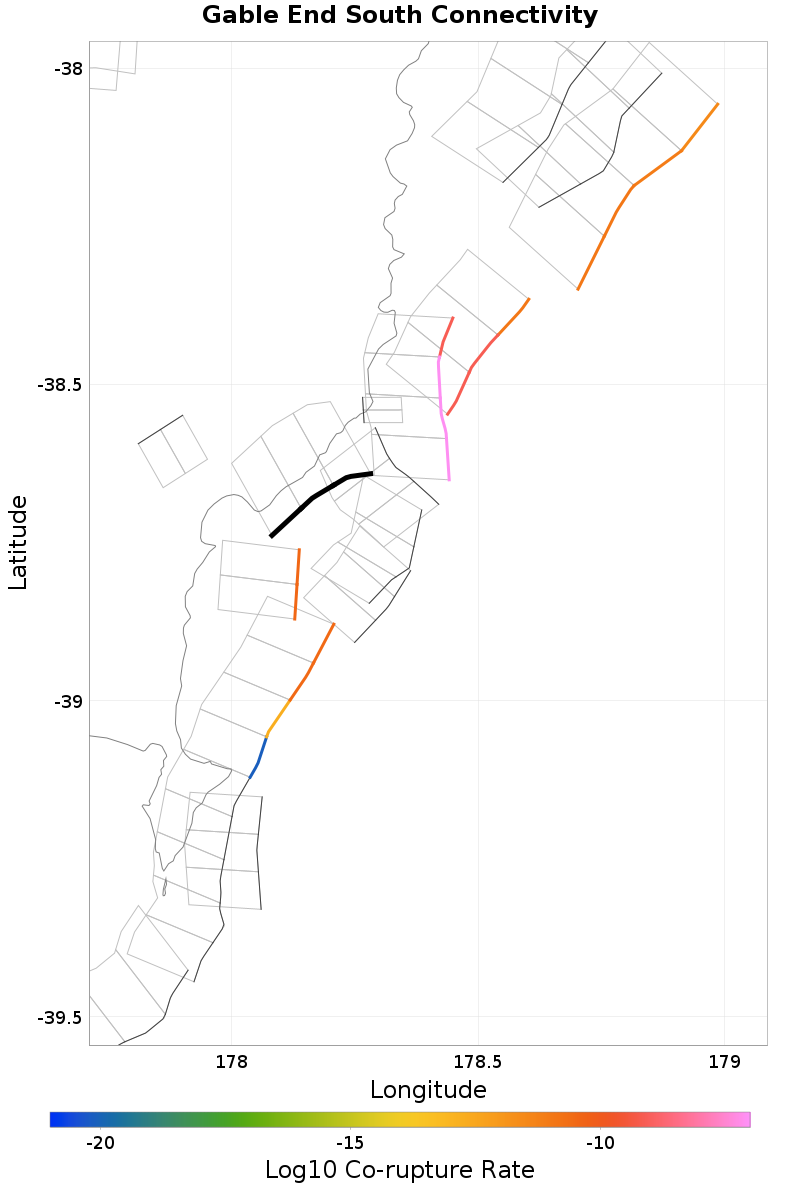

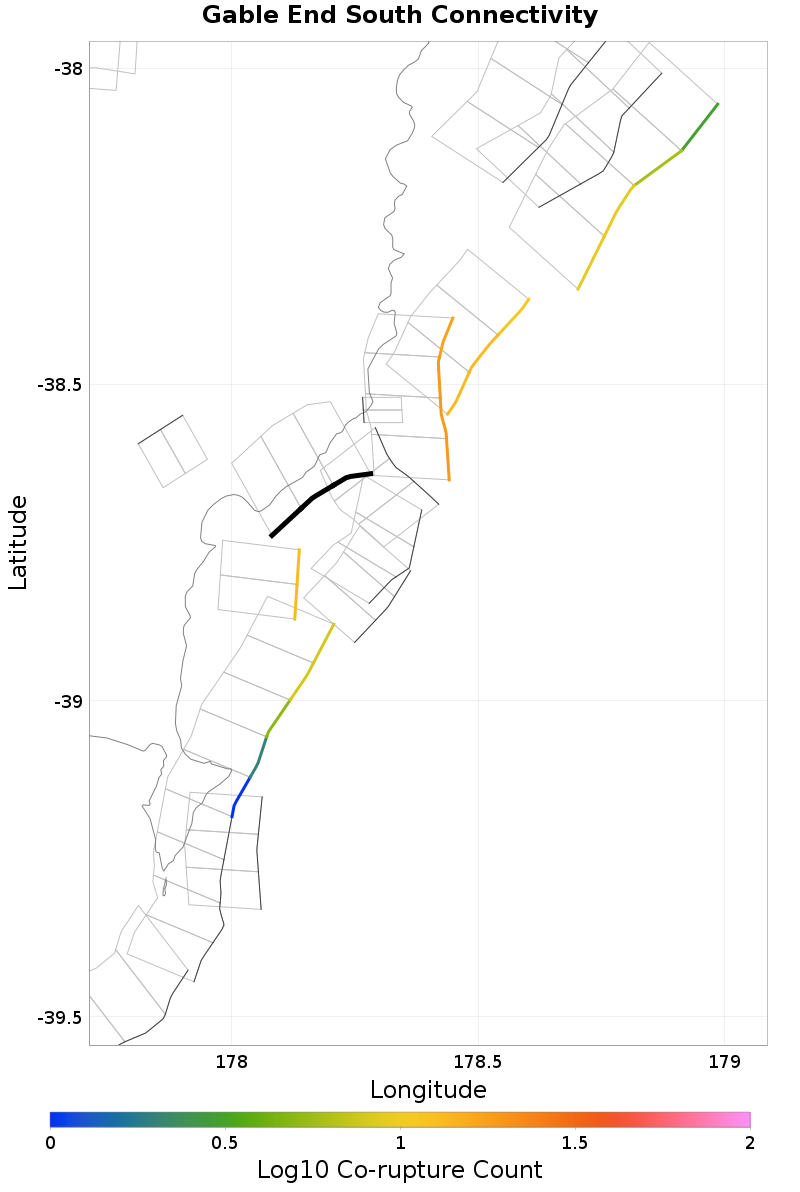

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Ikaarongamai, 0.43 km away
Poverty Bay, 3.79 km away
Repongaere, 5.2 km away
Gable End North, 5.25 km away
Pakarae, 5.55 km away
Ariel Bank, 7.12 km away
Ariel Bank 2, 11.88 km away
Ariel East, 13.13 km away
Lachlan 3, 14.5 km away

Te Ikaarongamai, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poverty Bay, 3.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate3.3761934E-11

Repongaere, 5.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gable End North, 5.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?true
Co-rupture Count19
Co-rupture Rate7.952774E-8

Pakarae, 5.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ariel Bank, 7.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ariel Bank 2, 11.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate7.49771E-10

Ariel East, 13.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lachlan 3, 14.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate2.972593E-11
