Hyde North Details

PropertyValue
Rupture Count233
Ruptures Above Sect Min Mag231
Ruptures w/ Nonzero Rates216
Magnitude Range[7.09, 8.00]
Length Range[28, 204] km
Total Rate2.8651171E-5 /yr
Multi-Fault Rate2.8651171E-5 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults25

Table Of Contents

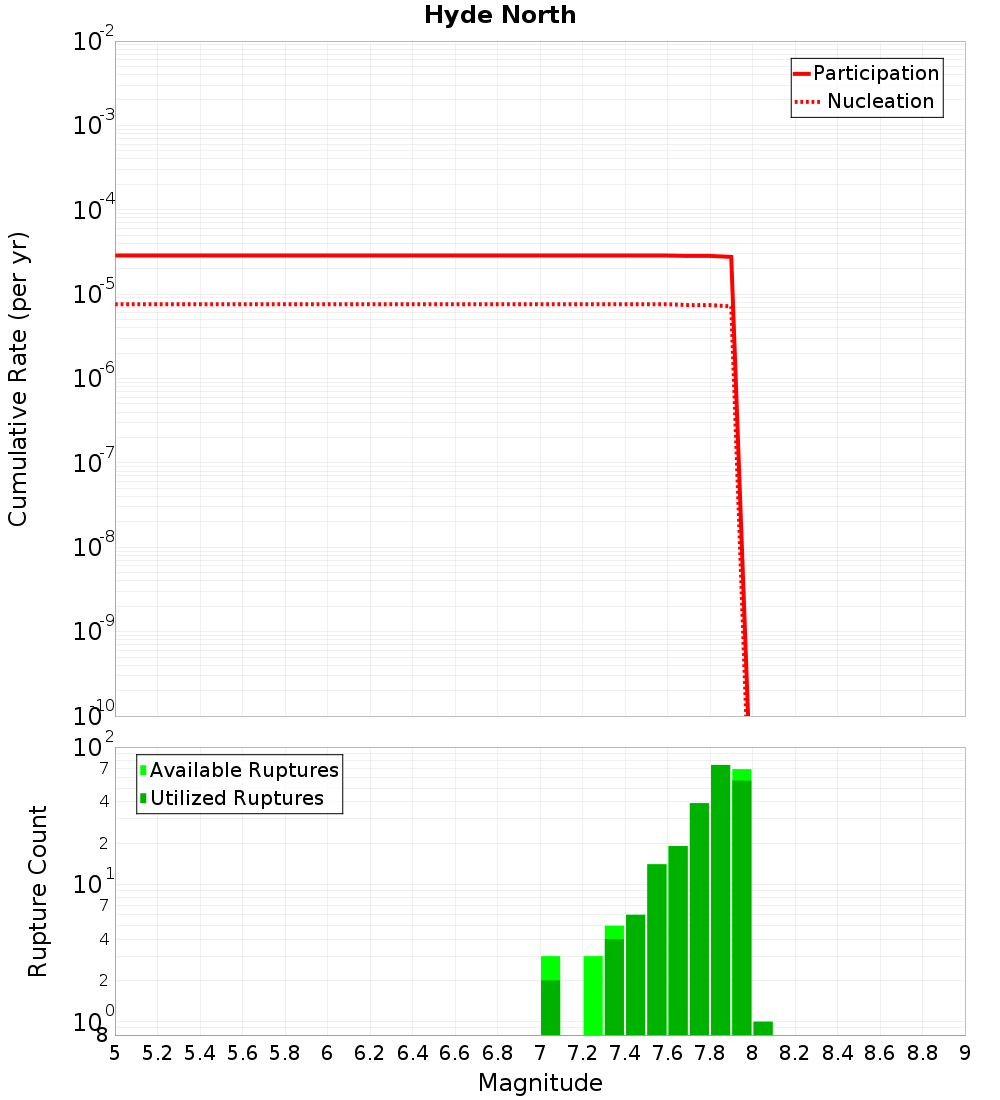

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

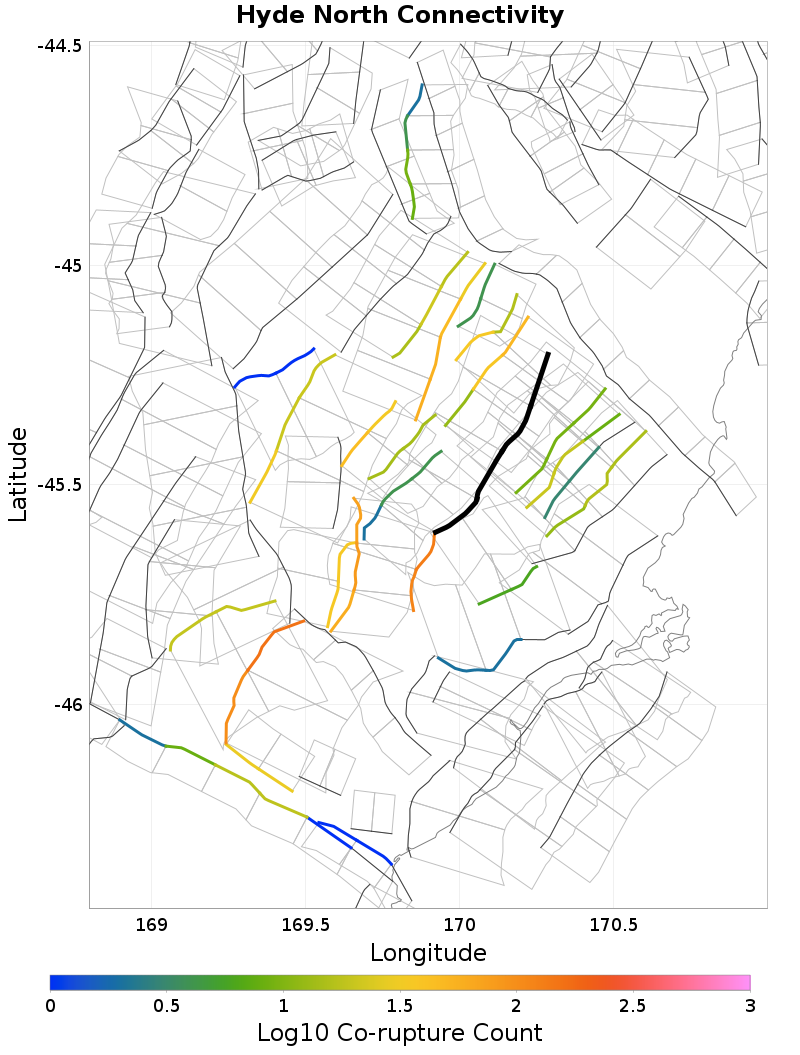

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Pylap, 0.03 km awayWaihemo, 9.13 km away
Ranfurly, 0.06 km awayMurphys Creek, 12.4 km away
Logan Burn, 0.07 km awayNichols Rock, 13.72 km away
Cross Eden, 0.18 km awayDunback Hill, 14.52 km away
Long Valley, 0.25 km awayFlat Stream - Glenpark, 14.79 km away
Hyde South - The Twins, 0.33 km awayGalloway, 15.33 km away
Beaumont River, 0.34 km awayGimmerburn, 16.09 km away
Waipiata, 0.42 km awayLake Onslow, 16.15 km away
Little Valley, 4.06 km awayBackbone, 16.61 km away
Horse Flat, 5.99 km awayMaungatua - North Taieri, 19.84 km away
Billys Ridge, 9.04 km away

Pylap, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?true
Co-rupture Count14
Co-rupture Rate3.3573777E-12

Ranfurly, 0.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?true
Co-rupture Count36
Co-rupture Rate2.2251694E-11

Logan Burn, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate5.0601504E-14

Cross Eden, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate6.361635E-16

Long Valley, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?true
Co-rupture Count45
Co-rupture Rate1.5558676E-11

Hyde South - The Twins, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?true
Co-rupture Count133
Co-rupture Rate2.8360537E-5

Beaumont River, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?true
Co-rupture Count84
Co-rupture Rate2.9063577E-7

Waipiata, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?true
Co-rupture Count52
Co-rupture Rate2.7609505E-5

Little Valley, 4.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate4.263514E-12

Horse Flat, 5.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?true
Co-rupture Count9
Co-rupture Rate1.2308755E-11

Billys Ridge, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate1.1600555E-11

Waihemo, 9.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Murphys Creek, 12.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate5.005692E-13

Nichols Rock, 13.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate4.3113148E-12

Dunback Hill, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate9.205542E-12

Flat Stream - Glenpark, 14.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Galloway, 15.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate3.2612973E-12

Gimmerburn, 16.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate1.601077E-11

Lake Onslow, 16.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Backbone, 16.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate7.212125E-12

Maungatua - North Taieri, 19.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate2.339464E-16
