Waitotara 8 & 9 Details
| Property | Value |
|---|---|
| Rupture Count | 35 |
| Ruptures Above Sect Min Mag | 34 |
| Ruptures w/ Nonzero Rates | 33 |
| Magnitude Range | [7.25, 7.88] |
| Length Range | [33, 143] km |
| Total Rate | 4.594107E-10 /yr |
| Multi-Fault Rate | 4.5941065E-10 /yr (100.00%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 8 |
Table Of Contents

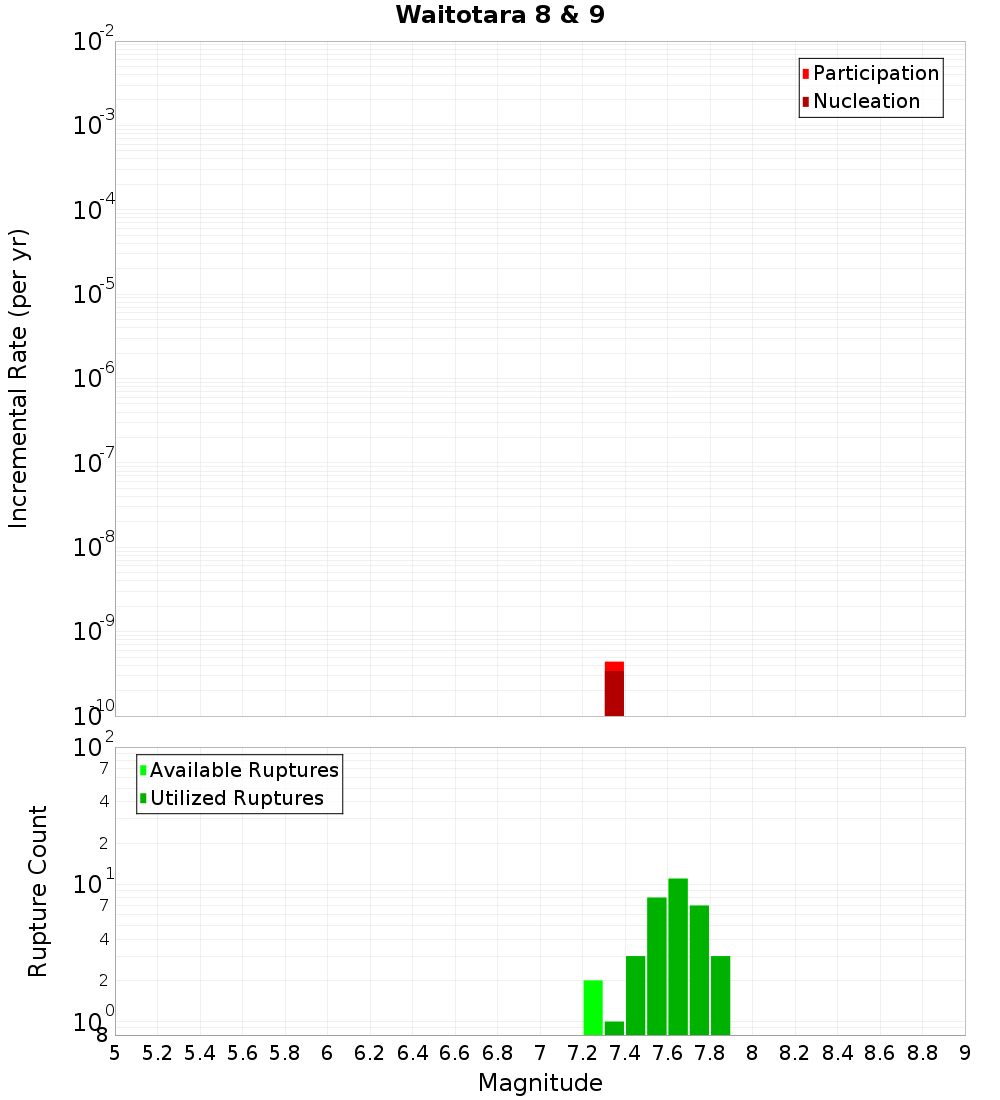

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

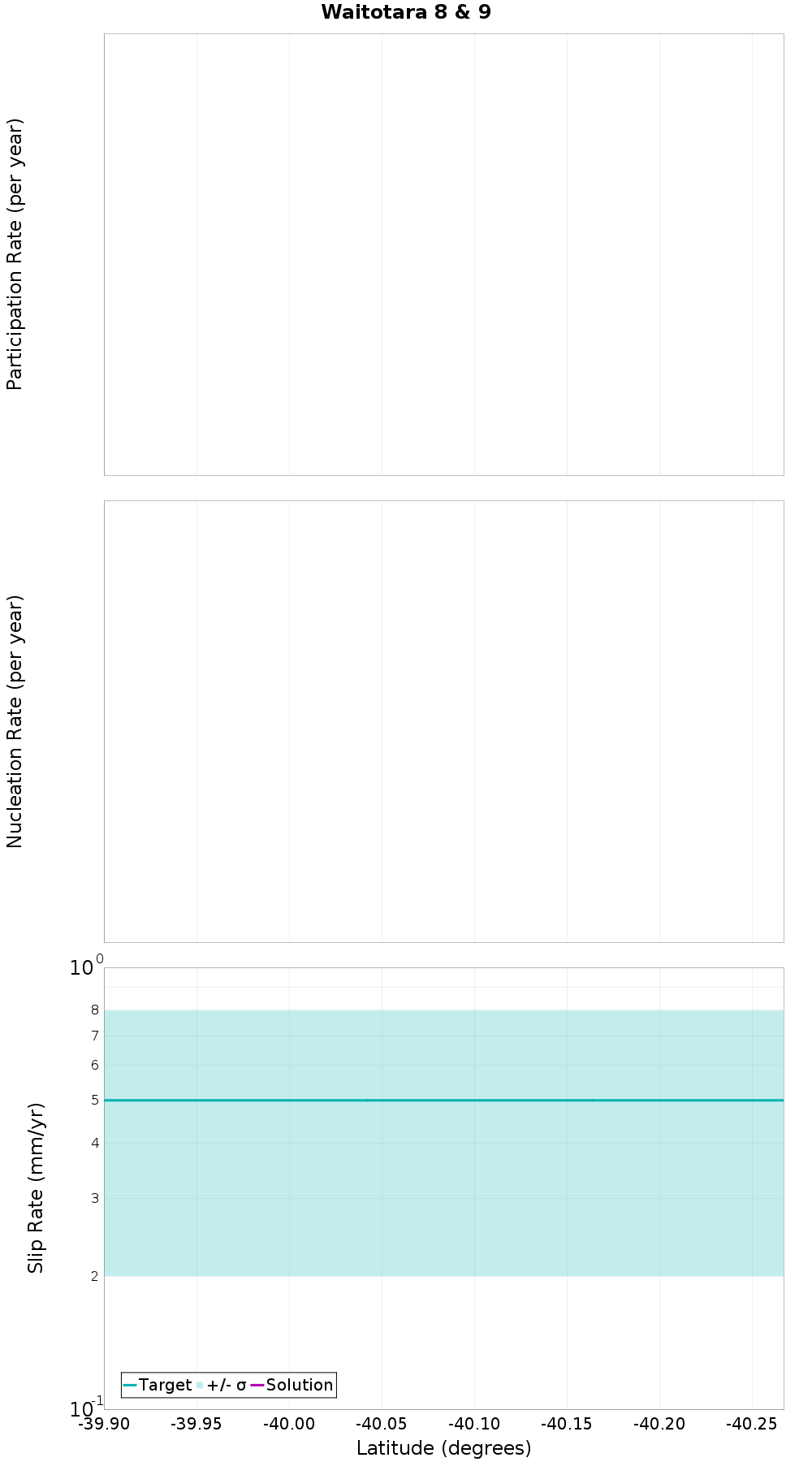

Along-Strike Values
Moment-Rates and b-Values

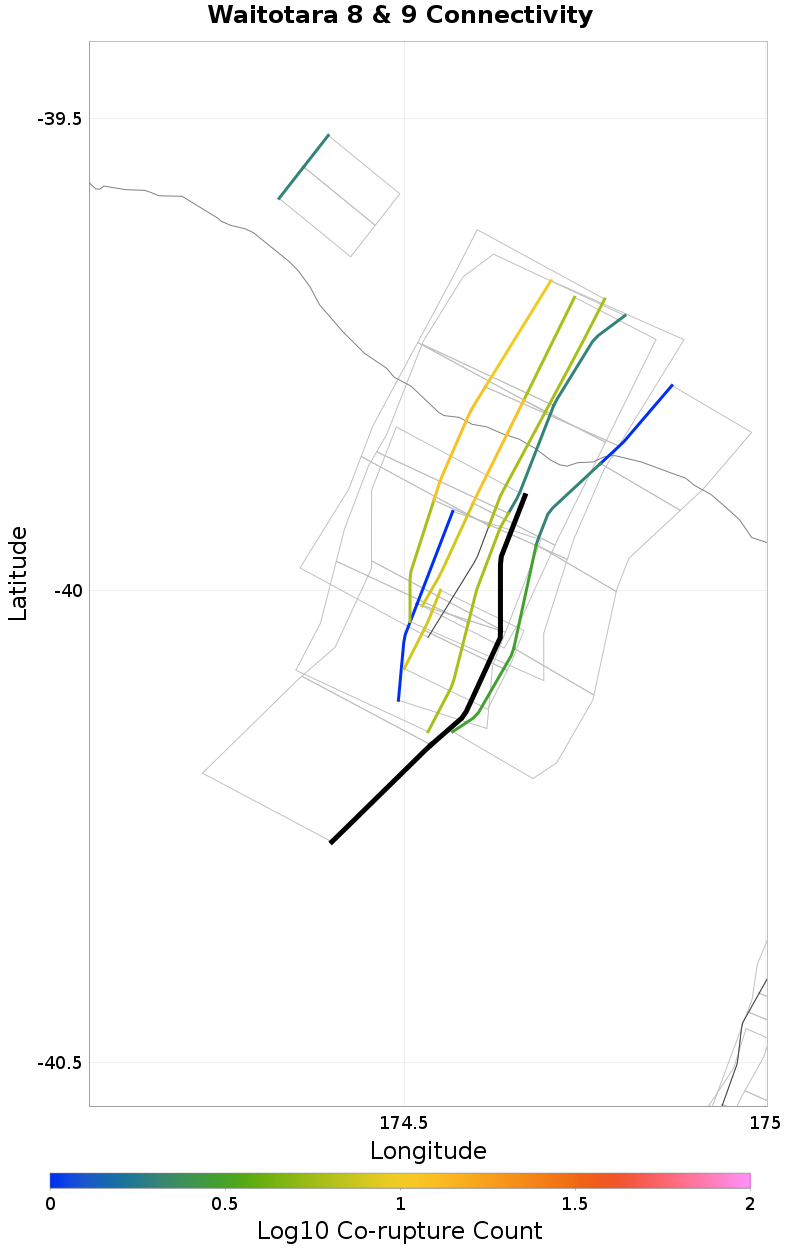

Connectivity
 |  |
|---|
Nearby Sections
Okaia 3, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 4.420925E-10 |
Waverley - Okaia 1, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 9.835192E-12 |
Okaia 5, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 1.1402722E-14 |
Moumahaki - Okaia 4, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 1.2667442E-12 |
Nukumuru - Waitotara 1-6, 0.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 2.7064306E-12 |
Waitotara 10 & 11, 0.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 1.2847112E-12 |
Ridge Road - Okaia 2, 2.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 4.330616E-12 |
