Wakamarama Details

Property	Value
Rupture Count	126
Ruptures Above Sect Min Mag	121
Ruptures w/ Nonzero Rates	97
Magnitude Range	[6.76, 7.96]
Length Range	[18, 246] km
Total Rate	1.9588191E-5 /yr
Multi-Fault Rate	1.8156545E-5 /yr (92.69%)
Directly-Connected Faults	6
All Co-Rupturing Faults	6

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

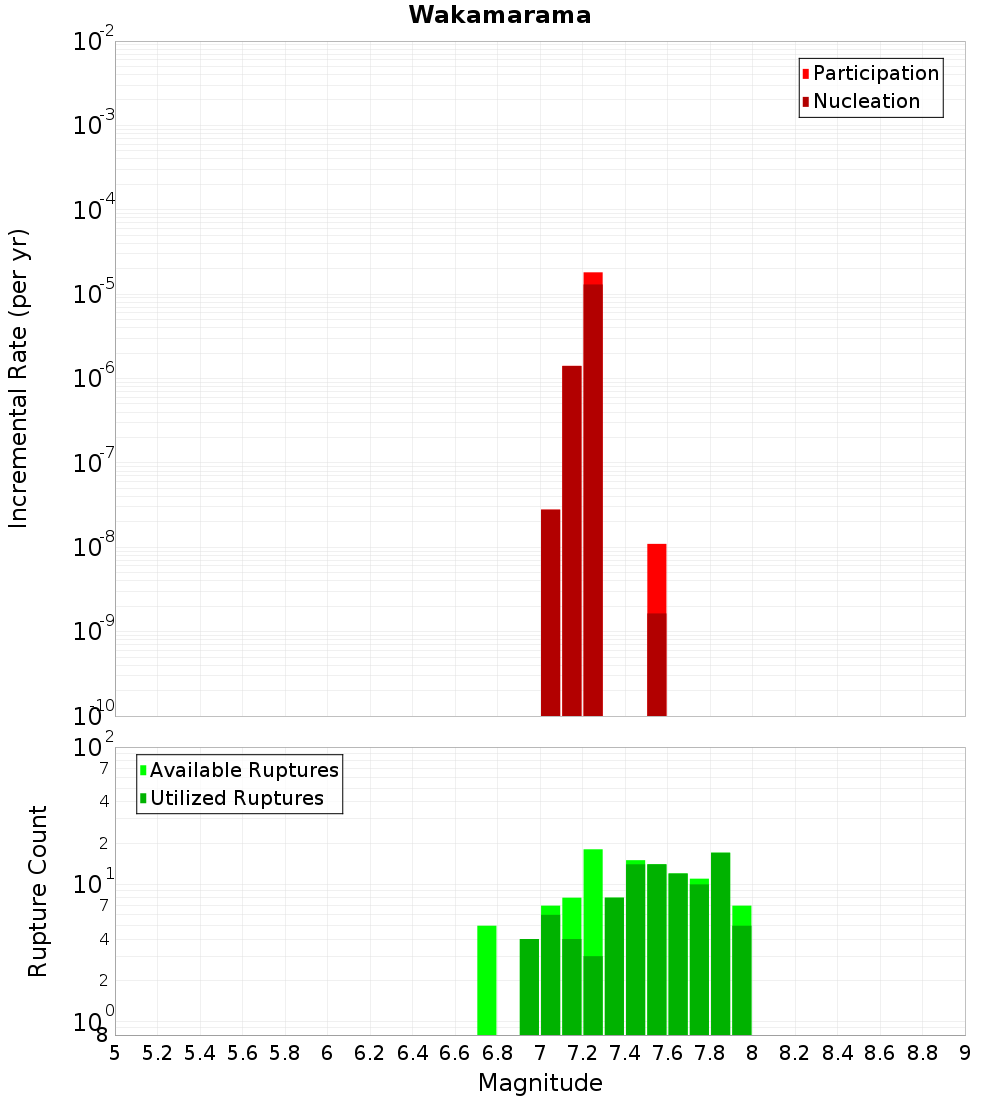

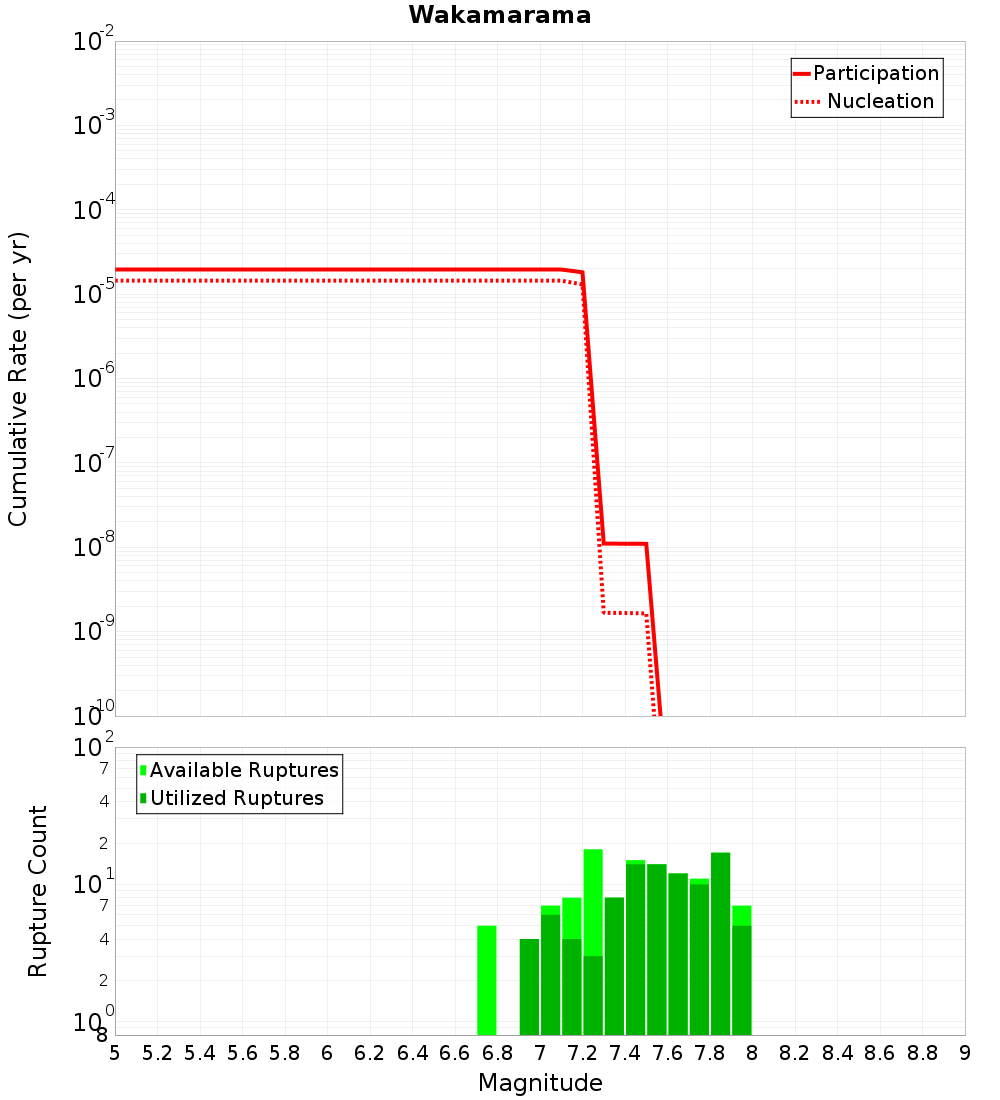

Magnitude-Frequency Distribution

Incremental	Cumulative

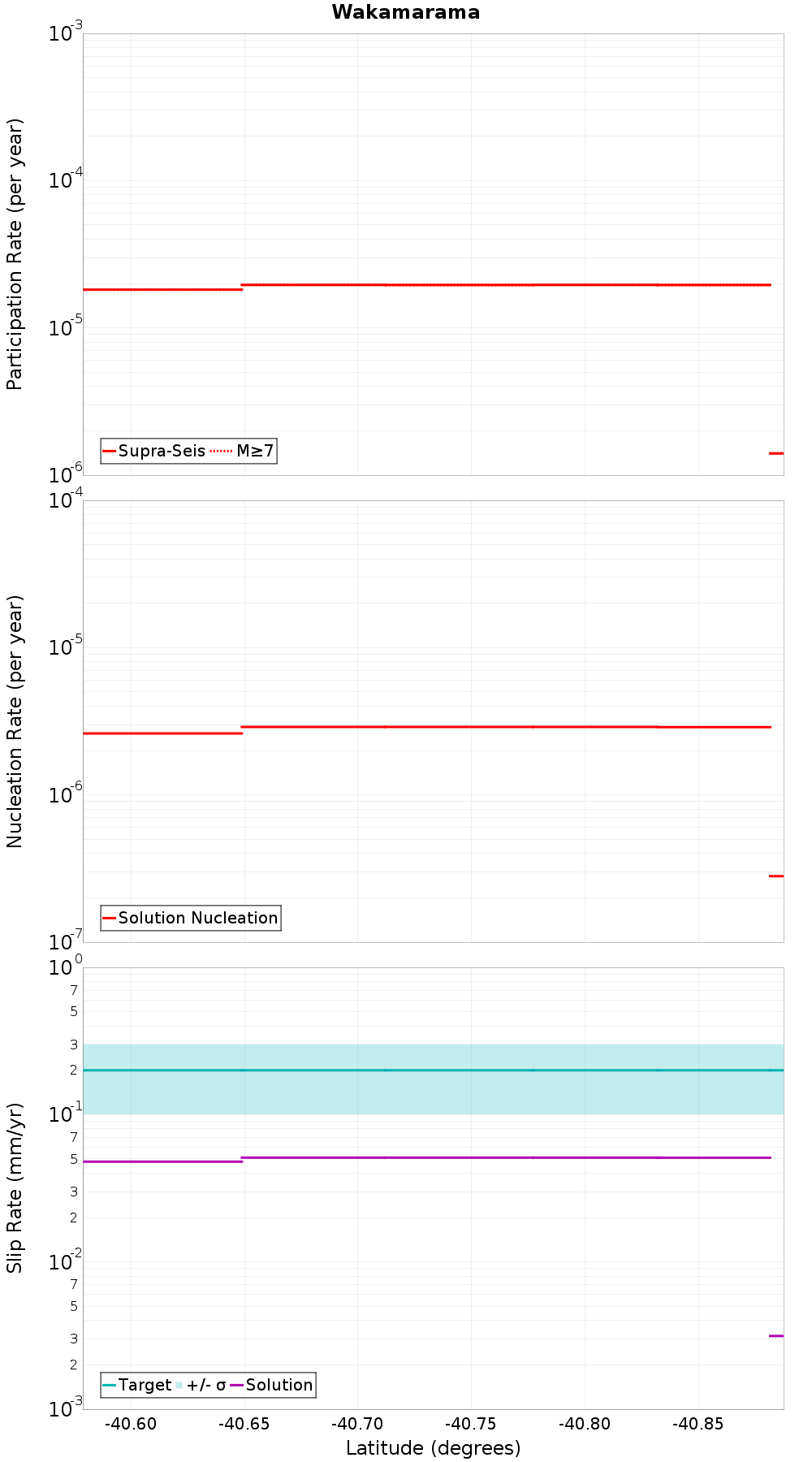

Along-Strike Values

Moment-Rates and b-Values

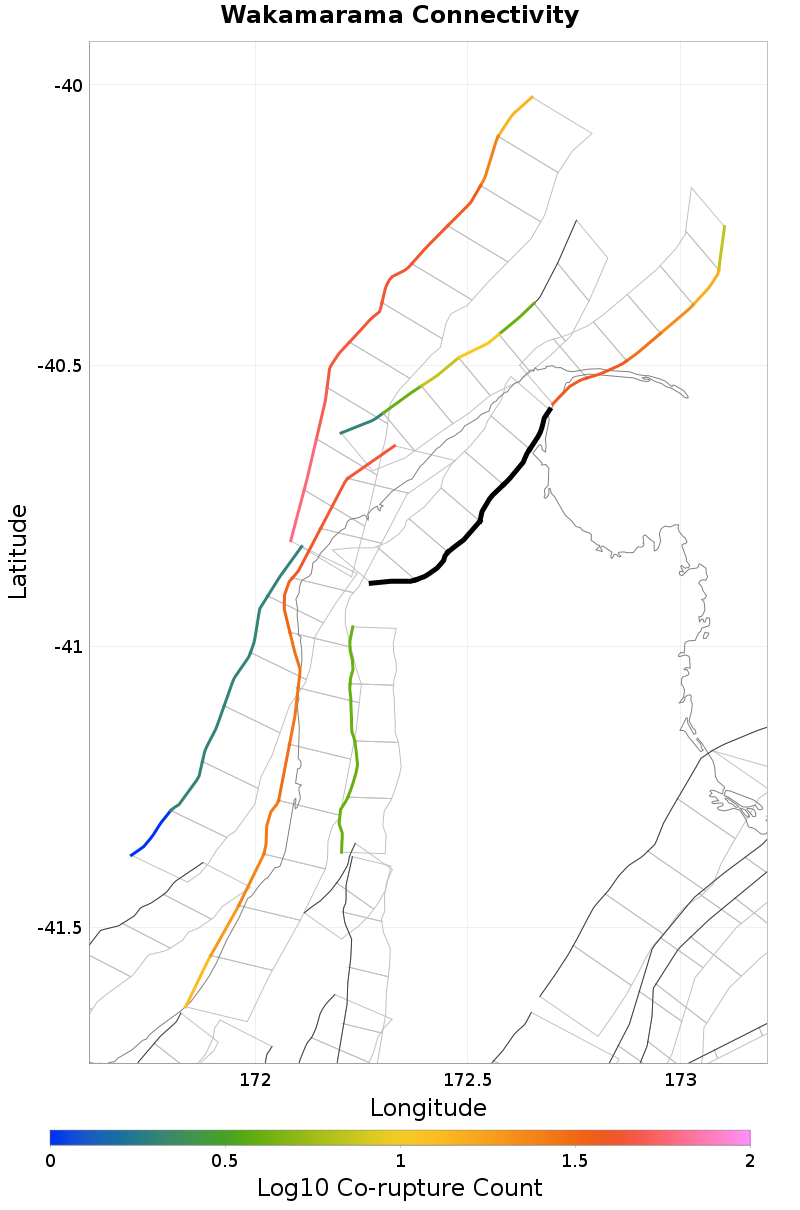

Connectivity

Nearby Sections

Fault Section
Kahurangi, 0.07 km away
Farewell, 0.23 km away
Kongahau, 0.44 km away
Wakamarama Offshore, 1.32 km away
Cape Foulwind 4, 1.46 km away
Kohaihai, 9.33 km away

Kahurangi, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?	true
Directly Connected?	true
Co-rupture Count	59
Co-rupture Rate	1.0976512E-8

Farewell, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?	true
Directly Connected?	true
Co-rupture Count	11
Co-rupture Rate	1.1133571E-10

Kongahau, 0.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?	true
Directly Connected?	true
Co-rupture Count	47
Co-rupture Rate	4.750074E-11

Wakamarama Offshore, 1.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?	true
Directly Connected?	true
Co-rupture Count	38
Co-rupture Rate	1.8145412E-5

Cape Foulwind 4, 1.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	5.216701E-12

Kohaihai, 9.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	1.4110921E-12
