Waverley - Okaia 1 Details
| Property | Value |
|---|---|
| Rupture Count | 31 |
| Ruptures Above Sect Min Mag | 30 |
| Ruptures w/ Nonzero Rates | 28 |
| Magnitude Range | [7.21, 7.88] |
| Length Range | [29, 143] km |
| Total Rate | 2.2687158E-11 /yr |
| Multi-Fault Rate | 2.2687158E-11 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

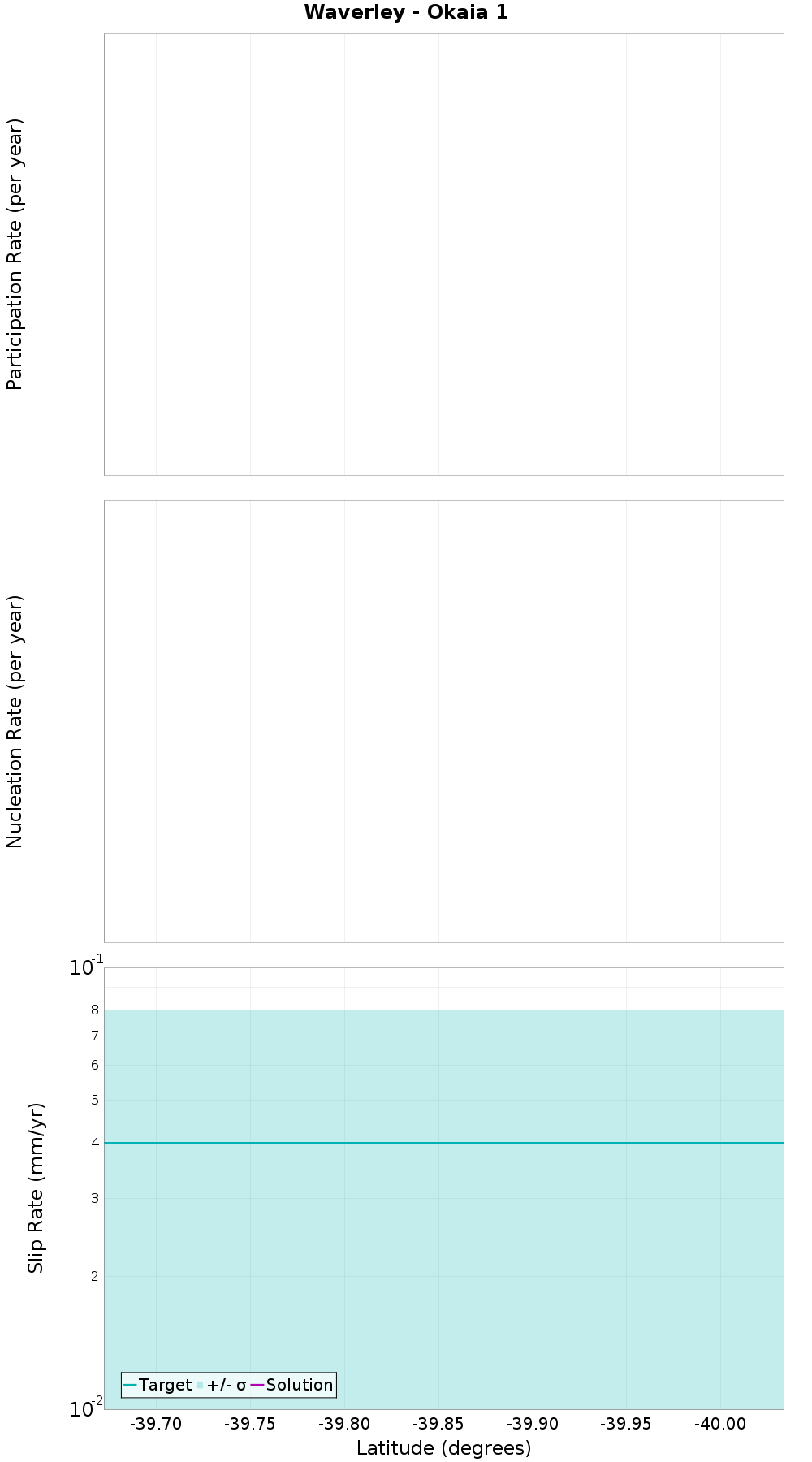

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Ridge Road - Okaia 2, 0.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 4.1744913E-15 |
Moumahaki - Okaia 4, 0.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 16 |
| Co-rupture Rate | 1.178636E-11 |
Okaia 5, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 1.9565018E-17 |
Waitotara 8 & 9, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 9.835192E-12 |
Waitotara 10 & 11, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 7.3701635E-12 |
Okaia 3, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 9 |
| Co-rupture Rate | 6.388527E-12 |
Nukumuru - Waitotara 1-6, 5.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjIuMG5SSExo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 7.907719E-14 |
