Riversdale Details

Property	Value
Rupture Count	737
Ruptures Above Sect Min Mag	734
Ruptures w/ Nonzero Rates	70
Magnitude Range	[6.69, 8.20]
Length Range	[16, 476] km
Total Rate	2.5878404E-5 /yr
Multi-Fault Rate	2.5872348E-5 /yr (99.98%)
Directly-Connected Faults	6
All Co-Rupturing Faults	48

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

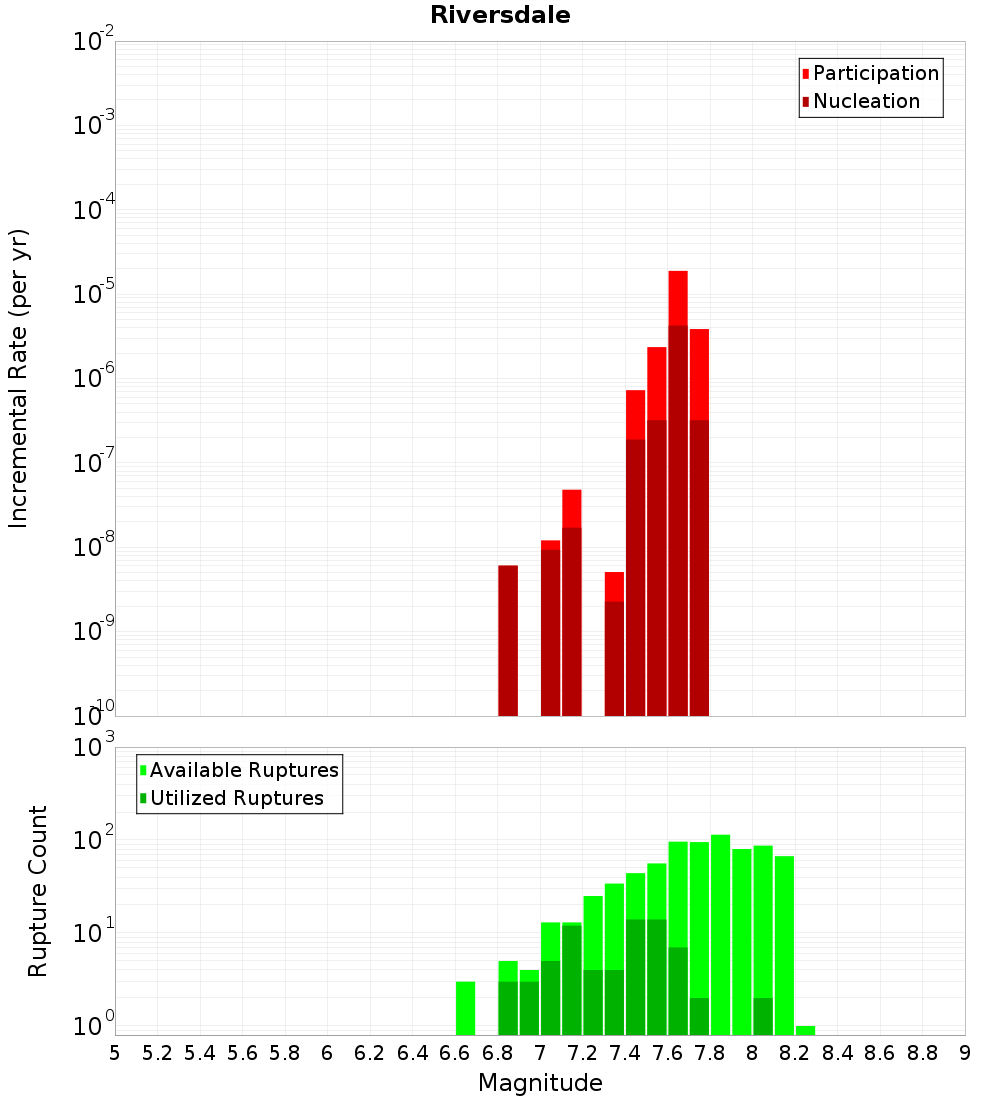

Magnitude-Frequency Distribution

Incremental	Cumulative

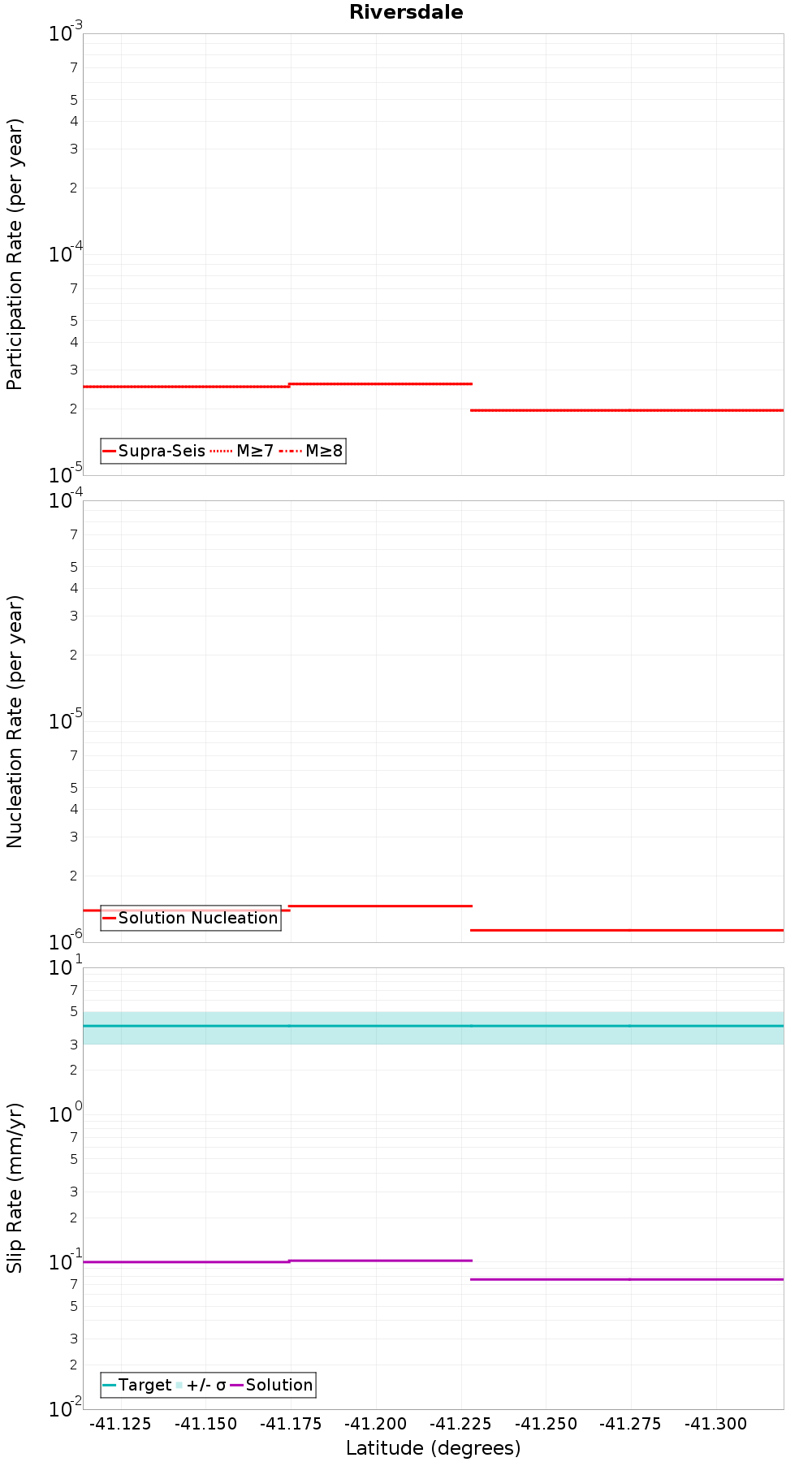

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Uruti Point, 0.2 km away
Riversdale North, 1.12 km away
Palliser - Kaiwhata, 3.25 km away
Whareama Bank, 5.42 km away
Mataikona, 6.53 km away
Honeycomb, 6.88 km away
Uruti Basin, 8.5 km away
Kaumingi, 9.84 km away
Carterton, 10.74 km away
Mataikona East, 18.13 km away
Opouawe - Uruti, 18.85 km away
Uruti Basin 2, 19.51 km away

Uruti Point, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjQuMFcyNjlz
Connected?	true
Directly Connected?	true
Co-rupture Count	384
Co-rupture Rate	7.0246037E-6

Riversdale North, 1.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjQuMFcyNjlz
Connected?	true
Directly Connected?	true
Co-rupture Count	31
Co-rupture Rate	1.8812265E-5

Palliser - Kaiwhata, 3.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjQuMFcyNjlz
Connected?	true
Directly Connected?	true
Co-rupture Count	587
Co-rupture Rate	2.5089457E-5

Whareama Bank, 5.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjQuMFcyNjlz
Connected?	true
Directly Connected?	true
Co-rupture Count	6
Co-rupture Rate	5.0839795E-9

Mataikona, 6.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjQuMFcyNjlz
Connected?	true
Directly Connected?	false
Co-rupture Count	123
Co-rupture Rate	7.609313E-7

Honeycomb, 6.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjQuMFcyNjlz
Connected?	true
Directly Connected?	false
Co-rupture Count	60
Co-rupture Rate	1.382756E-9

Uruti Basin, 8.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjQuMFcyNjlz
Connected?	true
Directly Connected?	true
Co-rupture Count	63
Co-rupture Rate	3.8570092E-6

Kaumingi, 9.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjQuMFcyNjlz
Connected?	true
Directly Connected?	true
Co-rupture Count	126
Co-rupture Rate	3.1157135E-6

Carterton, 10.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjQuMFcyNjlz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mataikona East, 18.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjQuMFcyNjlz
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	5.0828266E-9

Opouawe - Uruti, 18.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjQuMFcyNjlz
Connected?	true
Directly Connected?	false
Co-rupture Count	72
Co-rupture Rate	5.6135097E-8

Uruti Basin 2, 19.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjQuMFcyNjlz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
