Chancet Details
| Property | Value |
|---|---|
| Rupture Count | 3,014 |
| Ruptures Above Sect Min Mag | 3,007 |
| Ruptures w/ Nonzero Rates | 63 |
| Magnitude Range | [6.58, 8.53] |
| Length Range | [14, 947] km |
| Total Rate | 6.222683E-4 /yr |
| Multi-Fault Rate | 6.0136034E-4 /yr (96.64%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 72 |
Table Of Contents

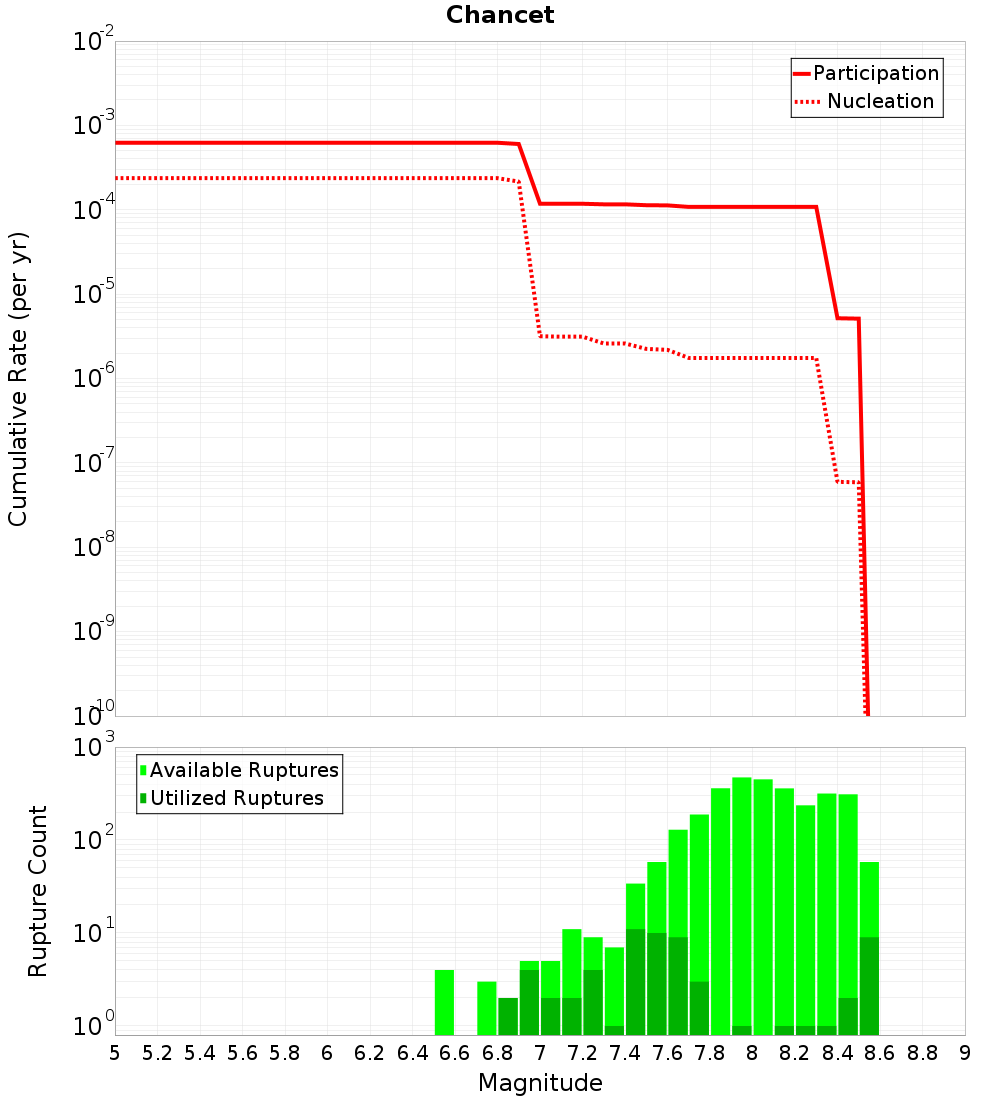

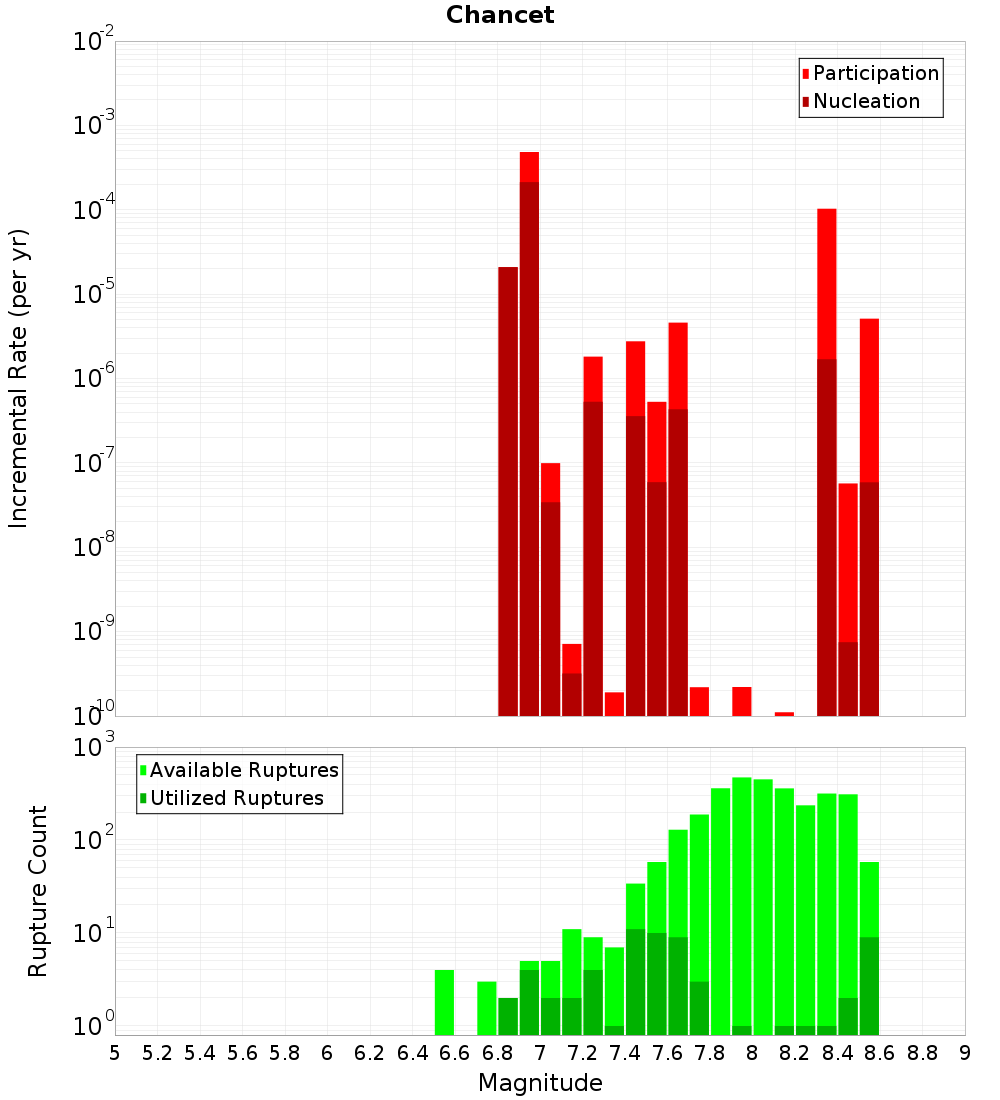

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

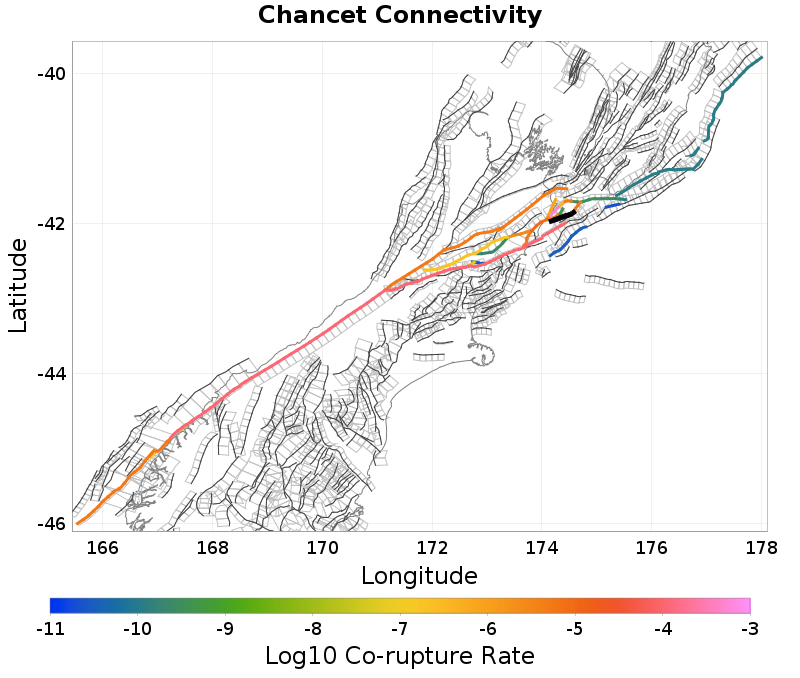

Connectivity
 |  |
|---|
Nearby Sections
Campbell Bank, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjYuMFFwdVpK | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,841 |
| Co-rupture Rate | 5.183087E-6 |
Wharanui, 0.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjYuMFFwdVpK | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
London Hill, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjYuMFFwdVpK | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 150 |
| Co-rupture Rate | 8.136536E-7 |
Upper Slope, 1.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjYuMFFwdVpK | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Needles East 2, 2.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjYuMFFwdVpK | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 496 |
| Co-rupture Rate | 5.432641E-6 |
Needles, 6.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjYuMFFwdVpK | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 877 |
| Co-rupture Rate | 4.8722306E-4 |
Kekerengu 1, 7.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjYuMFFwdVpK | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 724 |
| Co-rupture Rate | 9.061216E-6 |
Hope: Te Rapa, 8.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjYuMFFwdVpK | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 889 |
| Co-rupture Rate | 1.0294171E-4 |
Te Rapa 1, 8.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjYuMFFwdVpK | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 23 |
| Co-rupture Rate | 0.0 |
Te Rapa 2, 11.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjYuMFFwdVpK | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 23 |
| Co-rupture Rate | 0.0 |
Kekerengu Bank, 15.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjYuMFFwdVpK | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 123 |
| Co-rupture Rate | 3.0502878E-11 |
BooBoo, 15.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjYuMFFwdVpK | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,634 |
| Co-rupture Rate | 5.1208312E-6 |
Clarence: Northeast, 18.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjYuMFFwdVpK | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
