Wakamarama Offshore Details
| Property | Value |
|---|---|
| Rupture Count | 60 |
| Ruptures Above Sect Min Mag | 55 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.75, 7.63] |
| Length Range | [17, 129] km |
| Total Rate | 5.7421294E-6 /yr |
| Multi-Fault Rate | 5.742069E-6 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

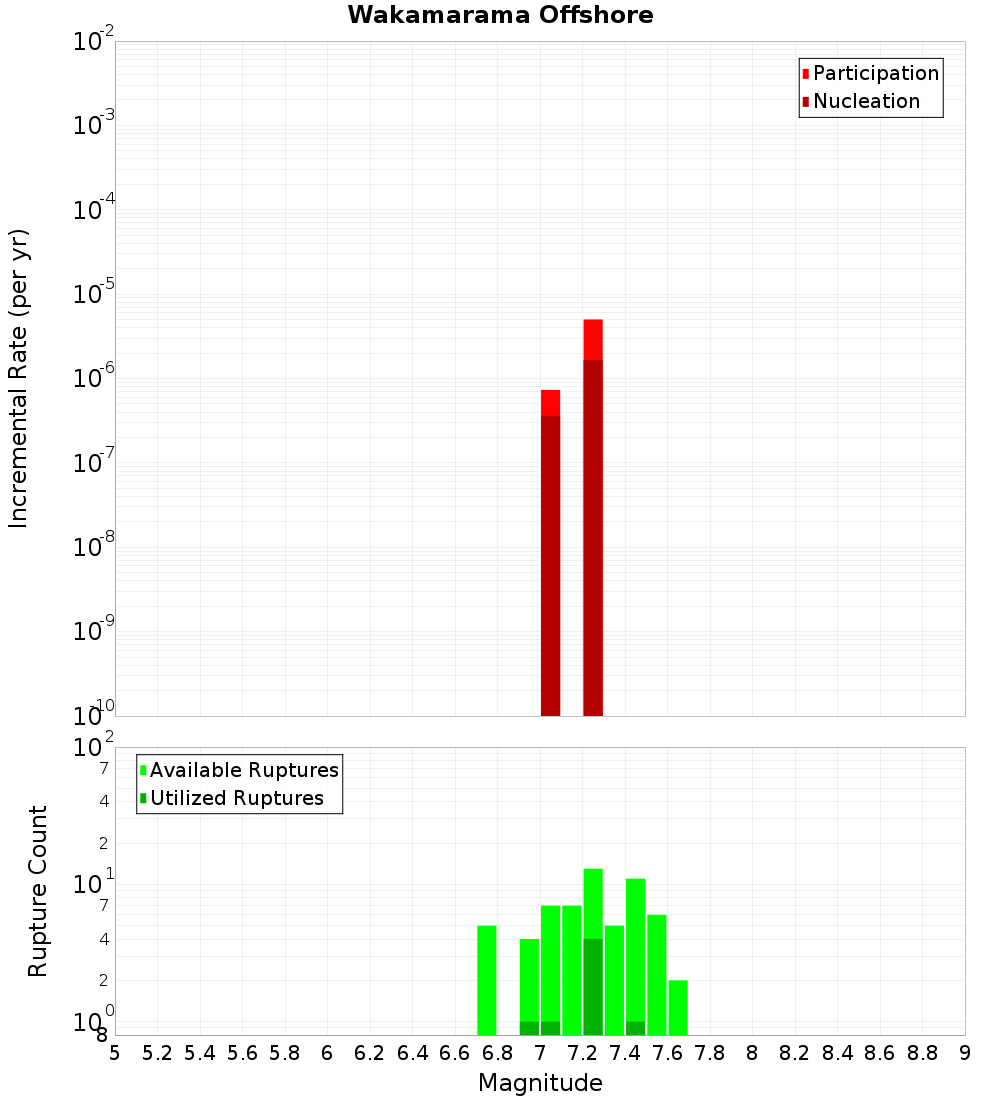

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

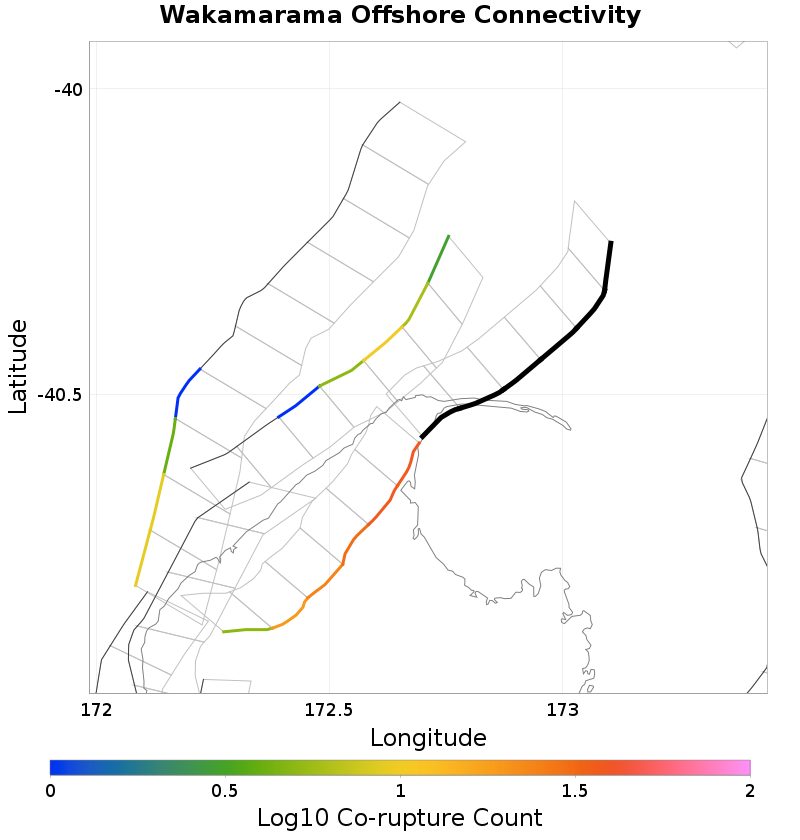

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Farewell, 0.22 km away |
| Wakamarama, 1.32 km away |
| Kahurangi, 15.74 km away |
Farewell, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjYuMFFwdVpK | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 7.336184E-7 |
Wakamarama, 1.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjYuMFFwdVpK | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 38 |
| Co-rupture Rate | 5.0084504E-6 |
Kahurangi, 15.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NjYuMFFwdVpK | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 9 |
| Co-rupture Rate | 0.0 |
