Poutu Details
| Property | Value |
|---|---|
| Rupture Count | 23 |
| Ruptures Above Sect Min Mag | 20 |
| Ruptures w/ Nonzero Rates | 13 |
| Magnitude Range | [6.48, 7.17] |
| Length Range | [13, 60] km |
| Total Rate | 1.2312358E-4 /yr |
| Multi-Fault Rate | 1.2312358E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 2 |
Table Of Contents

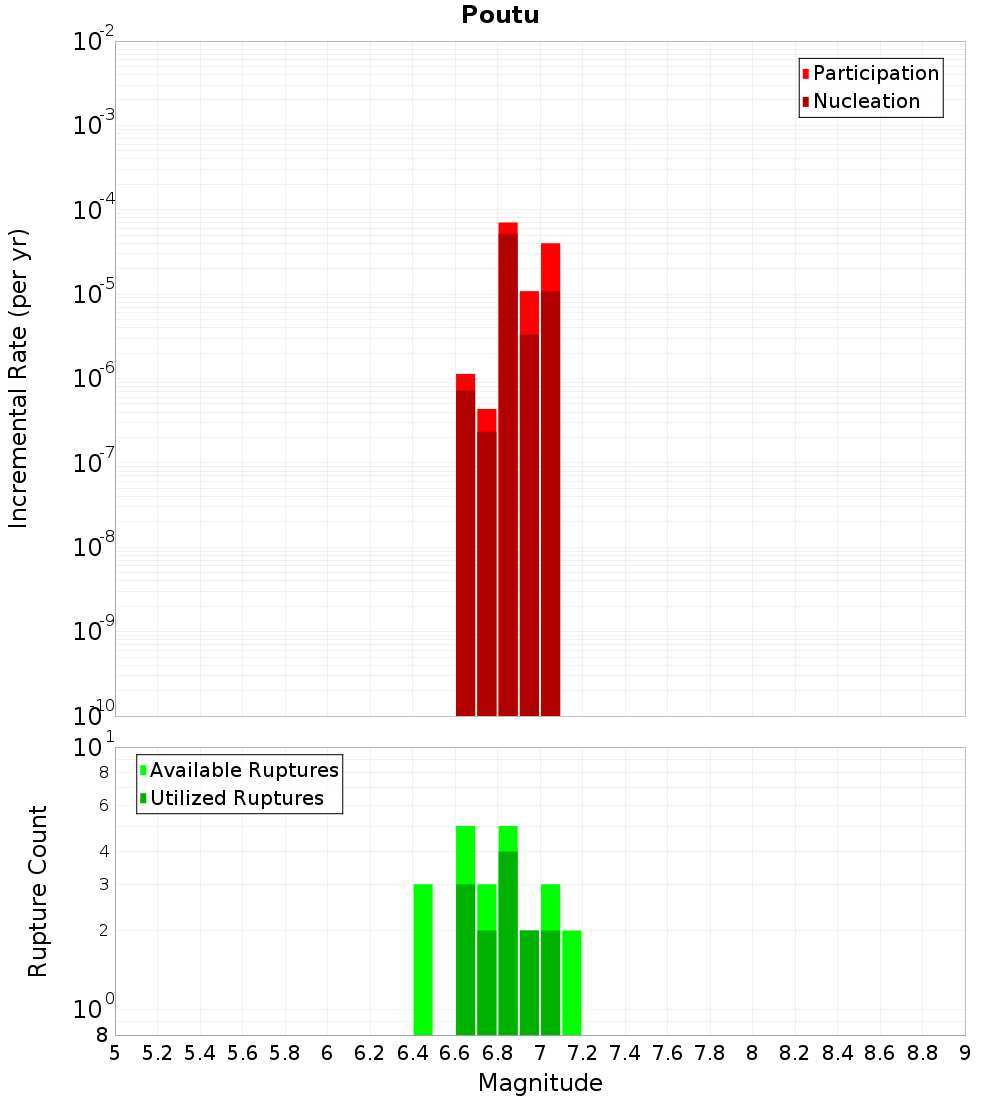

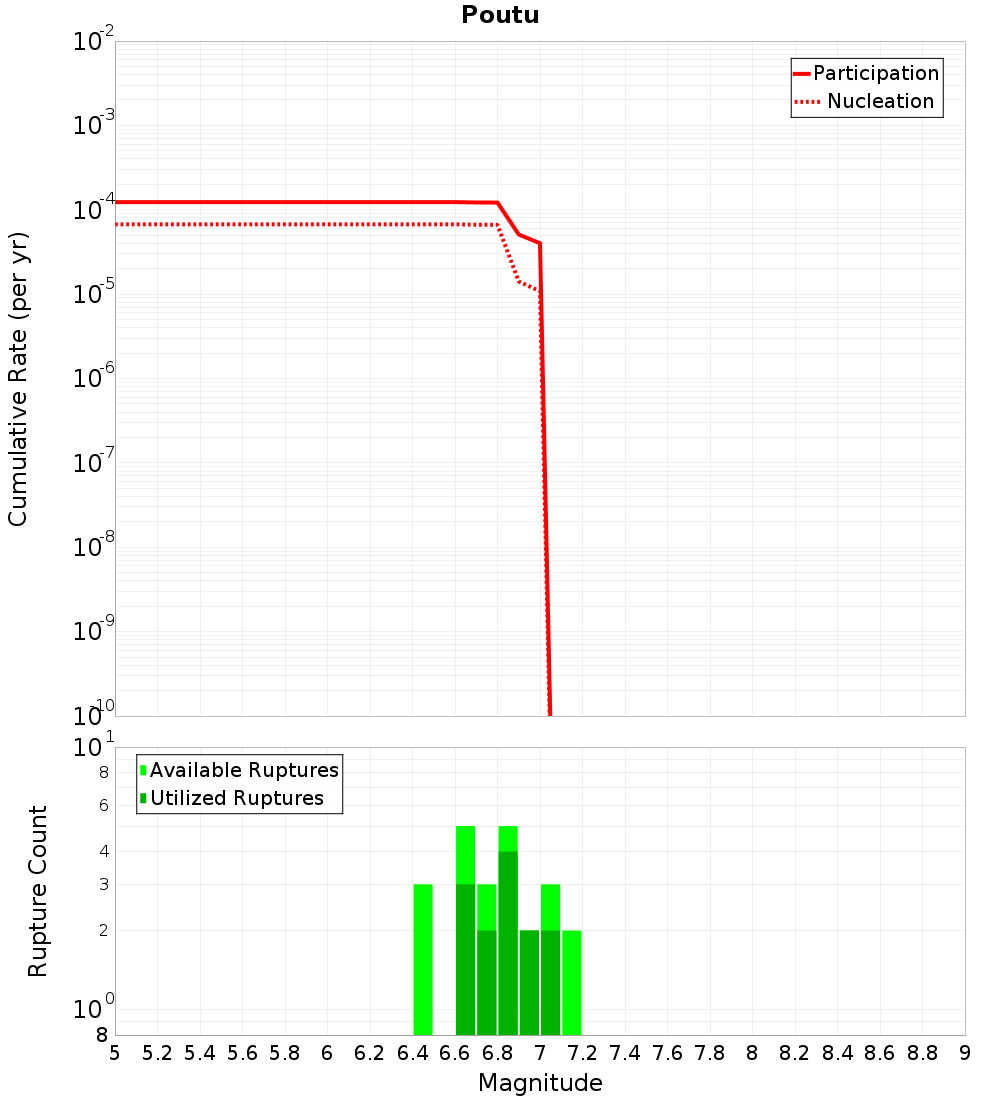

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

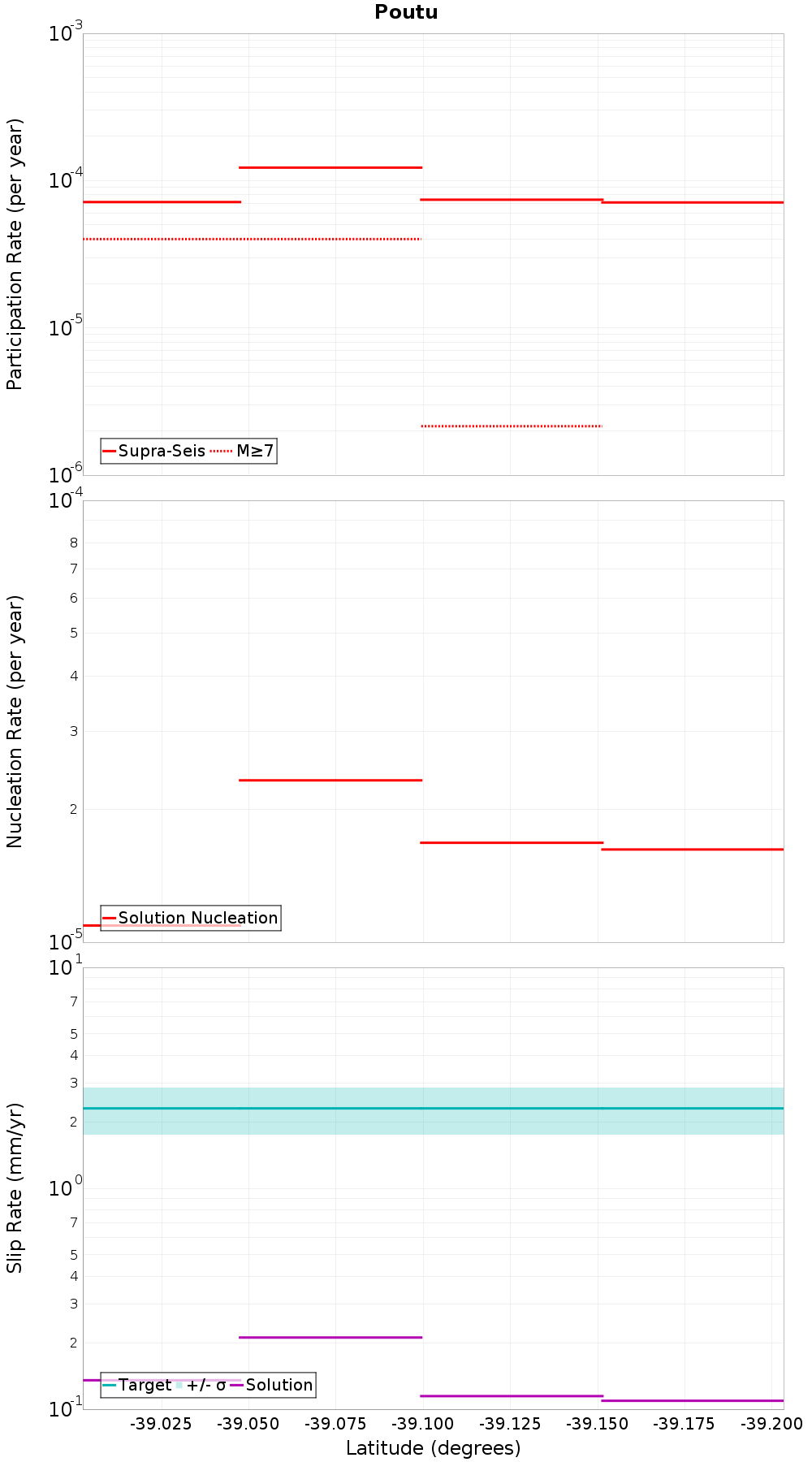

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Waihi West, 0.1 km away |
| Waihi South, 0.22 km away |
Waihi West, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NzcuMDNzWHFx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 15 |
| Co-rupture Rate | 1.1215193E-4 |
Waihi South, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NzcuMDNzWHFx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 5.1129155E-5 |
