Turi: Central Details
| Property | Value |
|---|---|
| Rupture Count | 192 |
| Ruptures Above Sect Min Mag | 191 |
| Ruptures w/ Nonzero Rates | 12 |
| Magnitude Range | [6.98, 7.93] |
| Length Range | [23, 208] km |
| Total Rate | 9.0852634E-5 /yr |
| Multi-Fault Rate | 9.0852634E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 13 |
Table Of Contents

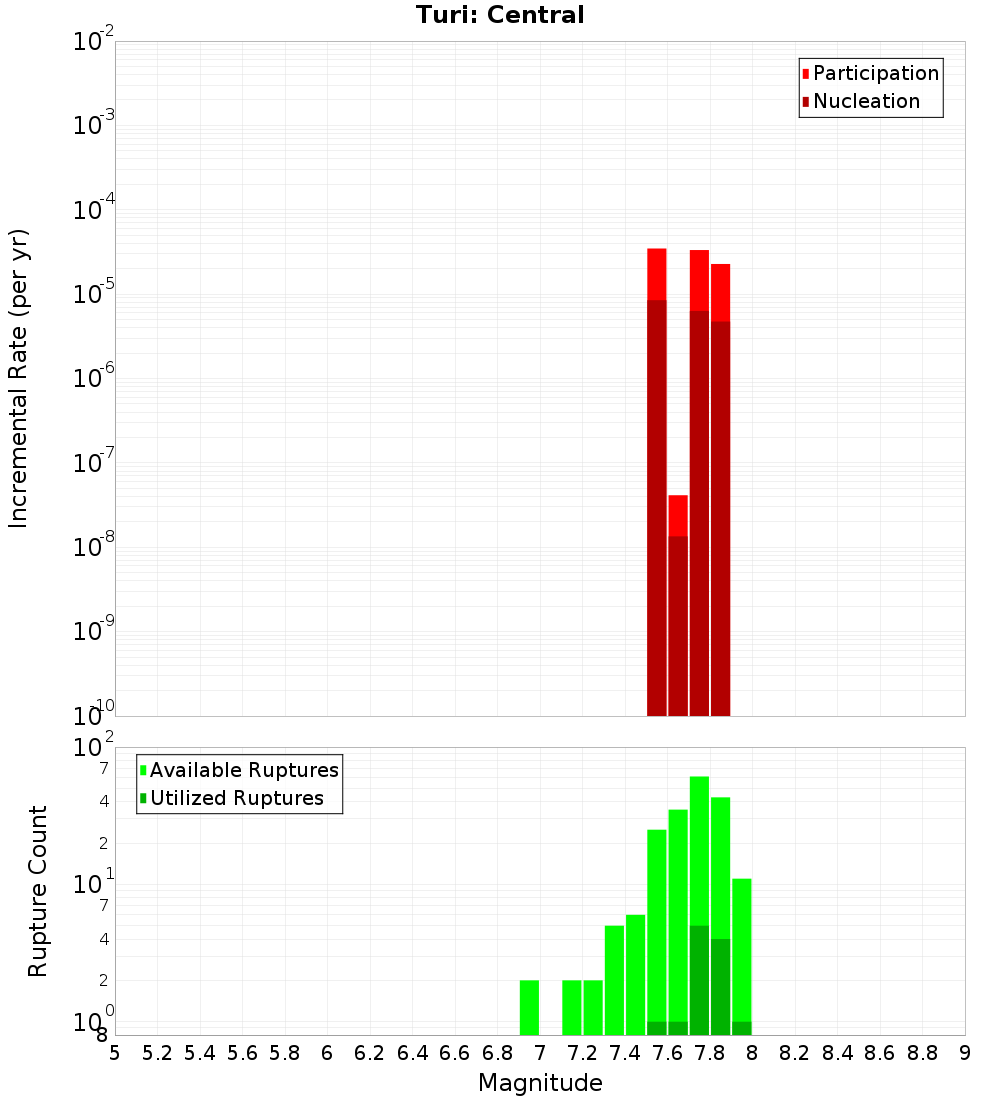

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

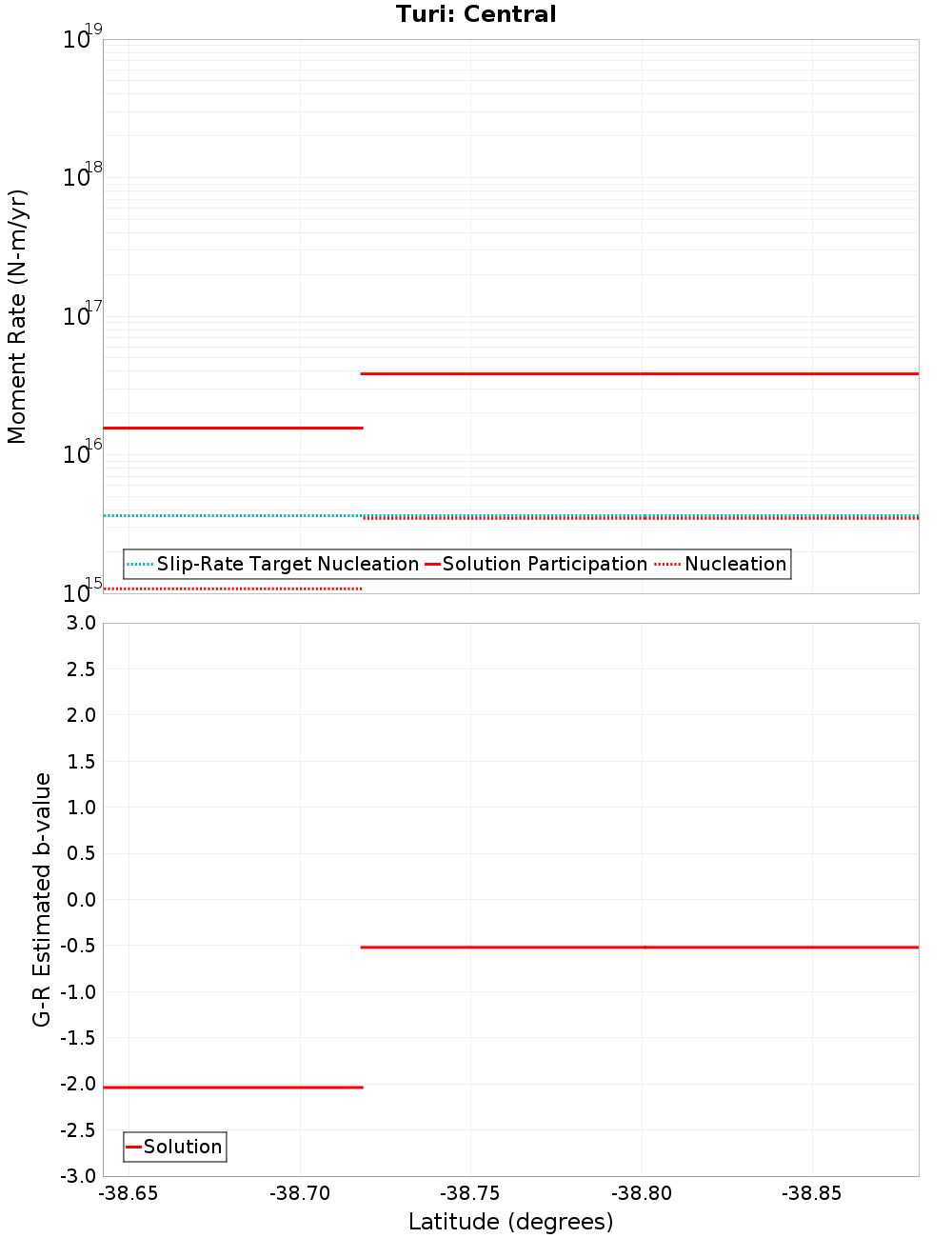

Moment-Rates and b-Values

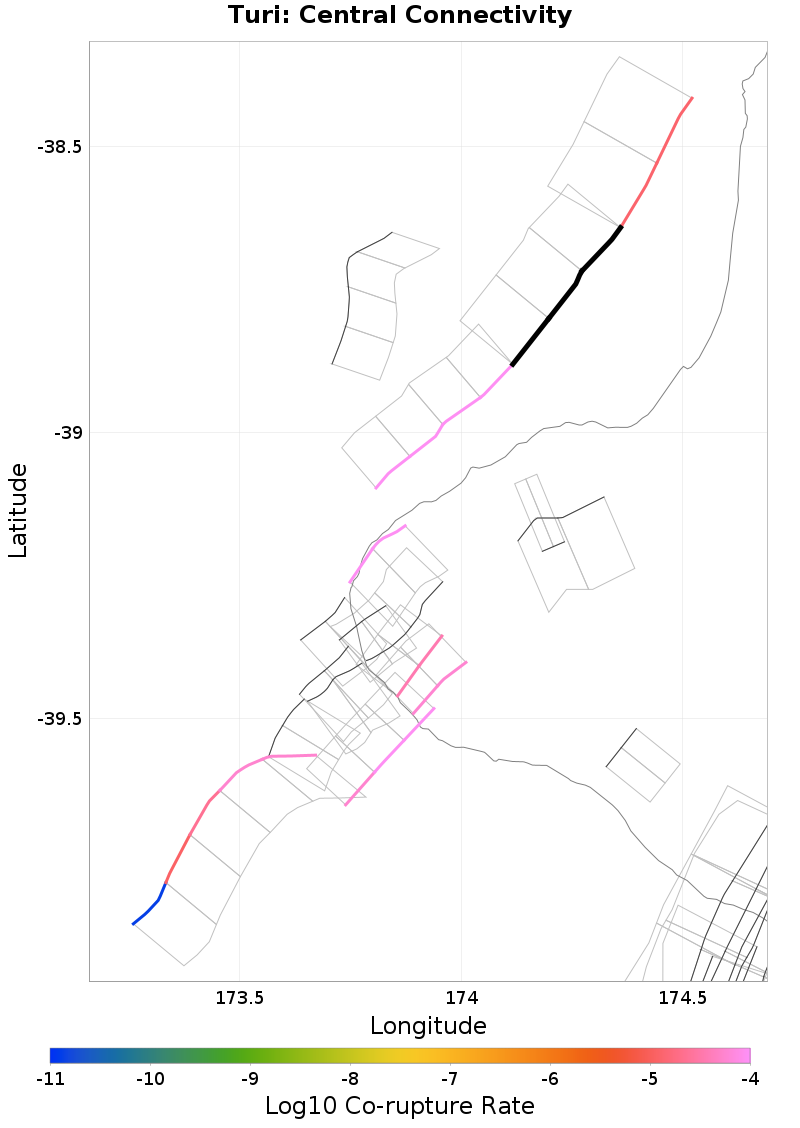

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Turi: South, 0 km away |
| Turi: North, 0 km away |
| Parihaka, 13.35 km away |
Turi: South, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NzcuMDNzWHFx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 183 |
| Co-rupture Rate | 9.0852634E-5 |
Turi: North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NzcuMDNzWHFx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 65 |
| Co-rupture Rate | 1.2679896E-5 |
Parihaka, 13.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1NzcuMDNzWHFx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 0.0 |
