AmberBlyth Details

PropertyValue
Rupture Count915
Ruptures Above Sect Min Mag911
Ruptures w/ Nonzero Rates190
Magnitude Range[6.81, 8.11]
Length Range[20, 345] km
Total Rate8.584134E-4 /yr
Multi-Fault Rate8.297491E-4 /yr (96.66%)
Directly-Connected Faults10
All Co-Rupturing Faults46

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

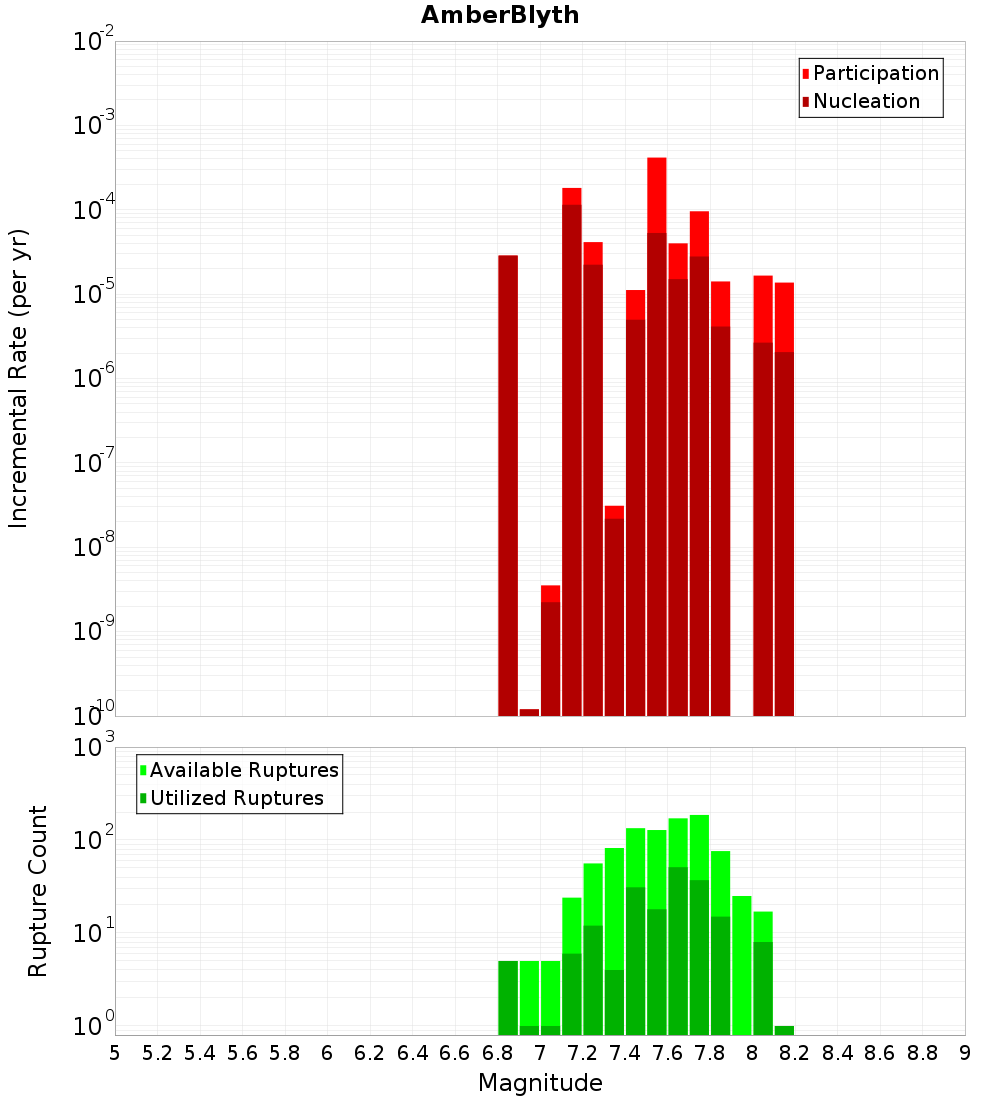

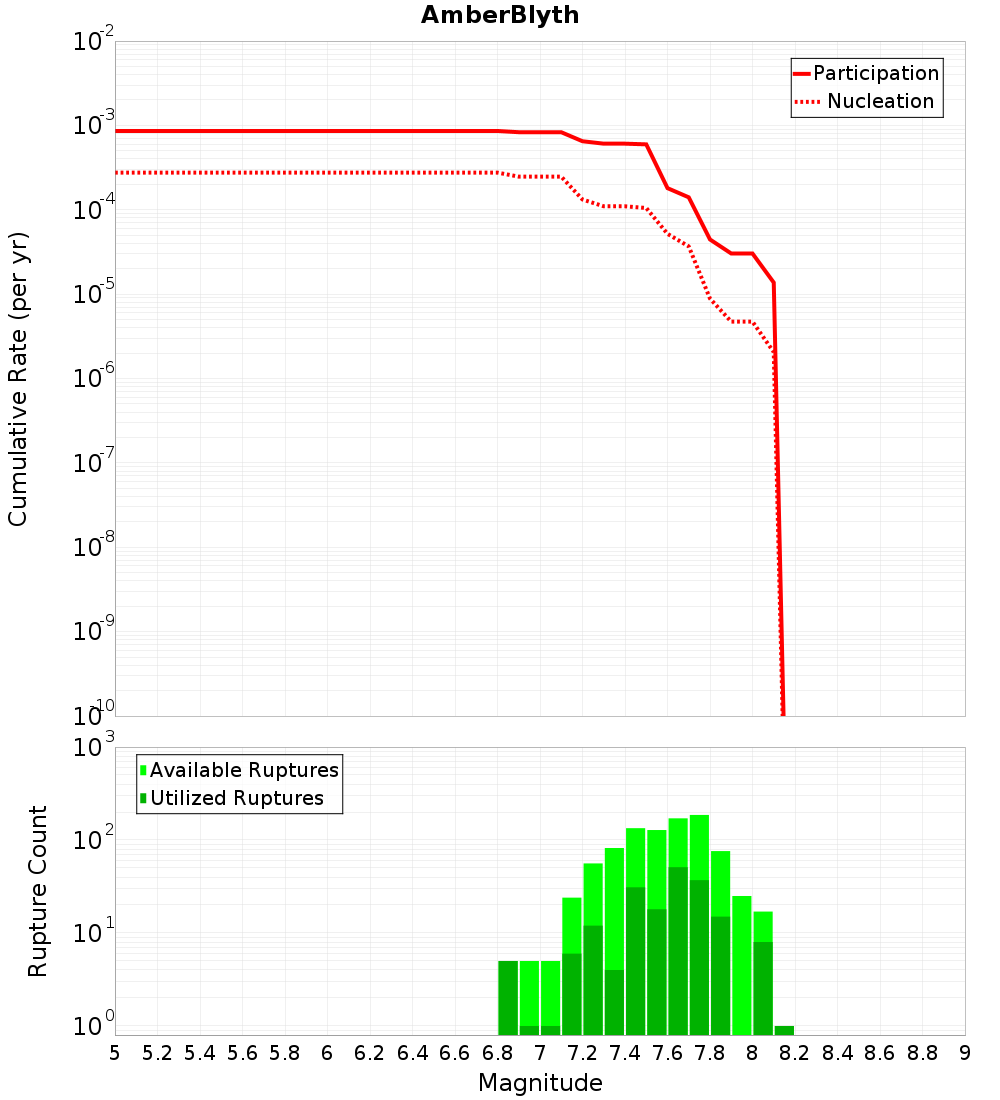

Incremental PlotCumulative Plot

Along-Strike Values

(top)

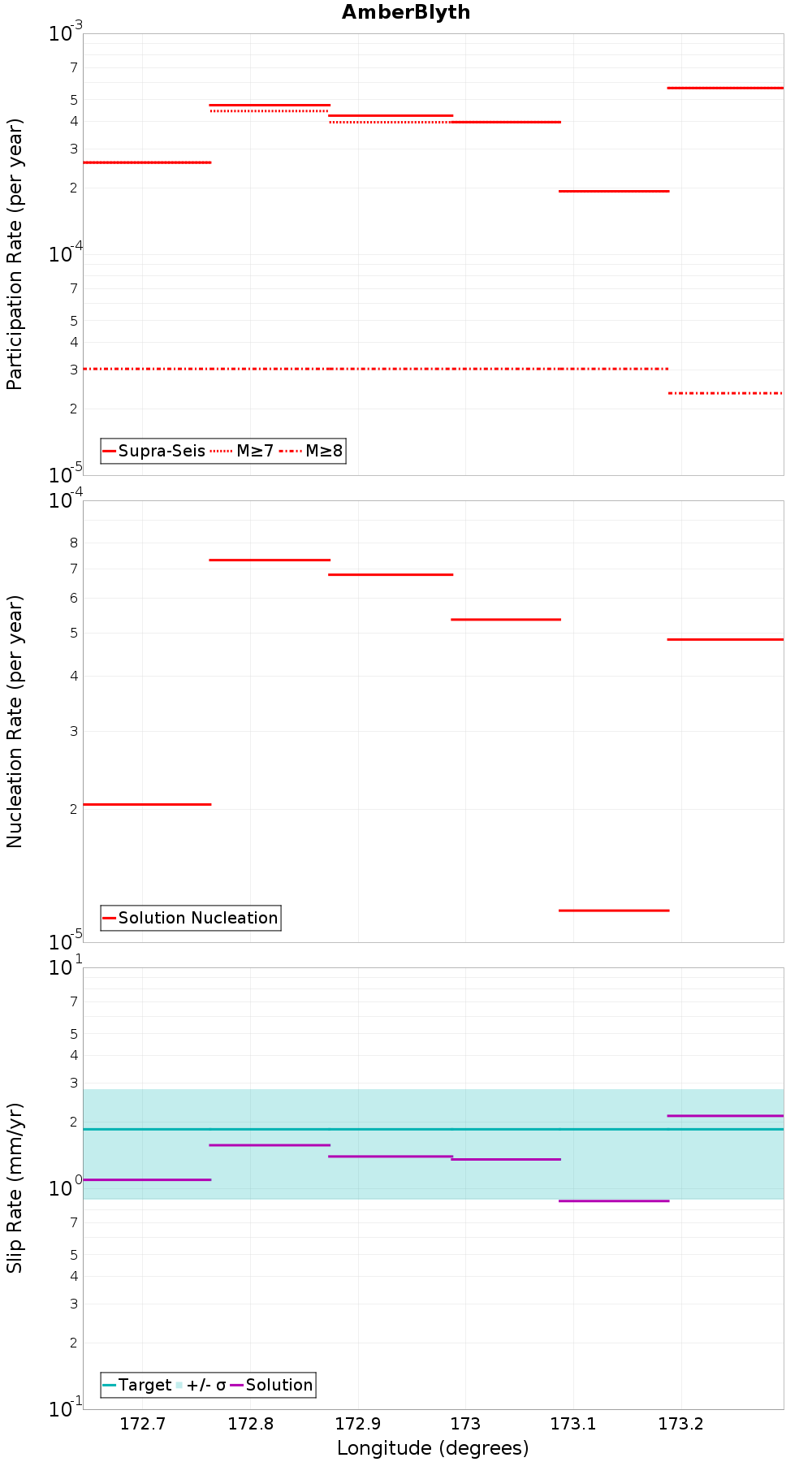

Along-strike plot

Moment-Rates and b-Values

(top)

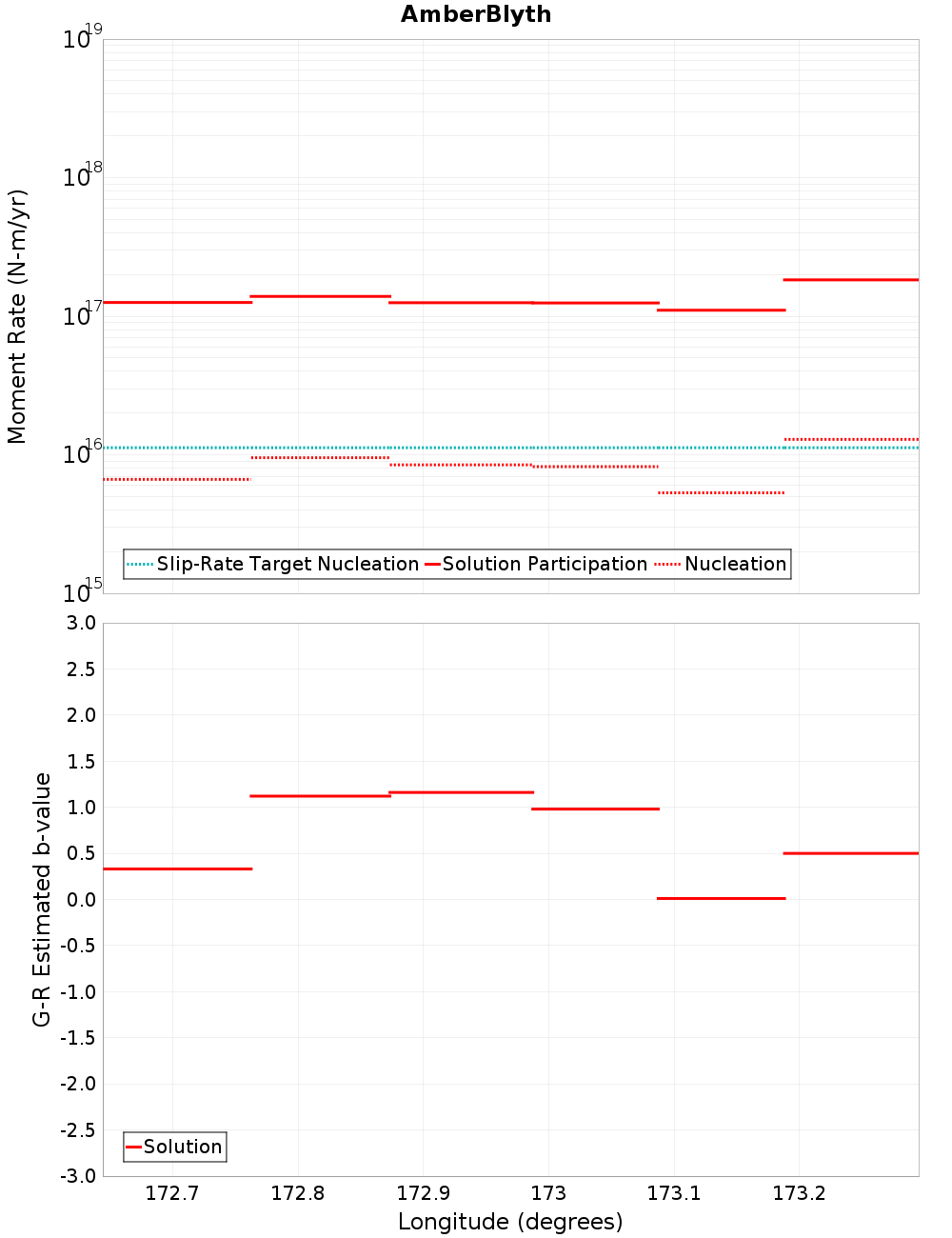

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
OmihiLwrHuru, 1.98 km awayWaikuku, 9.2 km away
Motunau, 2.59 km awayAlexander, 11.84 km away
Hawkswood, 3.15 km awayNorth Canterbury Shelf 4, 12.25 km away
Boby Stream, 3.76 km awayMt Lawry, 14.29 km away
Point Gibson, 4.29 km awayPegasus Bay, 14.66 km away
North Canterbury Shelf 2, 4.87 km awaySpringbank, 15.08 km away
Leithfield - NCVI - NCVII, 5.71 km awayMt Arden, 15.14 km away
Doctors, 5.78 km awayKaiwara North, 15.9 km away
North Canterbury Shelf 11, 7.7 km awayLowry, 16.84 km away
Starvation - Ashley, 7.86 km awayKnowles Top, 19.54 km away
Kaiwara South, 8.44 km away

OmihiLwrHuru, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?true
Directly Connected?true
Co-rupture Count163
Co-rupture Rate3.0398469E-5

Motunau, 2.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?true
Directly Connected?true
Co-rupture Count116
Co-rupture Rate2.0370424E-4

Hawkswood, 3.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?true
Directly Connected?true
Co-rupture Count595
Co-rupture Rate4.3819274E-4

Boby Stream, 3.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?true
Directly Connected?true
Co-rupture Count130
Co-rupture Rate1.4636015E-4

Point Gibson, 4.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?true
Directly Connected?true
Co-rupture Count135
Co-rupture Rate1.5000804E-4

North Canterbury Shelf 2, 4.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?true
Directly Connected?true
Co-rupture Count116
Co-rupture Rate3.432825E-5

Leithfield - NCVI - NCVII, 5.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?true
Directly Connected?true
Co-rupture Count170
Co-rupture Rate3.353409E-5

Doctors, 5.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Canterbury Shelf 11, 7.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate3.3411877E-6

Starvation - Ashley, 7.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?true
Directly Connected?false
Co-rupture Count127
Co-rupture Rate1.482083E-4

Kaiwara South, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate6.557994E-12

Waikuku, 9.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?true
Directly Connected?true
Co-rupture Count74
Co-rupture Rate6.771922E-8

Alexander, 11.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?true
Directly Connected?true
Co-rupture Count75
Co-rupture Rate3.8449586E-4

North Canterbury Shelf 4, 12.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate1.0214881E-5

Mt Lawry, 14.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pegasus Bay, 14.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?true
Directly Connected?true
Co-rupture Count74
Co-rupture Rate6.768904E-7

Springbank, 15.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate4.217418E-5

Mt Arden, 15.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara North, 15.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate1.772556E-5

Lowry, 16.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate3.0803433E-6

Knowles Top, 19.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTcuMG9zdEFH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
