Wairau Details

PropertyValue
Rupture Count27,376
Ruptures Above Sect Min Mag27,367
Ruptures w/ Nonzero Rates291
Magnitude Range[6.80, 8.63]
Length Range[20, 1,119] km
Total Rate0.0015452291 /yr
Multi-Fault Rate5.056404E-4 /yr (32.72%)
Directly-Connected Faults4
All Co-Rupturing Faults100

Table Of Contents

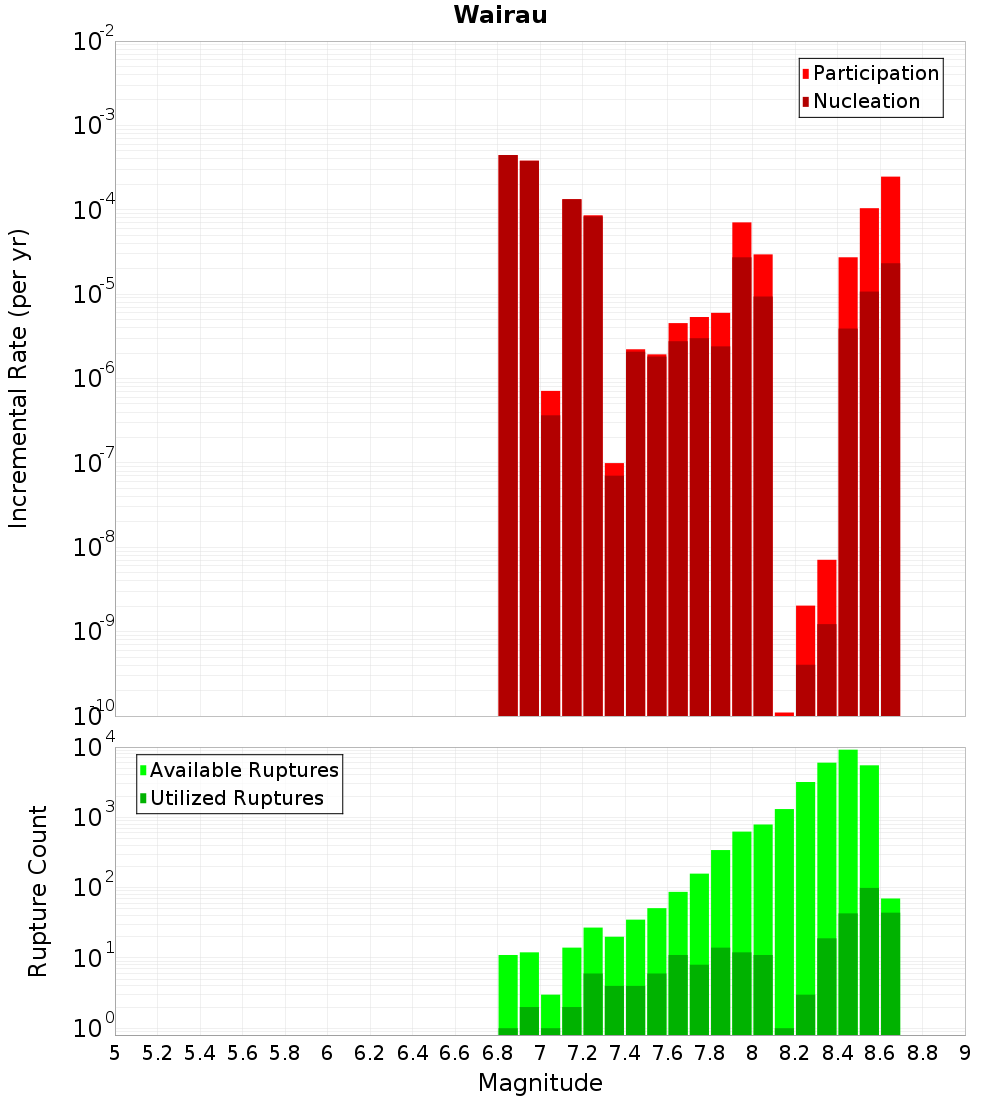

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

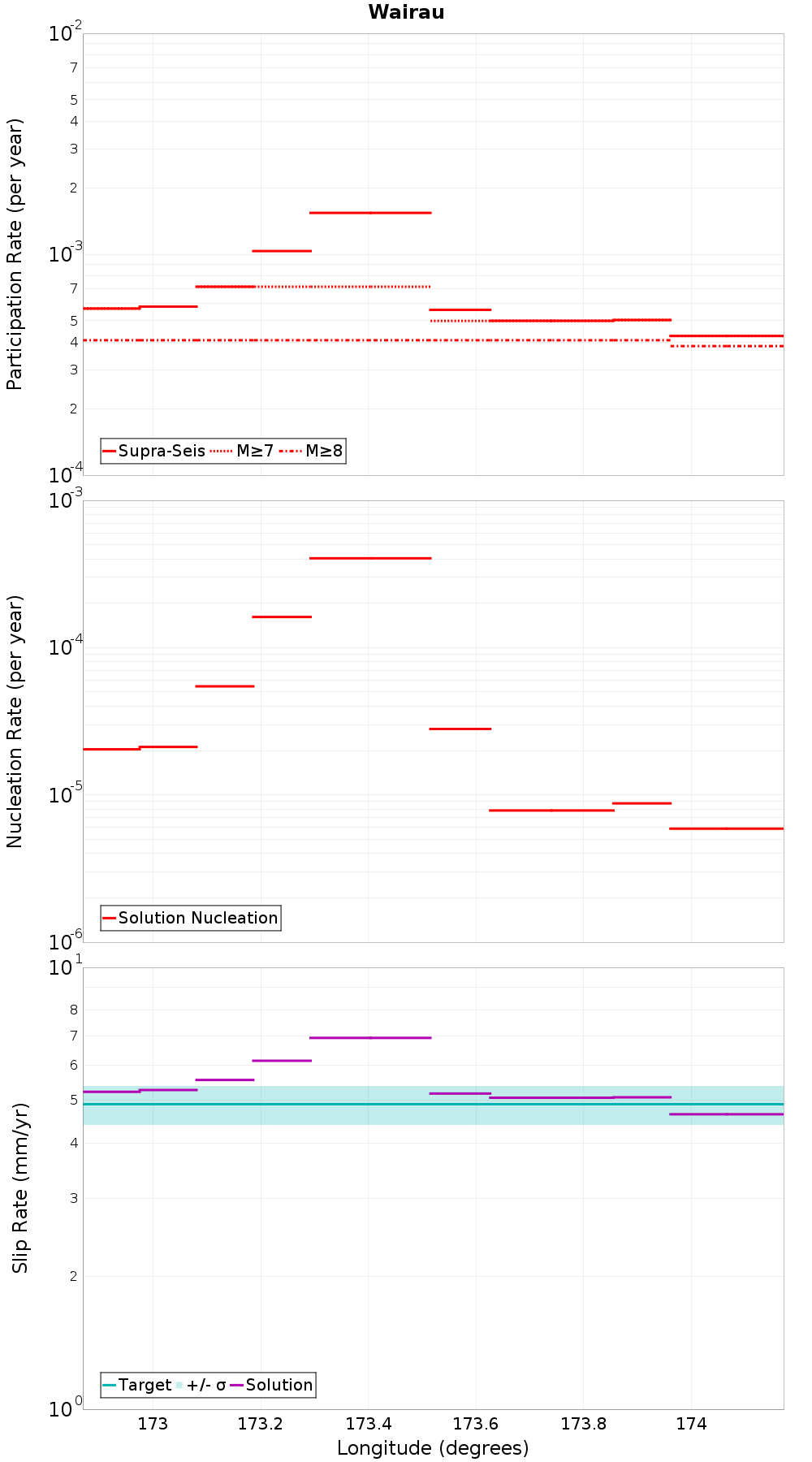

Along-Strike Values

(top)

Along-strike plot

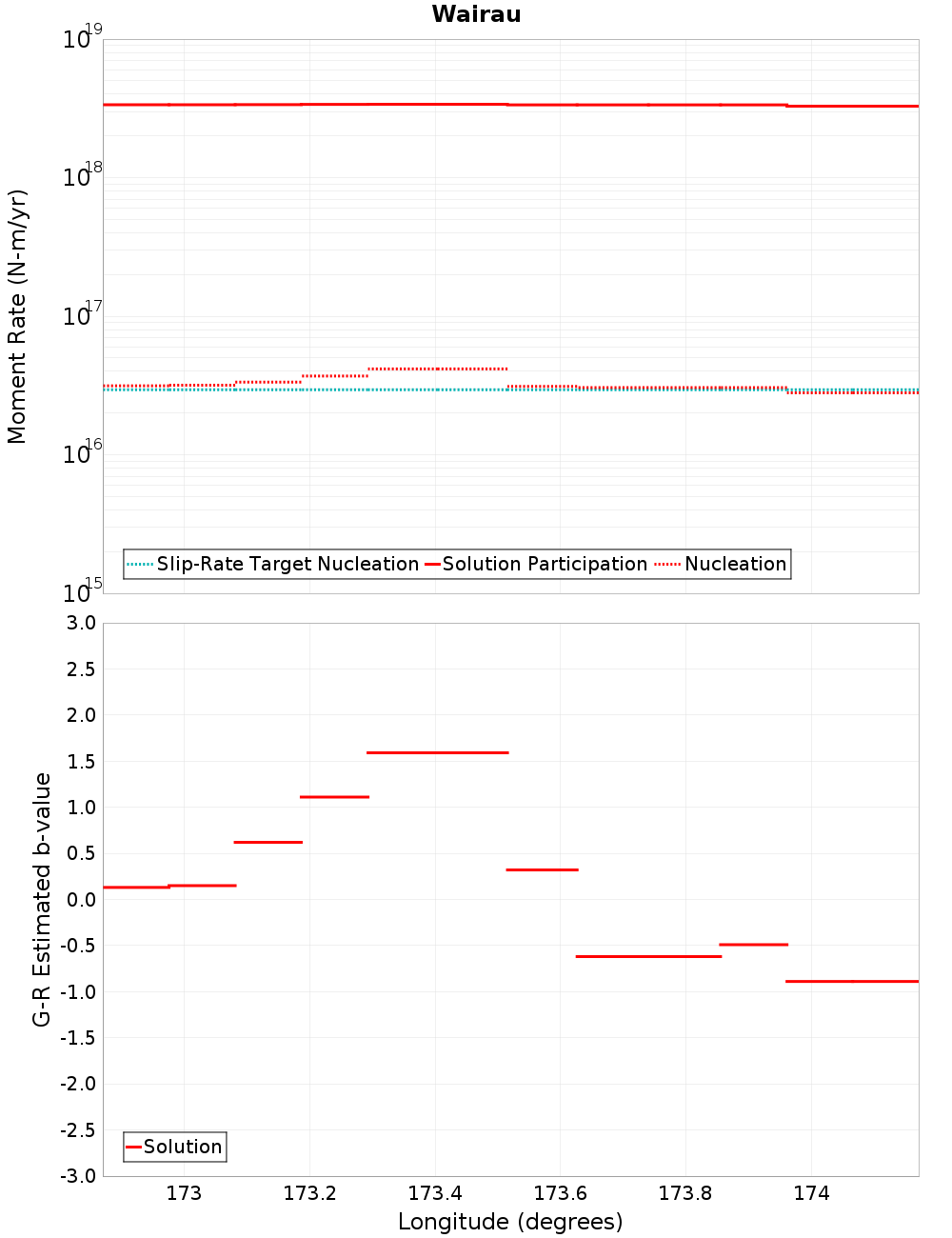

Moment-Rates and b-Values

(top)

Along-strike plot

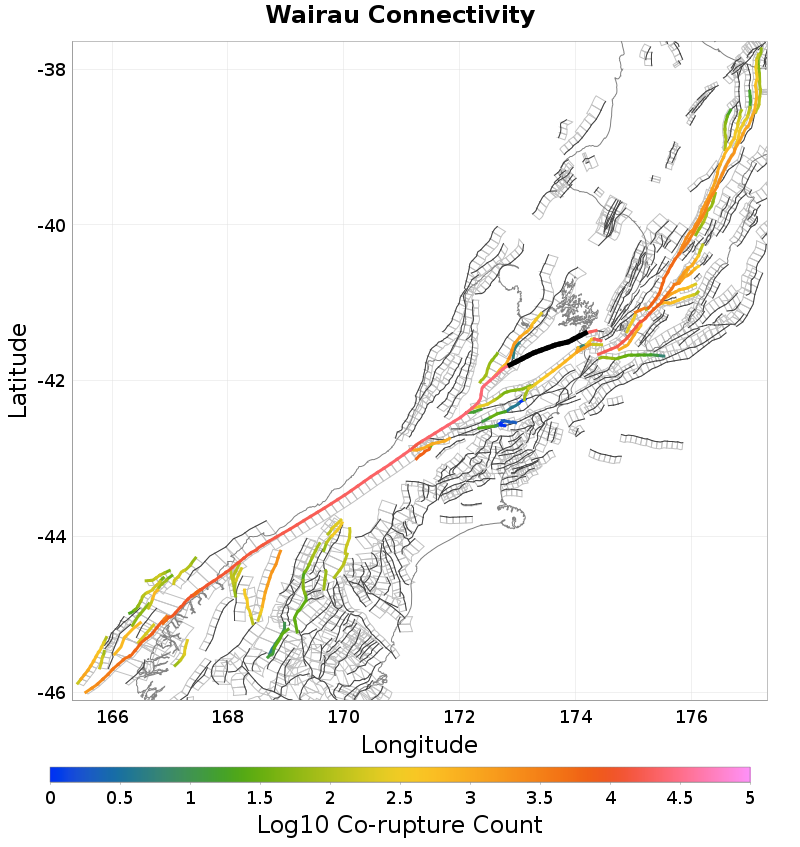

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairau 2, 0 km awayWairau 3, 13.7 km away
Whangamoa, 0 km awayVernon 1, 14 km away
Alpine: Springs Junction to Tophouse, 0 km awayVernon 2, 14 km away
Flaxmore - Waimea - Tahunanui, 0.17 km awayRuby Bay - Moutere, 14.99 km away
Tutaki, 7.34 km awayVernon 3, 15.38 km away
Awatere: Northeast 1, 11.05 km awayCloudy 3, 15.4 km away
Awatere: Northeast 2, 12.04 km awayOhariu South 1, 16.44 km away
Cloudy 2, 12.85 km awayVernon 4, 17.5 km away
Cloudy 1, 12.85 km away

Wairau 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTkuMGZCbmRC
Connected?true
Directly Connected?true
Co-rupture Count18,998
Co-rupture Rate4.2643794E-4

Whangamoa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTkuMGZCbmRC
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate5.2673067E-11

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTkuMGZCbmRC
Connected?true
Directly Connected?true
Co-rupture Count25,103
Co-rupture Rate4.8513844E-4

Flaxmore - Waimea - Tahunanui, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTkuMGZCbmRC
Connected?true
Directly Connected?true
Co-rupture Count2,456
Co-rupture Rate1.5184561E-5

Tutaki, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTkuMGZCbmRC
Connected?true
Directly Connected?false
Co-rupture Count79
Co-rupture Rate5.24873E-6

Awatere: Northeast 1, 11.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTkuMGZCbmRC
Connected?true
Directly Connected?false
Co-rupture Count745
Co-rupture Rate1.1103782E-8

Awatere: Northeast 2, 12.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTkuMGZCbmRC
Connected?true
Directly Connected?false
Co-rupture Count1,430
Co-rupture Rate1.3204024E-8

Cloudy 2, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTkuMGZCbmRC
Connected?true
Directly Connected?false
Co-rupture Count105
Co-rupture Rate0.0

Cloudy 1, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTkuMGZCbmRC
Connected?true
Directly Connected?false
Co-rupture Count378
Co-rupture Rate9.098185E-9

Wairau 3, 13.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTkuMGZCbmRC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 1, 14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTkuMGZCbmRC
Connected?true
Directly Connected?true
Co-rupture Count728
Co-rupture Rate8.018901E-5

Vernon 2, 14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTkuMGZCbmRC
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Ruby Bay - Moutere, 14.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTkuMGZCbmRC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 3, 15.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTkuMGZCbmRC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 3, 15.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTkuMGZCbmRC
Connected?true
Directly Connected?false
Co-rupture Count18,667
Co-rupture Rate4.0946662E-4

Ohariu South 1, 16.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTkuMGZCbmRC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 4, 17.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ1OTkuMGZCbmRC
Connected?true
Directly Connected?false
Co-rupture Count143
Co-rupture Rate2.1002418E-9
