Clear Hills - Waikopiro Details

Property	Value
Rupture Count	29
Ruptures Above Sect Min Mag	26
Ruptures w/ Nonzero Rates	3
Magnitude Range	[6.61, 8.30]
Length Range	[14, 540] km
Total Rate	1.2149555E-4 /yr
Multi-Fault Rate	1.2149555E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	15

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

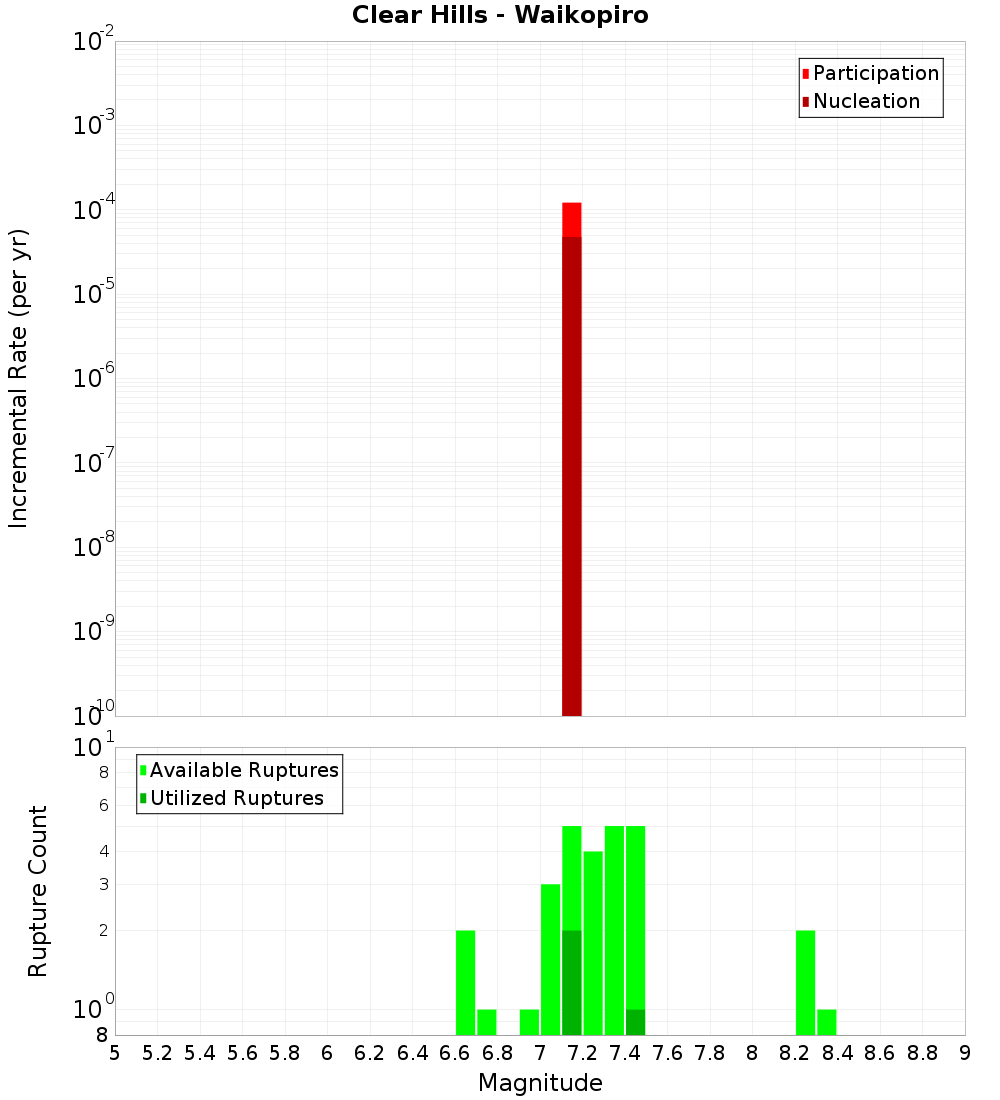

Magnitude-Frequency Distribution

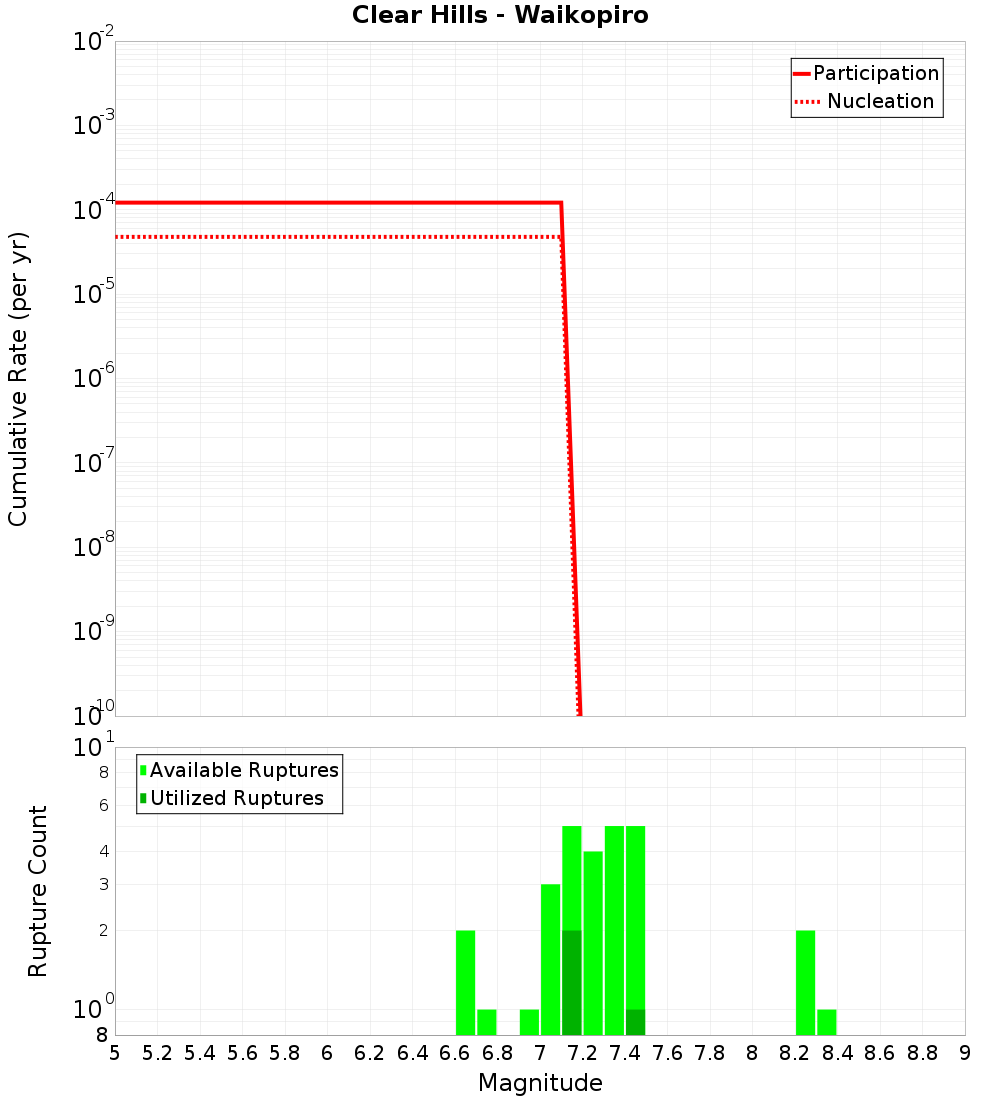

Incremental	Cumulative

Along-Strike Values

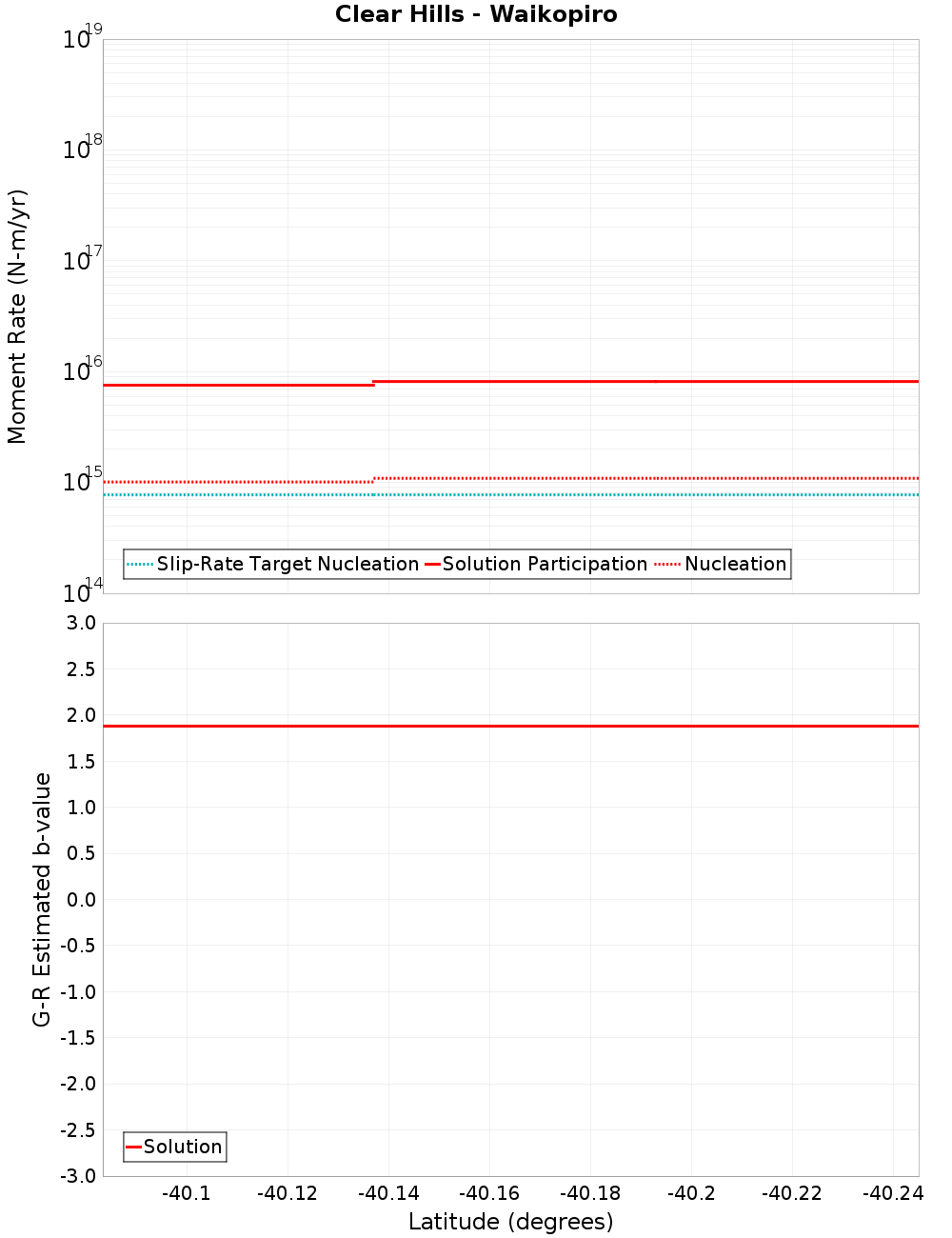

Moment-Rates and b-Values

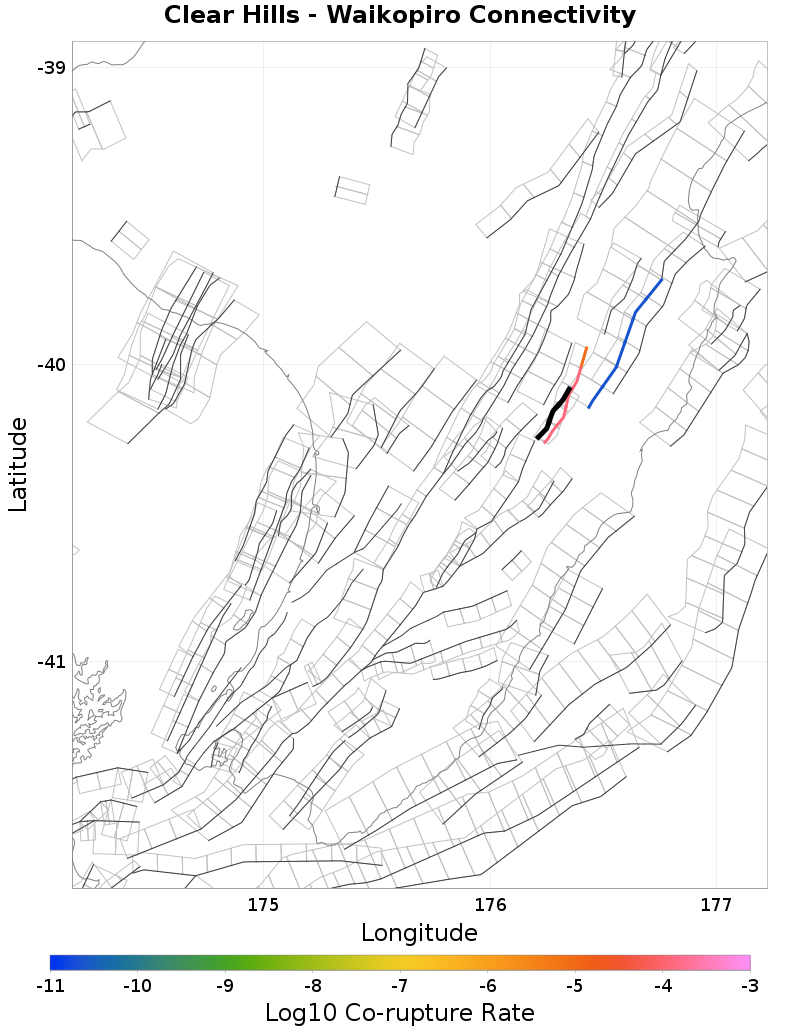

Connectivity

Nearby Sections

Fault Section
Oruawharo - Mangatoro, 0.12 km away
Waipukurau - Poukawa, 0.34 km away
Waewaepa, 1.98 km away
Ruataniwha, 4.28 km away
Maunga, 5.16 km away
Tukituki Thrust, 7.68 km away
Pongaroa - Weber, 9.94 km away
Waipukaka, 10.24 km away
Pahiatua, 13.79 km away
Woodville, 15.61 km away
Rangefront, 16.39 km away
Makuri - Waewaepa, 17.72 km away

Oruawharo - Mangatoro, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	true
Directly Connected?	true
Co-rupture Count	15
Co-rupture Rate	1.2149555E-4

Waipukurau - Poukawa, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	true
Directly Connected?	true
Co-rupture Count	14
Co-rupture Rate	2.2818306E-11

Waewaepa, 1.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruataniwha, 4.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maunga, 5.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tukituki Thrust, 7.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pongaroa - Weber, 9.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waipukaka, 10.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pahiatua, 13.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Woodville, 15.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangefront, 16.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Makuri - Waewaepa, 17.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
