Ruahine: South Details

Property	Value
Rupture Count	46,448
Ruptures Above Sect Min Mag	46,445
Ruptures w/ Nonzero Rates	48
Magnitude Range	[6.99, 8.60]
Length Range	[24, 1,113] km
Total Rate	2.3244479E-4 /yr
Multi-Fault Rate	2.3244479E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	133

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

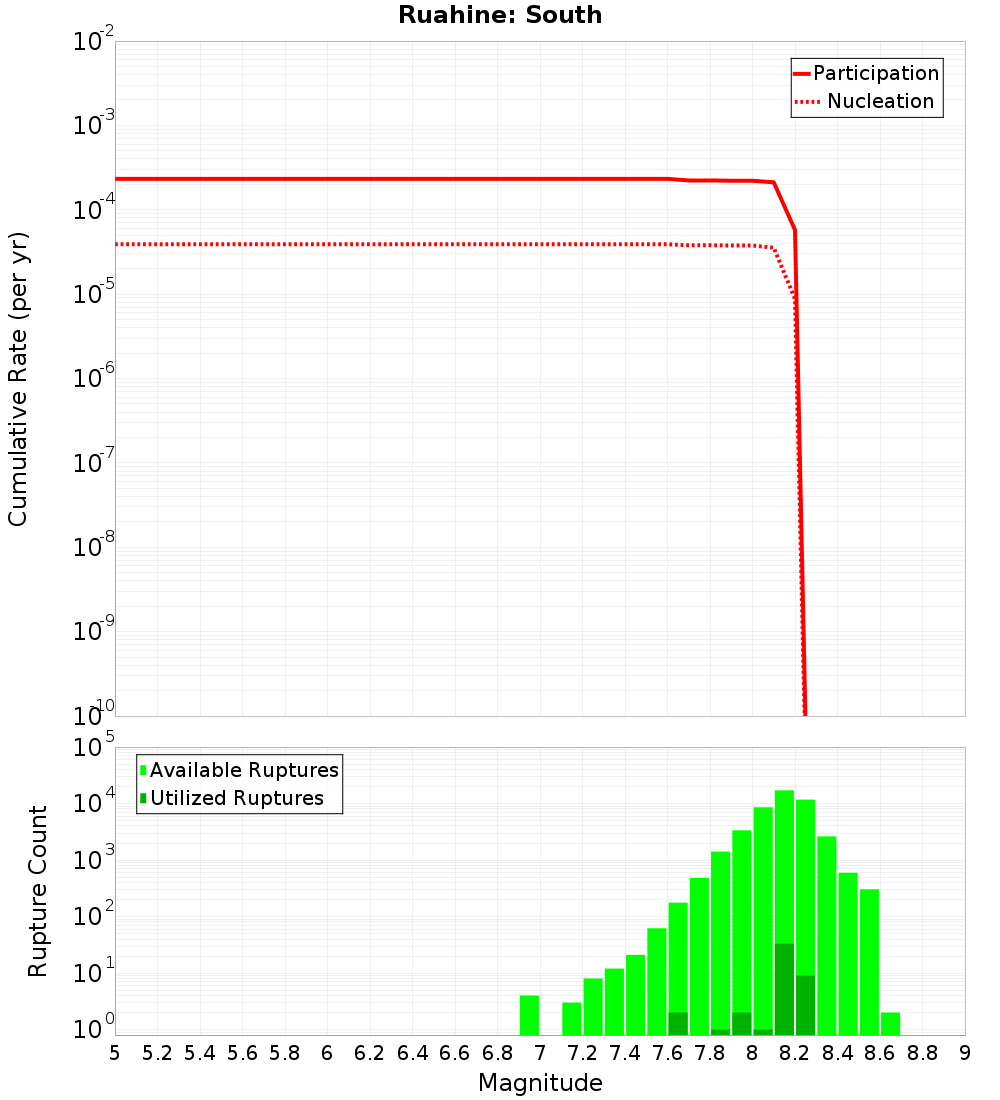

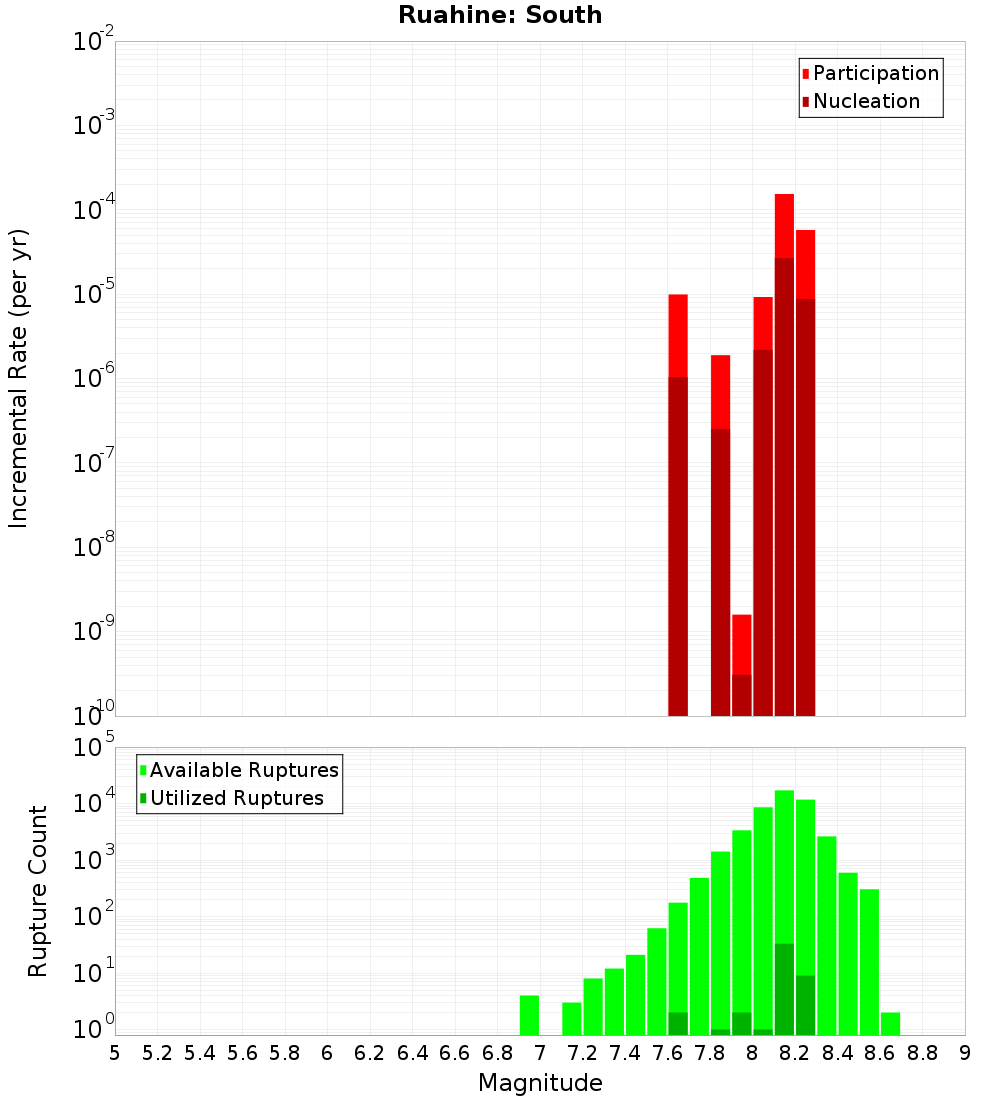

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Wellington: Pahiatua, 0 km away
Mohaka: South, 0 km away
Ruahine: Central, 0.16 km away
Rangefront, 0.19 km away
Woodville, 1.31 km away
Pohangina, 5.25 km away
Pahiatua, 5.97 km away
Ruataniwha, 9.87 km away
Maunga, 13.33 km away
Wakarara, 14.13 km away
Tokomaru, 14.38 km away
Northern Ohariu, 18.29 km away
Taonui, 18.79 km away

Wellington: Pahiatua, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	true
Directly Connected?	true
Co-rupture Count	40,967
Co-rupture Rate	2.3244479E-4

Mohaka: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	true
Directly Connected?	true
Co-rupture Count	9,661
Co-rupture Rate	9.244956E-6

Ruahine: Central, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	true
Directly Connected?	true
Co-rupture Count	31,850
Co-rupture Rate	1.752797E-4

Rangefront, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	true
Directly Connected?	true
Co-rupture Count	2,608
Co-rupture Rate	3.611633E-5

Woodville, 1.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pohangina, 5.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	true
Directly Connected?	true
Co-rupture Count	399
Co-rupture Rate	0.0

Pahiatua, 5.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	true
Directly Connected?	true
Co-rupture Count	735
Co-rupture Rate	9.912401E-6

Ruataniwha, 9.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maunga, 13.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wakarara, 14.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	true
Directly Connected?	false
Co-rupture Count	1,982
Co-rupture Rate	3.6114914E-5

Tokomaru, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	true
Directly Connected?	false
Co-rupture Count	3,070
Co-rupture Rate	9.61423E-9

Northern Ohariu, 18.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	true
Directly Connected?	false
Co-rupture Count	7,036
Co-rupture Rate	1.6417296E-5

Taonui, 18.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDEuMFRUSkRt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
