Kaiapo Details
| Property | Value |
|---|---|
| Rupture Count | 1,110 |
| Ruptures Above Sect Min Mag | 1,107 |
| Ruptures w/ Nonzero Rates | 163 |
| Magnitude Range | [6.29, 7.81] |
| Length Range | [10, 210] km |
| Total Rate | 5.994723E-4 /yr |
| Multi-Fault Rate | 5.994723E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 27 |
Table Of Contents

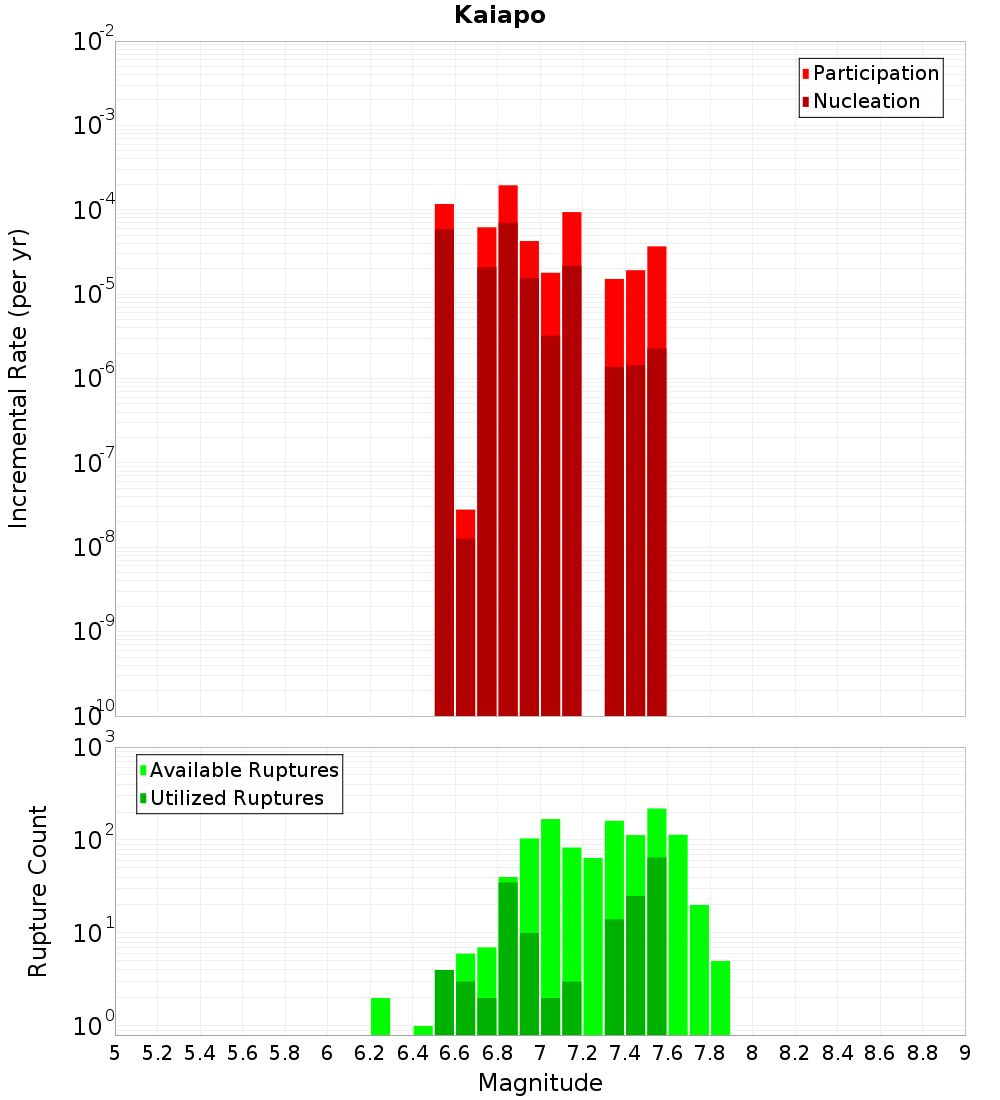

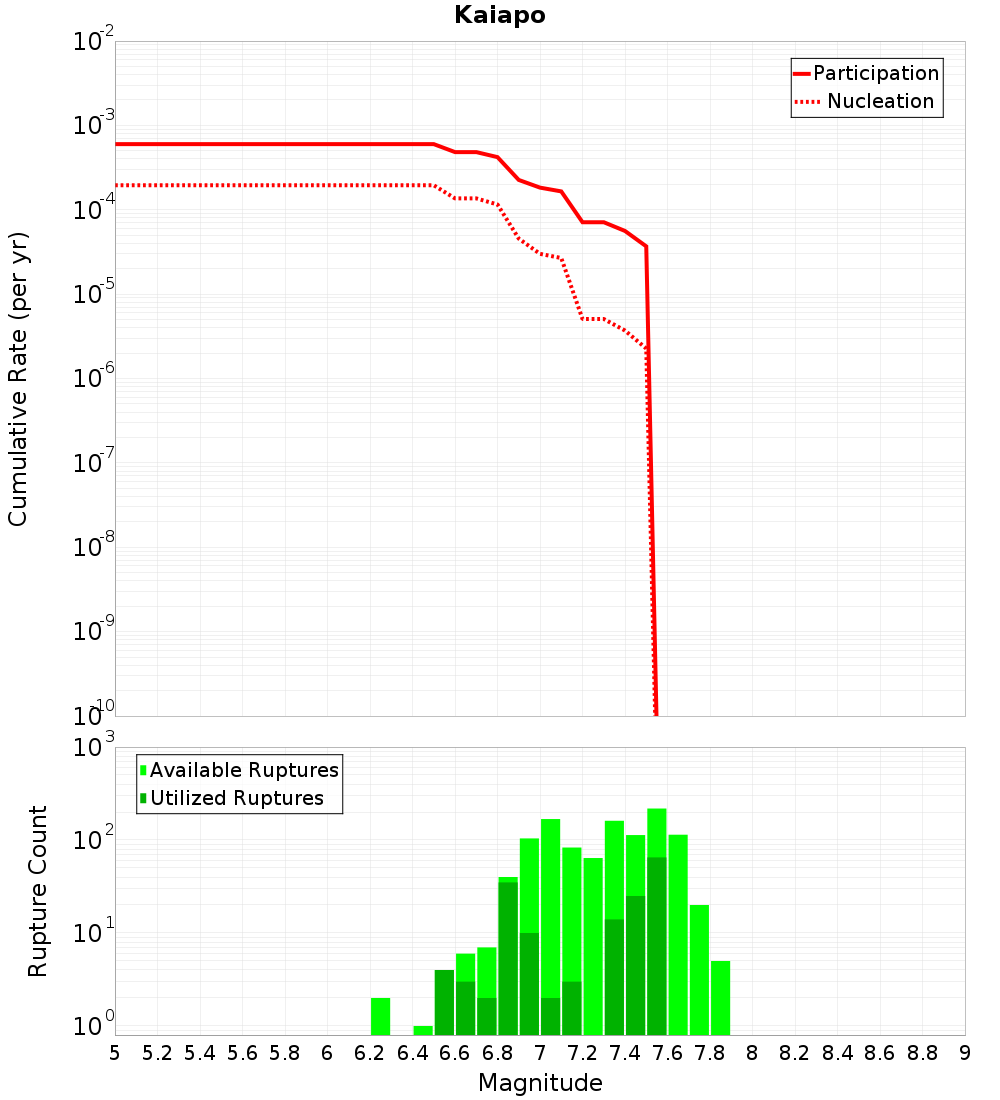

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

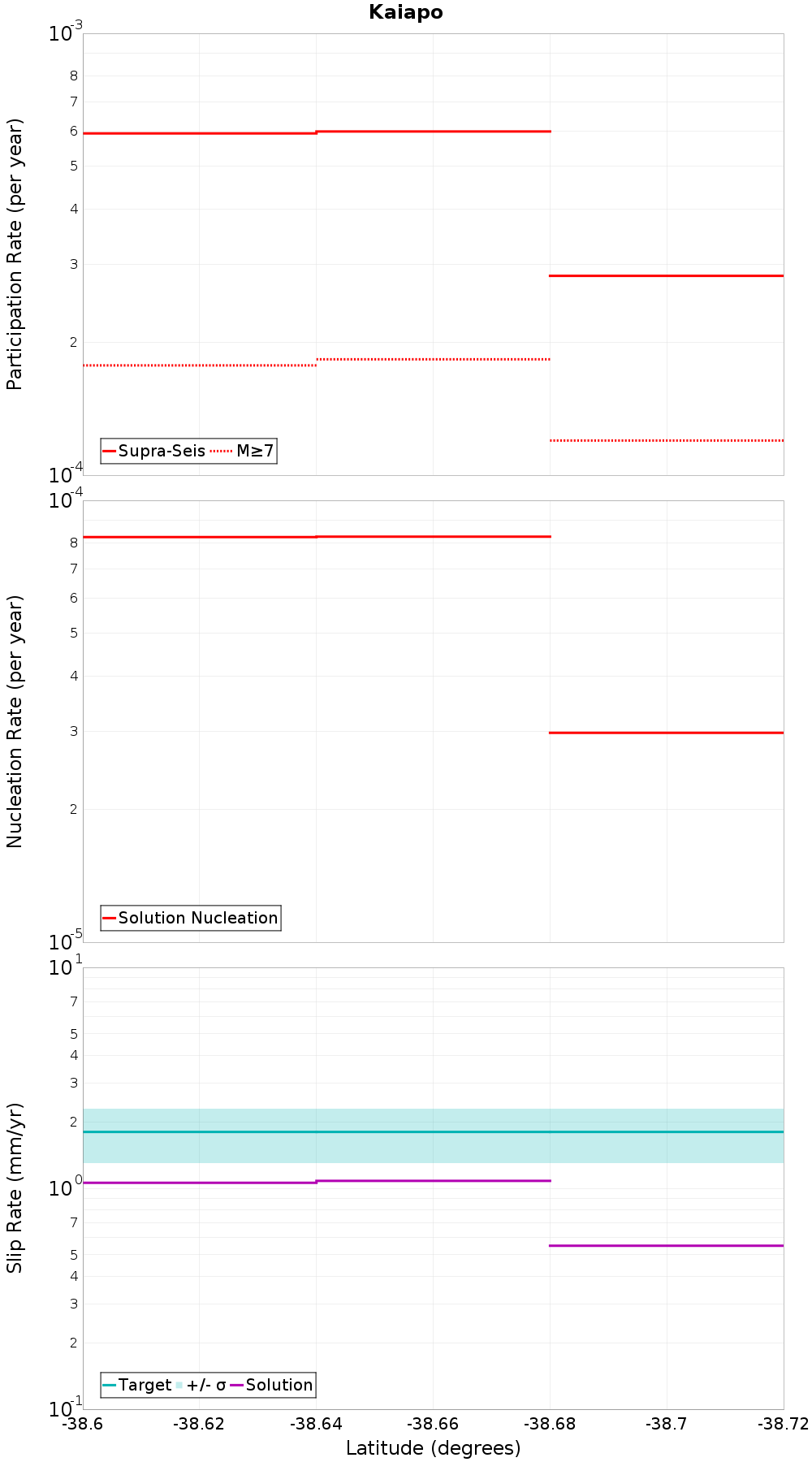

Along-Strike Values
Moment-Rates and b-Values

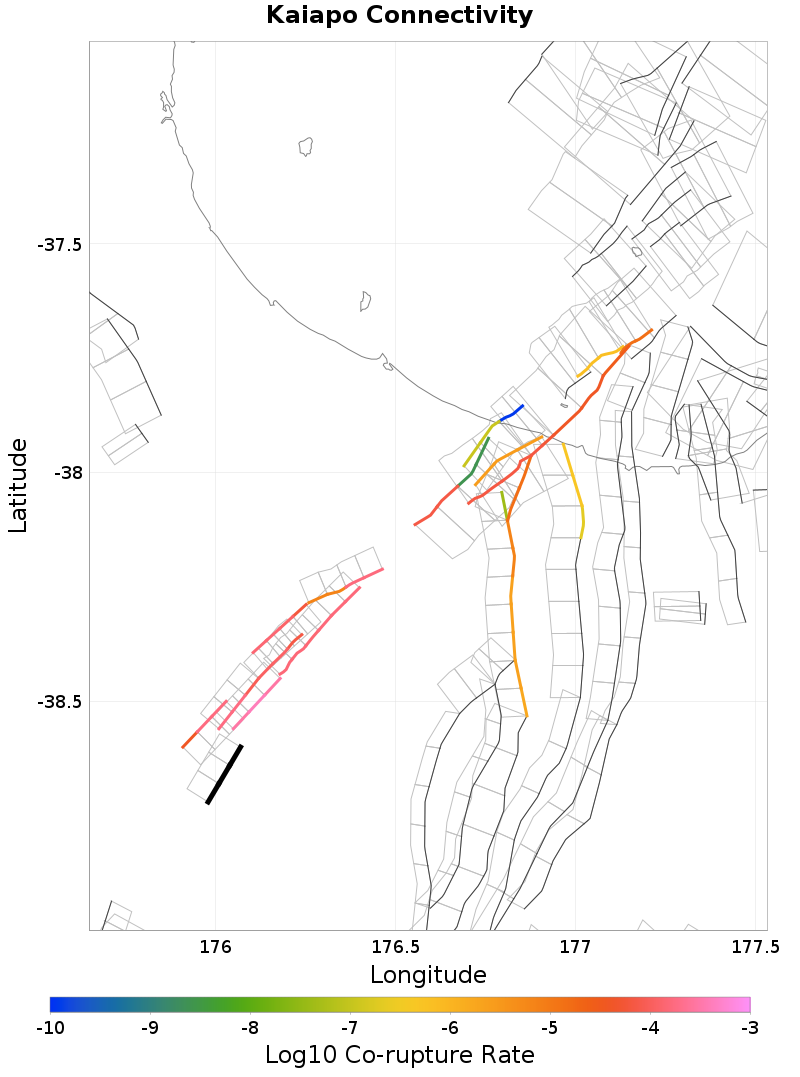

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Whangamata West, 0.25 km away |
| Orakeikorako, 4.37 km away |
| Puketerata, 5.96 km away |
| Puketerata North, 17.13 km away |
| Maleme, 19.42 km away |
Whangamata West, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDUuMEhCcURG | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 738 |
| Co-rupture Rate | 1.6969118E-4 |
Orakeikorako, 4.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDUuMEhCcURG | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 875 |
| Co-rupture Rate | 4.0280013E-4 |
Puketerata, 5.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDUuMEhCcURG | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 276 |
| Co-rupture Rate | 1.7197416E-4 |
Puketerata North, 17.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDUuMEhCcURG | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 358 |
| Co-rupture Rate | 1.1672675E-4 |
Maleme, 19.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MDUuMEhCcURG | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 767 |
| Co-rupture Rate | 1.4871571E-4 |
