Hope: Hurunui Details

PropertyValue
Rupture Count58,293
Ruptures Above Sect Min Mag58,292
Ruptures w/ Nonzero Rates73
Magnitude Range[6.73, 8.62]
Length Range[14, 1,196] km
Total Rate0.0022627963 /yr
Multi-Fault Rate0.0022627963 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults110

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

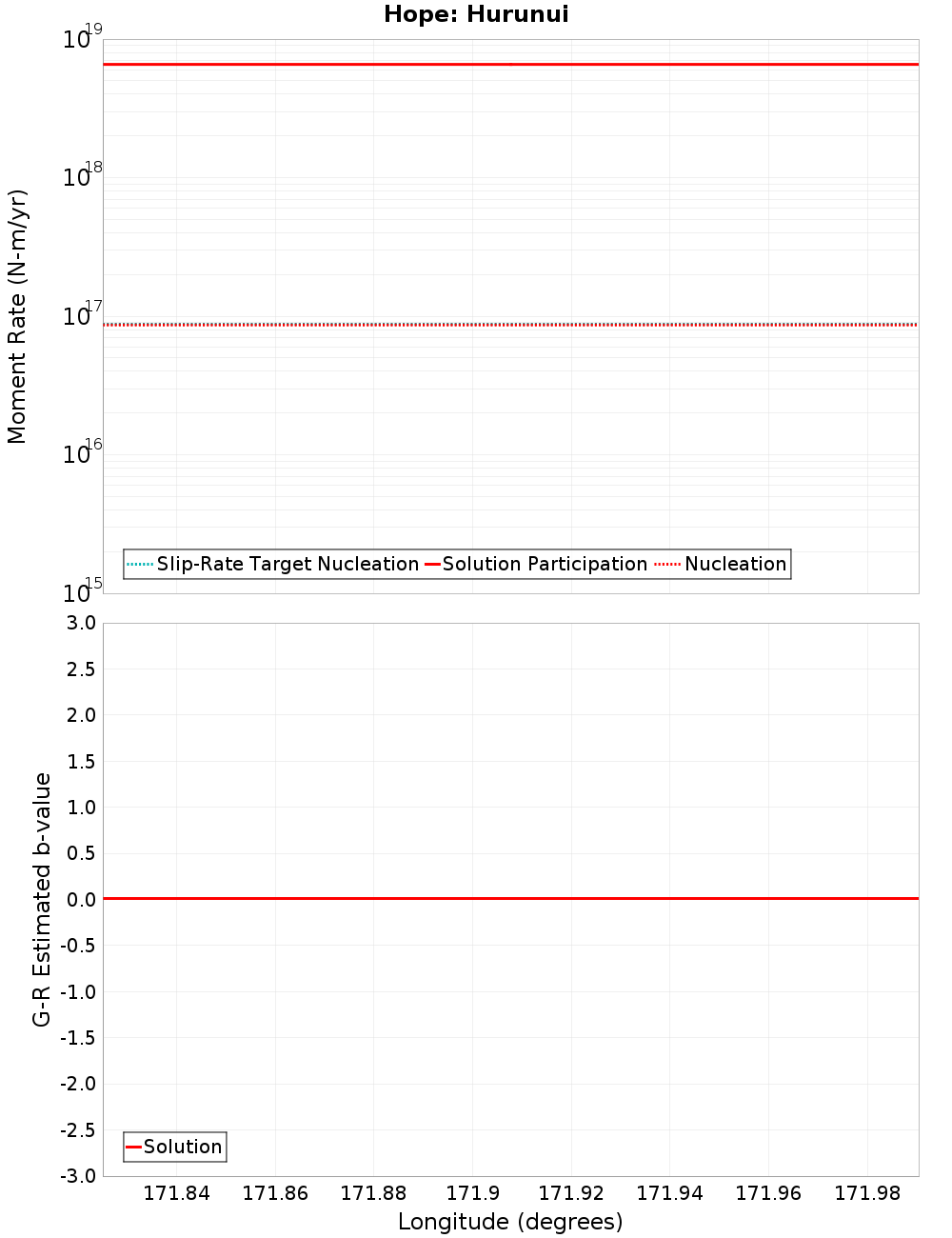

Moment-Rates and b-Values

(top)

Along-strike plot

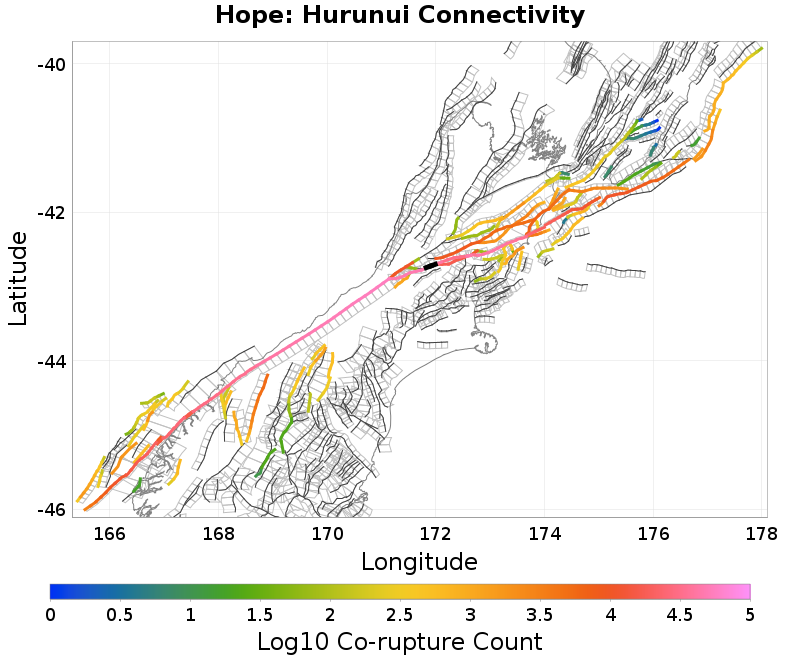

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kakapo, 0 km away
Hope: Taramakau, 0 km away
Kelly, 0 km away
Hope: Hope River, 0 km away
Alpine: Kaniere to Springs Junction, 0.19 km away
Poulter, 7.27 km away
Clarence: Southwest, 8.29 km away
White Creek - buried, 17.6 km away

Kakapo, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?true
Directly Connected?true
Co-rupture Count17,390
Co-rupture Rate6.718117E-4

Hope: Taramakau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate0.0

Kelly, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?true
Directly Connected?true
Co-rupture Count47,331
Co-rupture Rate0.0015342518

Hope: Hope River, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?true
Directly Connected?true
Co-rupture Count40,826
Co-rupture Rate0.0015909844

Alpine: Kaniere to Springs Junction, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?true
Directly Connected?true
Co-rupture Count10,978
Co-rupture Rate1.938648E-5

Poulter, 7.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Southwest, 8.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?true
Directly Connected?false
Co-rupture Count8,907
Co-rupture Rate2.888526E-5

White Creek - buried, 17.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
