Wairarapa: 2 Details

PropertyValue
Rupture Count34,313
Ruptures Above Sect Min Mag34,310
Ruptures w/ Nonzero Rates47
Magnitude Range[6.71, 8.63]
Length Range[18, 1,119] km
Total Rate0.0022082157 /yr
Multi-Fault Rate0.0018035779 /yr (81.68%)
Directly-Connected Faults4
All Co-Rupturing Faults137

Table Of Contents

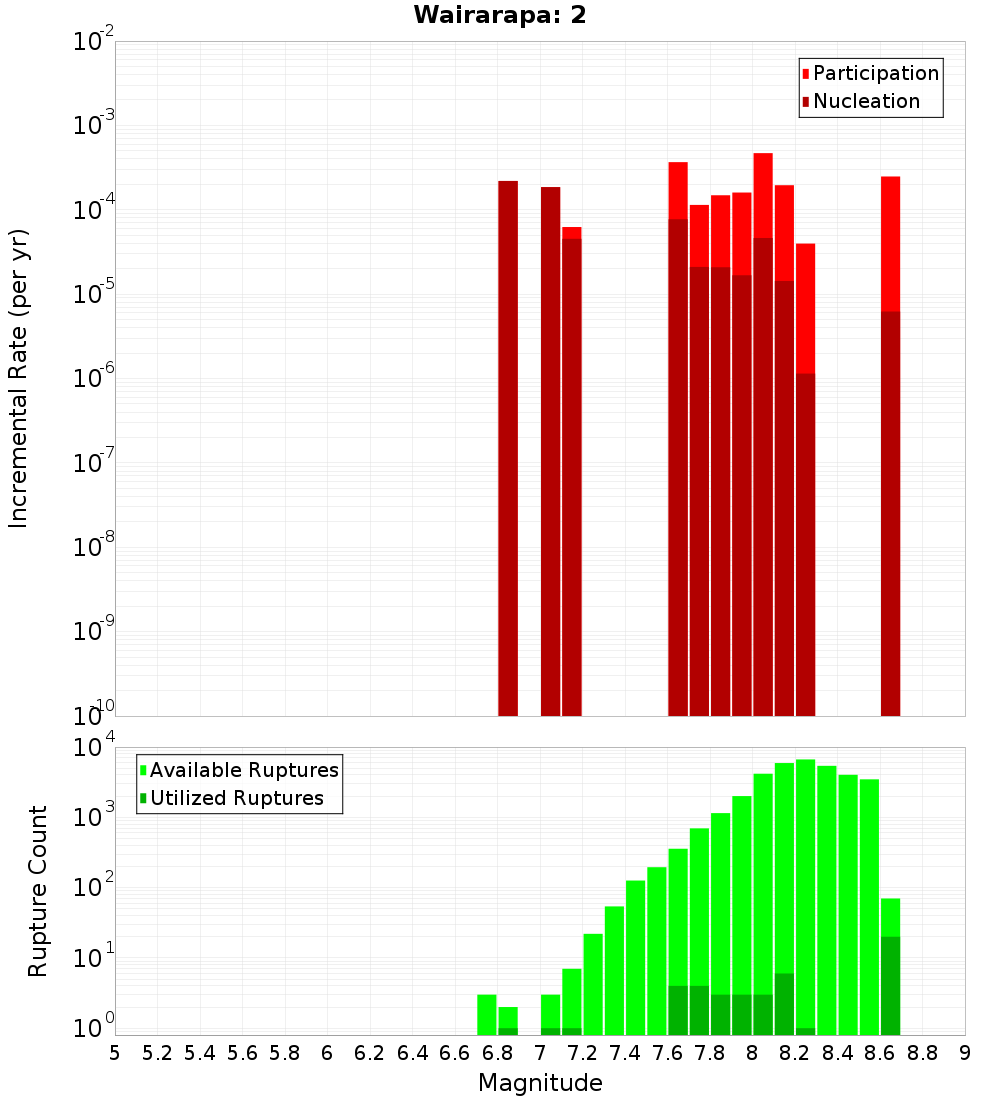

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

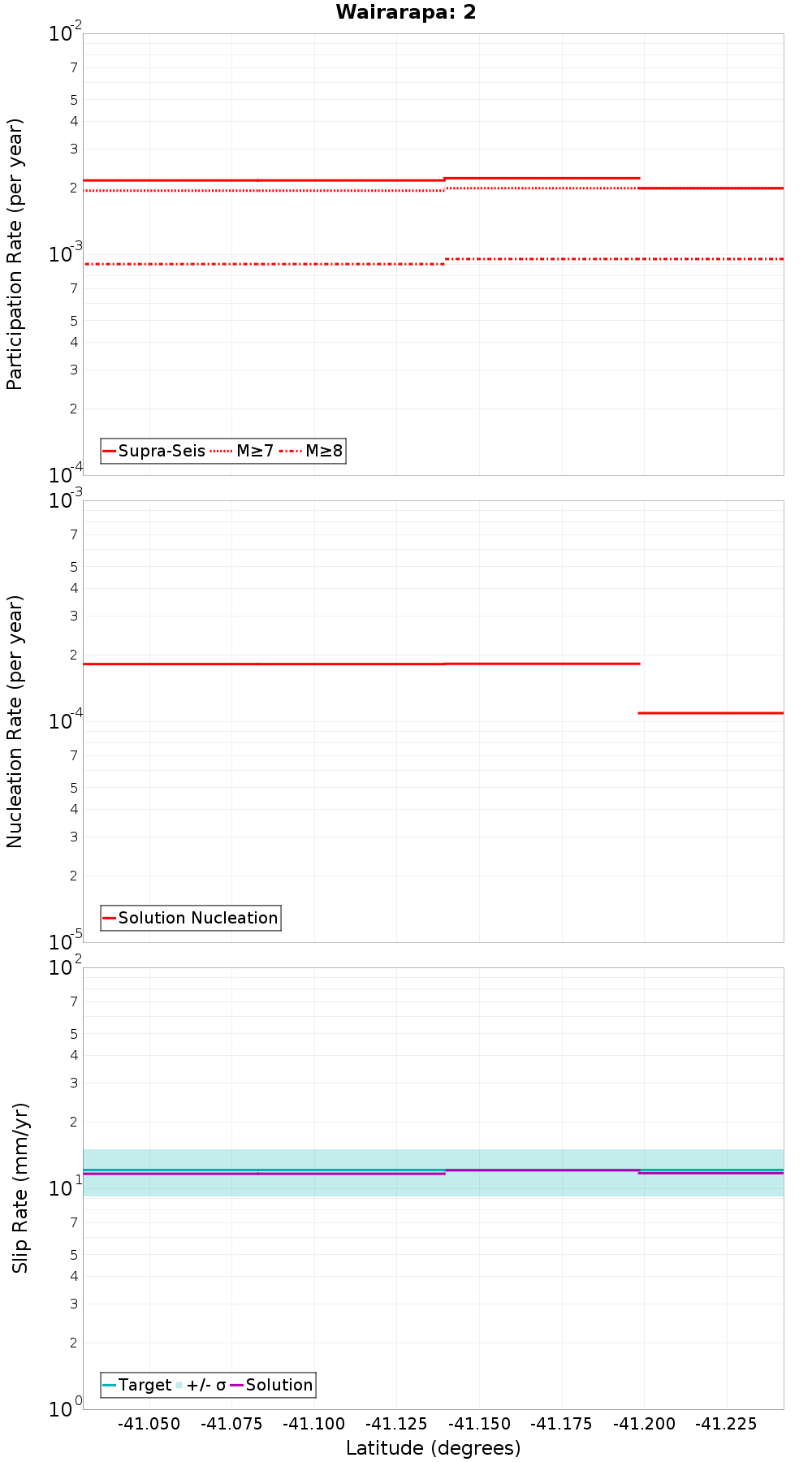

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairarapa: 1, 0 km awayMokonui Southwest, 12.05 km away
Wairarapa: 3, 0.03 km awayAkatarawa, 12.78 km away
Carterton, 0.05 km awayMoonshine, 13.37 km away
Wellington Hutt Valley: 5, 0.33 km awayOtaraia, 13.88 km away
Wharekauhau, 1.38 km awayWellington: Tararua 3, 14.29 km away
Wellington Hutt Valley: 4, 3.98 km awayDry River - Huangarua: 1, 16.57 km away
Masterton, 5.7 km awayOtaki Forks: 1, 16.84 km away
Wellington: Tararua 2, 6.35 km awayOtaki Forks: 2, 17.26 km away
Wellington: Tararua 1, 6.52 km awayDry River - Huangarua: 3, 17.87 km away
Bidwill, 7.72 km awayDry River - Huangarua: 2, 18.13 km away
Martinborough, 9.66 km awayAotea - Evans Bay, 19.43 km away
Whitemans Valley, 10.22 km awayOhariu, 19.83 km away

Wairarapa: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?true
Directly Connected?true
Co-rupture Count33,547
Co-rupture Rate0.0017411684

Wairarapa: 3, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?true
Directly Connected?true
Co-rupture Count11,353
Co-rupture Rate9.851202E-4

Carterton, 0.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?true
Directly Connected?true
Co-rupture Count2,289
Co-rupture Rate5.488508E-4

Wellington Hutt Valley: 5, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?true
Directly Connected?false
Co-rupture Count835
Co-rupture Rate5.8360743E-5

Wharekauhau, 1.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?true
Directly Connected?false
Co-rupture Count331
Co-rupture Rate0.0

Wellington Hutt Valley: 4, 3.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Masterton, 5.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Tararua 2, 6.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?true
Directly Connected?true
Co-rupture Count19,749
Co-rupture Rate1.3475068E-4

Wellington: Tararua 1, 6.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate2.664453E-5

Bidwill, 7.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Martinborough, 9.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate1.6788017E-5

Whitemans Valley, 10.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mokonui Southwest, 12.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?true
Directly Connected?false
Co-rupture Count2,279
Co-rupture Rate6.493609E-5

Akatarawa, 12.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonshine, 13.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaraia, 13.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Tararua 3, 14.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?true
Directly Connected?false
Co-rupture Count19,312
Co-rupture Rate1.3475068E-4

Dry River - Huangarua: 1, 16.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaki Forks: 1, 16.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaki Forks: 2, 17.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dry River - Huangarua: 3, 17.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate1.4487968E-4

Dry River - Huangarua: 2, 18.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Aotea - Evans Bay, 19.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu, 19.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
