Wakarara Details

Property	Value
Rupture Count	8,011
Ruptures Above Sect Min Mag	8,011
Ruptures w/ Nonzero Rates	6
Magnitude Range	[7.07, 8.32]
Length Range	[26, 552] km
Total Rate	4.5332603E-5 /yr
Multi-Fault Rate	4.5332603E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	100

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

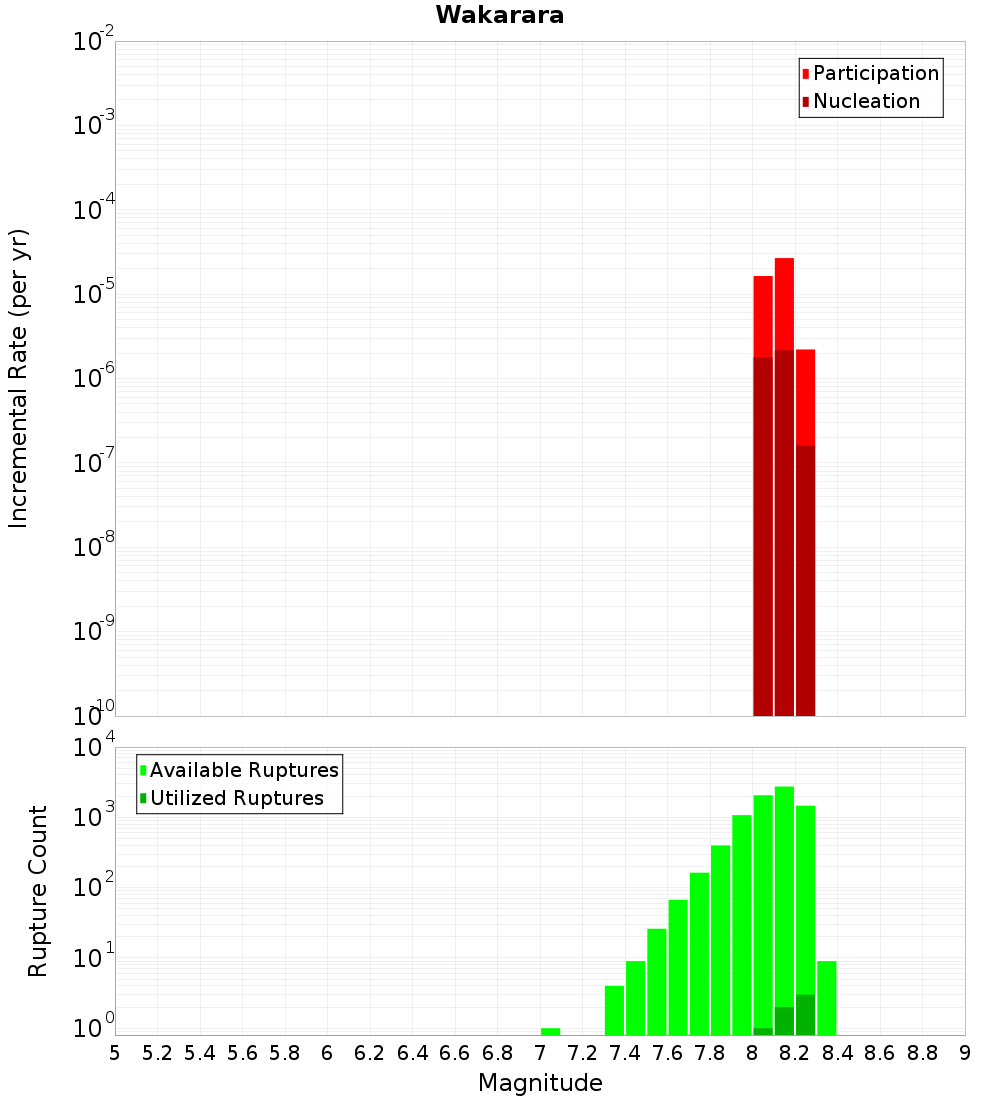

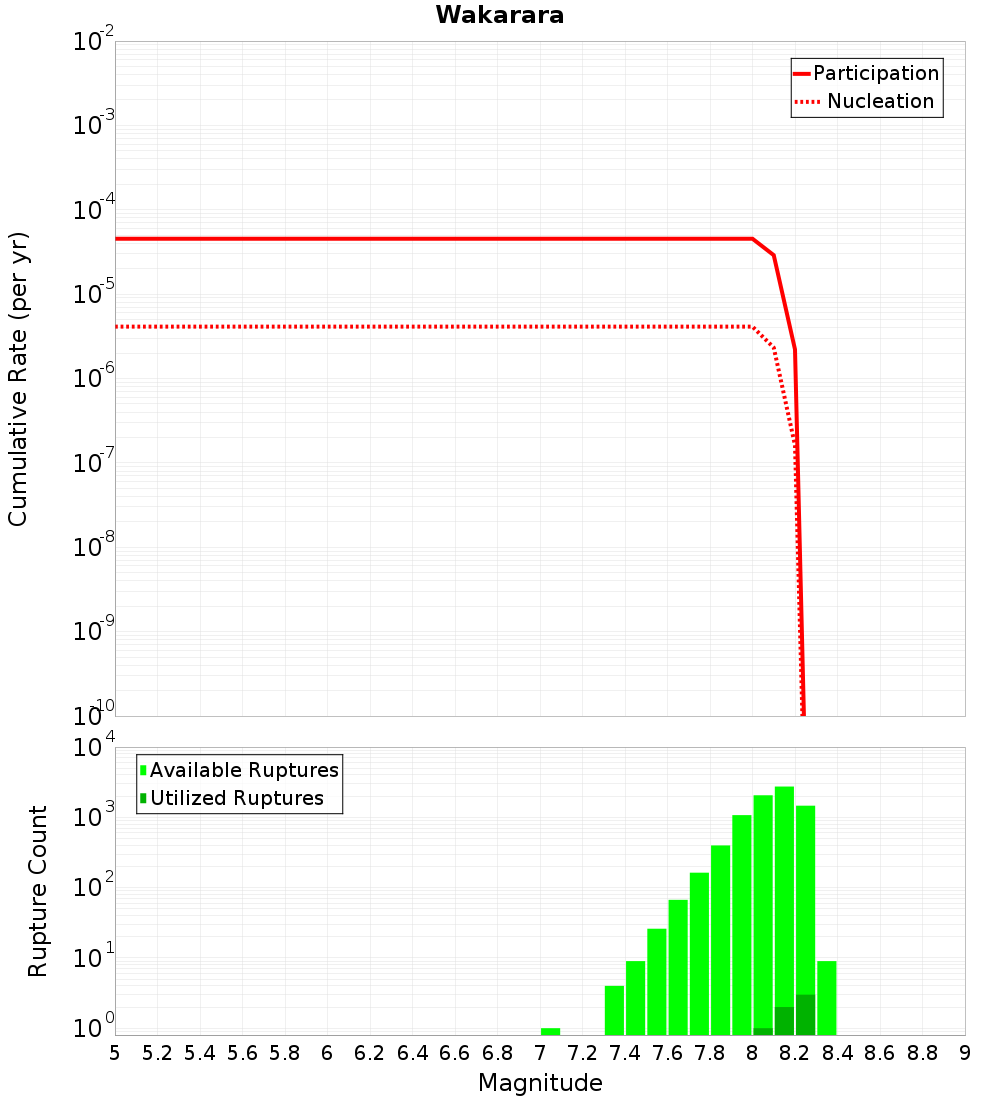

Magnitude-Frequency Distribution

Incremental	Cumulative

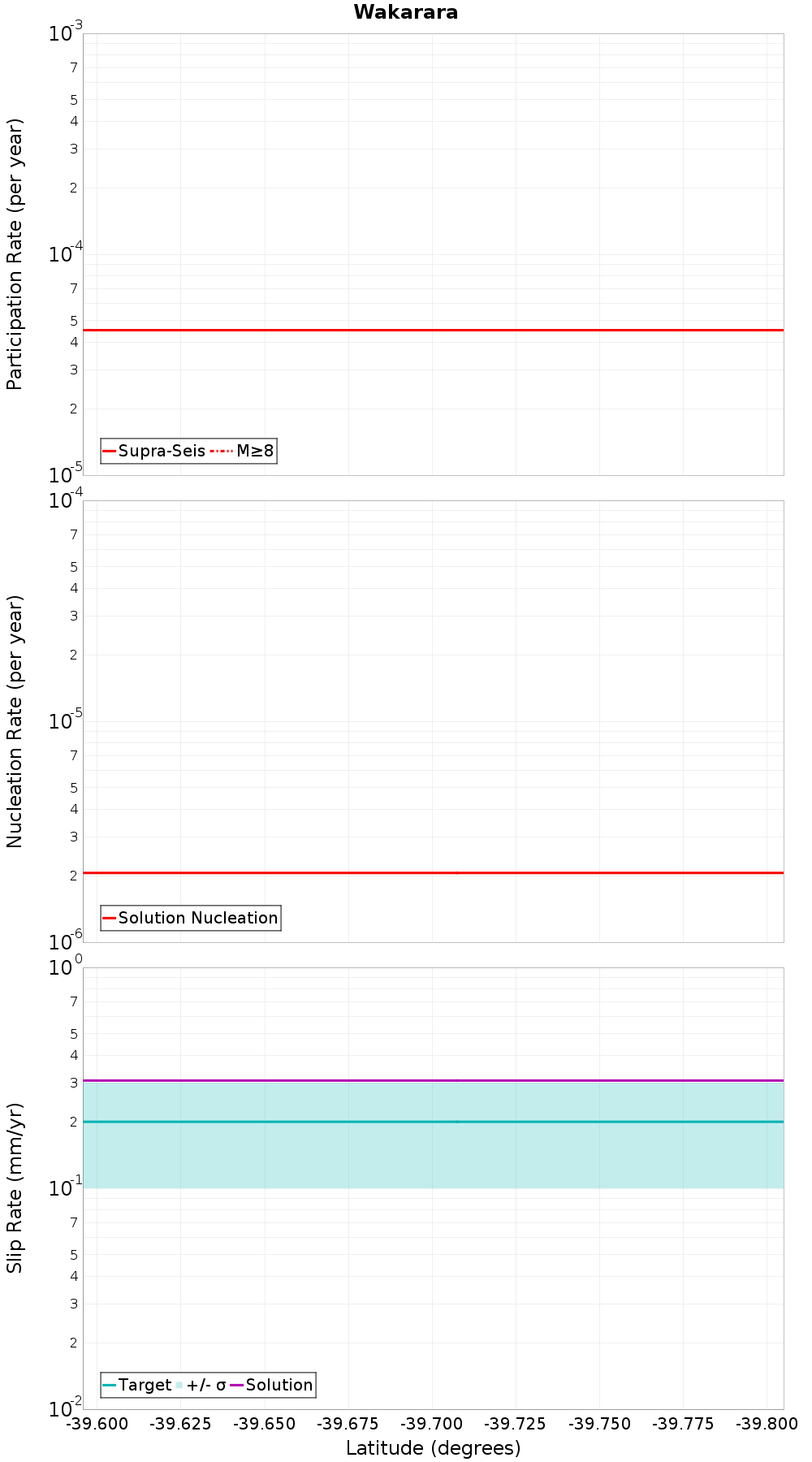

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Rangefront, 0 km away
Ruahine: Central, 0.11 km away
Mohaka: South, 0.13 km away
Ruahine: North, 4 km away
Mohaka: North, 9.63 km away
Ruataniwha, 13.37 km away
Ruahine: South, 14.13 km away
Te Heka, 14.9 km away
Patoka - Rangiora, 14.99 km away
Awanui, 18.32 km away
Oruawharo - Mangatoro, 18.53 km away
Kaweka, 18.88 km away

Rangefront, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?	true
Directly Connected?	true
Co-rupture Count	7,452
Co-rupture Rate	4.5332603E-5

Ruahine: Central, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?	true
Directly Connected?	false
Co-rupture Count	482
Co-rupture Rate	0.0

Mohaka: South, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?	true
Directly Connected?	true
Co-rupture Count	9,750
Co-rupture Rate	9.045527E-5

Ruahine: North, 4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?	true
Directly Connected?	true
Co-rupture Count	2,790
Co-rupture Rate	1.0496593E-7

Mohaka: North, 9.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?	true
Directly Connected?	false
Co-rupture Count	4,480
Co-rupture Rate	2.883788E-5

Ruataniwha, 13.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruahine: South, 14.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?	true
Directly Connected?	false
Co-rupture Count	1,982
Co-rupture Rate	1.0496593E-7

Te Heka, 14.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Patoka - Rangiora, 14.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?	true
Directly Connected?	false
Co-rupture Count	193
Co-rupture Rate	1.6389755E-5

Awanui, 18.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Oruawharo - Mangatoro, 18.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaweka, 18.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MTYuMHhKbkM2
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0
