Caswell High 5 Details

PropertyValue
Rupture Count370
Ruptures Above Sect Min Mag361
Ruptures w/ Nonzero Rates54
Magnitude Range[6.56, 7.95]
Length Range[14, 280] km
Total Rate1.4977135E-4 /yr
Multi-Fault Rate1.4977135E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults10

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

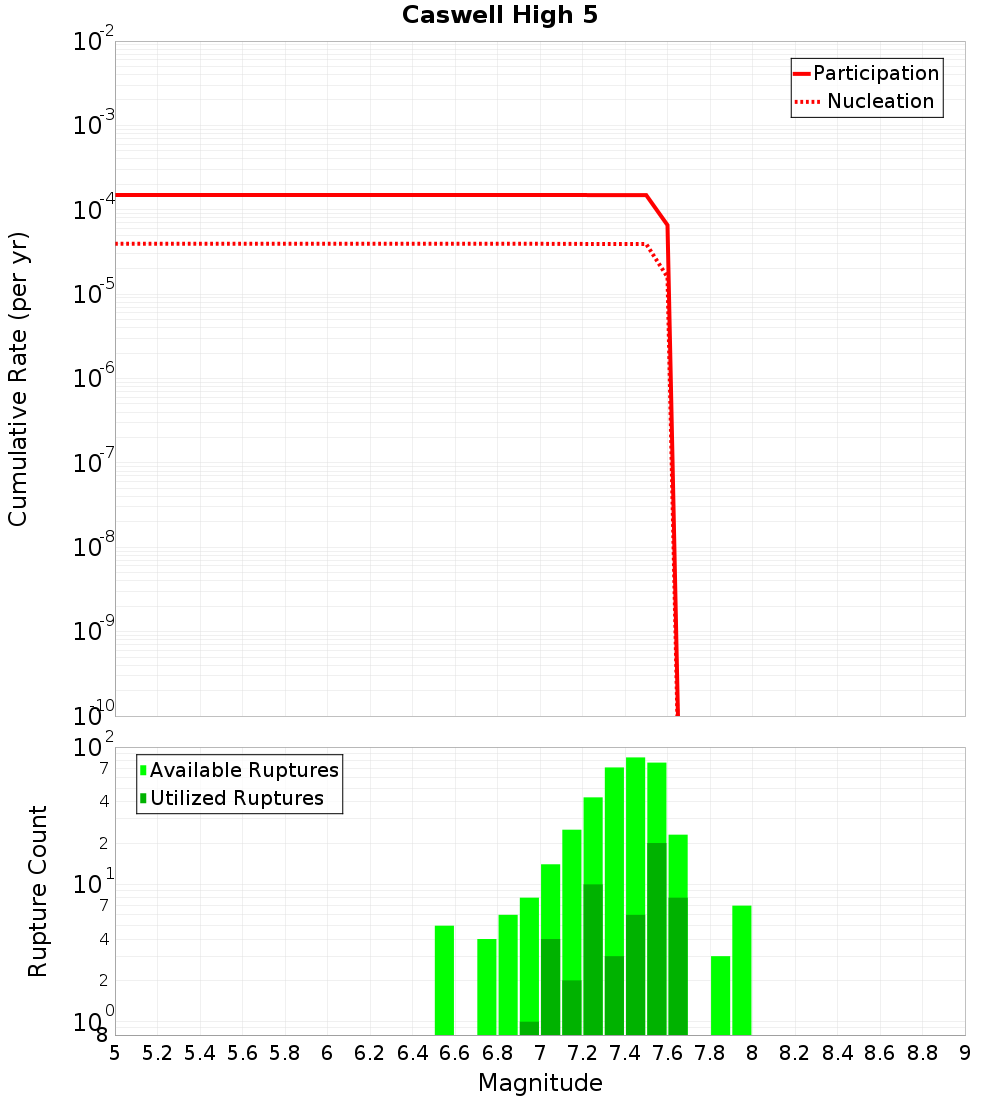

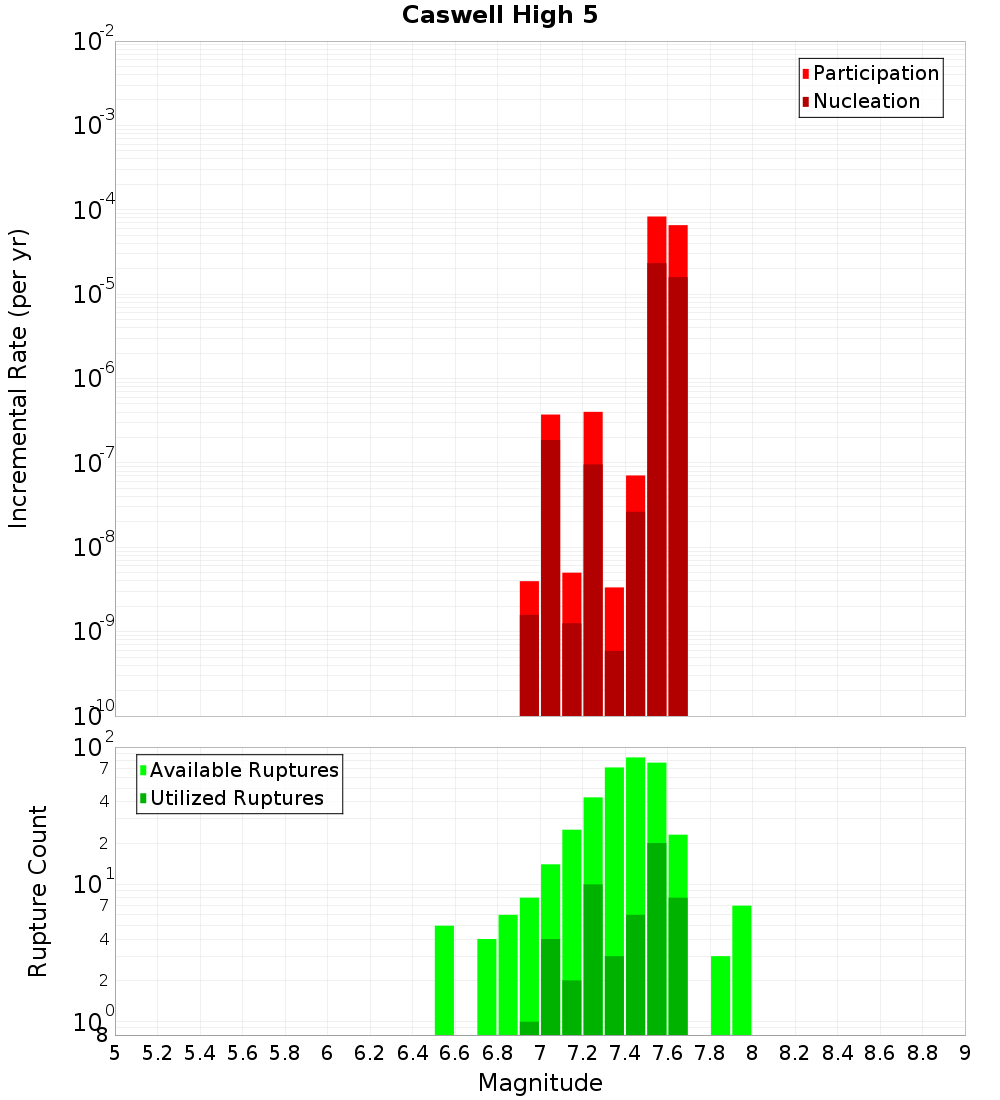

Incremental PlotCumulative Plot

Along-Strike Values

(top)

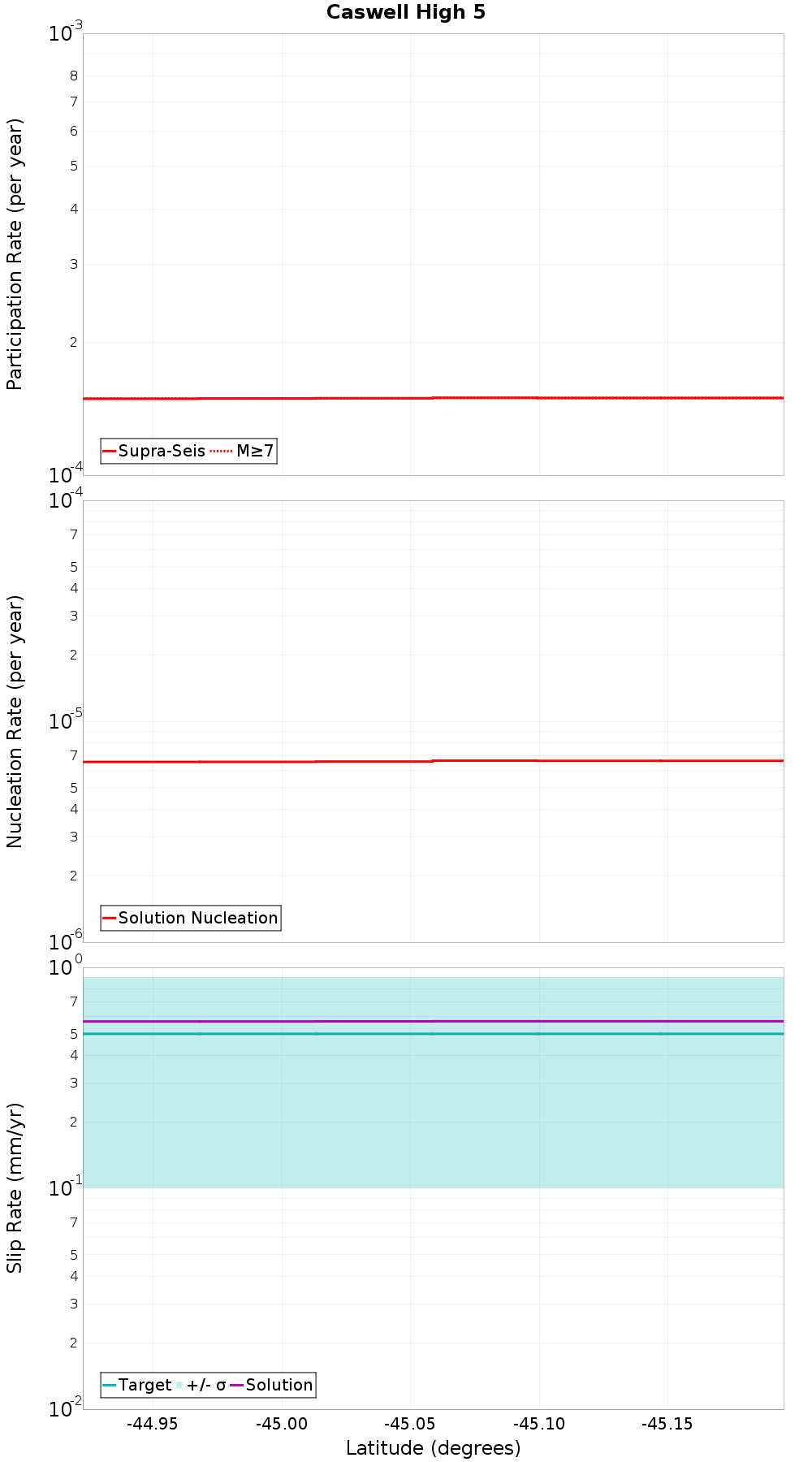

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

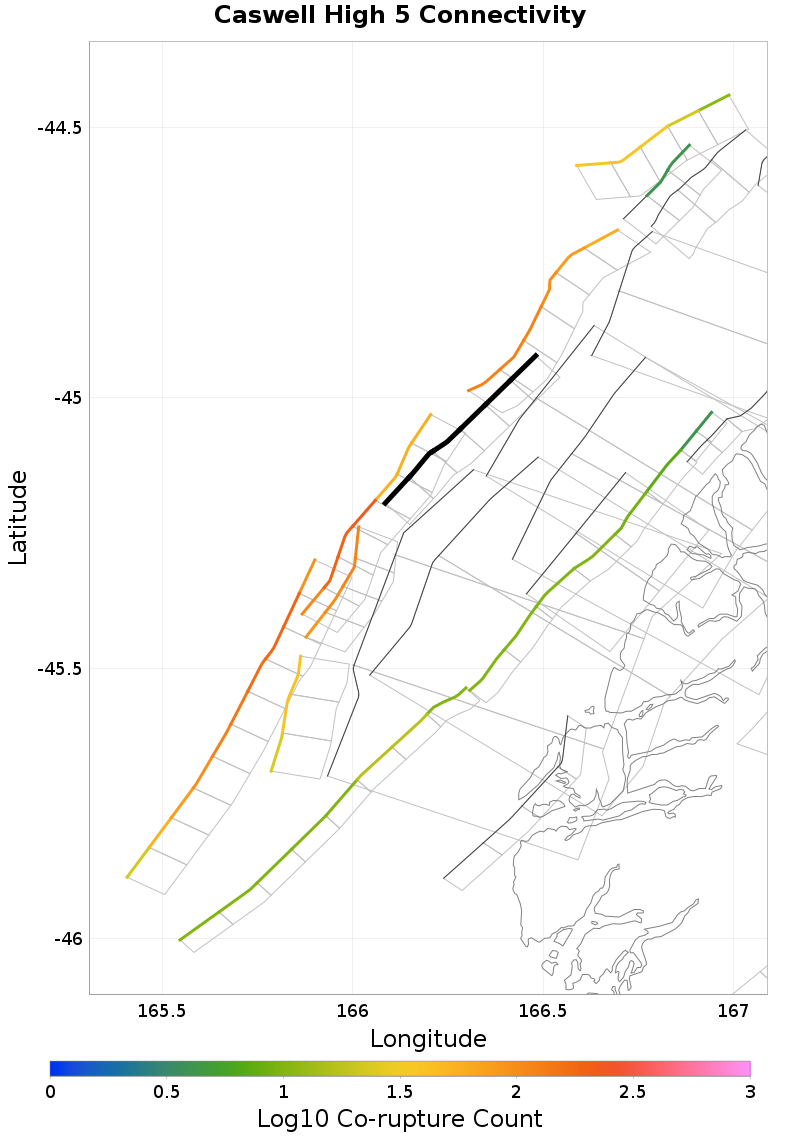

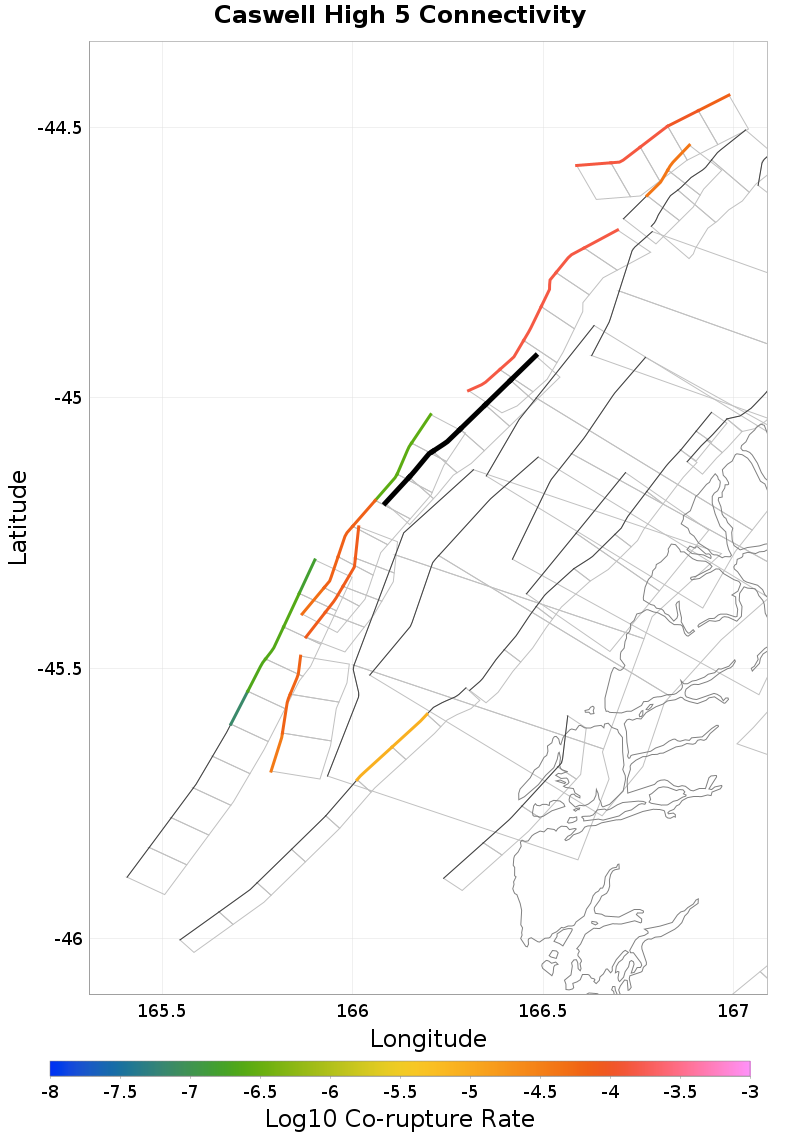

MapMap

Nearby Sections

(top)

Fault Section
Caswell High 4, 0.7 km away
Caswell High 67, 1.48 km away
Caswell High 3, 4.35 km away
Central Wedge 4 - South Wedge 411, 5.03 km away
South Wedge 5, 6.44 km away
Central Wedge 1 & 2 & 3, 10.98 km away
South Wedge 3-6-10, 13.36 km away
Caswell High 1, 16.05 km away
South Wedge 2, 16.15 km away

Caswell High 4, 0.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count227
Co-rupture Rate7.1059556E-5

Caswell High 67, 1.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count121
Co-rupture Rate1.4898216E-4

Caswell High 3, 4.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count117
Co-rupture Rate7.87705E-5

Central Wedge 4 - South Wedge 411, 5.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

South Wedge 5, 6.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Central Wedge 1 & 2 & 3, 10.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

South Wedge 3-6-10, 13.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Caswell High 1, 16.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count190
Co-rupture Rate2.3649518E-7

South Wedge 2, 16.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
