Edgecumbe 1987 Details

PropertyValue
Rupture Count14,314
Ruptures Above Sect Min Mag14,314
Ruptures w/ Nonzero Rates19
Magnitude Range[6.79, 8.34]
Length Range[20, 608] km
Total Rate1.420091E-4 /yr
Multi-Fault Rate1.420091E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults86

Table Of Contents

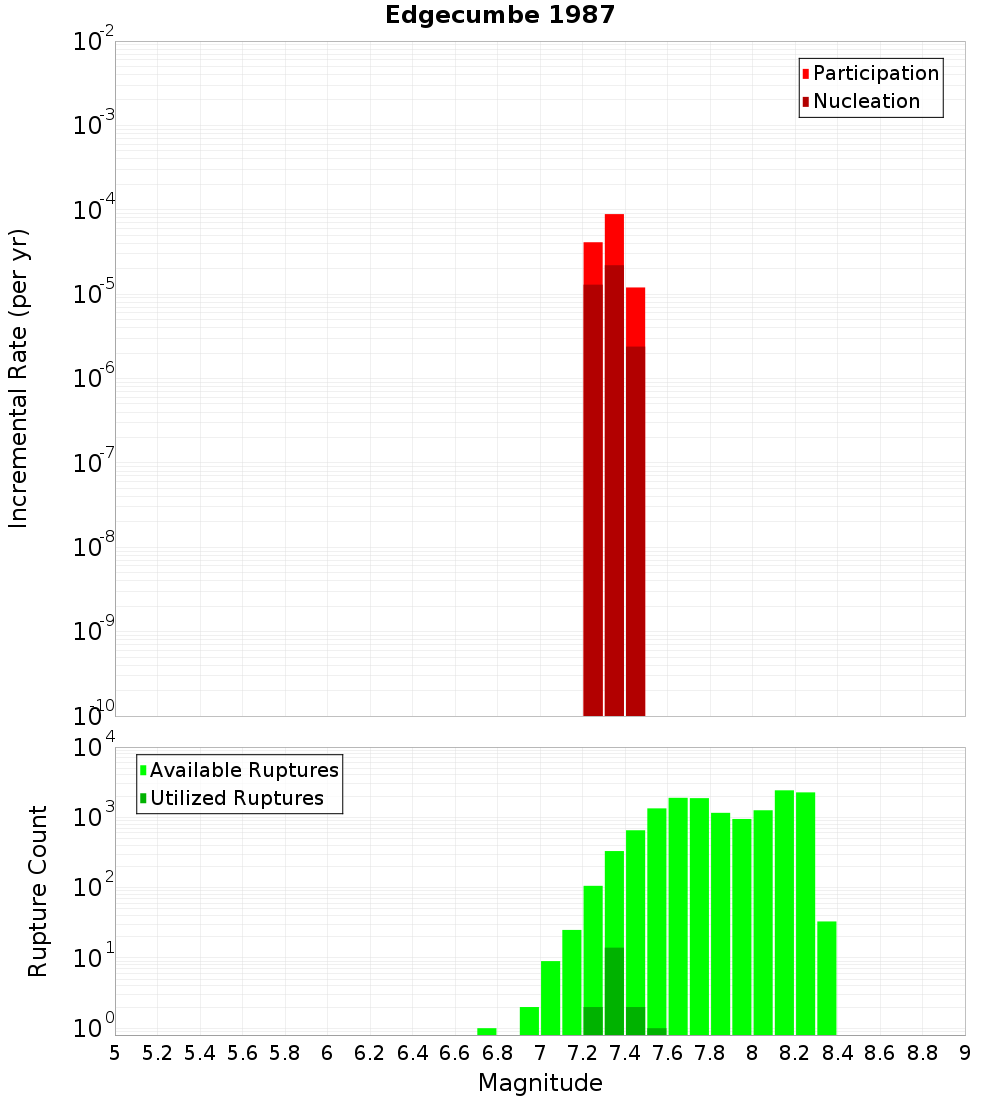

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

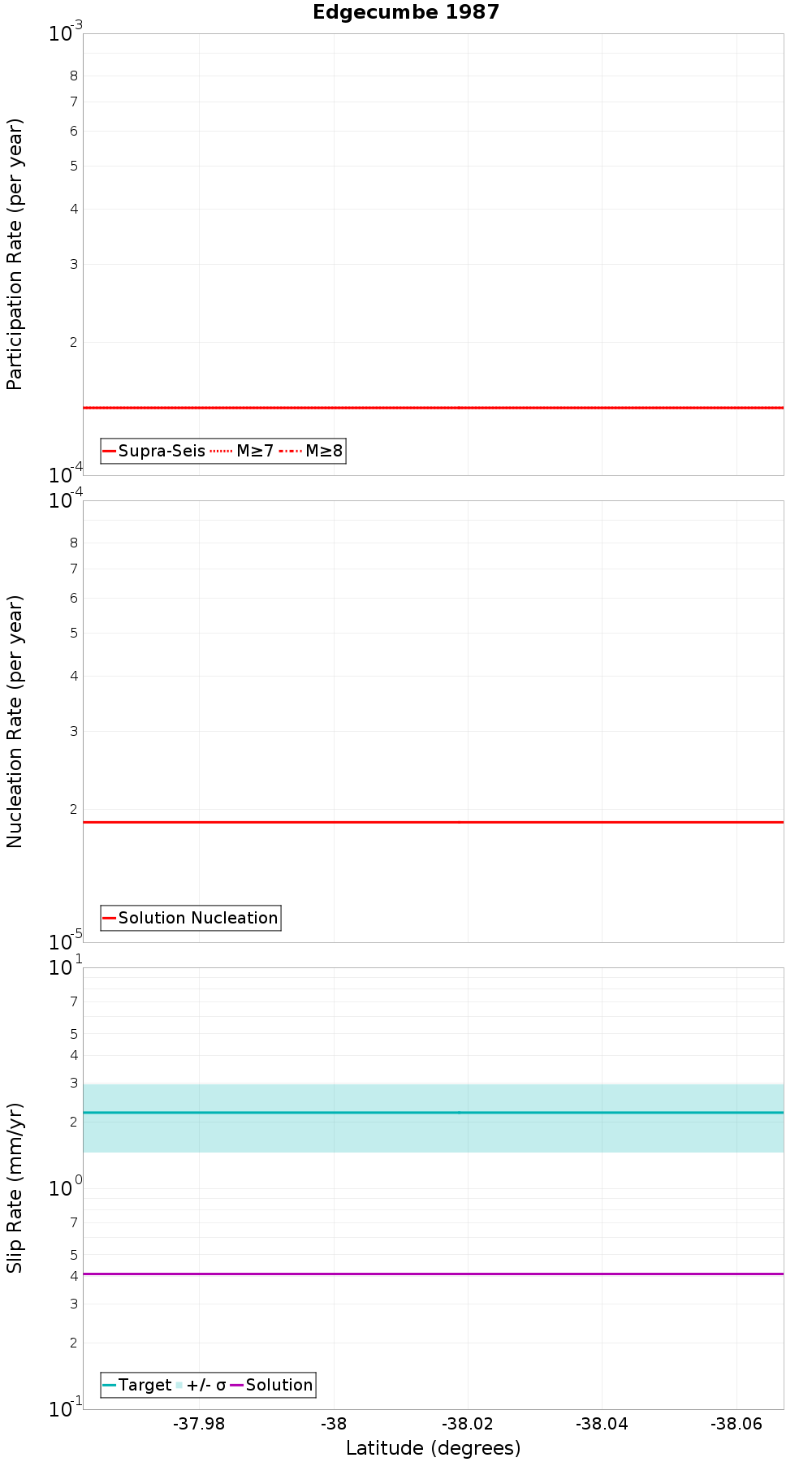

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

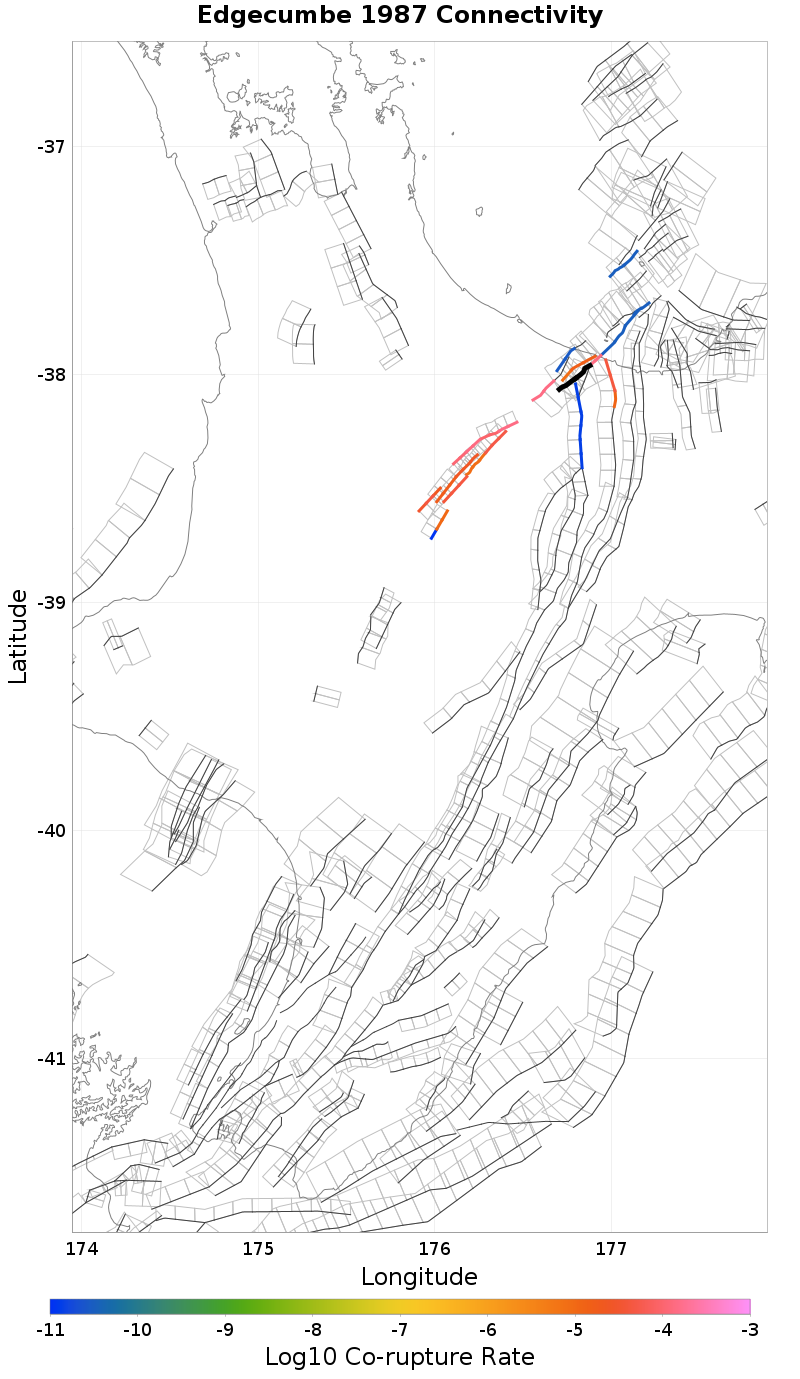

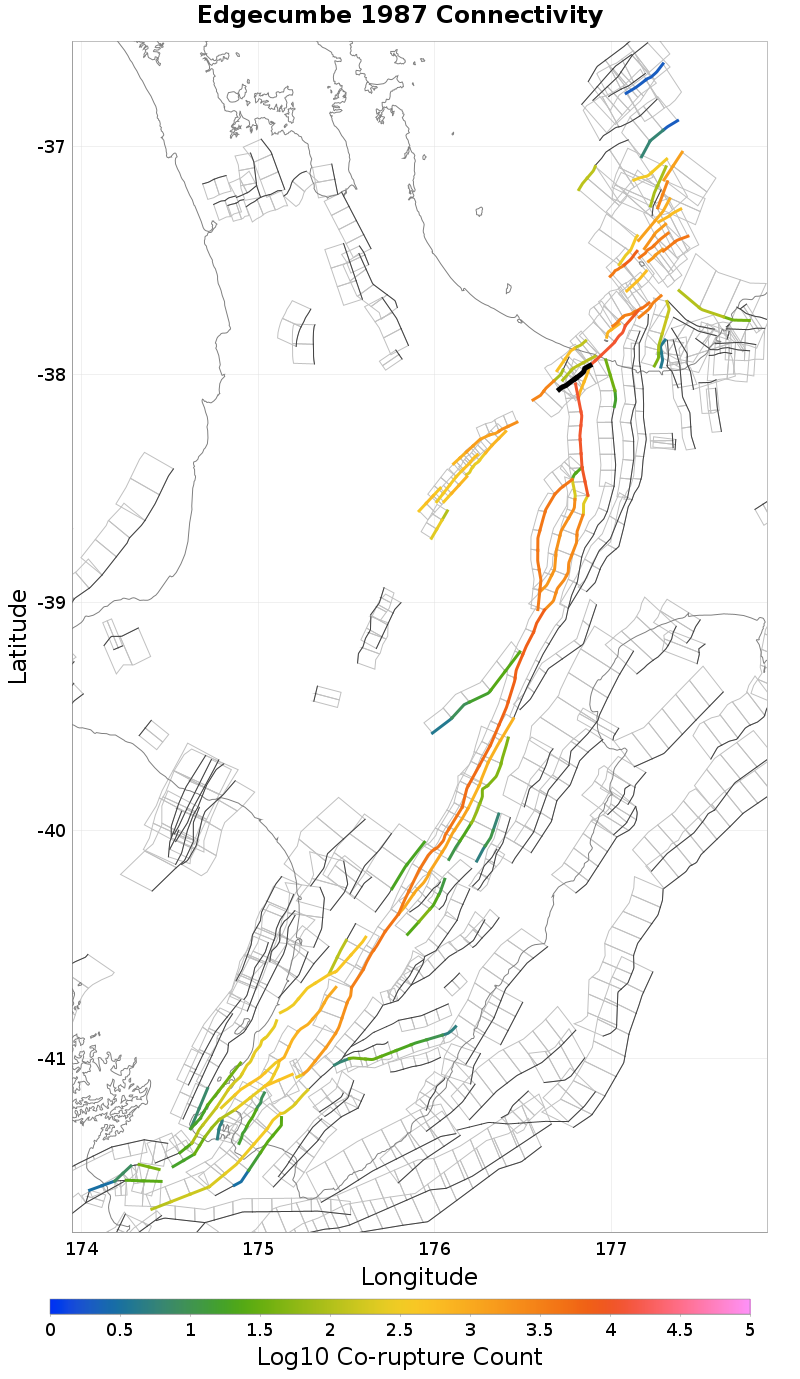

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awakeri, 0 km away
Edgecumbe Coastal, 0 km away
Otakiri, 0.19 km away
Matata, 0.29 km away
Braemar, 0.32 km away
Waiohau: North, 2.18 km away
White Island 1, 4.49 km away
Whakatane: North, 7.15 km away
Rangitaiki 1, 15.01 km away

Awakeri, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count658
Co-rupture Rate0.0

Edgecumbe Coastal, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count11,626
Co-rupture Rate1.4200908E-4

Otakiri, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count114
Co-rupture Rate1.4895578E-5

Matata, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count558
Co-rupture Rate2.7338621E-11

Braemar, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count2,874
Co-rupture Rate1.420091E-4

Waiohau: North, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count11,698
Co-rupture Rate1.3527493E-11

White Island 1, 4.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count11,570
Co-rupture Rate3.2034913E-11

Whakatane: North, 7.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate4.2746124E-5

Rangitaiki 1, 15.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count762
Co-rupture Rate0.0
