Hawkswood Details

PropertyValue
Rupture Count858
Ruptures Above Sect Min Mag857
Ruptures w/ Nonzero Rates165
Magnitude Range[6.81, 8.11]
Length Range[20, 345] km
Total Rate2.944093E-4 /yr
Multi-Fault Rate2.9440498E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults45

Table Of Contents

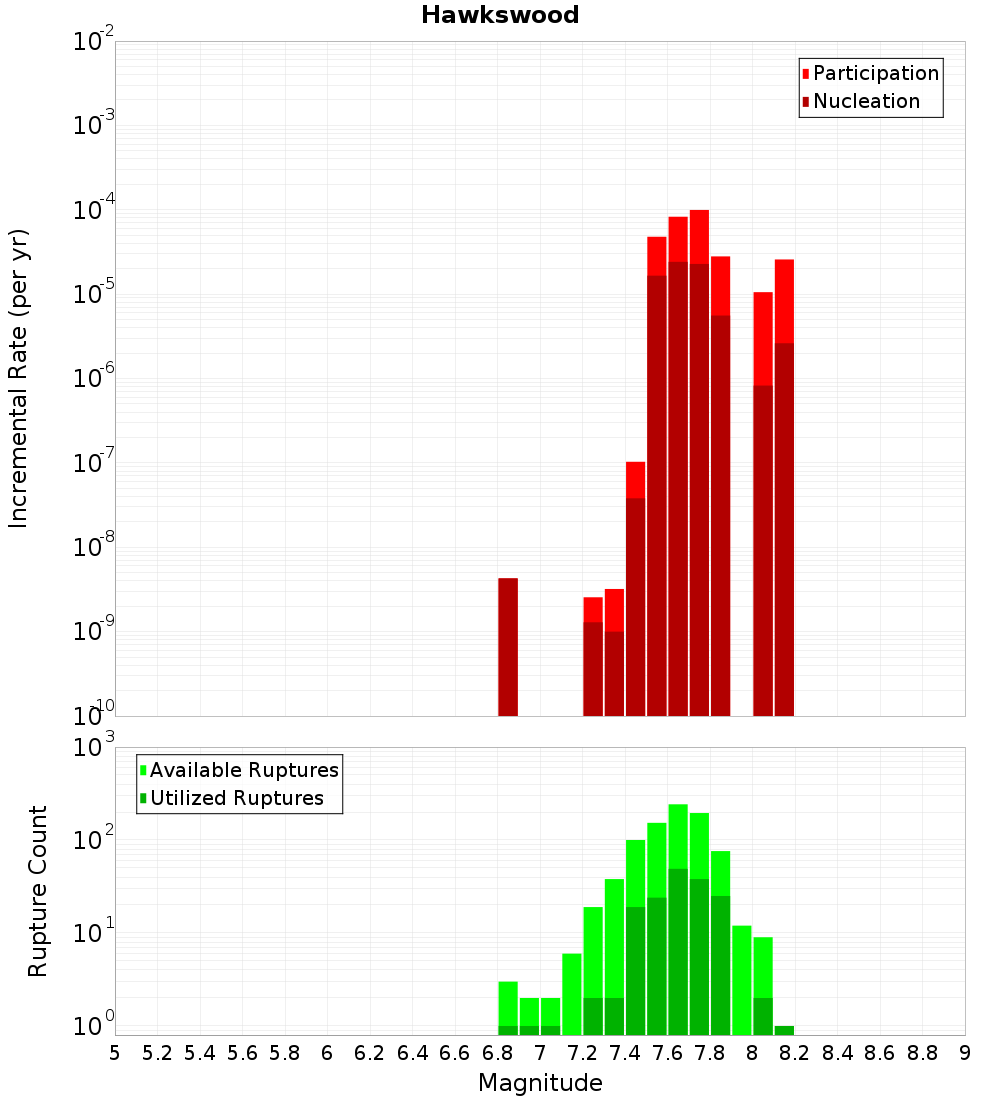

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

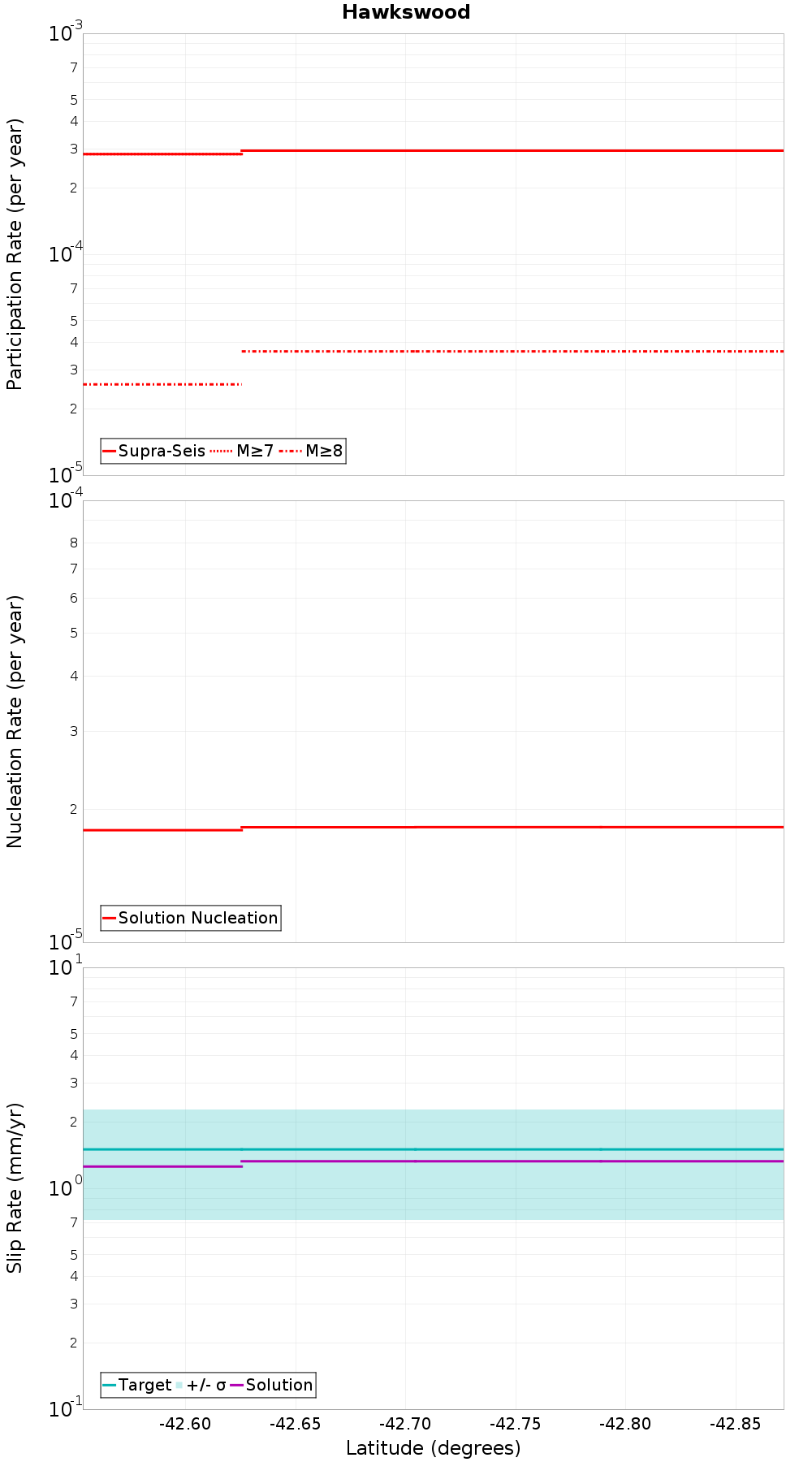

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

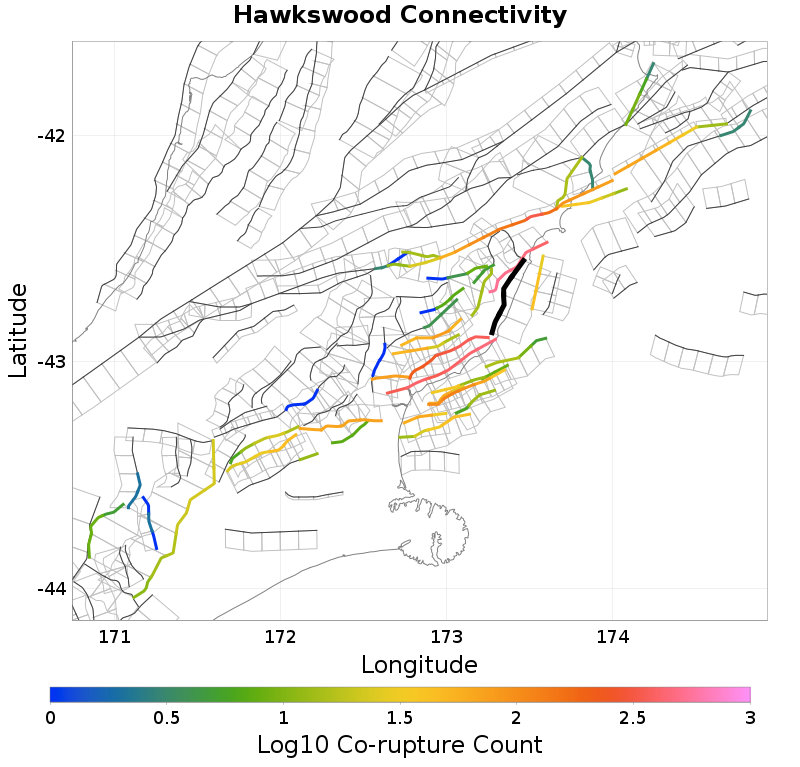

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hundalee, 0.87 km awayPoint Gibson, 11.9 km away
StoneJug, 2.25 km awayAlexander, 15.05 km away
OmihiLwrHuru, 3.06 km awayNorth Canterbury Shelf 11, 15.2 km away
AmberBlyth, 3.15 km awayKaiwara South, 16.48 km away
Conway Trough West, 4 km awayLeithfield - NCVI - NCVII, 17.16 km away
Kaiwara North, 9.21 km awayLeonard Mound, 17.63 km away
Leader: Central, 10.66 km awayLowry, 17.9 km away
Leader: South, 10.66 km awayLeader: North, 18.36 km away
Conway Trough East, 10.89 km awayHope: Conway, 18.44 km away
The Humps, 11.31 km away

Hundalee, 0.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count540
Co-rupture Rate2.558155E-4

StoneJug, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

OmihiLwrHuru, 3.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count362
Co-rupture Rate6.02253E-5

AmberBlyth, 3.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count595
Co-rupture Rate2.4203368E-4

Conway Trough West, 4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count42
Co-rupture Rate2.79166E-8

Kaiwara North, 9.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate9.961648E-6

Leader: Central, 10.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: South, 10.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Conway Trough East, 10.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

The Humps, 11.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate2.0508896E-5

Point Gibson, 11.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate0.0

Alexander, 15.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count87
Co-rupture Rate1.1320909E-5

North Canterbury Shelf 11, 15.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate4.0504167E-7

Kaiwara South, 16.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count62
Co-rupture Rate1.7839757E-5

Leithfield - NCVI - NCVII, 17.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count134
Co-rupture Rate4.289708E-7

Leonard Mound, 17.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate3.0470545E-5

Lowry, 17.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate4.230342E-8

Leader: North, 18.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Conway, 18.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count329
Co-rupture Rate1.21871824E-4
