Maleme Details
| Property | Value |
|---|---|
| Rupture Count | 4,022 |
| Ruptures Above Sect Min Mag | 4,016 |
| Ruptures w/ Nonzero Rates | 145 |
| Magnitude Range | [6.18, 7.85] |
| Length Range | [9, 215] km |
| Total Rate | 0.0017947361 /yr |
| Multi-Fault Rate | 0.0017947361 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 30 |
Table Of Contents

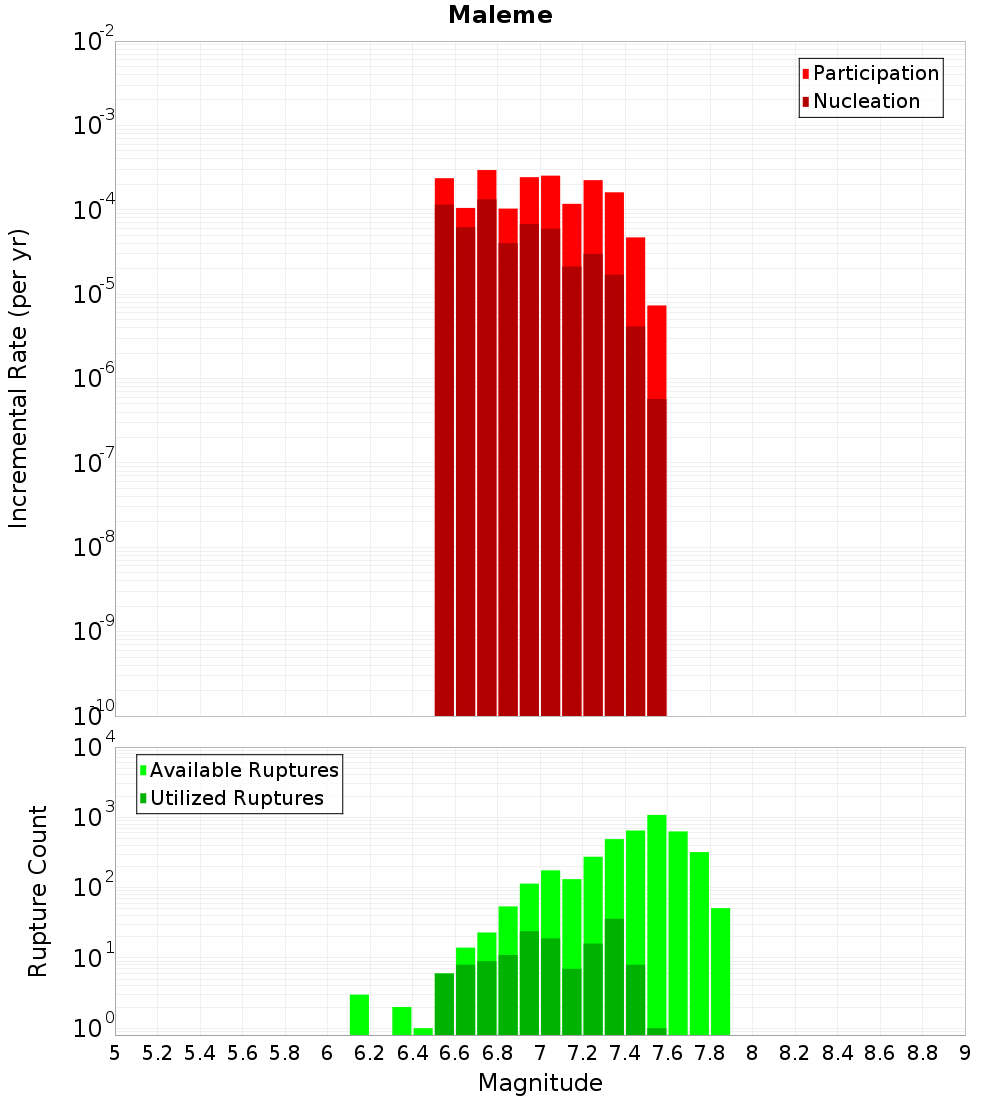

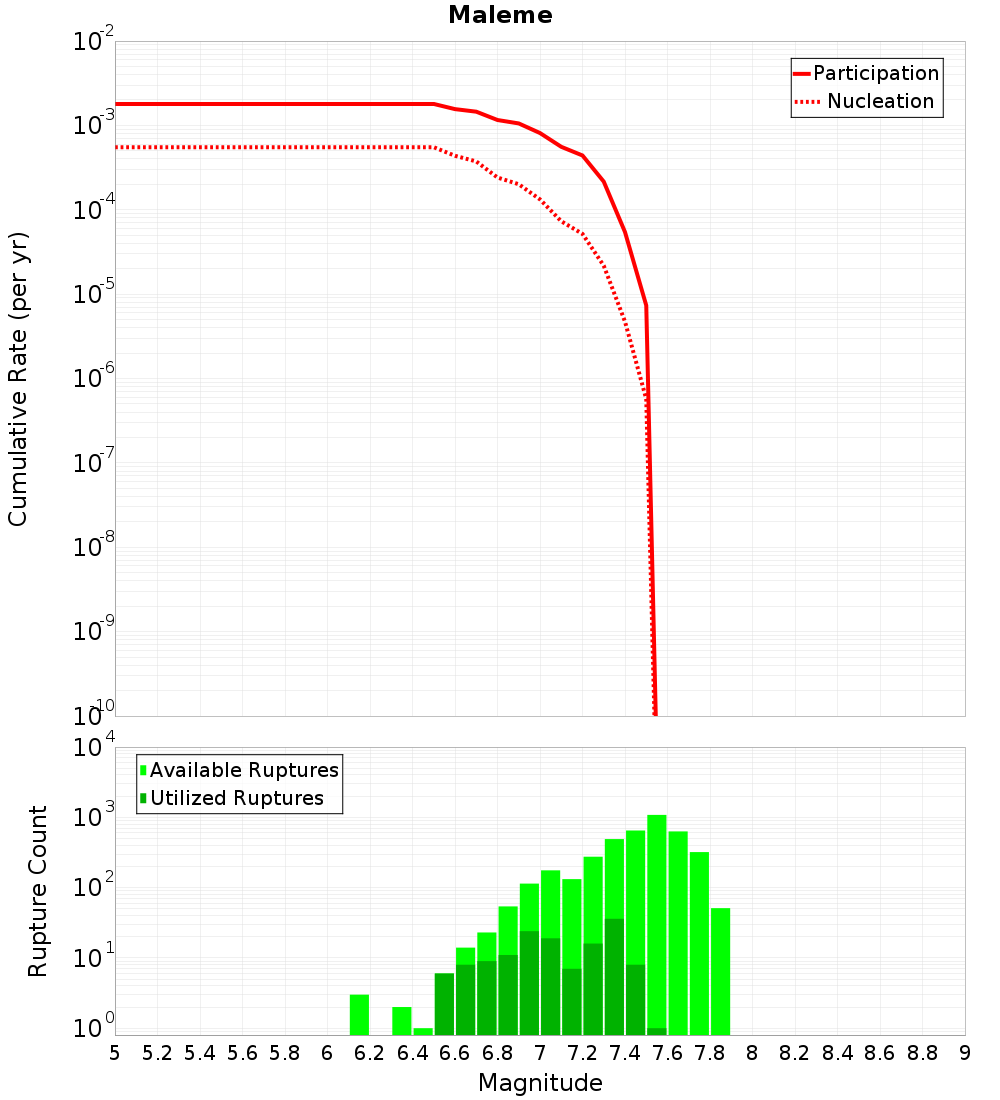

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

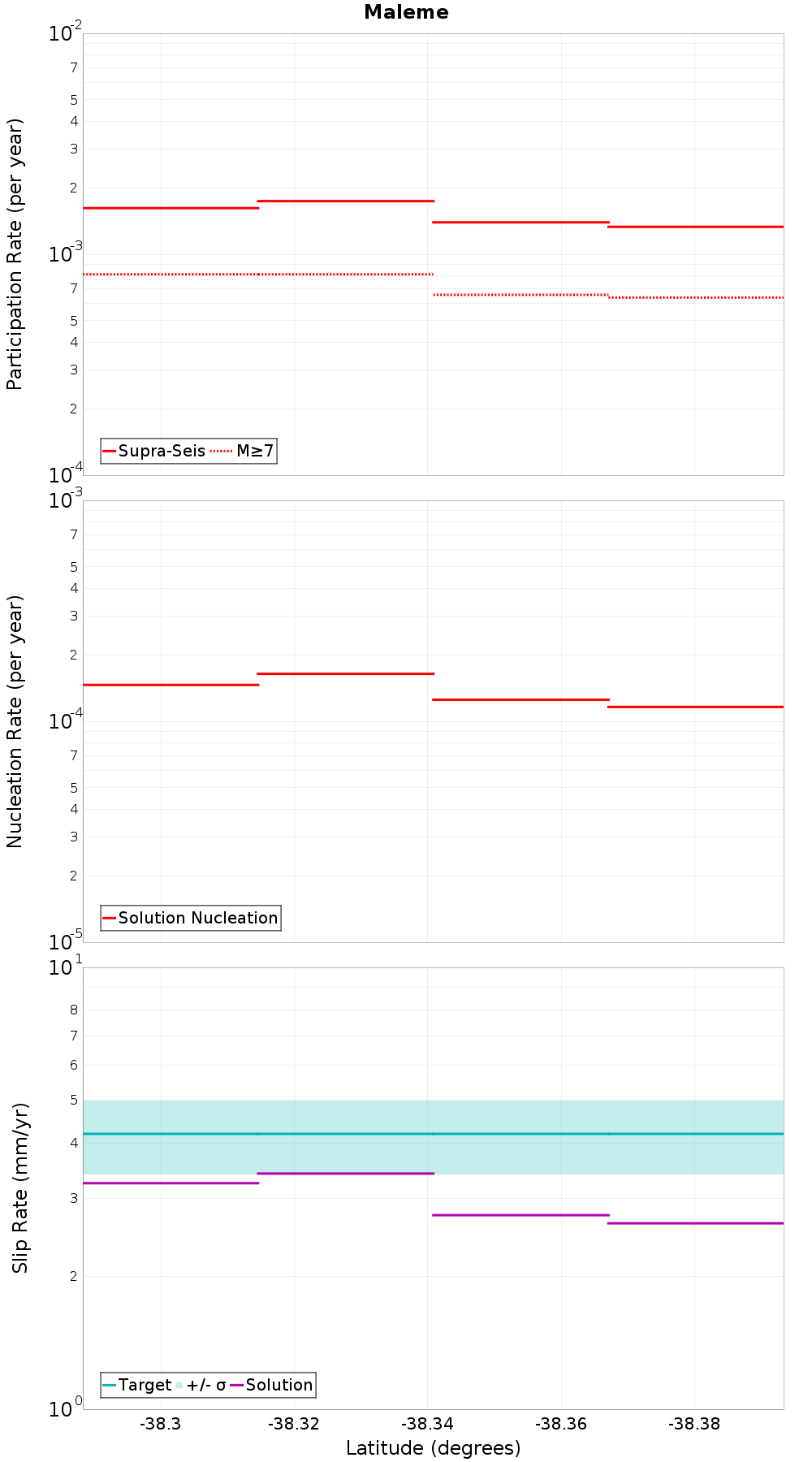

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Puketerata North, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,374 |
| Co-rupture Rate | 3.021812E-4 |
Paeroa, 0.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 999 |
| Co-rupture Rate | 5.811458E-4 |
Orakeikorako, 0.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,875 |
| Co-rupture Rate | 6.7016477E-4 |
EarthquakeFlat - Tumunui, 0.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,807 |
| Co-rupture Rate | 0.001008152 |
Puketerata, 3.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 979 |
| Co-rupture Rate | 6.105438E-4 |
Whangamata West, 12.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,368 |
| Co-rupture Rate | 5.360222E-4 |
Kaiapo, 19.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 767 |
| Co-rupture Rate | 5.464398E-4 |
