Roaring Lion Details

Property	Value
Rupture Count	1,168
Ruptures Above Sect Min Mag	1,167
Ruptures w/ Nonzero Rates	21
Magnitude Range	[7.31, 8.47]
Length Range	[33, 724] km
Total Rate	4.8414004E-5 /yr
Multi-Fault Rate	4.8414004E-5 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	53

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

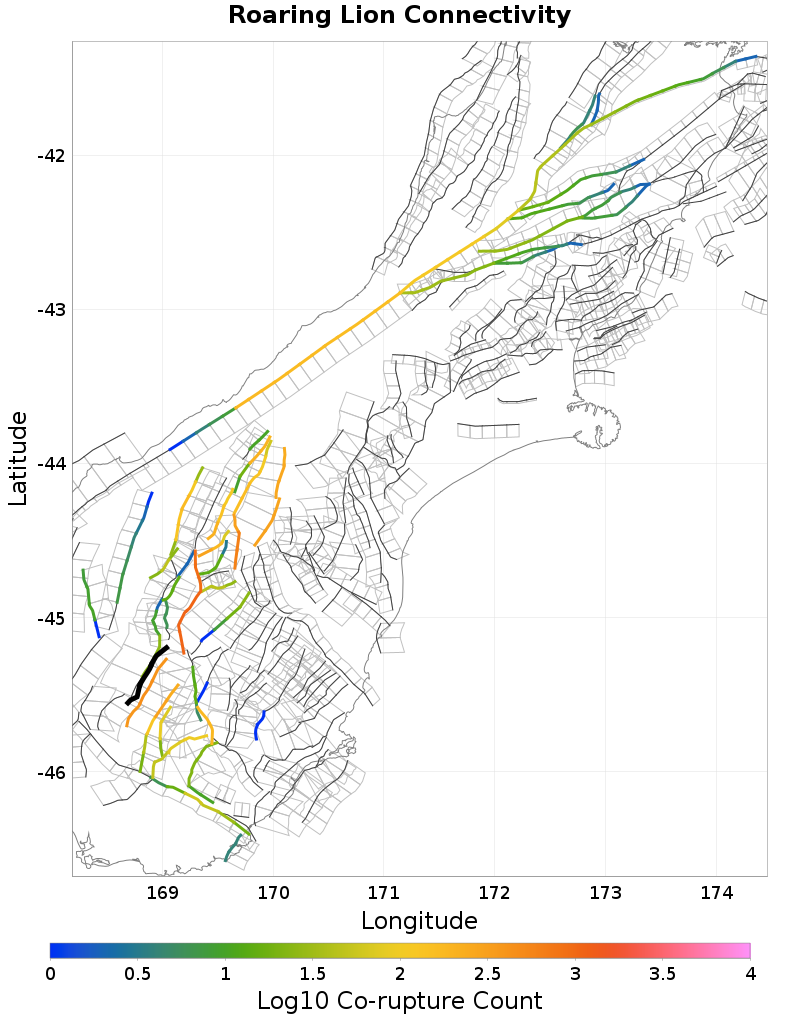

Connectivity
- Nearby Sections

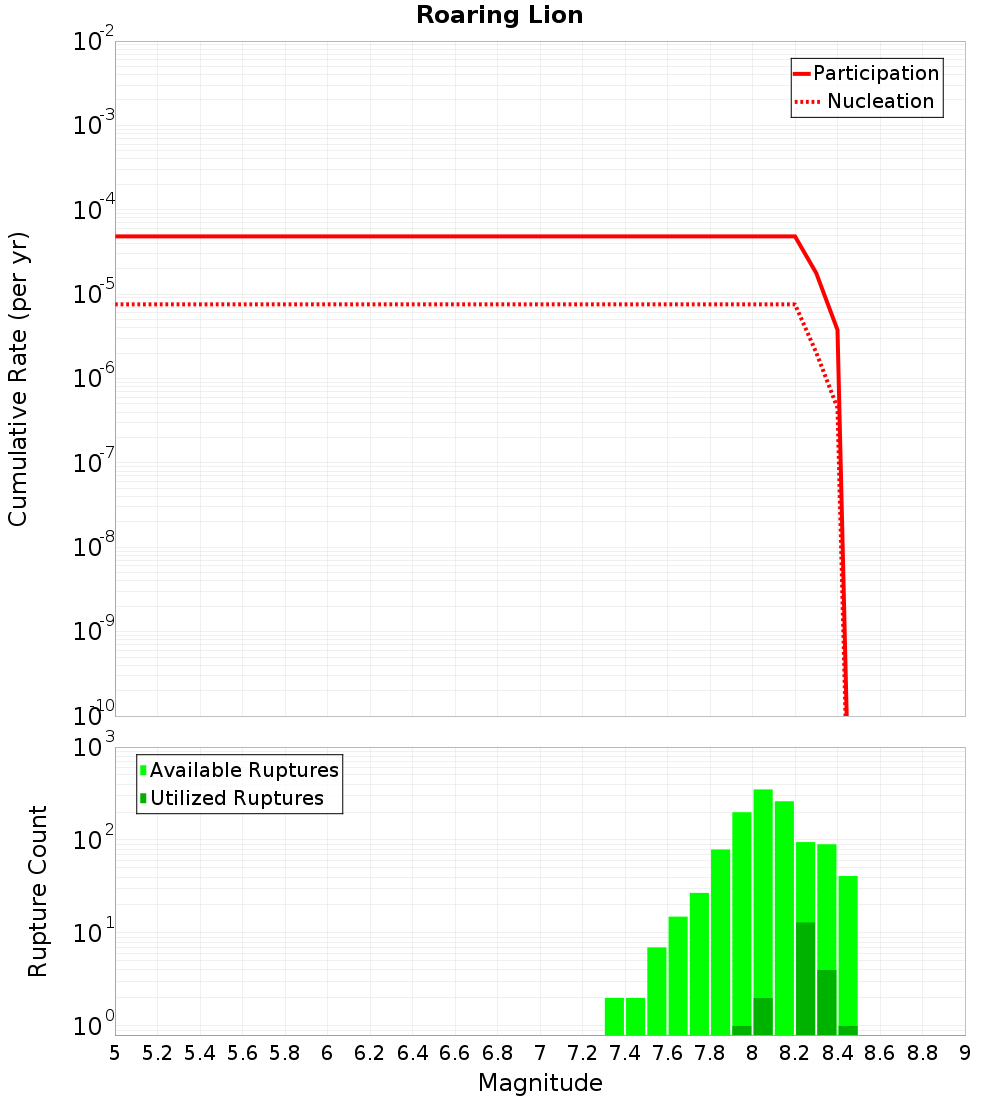

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Old Man, 0.17 km away
Nevis, 0.43 km away
Pisa, 0.83 km away
Garvie, 2.74 km away
Teviot, 3.33 km away
Mid Dome, 5.36 km away
Roaring Meg, 6.05 km away
Waikaia, 6.12 km away
Dunstan, 6.22 km away
Wendon Valley, 9.71 km away
NW Cardrona South, 10.86 km away
Lake Onslow, 12.03 km away
Galloway, 13.84 km away
Waikaka, 18.85 km away

Old Man, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?	true
Directly Connected?	true
Co-rupture Count	14
Co-rupture Rate	0.0

Nevis, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?	true
Directly Connected?	true
Co-rupture Count	24
Co-rupture Rate	4.361722E-11

Pisa, 0.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,098
Co-rupture Rate	4.8414004E-5

Garvie, 2.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?	true
Directly Connected?	true
Co-rupture Count	487
Co-rupture Rate	6.598652E-6

Teviot, 3.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?	true
Directly Connected?	true
Co-rupture Count	183
Co-rupture Rate	2.4078665E-5

Mid Dome, 5.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Roaring Meg, 6.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0

Waikaia, 6.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?	true
Directly Connected?	true
Co-rupture Count	305
Co-rupture Rate	4.22331E-6

Dunstan, 6.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?	true
Directly Connected?	false
Co-rupture Count	24
Co-rupture Rate	1.1065882E-9

Wendon Valley, 9.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?	true
Directly Connected?	true
Co-rupture Count	84
Co-rupture Rate	0.0

NW Cardrona South, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?	true
Directly Connected?	true
Co-rupture Count	9
Co-rupture Rate	4.361722E-11

Lake Onslow, 12.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Galloway, 13.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waikaka, 18.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?	true
Directly Connected?	false
Co-rupture Count	49
Co-rupture Rate	0.0
