Waiohau: North Details

PropertyValue
Rupture Count43,248
Ruptures Above Sect Min Mag43,235
Ruptures w/ Nonzero Rates65
Magnitude Range[6.50, 8.39]
Length Range[14, 692] km
Total Rate2.6765748E-4 /yr
Multi-Fault Rate2.6764625E-4 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults98

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

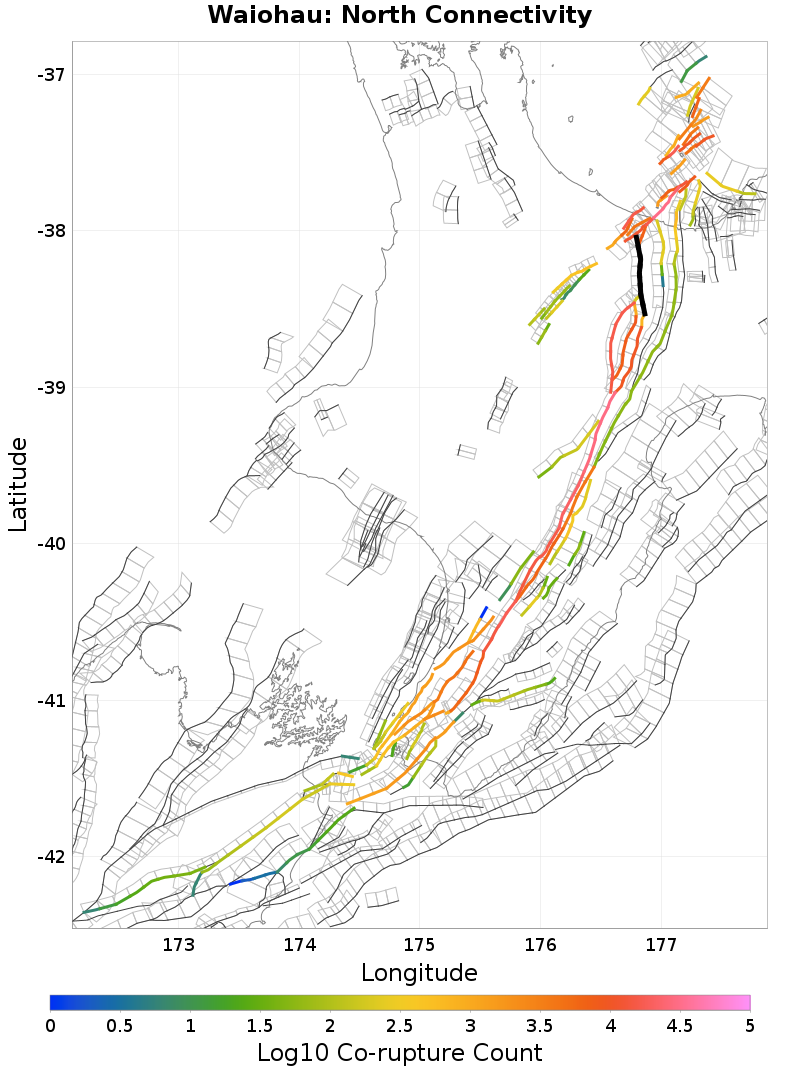

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waiohau: South, 0 km awayWheao: North, 2.44 km away
Awakeri, 0.13 km awayWhakatane: South, 11.09 km away
Te Whaiti North, 0.16 km awayEdgecumbe Coastal, 11.47 km away
Braemar, 0.22 km awayWheao: South, 11.7 km away
Otakiri, 0.39 km awayWhakatane: North, 12.32 km away
Te Whaiti South, 1.94 km awayWaimana: South, 17.98 km away
Matata, 2.01 km awayWhite Island 1, 18.73 km away
Edgecumbe 1987, 2.18 km awayWaimana: North, 18.89 km away

Waiohau: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count10,634
Co-rupture Rate5.672421E-5

Awakeri, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count6,929
Co-rupture Rate0.0

Te Whaiti North, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count173
Co-rupture Rate4.0183483E-8

Braemar, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count7,210
Co-rupture Rate1.3527493E-11

Otakiri, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count4,357
Co-rupture Rate1.9982636E-4

Te Whaiti South, 1.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count8,733
Co-rupture Rate1.7799732E-4

Matata, 2.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count16,440
Co-rupture Rate1.3527493E-11

Edgecumbe 1987, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count11,692
Co-rupture Rate1.3527493E-11

Wheao: North, 2.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count16,355
Co-rupture Rate1.3056142E-5

Whakatane: South, 11.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edgecumbe Coastal, 11.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count16,033
Co-rupture Rate1.2336011E-5

Wheao: South, 11.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count16,023
Co-rupture Rate1.304721E-5

Whakatane: North, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?true
Co-rupture Count290
Co-rupture Rate1.6226724E-5

Waimana: South, 17.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count58
Co-rupture Rate0.0

White Island 1, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count30,758
Co-rupture Rate5.8811414E-9

Waimana: North, 18.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjQuMEdhY1Q1
Connected?true
Directly Connected?false
Co-rupture Count651
Co-rupture Rate2.186418E-5
