Cape Egmont: South Details
| Property | Value |
|---|---|
| Rupture Count | 343 |
| Ruptures Above Sect Min Mag | 341 |
| Ruptures w/ Nonzero Rates | 34 |
| Magnitude Range | [6.92, 7.93] |
| Length Range | [21, 208] km |
| Total Rate | 3.099513E-4 /yr |
| Multi-Fault Rate | 3.099513E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 14 |
Table Of Contents

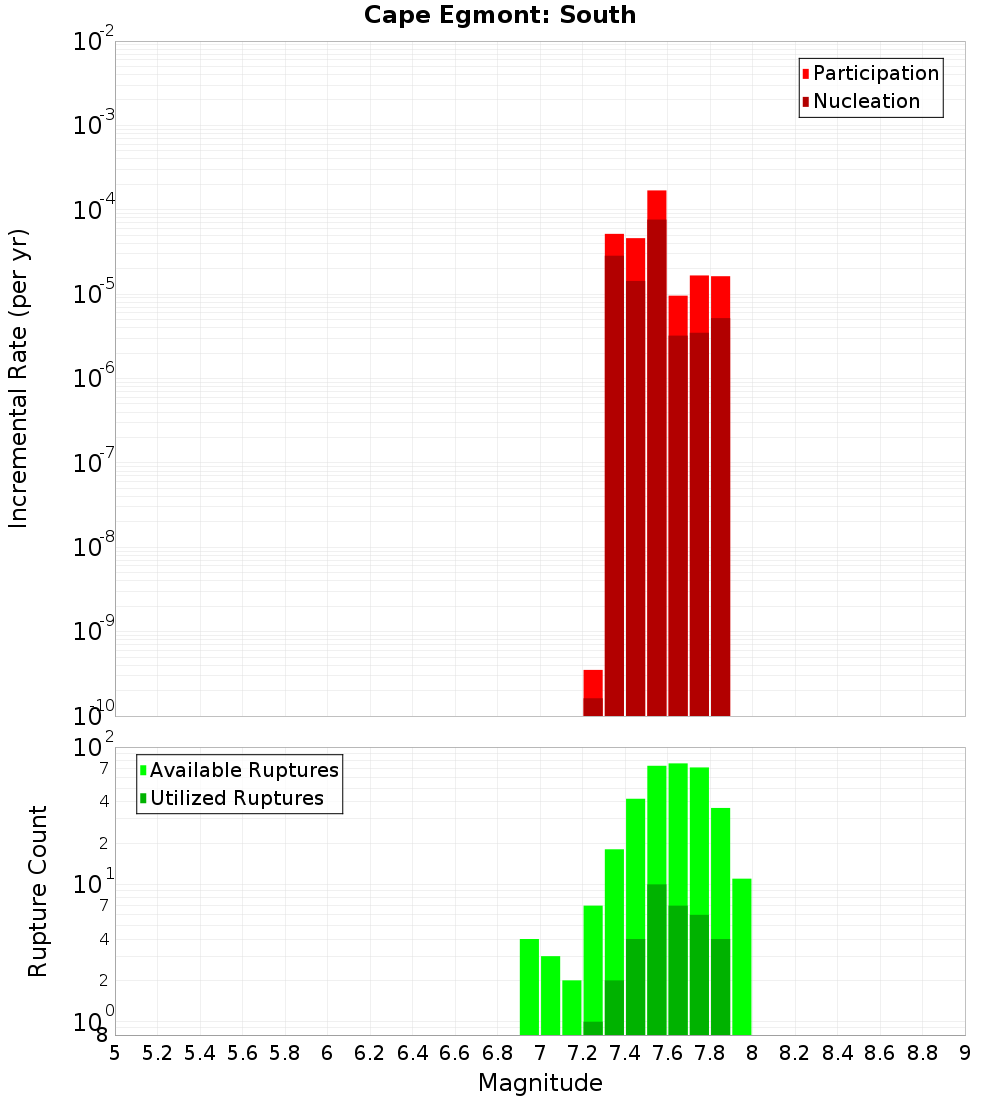

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

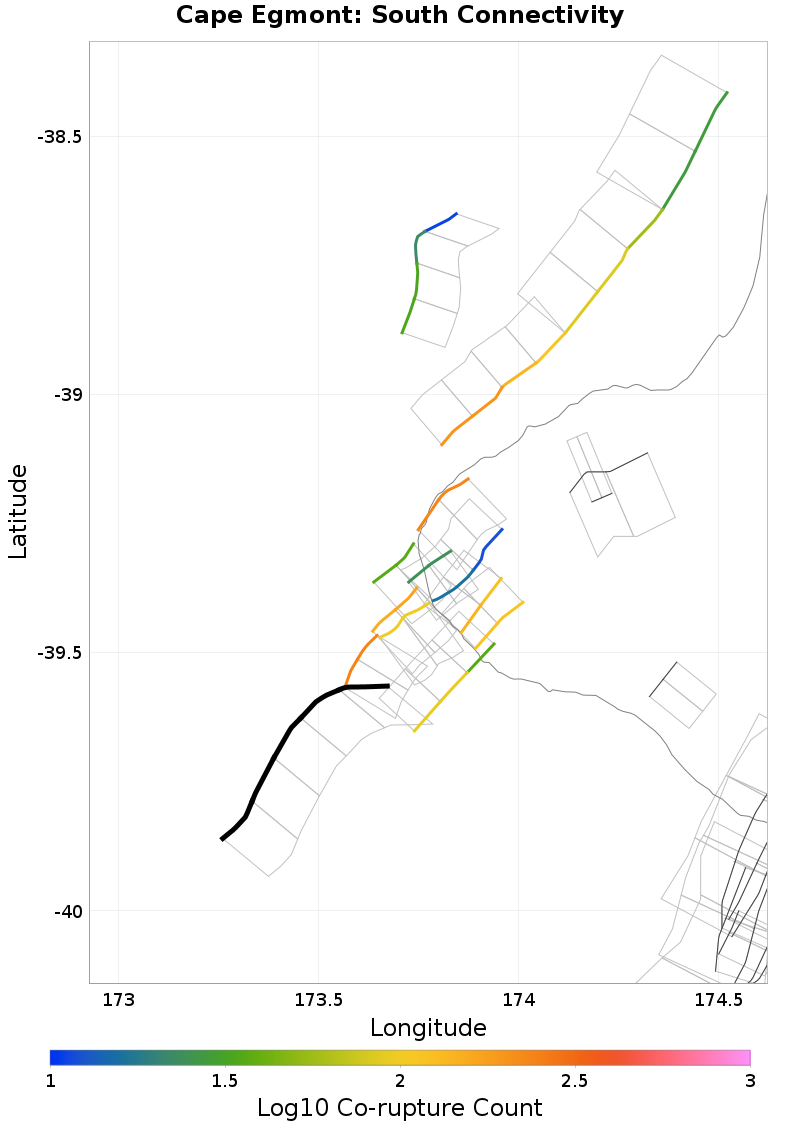

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Cape Egmont: Central, 0.35 km away |
| Pihama, 0.38 km away |
| Manahi 1, 7.93 km away |
| Cape Egmont: North, 10.11 km away |
| Kiri, 18.8 km away |
| Ihaia, 18.91 km away |
| Manahi 2, 19.92 km away |
Cape Egmont: Central, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjguMEh3SExH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 241 |
| Co-rupture Rate | 1.6916567E-4 |
Pihama, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjguMEh3SExH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 92 |
| Co-rupture Rate | 1.4078563E-4 |
Manahi 1, 7.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjguMEh3SExH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 100 |
| Co-rupture Rate | 1.6916567E-4 |
Cape Egmont: North, 10.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjguMEh3SExH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 165 |
| Co-rupture Rate | 1.0111818E-4 |
Kiri, 18.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjguMEh3SExH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 117 |
| Co-rupture Rate | 9.181055E-5 |
Ihaia, 18.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjguMEh3SExH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 144 |
| Co-rupture Rate | 0.0 |
Manahi 2, 19.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MjguMEh3SExH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 36 |
| Co-rupture Rate | 0.0 |
