Titri South Details
| Property | Value |
|---|---|
| Rupture Count | 26 |
| Ruptures Above Sect Min Mag | 26 |
| Ruptures w/ Nonzero Rates | 16 |
| Magnitude Range | [7.19, 7.86] |
| Length Range | [29, 144] km |
| Total Rate | 8.460513E-5 /yr |
| Multi-Fault Rate | 8.460513E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

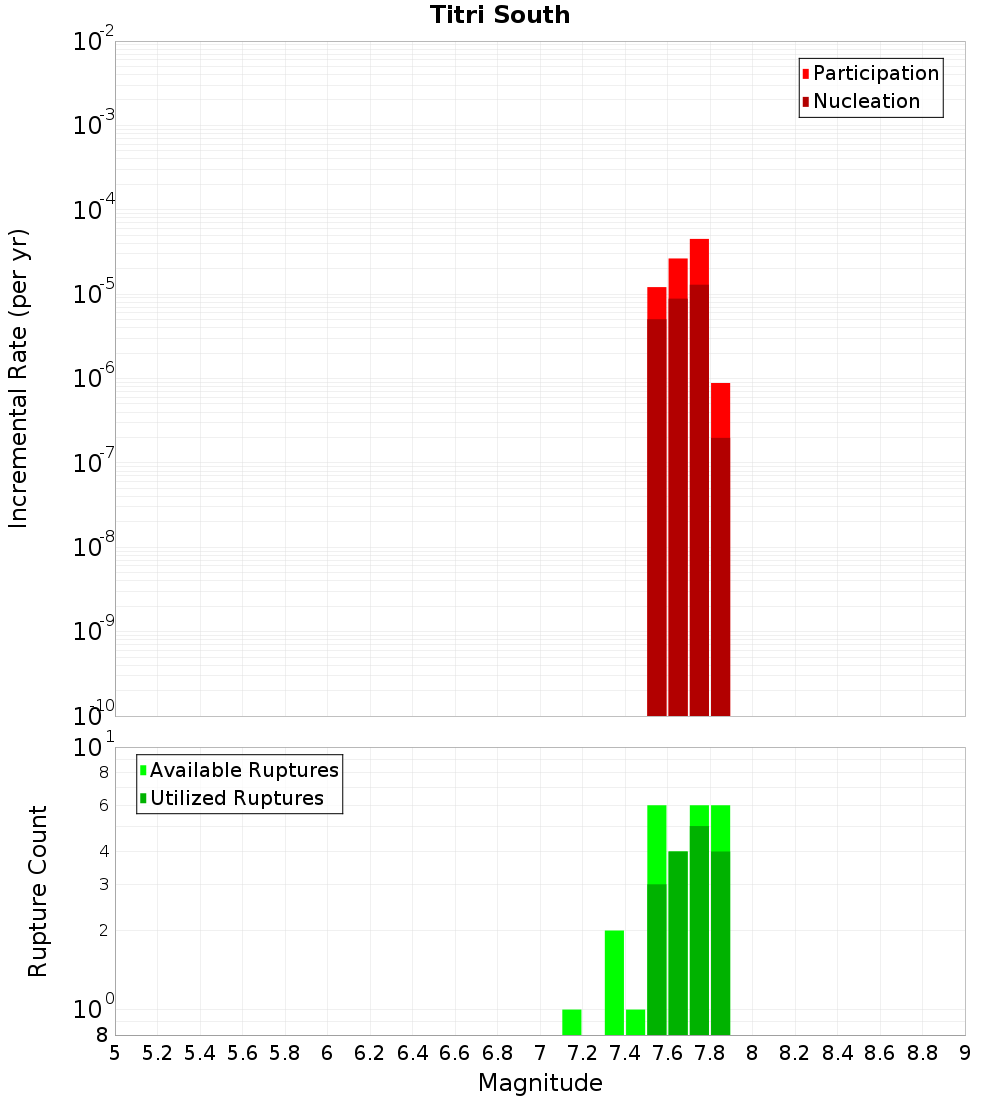

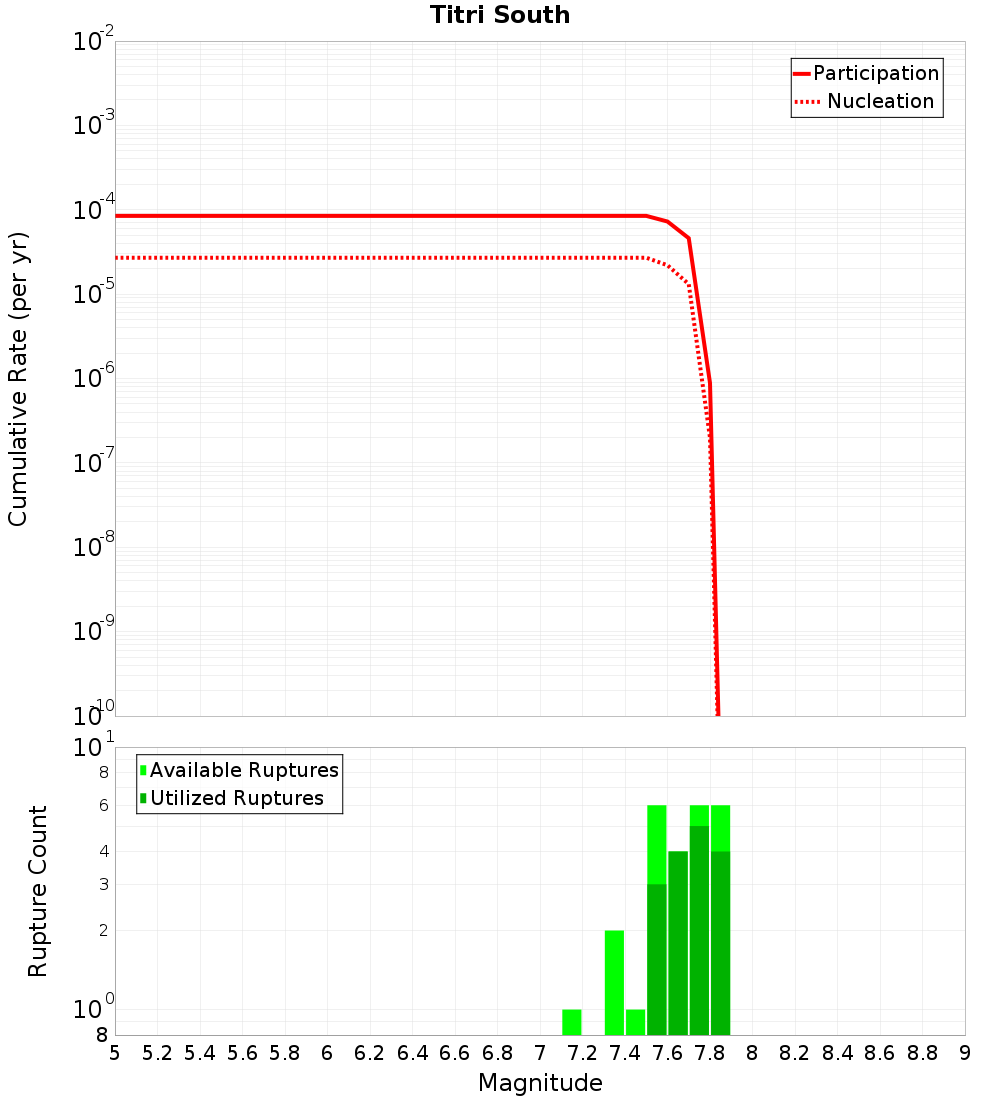

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

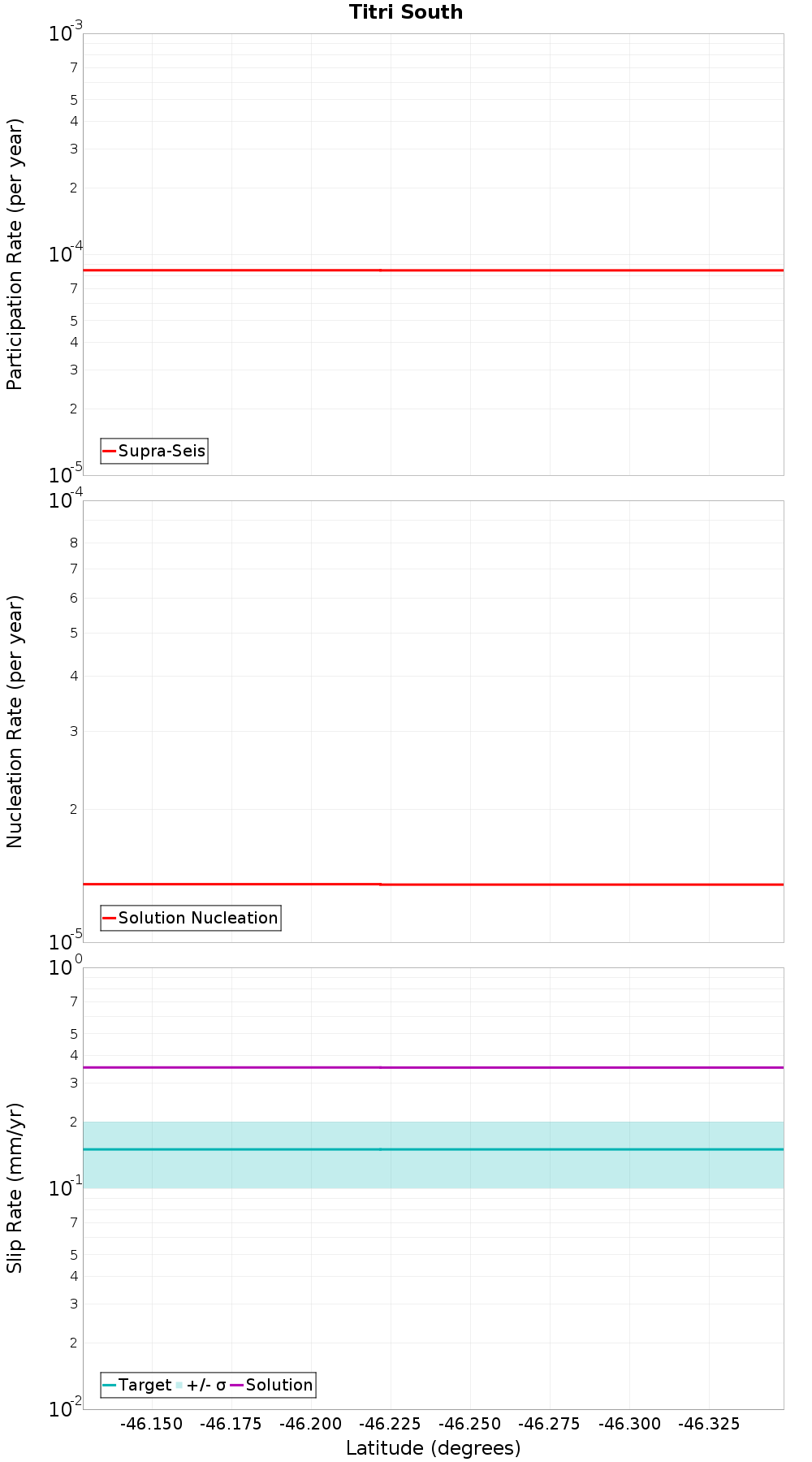

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Titri Central, 0.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MzAuMDZMWnVp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 20 |
| Co-rupture Rate | 8.460513E-5 |
Otanomomo, 4.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MzAuMDZMWnVp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuapeka, 4.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MzAuMDZMWnVp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Akatore, 5.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MzAuMDZMWnVp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Little Hillfoot, 5.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MzAuMDZMWnVp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hillfoot, 7.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MzAuMDZMWnVp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waitahuna 1, 8.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MzAuMDZMWnVp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.18310275E-7 |
Green Island, 10.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MzAuMDZMWnVp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 2.8244307E-5 |
Waitahuna 2, 11.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MzAuMDZMWnVp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Settlement, 11.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MzAuMDZMWnVp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 16 |
| Co-rupture Rate | 8.357873E-5 |
Titri North, 14.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MzAuMDZMWnVp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 9 |
| Co-rupture Rate | 4.4247987E-5 |
Clifton, 17.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2MzAuMDZMWnVp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
