Dunback Hill Details

PropertyValue
Rupture Count153
Ruptures Above Sect Min Mag152
Ruptures w/ Nonzero Rates0
Magnitude Range[7.04, 8.02]
Length Range[25, 216] km
Total Rate0.0 /yr
Multi-Fault Rate0.0 /yr (NaN)
Directly-Connected Faults4
All Co-Rupturing Faults18

Table Of Contents

Along-Strike Values

(top)

Along-strike plot

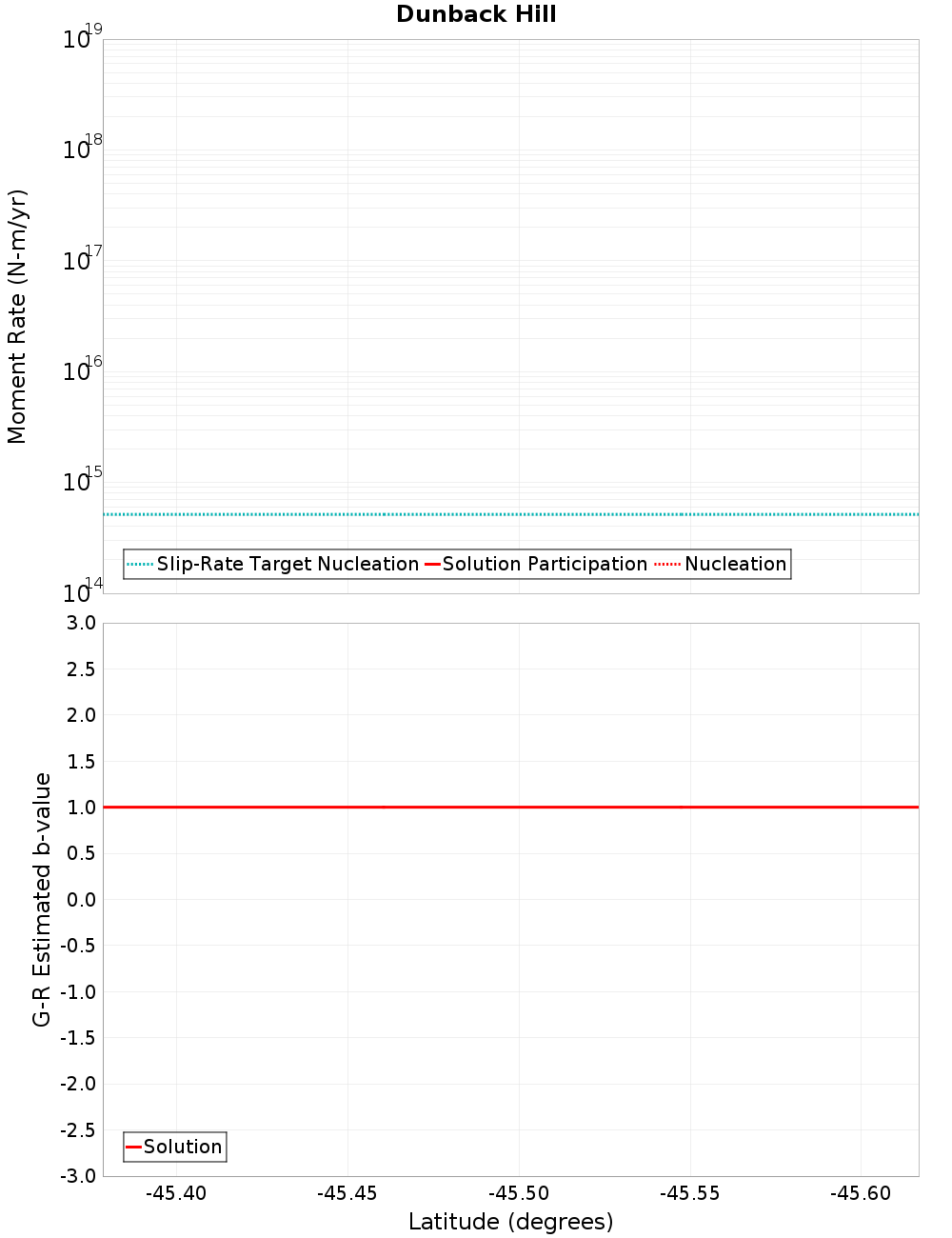

Moment-Rates and b-Values

(top)

Along-strike plot

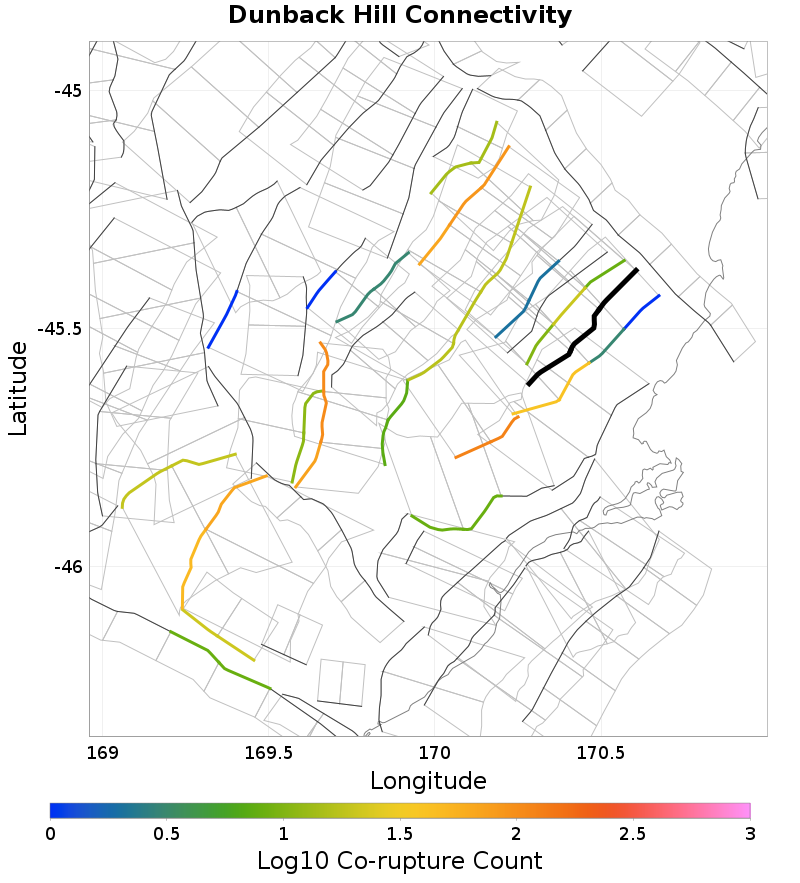

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waipiata, 0.51 km away
Murphys Creek, 2.53 km away
Flat Stream - Glenpark, 2.82 km away
Waihemo, 3.36 km away
Nichols Rock, 3.53 km away
Logan Burn, 3.59 km away
Ranfurly, 4.86 km away
Billys Ridge, 5.55 km away
Horse Flat, 9.22 km away
Pylap, 9.81 km away
Sliver Stream - Merton, 11.65 km away
Hyde North, 14.52 km away
Maungatua - North Taieri, 15.86 km away
Long Valley, 18.64 km away

Waipiata, 0.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2NTAuMHJoOUZG
Connected?true
Directly Connected?true
Co-rupture Count102
Co-rupture Rate0.0

Murphys Creek, 2.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2NTAuMHJoOUZG
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate0.0

Flat Stream - Glenpark, 2.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2NTAuMHJoOUZG
Connected?true
Directly Connected?true
Co-rupture Count41
Co-rupture Rate0.0

Waihemo, 3.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2NTAuMHJoOUZG
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 3.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2NTAuMHJoOUZG
Connected?true
Directly Connected?true
Co-rupture Count121
Co-rupture Rate0.0

Logan Burn, 3.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2NTAuMHJoOUZG
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ranfurly, 4.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2NTAuMHJoOUZG
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate0.0

Billys Ridge, 5.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2NTAuMHJoOUZG
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Horse Flat, 9.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2NTAuMHJoOUZG
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Pylap, 9.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2NTAuMHJoOUZG
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Sliver Stream - Merton, 11.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2NTAuMHJoOUZG
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hyde North, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2NTAuMHJoOUZG
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

Maungatua - North Taieri, 15.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2NTAuMHJoOUZG
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Long Valley, 18.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ2NTAuMHJoOUZG
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0
