Titri North Details

PropertyValue
Rupture Count39
Ruptures Above Sect Min Mag39
Ruptures w/ Nonzero Rates9
Magnitude Range[7.10, 7.77]
Length Range[29, 151] km
Total Rate4.4775185E-5 /yr
Multi-Fault Rate4.4775185E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults10

Table Of Contents

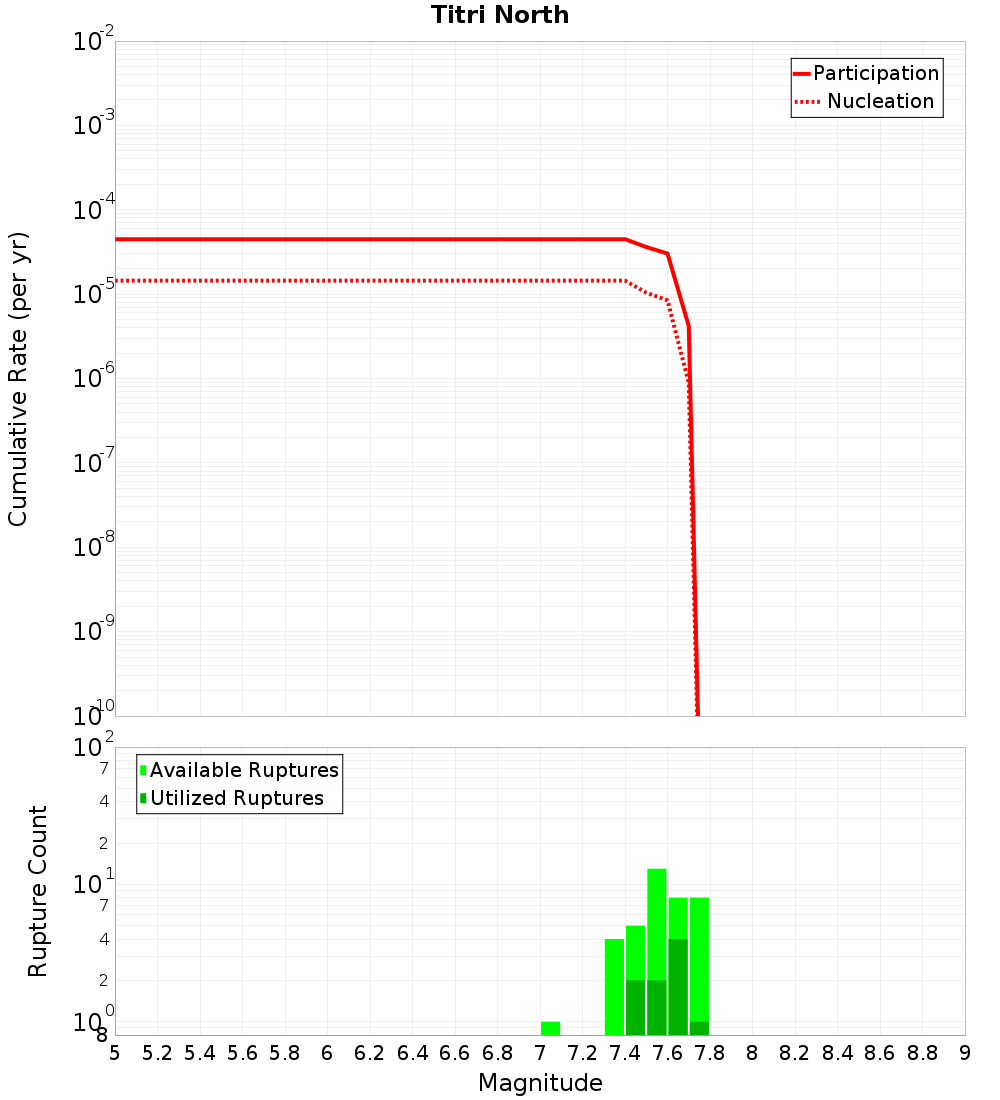

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

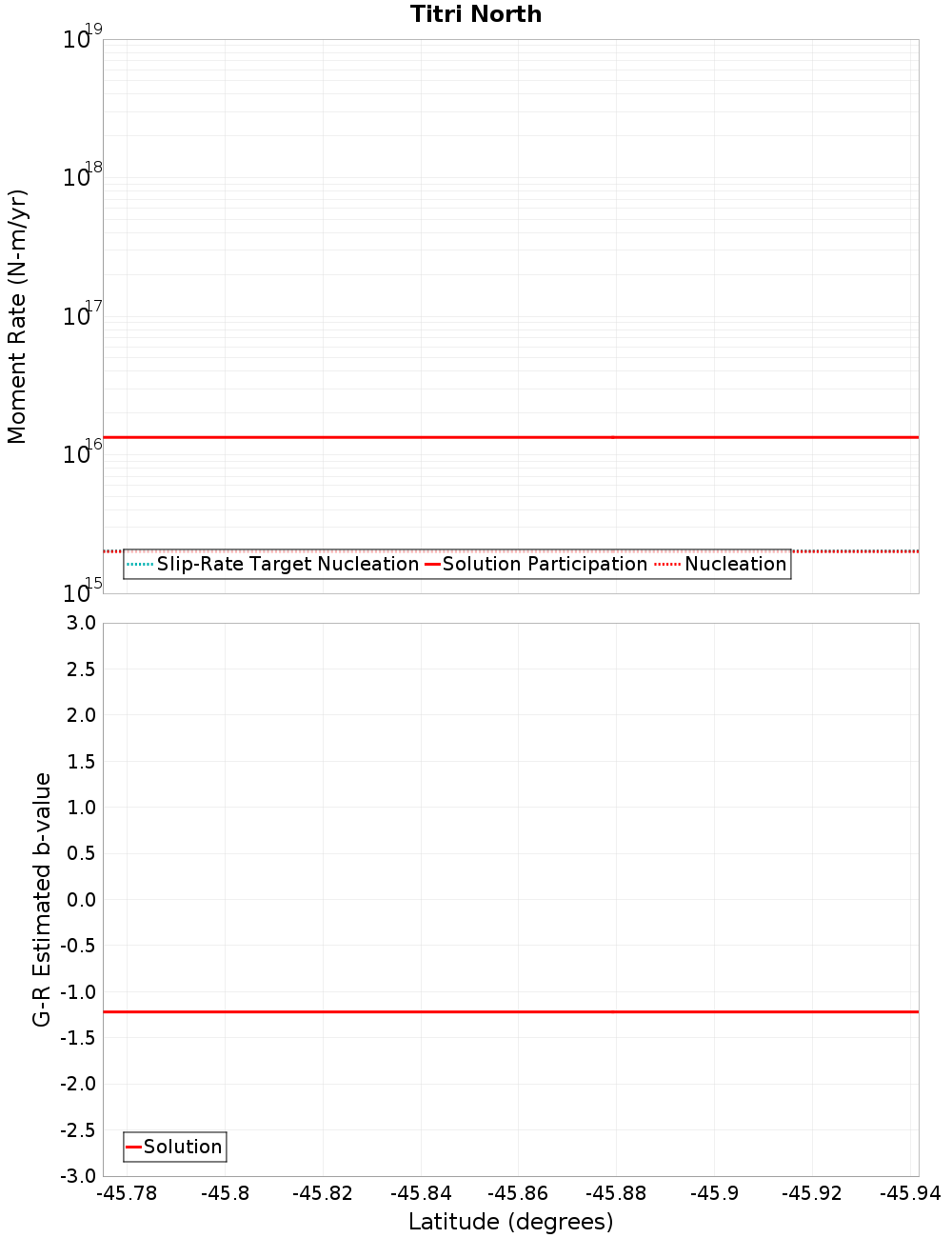

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Titri Central, 0.03 km away
Sliver Stream - Merton, 0.88 km away
Kaikorai, 2.67 km away
Akatore, 5.06 km away
Green Island, 5.36 km away
Maungatua - North Taieri, 5.52 km away
Waitahuna 2, 11.55 km away
Titri South, 14.14 km away
Takapu, 15.38 km away
Waitahuna 1, 15.96 km away
Flat Stream - Glenpark, 16.1 km away

Titri Central, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MDQuMHlqRGFN
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate3.1967797E-5

Sliver Stream - Merton, 0.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MDQuMHlqRGFN
Connected?true
Directly Connected?true
Co-rupture Count28
Co-rupture Rate1.1378178E-5

Kaikorai, 2.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MDQuMHlqRGFN
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate8.1929375E-6

Akatore, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MDQuMHlqRGFN
Connected?true
Directly Connected?true
Co-rupture Count16
Co-rupture Rate4.6239243E-6

Green Island, 5.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MDQuMHlqRGFN
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate8.183466E-6

Maungatua - North Taieri, 5.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MDQuMHlqRGFN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 2, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MDQuMHlqRGFN
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate7.1779373E-6

Titri South, 14.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MDQuMHlqRGFN
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate2.4789857E-5

Takapu, 15.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MDQuMHlqRGFN
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate4.2368413E-7

Waitahuna 1, 15.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MDQuMHlqRGFN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Flat Stream - Glenpark, 16.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MDQuMHlqRGFN
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate4.190769E-6
