Puketerata Details

PropertyValue
Rupture Count1,265
Ruptures Above Sect Min Mag1,182
Ruptures w/ Nonzero Rates33
Magnitude Range[6.18, 7.75]
Length Range[10, 215] km
Total Rate7.1876764E-4 /yr
Multi-Fault Rate7.1876764E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults28

Table Of Contents

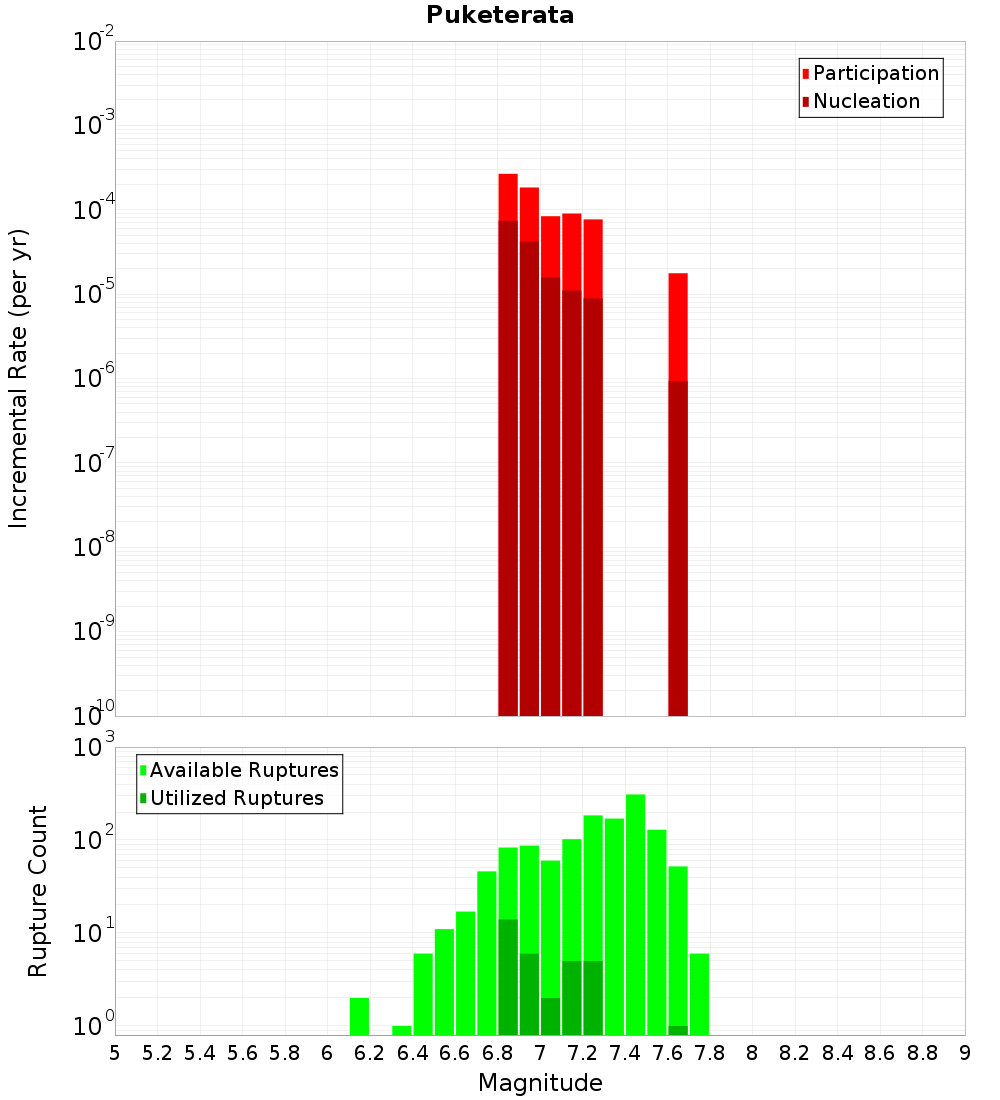

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

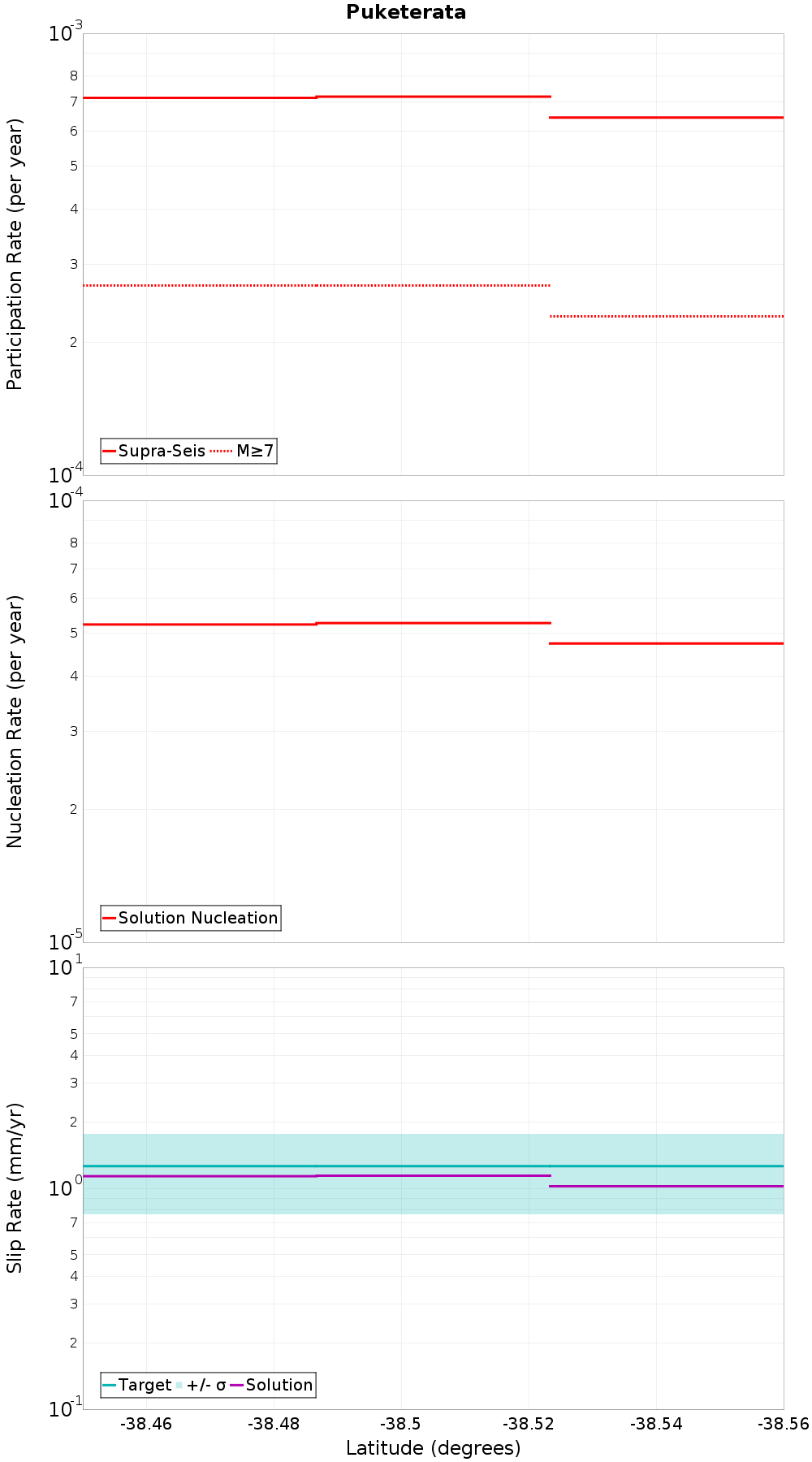

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Puketerata North, 0.1 km away
Whangamata West, 0.11 km away
Orakeikorako, 2.41 km away
Maleme, 3.56 km away
Paeroa, 5.09 km away
Kaiapo, 5.96 km away

Puketerata North, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MDUuMFZEaGla
Connected?true
Directly Connected?true
Co-rupture Count663
Co-rupture Rate3.283867E-4

Whangamata West, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MDUuMFZEaGla
Connected?true
Directly Connected?true
Co-rupture Count509
Co-rupture Rate4.8640216E-4

Orakeikorako, 2.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MDUuMFZEaGla
Connected?true
Directly Connected?true
Co-rupture Count119
Co-rupture Rate4.6288656E-6

Maleme, 3.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MDUuMFZEaGla
Connected?true
Directly Connected?true
Co-rupture Count979
Co-rupture Rate4.9556285E-4

Paeroa, 5.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MDUuMFZEaGla
Connected?true
Directly Connected?true
Co-rupture Count561
Co-rupture Rate4.877612E-4

Kaiapo, 5.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MDUuMFZEaGla
Connected?true
Directly Connected?true
Co-rupture Count276
Co-rupture Rate3.0198463E-4
