Kekerengu 1 Details

PropertyValue
Rupture Count22,372
Ruptures Above Sect Min Mag22,370
Ruptures w/ Nonzero Rates125
Magnitude Range[6.65, 8.52]
Length Range[18, 1,201] km
Total Rate0.00417949 /yr
Multi-Fault Rate0.004179484 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults133

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

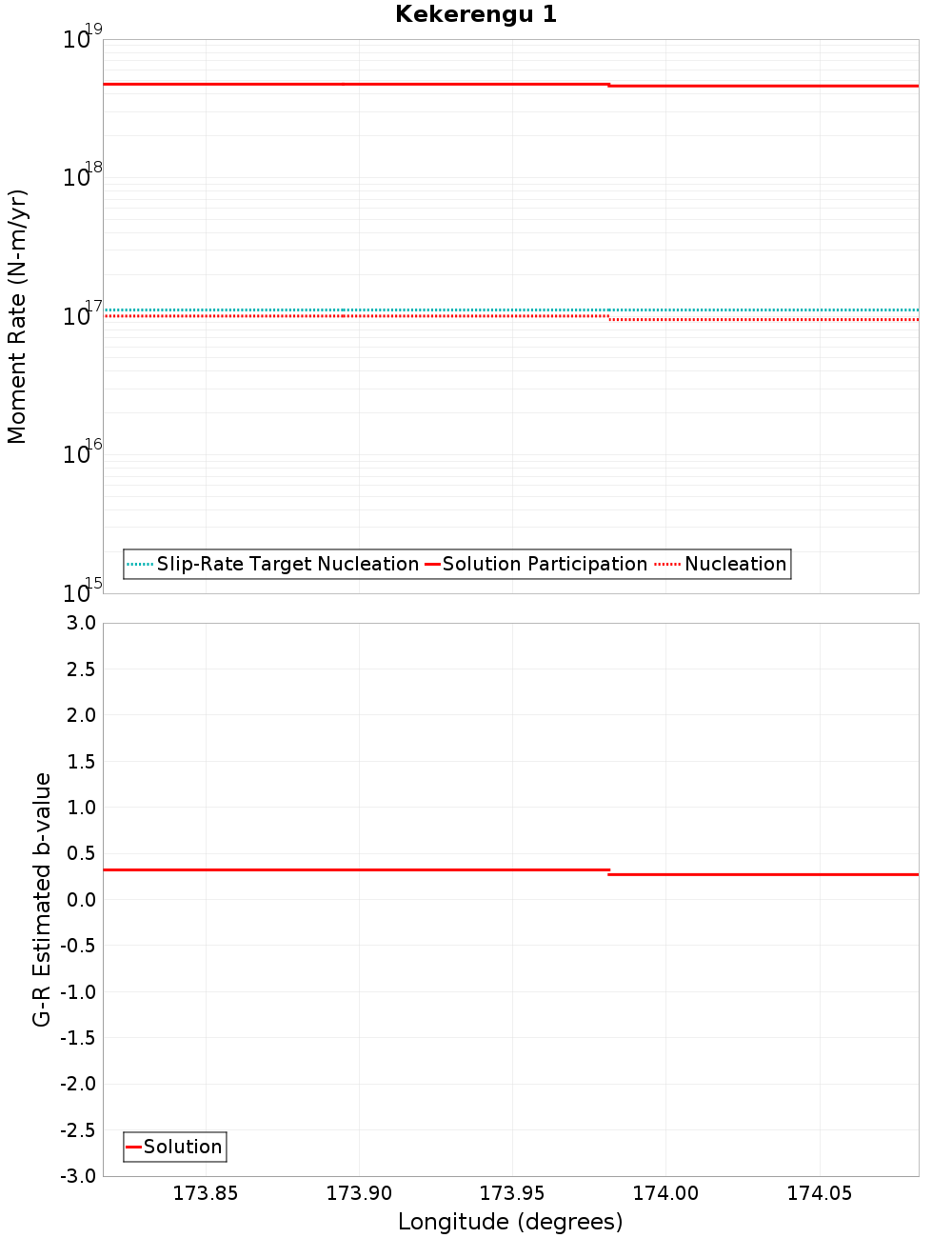

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Papatea, 0 km away
Fidget, 0 km away
Jordan, 0 km away
London Hill, 0 km away
Needles, 0 km away
Needles East 2, 4.78 km away
Chancet, 7.4 km away
Clarence: Northeast, 10.43 km away
Hope: Seaward, 16.34 km away
Hope: Te Rapa, 17.16 km away
Wharanui, 18.59 km away
Upper Slope, 18.63 km away

Papatea, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MTguMFdOOTR0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fidget, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MTguMFdOOTR0
Connected?true
Directly Connected?true
Co-rupture Count16,572
Co-rupture Rate2.8580337E-4

Jordan, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MTguMFdOOTR0
Connected?true
Directly Connected?true
Co-rupture Count5,103
Co-rupture Rate0.0037554398

London Hill, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MTguMFdOOTR0
Connected?true
Directly Connected?true
Co-rupture Count1,199
Co-rupture Rate0.0

Needles, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MTguMFdOOTR0
Connected?true
Directly Connected?true
Co-rupture Count19,316
Co-rupture Rate0.0031855714

Needles East 2, 4.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MTguMFdOOTR0
Connected?true
Directly Connected?true
Co-rupture Count1,237
Co-rupture Rate4.4547796E-5

Chancet, 7.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MTguMFdOOTR0
Connected?true
Directly Connected?false
Co-rupture Count724
Co-rupture Rate3.8886644E-4

Clarence: Northeast, 10.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MTguMFdOOTR0
Connected?true
Directly Connected?true
Co-rupture Count164
Co-rupture Rate3.339736E-4

Hope: Seaward, 16.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MTguMFdOOTR0
Connected?true
Directly Connected?false
Co-rupture Count48
Co-rupture Rate7.641957E-5

Hope: Te Rapa, 17.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MTguMFdOOTR0
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate0.0

Wharanui, 18.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MTguMFdOOTR0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Upper Slope, 18.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MTguMFdOOTR0
Connected?true
Directly Connected?false
Co-rupture Count155
Co-rupture Rate8.43872E-6
