Ruby Bay - Moutere Details
| Property | Value |
|---|---|
| Rupture Count | 12 |
| Ruptures Above Sect Min Mag | 10 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.92, 7.43] |
| Length Range | [24, 73] km |
| Total Rate | 1.00228564E-4 /yr |
| Multi-Fault Rate | 1.460631E-5 /yr (14.57%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 1 |
Table Of Contents

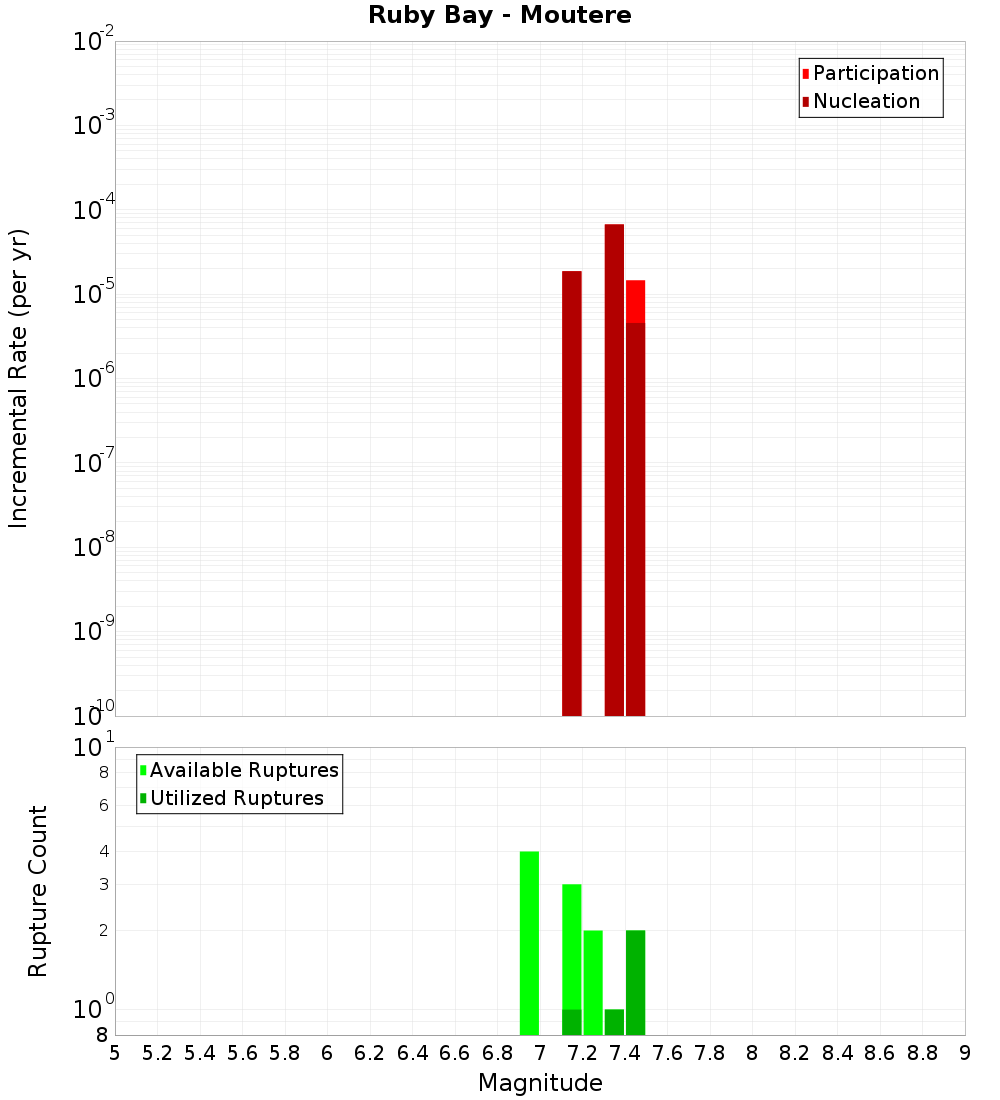

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

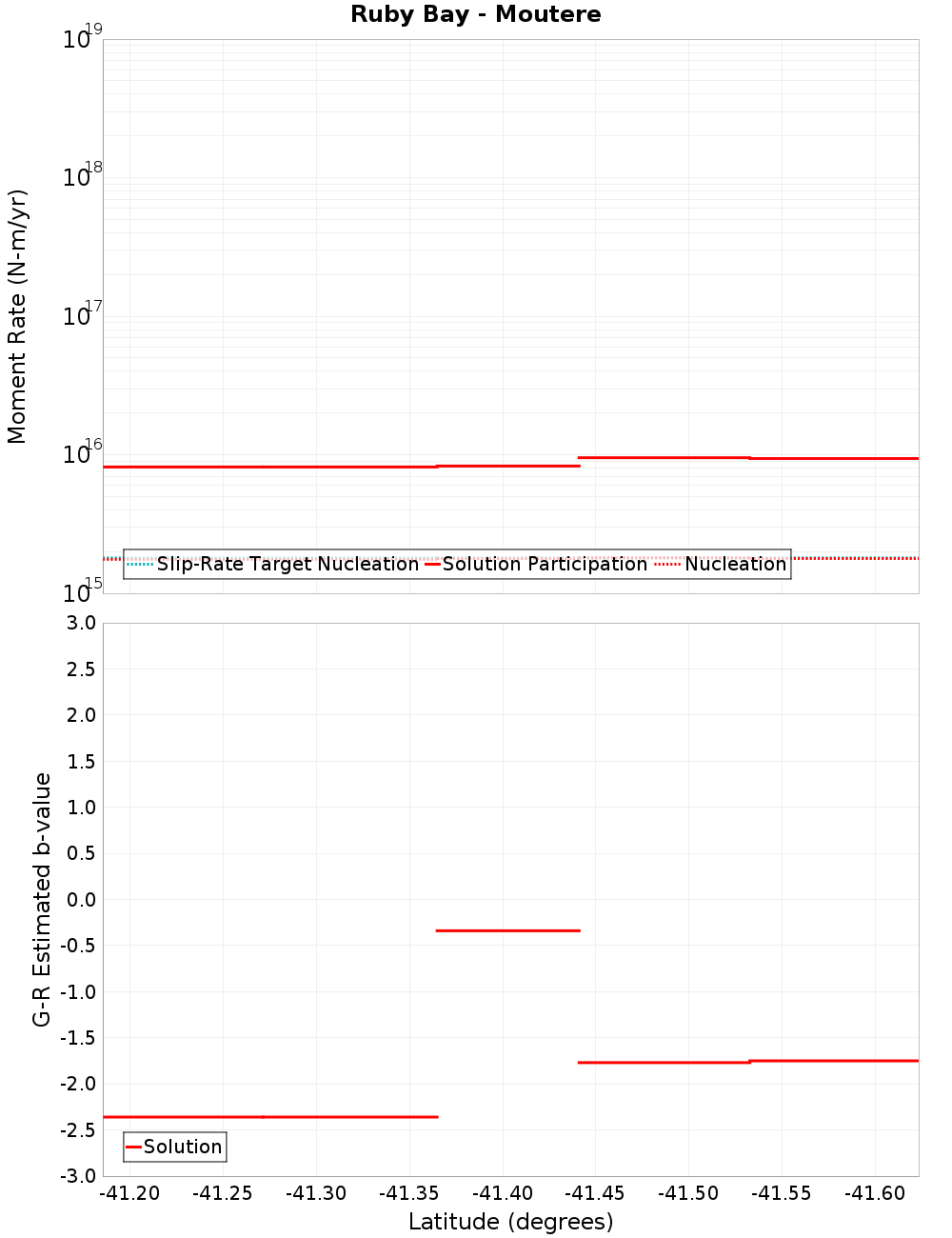

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Surville, 0.09 km away |
| Tutaki, 3.43 km away |
| Flaxmore - Waimea - Tahunanui, 9.4 km away |
| Wairau, 14.99 km away |
| Whangamoa, 15.39 km away |
Surville, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MTguMFdOOTR0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tutaki, 3.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MTguMFdOOTR0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 1.460631E-5 |
Flaxmore - Waimea - Tahunanui, 9.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MTguMFdOOTR0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairau, 14.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MTguMFdOOTR0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Whangamoa, 15.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MTguMFdOOTR0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
