Wellington: Tararua 3 Details

PropertyValue
Rupture Count56,089
Ruptures Above Sect Min Mag56,087
Ruptures w/ Nonzero Rates16
Magnitude Range[6.77, 8.60]
Length Range[16, 1,119] km
Total Rate8.273078E-4 /yr
Multi-Fault Rate8.273078E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults139

Table Of Contents

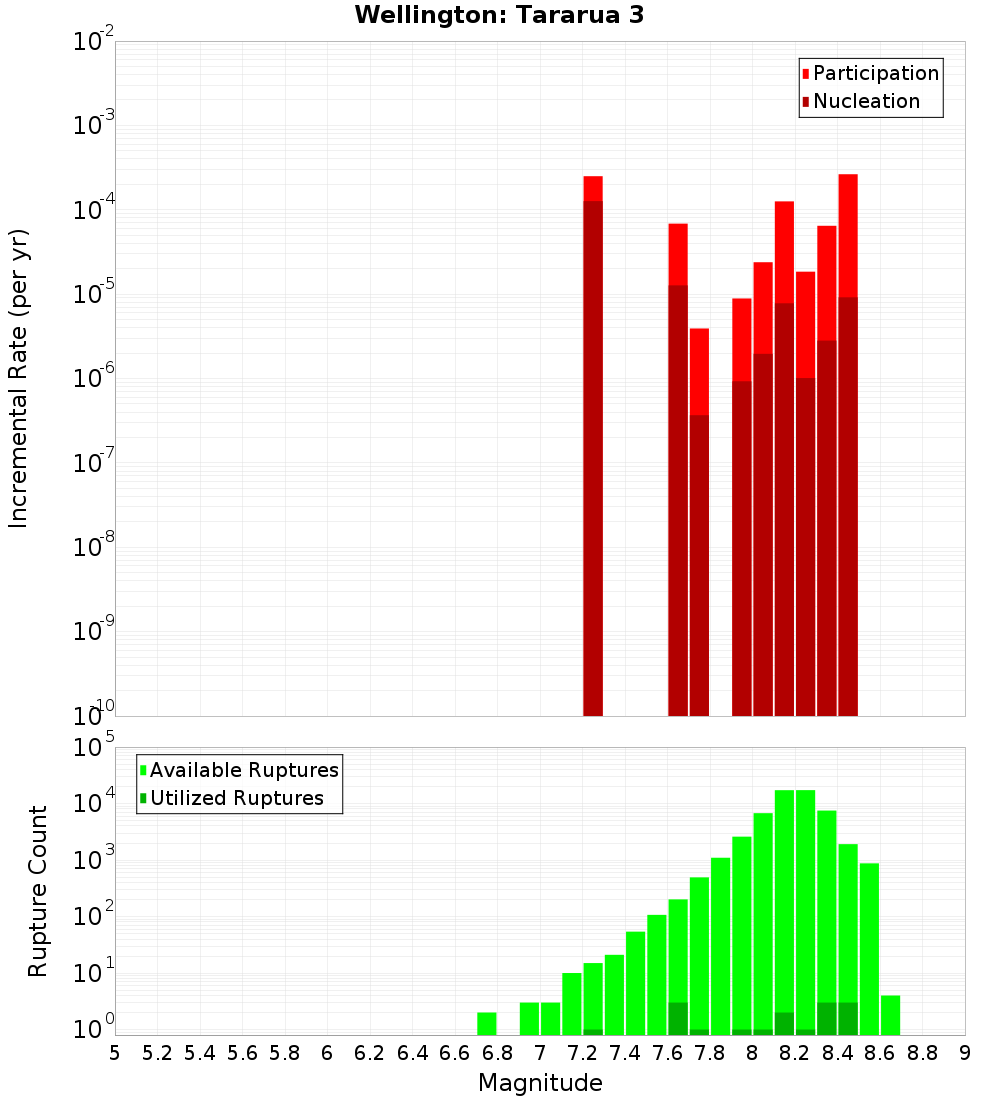

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

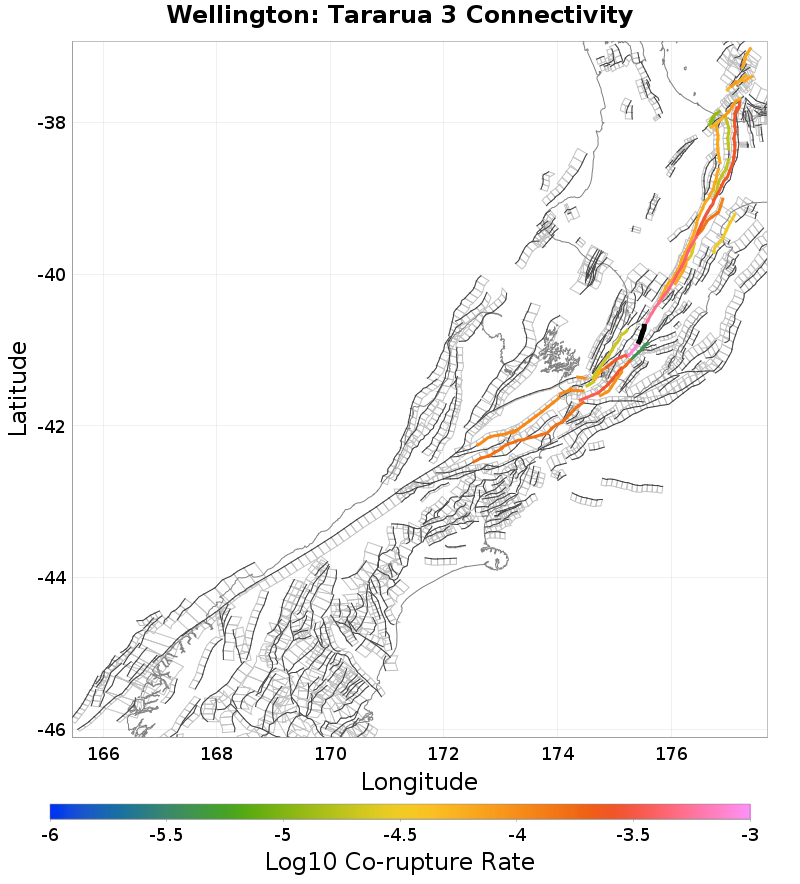

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wellington: Tararua 2, 0 km away
Wellington: Pahiatua, 0.03 km away
Otaki Forks: 2, 0.3 km away
Tokomaru, 1.29 km away
Northern Ohariu, 1.86 km away
Wairarapa: 3, 9.13 km away
Mokonui Southwest, 9.81 km away
Otaki Forks: 1, 11.36 km away
Masterton, 11.85 km away
Carterton, 13.79 km away
Wairarapa: 2, 14.29 km away
Dreyers Rock, 16.17 km away
Ohariu, 17.34 km away
Wellington: Tararua 1, 18.44 km away
Levin Anticline, 18.68 km away

Wellington: Tararua 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MjYuME5uQjdC
Connected?true
Directly Connected?true
Co-rupture Count51,431
Co-rupture Rate8.143451E-4

Wellington: Pahiatua, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MjYuME5uQjdC
Connected?true
Directly Connected?true
Co-rupture Count55,080
Co-rupture Rate5.527365E-4

Otaki Forks: 2, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MjYuME5uQjdC
Connected?true
Directly Connected?true
Co-rupture Count139
Co-rupture Rate0.0

Tokomaru, 1.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MjYuME5uQjdC
Connected?true
Directly Connected?false
Co-rupture Count62
Co-rupture Rate0.0

Northern Ohariu, 1.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MjYuME5uQjdC
Connected?true
Directly Connected?true
Co-rupture Count1,775
Co-rupture Rate2.082258E-5

Wairarapa: 3, 9.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MjYuME5uQjdC
Connected?true
Directly Connected?false
Co-rupture Count77
Co-rupture Rate3.9168785E-6

Mokonui Southwest, 9.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MjYuME5uQjdC
Connected?true
Directly Connected?true
Co-rupture Count631
Co-rupture Rate3.9168785E-6

Otaki Forks: 1, 11.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MjYuME5uQjdC
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Masterton, 11.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MjYuME5uQjdC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Carterton, 13.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MjYuME5uQjdC
Connected?true
Directly Connected?false
Co-rupture Count2,201
Co-rupture Rate0.0

Wairarapa: 2, 14.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MjYuME5uQjdC
Connected?true
Directly Connected?false
Co-rupture Count19,312
Co-rupture Rate1.7946876E-4

Dreyers Rock, 16.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MjYuME5uQjdC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu, 17.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MjYuME5uQjdC
Connected?true
Directly Connected?false
Co-rupture Count1,669
Co-rupture Rate2.082258E-5

Wellington: Tararua 1, 18.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MjYuME5uQjdC
Connected?true
Directly Connected?false
Co-rupture Count1,918
Co-rupture Rate3.2729254E-4

Levin Anticline, 18.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4MjYuME5uQjdC
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0
