Kiri Details

Property	Value
Rupture Count	229
Ruptures Above Sect Min Mag	229
Ruptures w/ Nonzero Rates	16
Magnitude Range	[6.85, 8.03]
Length Range	[14, 208] km
Total Rate	1.9579804E-4 /yr
Multi-Fault Rate	7.272996E-5 /yr (37.15%)
Directly-Connected Faults	6
All Co-Rupturing Faults	14

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

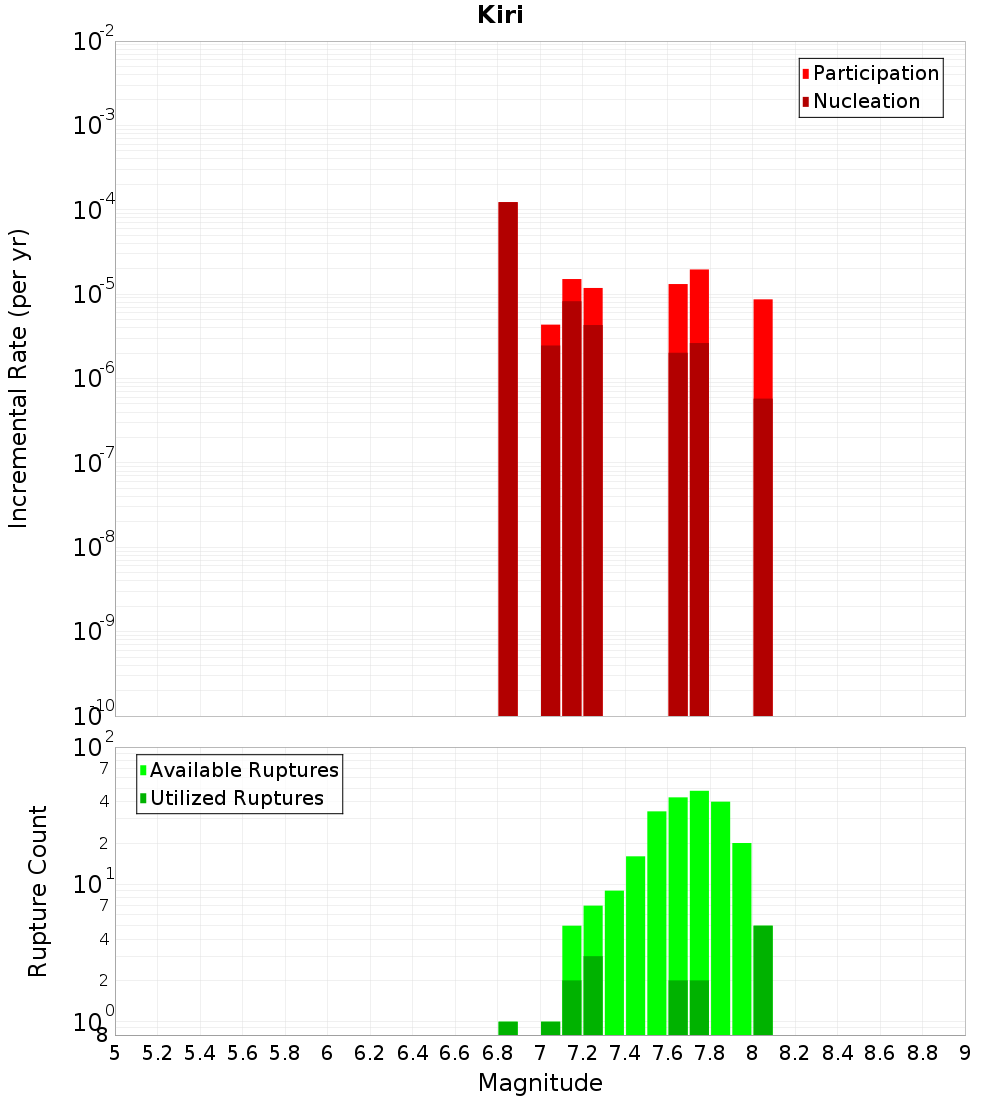

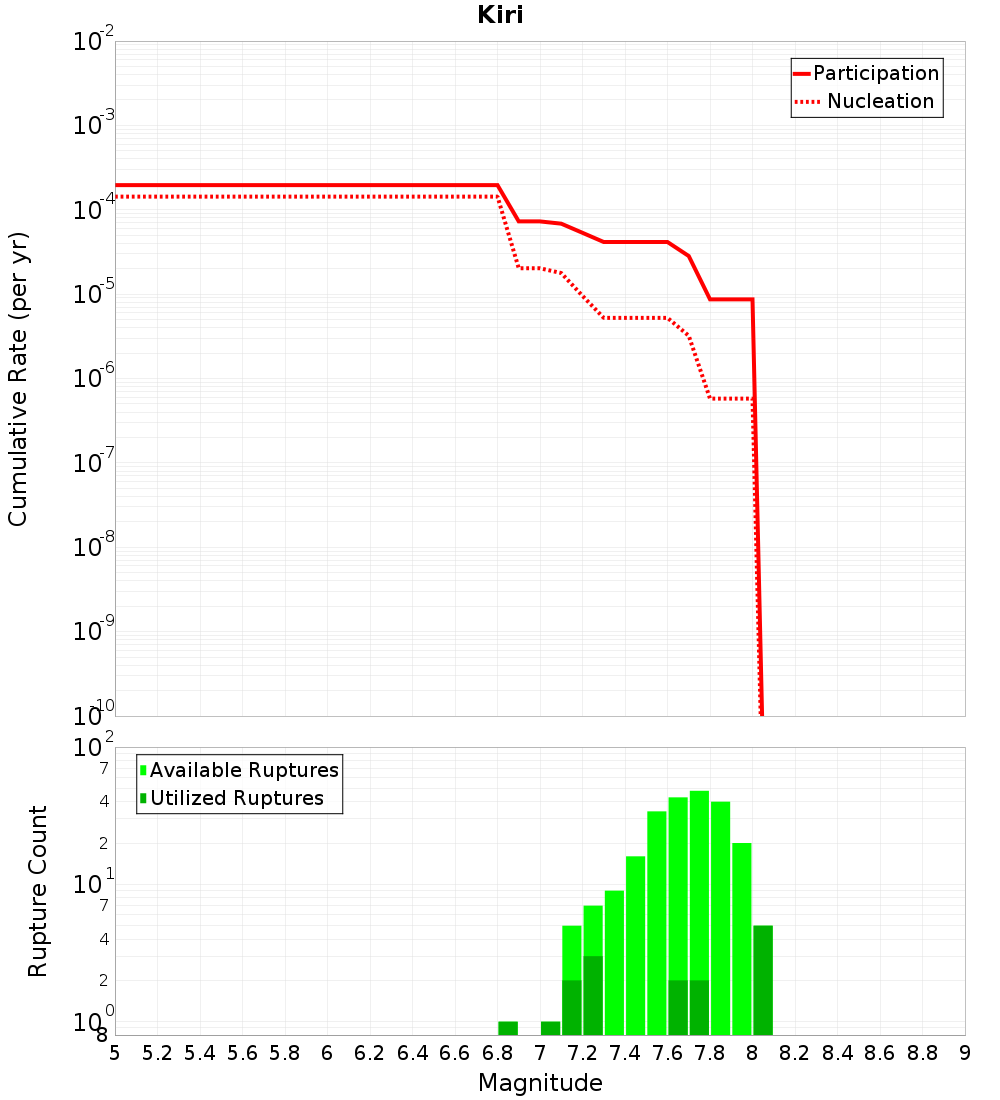

Magnitude-Frequency Distribution

Incremental	Cumulative

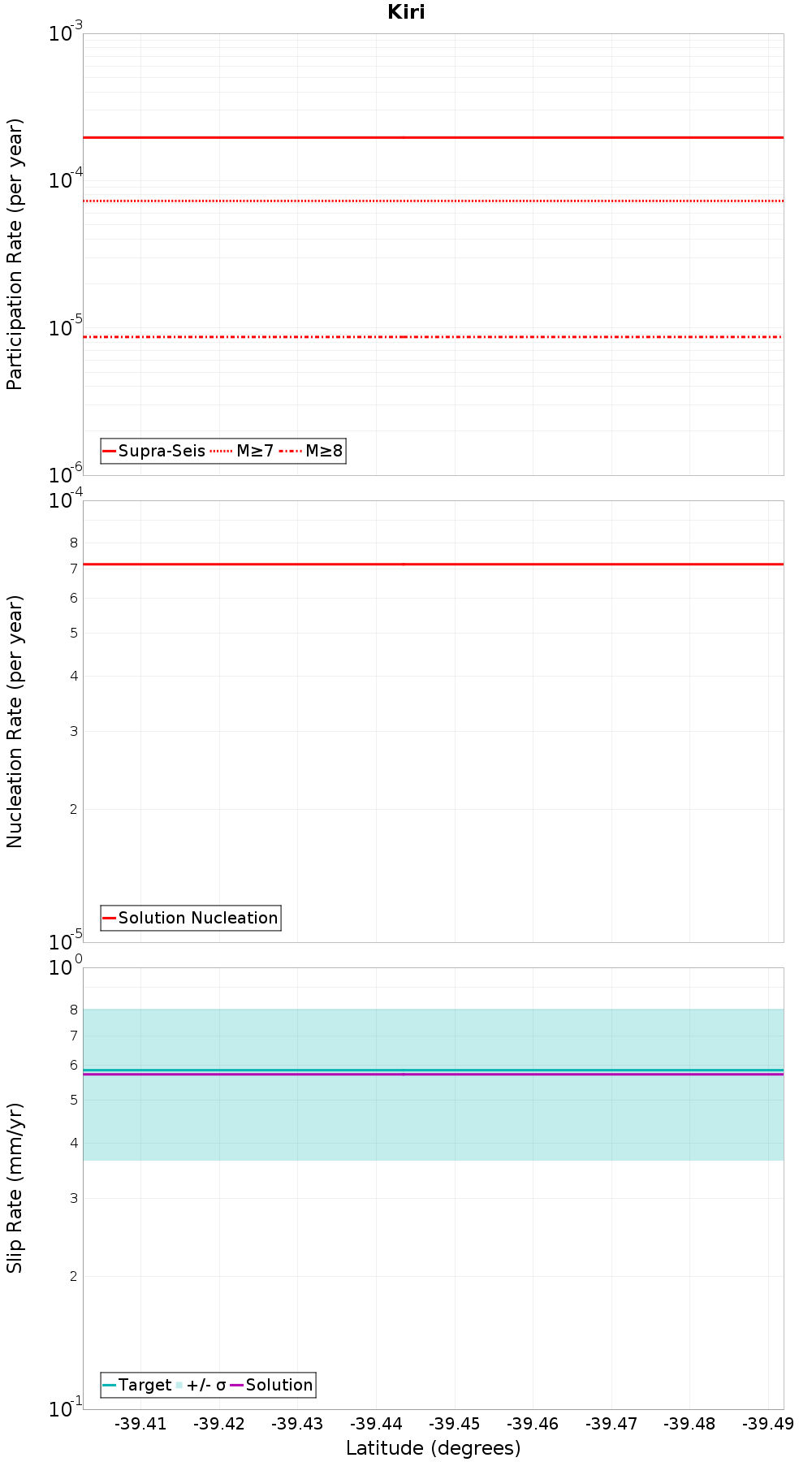

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Rahotu, 0.4 km away
Cape Egmont: North, 0.48 km away
Manahi 1, 1.53 km away
Pihama, 2.03 km away
Manahi 2, 2.34 km away
Ihaia, 4.13 km away
Warea, 4.19 km away
Oaonui, 10.41 km away
Cape Egmont: Central, 10.8 km away
Cape Egmont: South, 18.8 km away

Rahotu, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjIuMFNoWmZC
Connected?	true
Directly Connected?	true
Co-rupture Count	21
Co-rupture Rate	2.3954932E-5

Cape Egmont: North, 0.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjIuMFNoWmZC
Connected?	true
Directly Connected?	true
Co-rupture Count	105
Co-rupture Rate	1.920688E-5

Manahi 1, 1.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjIuMFNoWmZC
Connected?	true
Directly Connected?	true
Co-rupture Count	90
Co-rupture Rate	3.1866648E-6

Pihama, 2.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjIuMFNoWmZC
Connected?	true
Directly Connected?	true
Co-rupture Count	47
Co-rupture Rate	3.1068157E-5

Manahi 2, 2.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjIuMFNoWmZC
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	1.4916871E-5

Ihaia, 4.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjIuMFNoWmZC
Connected?	true
Directly Connected?	false
Co-rupture Count	27
Co-rupture Rate	2.553176E-7

Warea, 4.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjIuMFNoWmZC
Connected?	true
Directly Connected?	true
Co-rupture Count	183
Co-rupture Rate	8.675914E-6

Oaonui, 10.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjIuMFNoWmZC
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Cape Egmont: Central, 10.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjIuMFNoWmZC
Connected?	true
Directly Connected?	false
Co-rupture Count	129
Co-rupture Rate	2.2138227E-5

Cape Egmont: South, 18.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjIuMFNoWmZC
Connected?	true
Directly Connected?	false
Co-rupture Count	117
Co-rupture Rate	4.1448344E-5
