Aotea - Evans Bay Details

Property	Value
Rupture Count	275
Ruptures Above Sect Min Mag	274
Ruptures w/ Nonzero Rates	2
Magnitude Range	[6.61, 8.38]
Length Range	[9, 514] km
Total Rate	2.6306015E-4 /yr
Multi-Fault Rate	2.6306015E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	41

Table Of Contents

Magnitude-Frequency Distribution

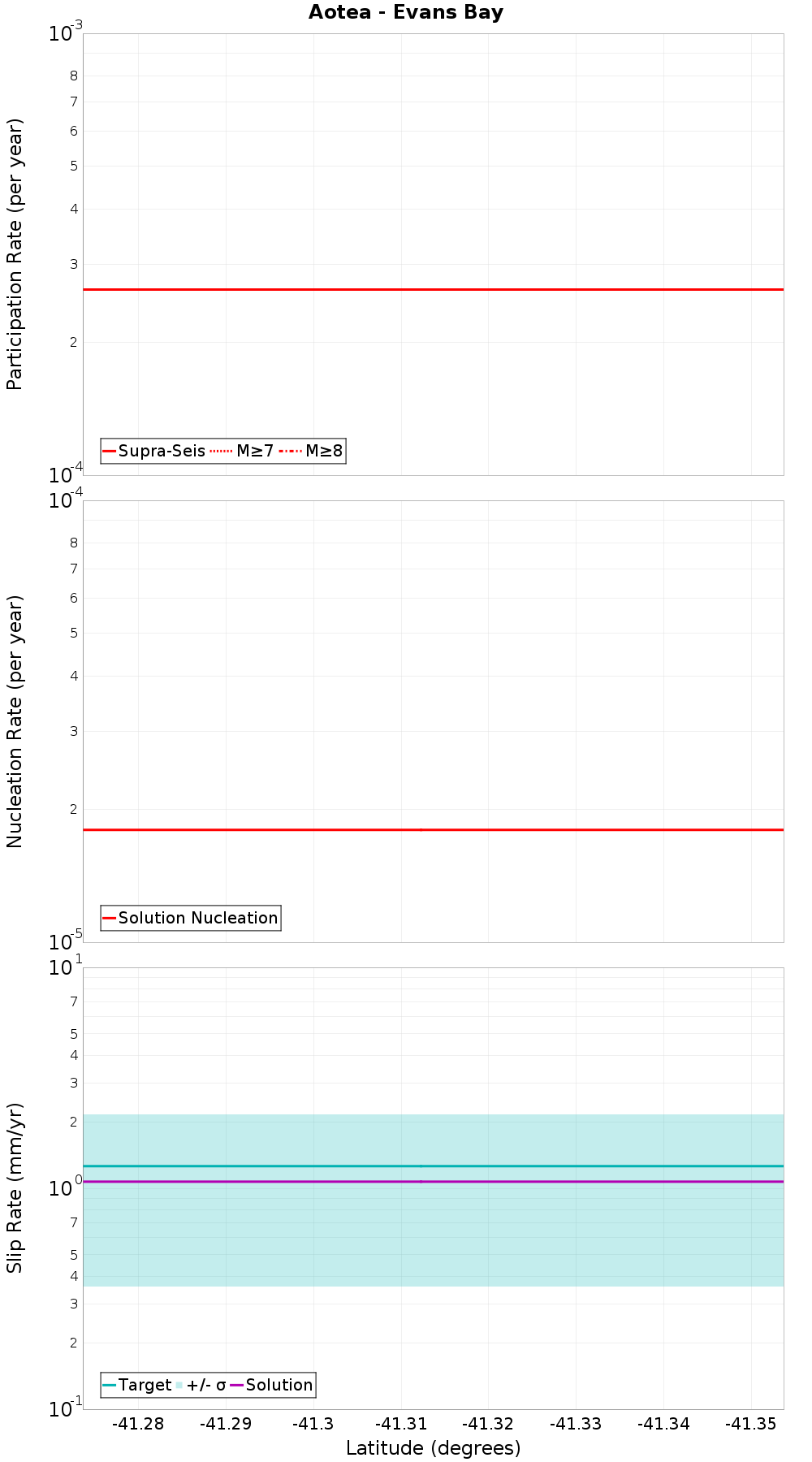

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Wharekauhau, 0.17 km away	Pukerua - Shepherds Gully: 3, 10.27 km away
Whitemans Valley, 0.45 km away	Ohariu South 2, 12.23 km away
Wellington Hutt Valley: 4, 1.2 km away	Shepherds Gully - Mana, 12.28 km away
Wairarapa: 1, 1.28 km away	Wellington Hutt Valley: 1, 13.15 km away
Wellington Hutt Valley: 3, 1.42 km away	Otaheke South, 17.17 km away
Wellington Hutt Valley: 2, 5.99 km away	Okupe 1, 17.24 km away
Ohariu, 6 km away	Ohariu South 1, 18.88 km away
Moonshine, 6.34 km away	Wairarapa: 2, 19.43 km away
Pukerua - Shepherds Gully: 2, 9.64 km away	Wairarapa: Needles, 19.45 km away
Pukerua - Shepherds Gully: 1, 9.94 km away	Wellington Hutt Valley: 5, 19.7 km away

Wharekauhau, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	2.6306015E-4

Whitemans Valley, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 4, 1.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: 1, 1.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 3, 1.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0

Wellington Hutt Valley: 2, 5.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohariu, 6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	275
Co-rupture Rate	0.0

Moonshine, 6.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	12
Co-rupture Rate	0.0

Pukerua - Shepherds Gully: 2, 9.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0

Pukerua - Shepherds Gully: 1, 9.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pukerua - Shepherds Gully: 3, 10.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	0.0

Ohariu South 2, 12.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Shepherds Gully - Mana, 12.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 1, 13.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaheke South, 17.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Okupe 1, 17.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohariu South 1, 18.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: 2, 19.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: Needles, 19.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Wellington Hutt Valley: 5, 19.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
