Pegasus Bay Details
| Property | Value |
|---|---|
| Rupture Count | 181 |
| Ruptures Above Sect Min Mag | 177 |
| Ruptures w/ Nonzero Rates | 9 |
| Magnitude Range | [6.70, 7.78] |
| Length Range | [15, 159] km |
| Total Rate | 4.0319945E-5 /yr |
| Multi-Fault Rate | 4.0319945E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 9 |
Table Of Contents

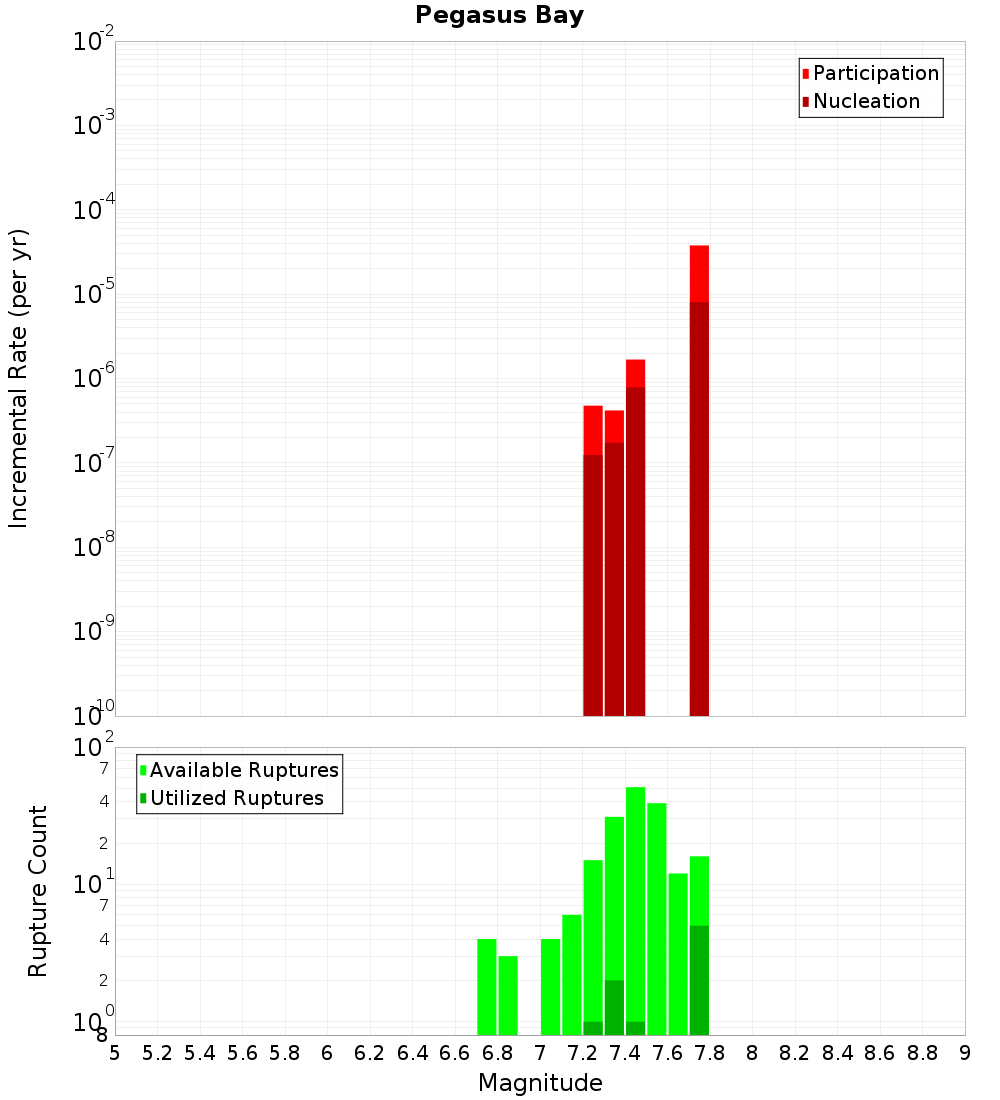

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

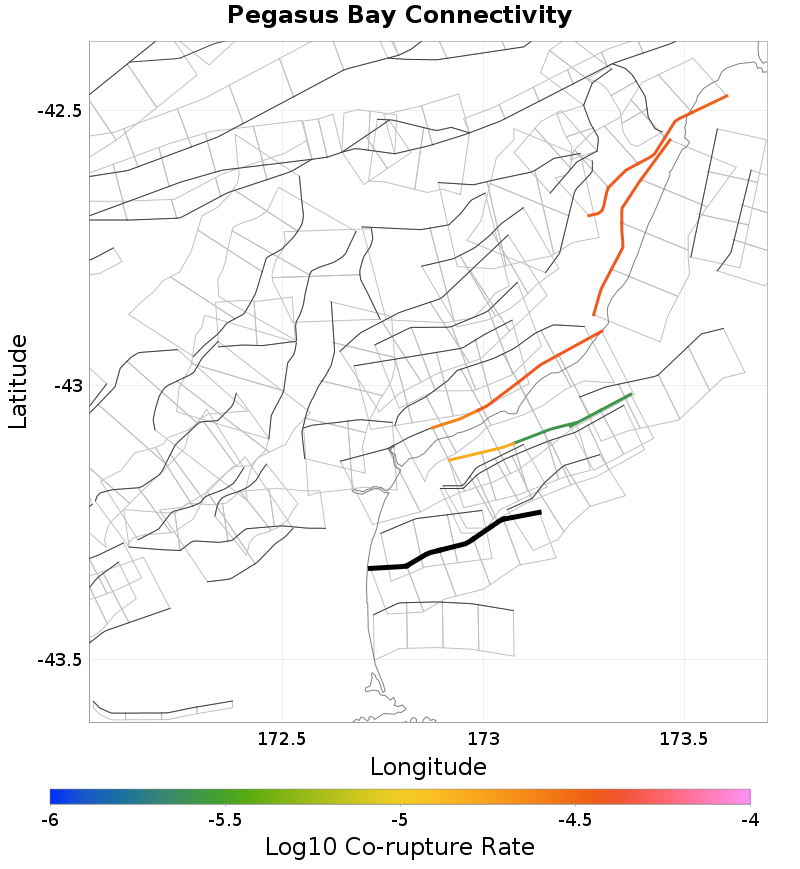

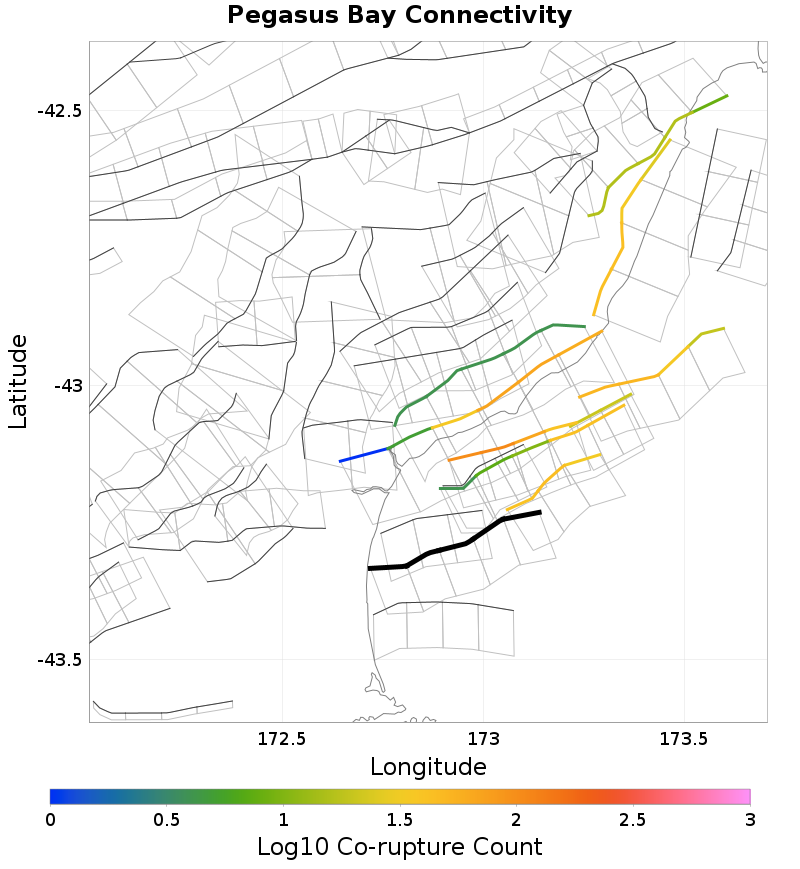

Connectivity
 |  |
|---|
Nearby Sections
North Canterbury Shelf 4, 1.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 45 |
| Co-rupture Rate | 0.0 |
Waikuku, 3.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
CenPeg1n2, 6.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Leithfield - NCVI - NCVII, 7.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 42 |
| Co-rupture Rate | 0.0 |
North Canterbury Shelf 2, 8.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motunau, 11.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 111 |
| Co-rupture Rate | 1.5724072E-5 |
Starvation - Ashley, 12.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
AmberBlyth, 14.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 74 |
| Co-rupture Rate | 3.7747814E-5 |
North Canterbury Shelf 11, 17.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 20 |
| Co-rupture Rate | 2.5721276E-6 |
Springbank, 17.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
