Sliver Stream - Merton Details

PropertyValue
Rupture Count63
Ruptures Above Sect Min Mag62
Ruptures w/ Nonzero Rates6
Magnitude Range[7.16, 7.98]
Length Range[24, 154] km
Total Rate6.7633846E-6 /yr
Multi-Fault Rate6.7633846E-6 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults15

Table Of Contents

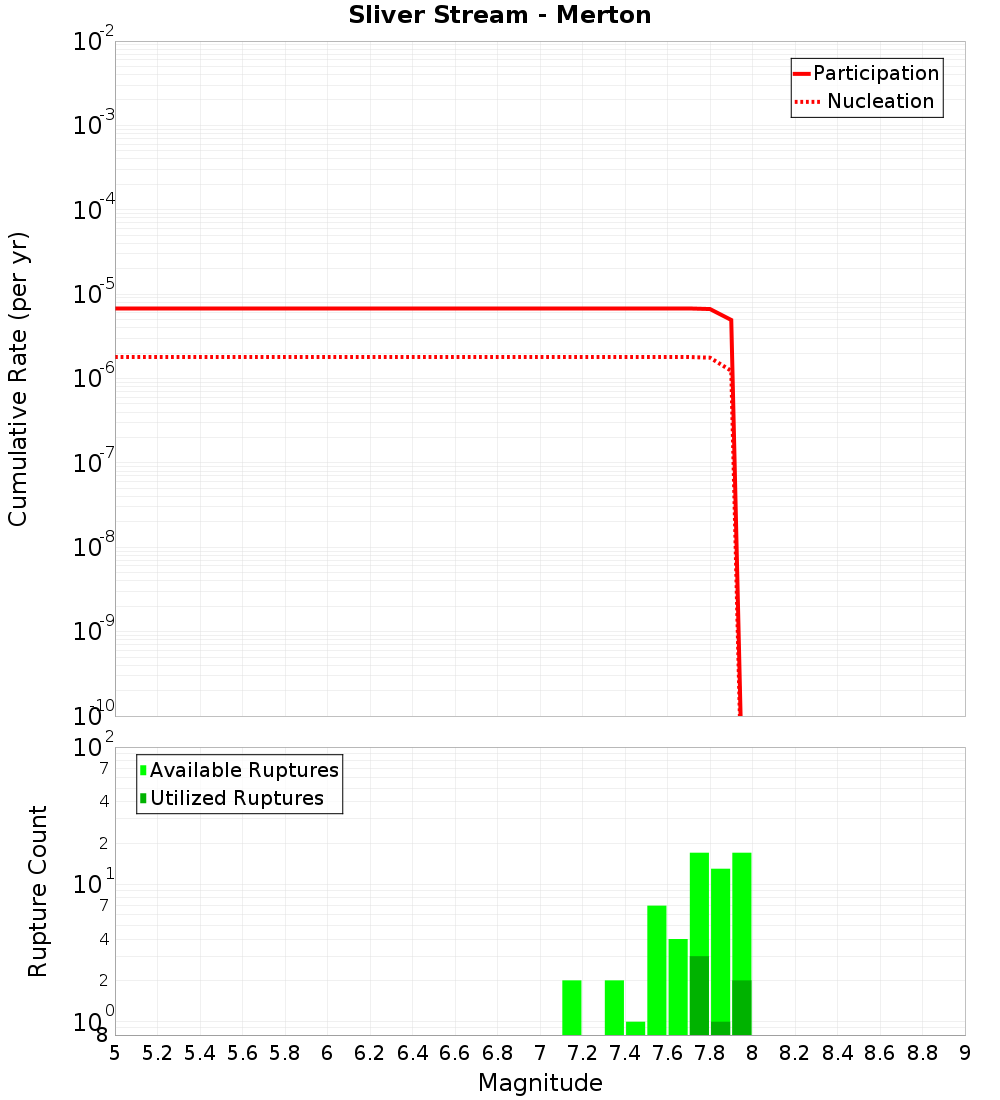

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

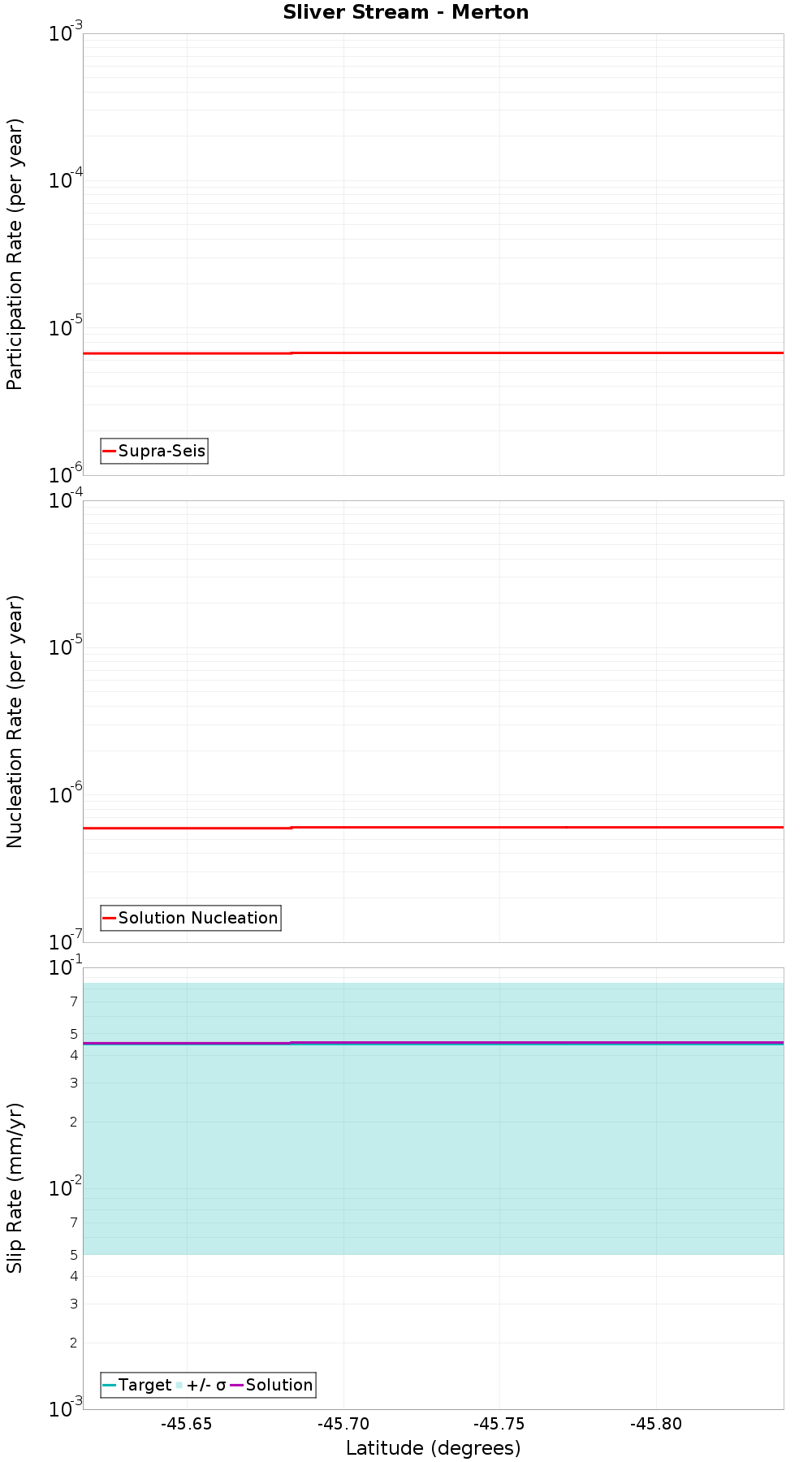

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Maungatua - North Taieri, 0.13 km away
Titri North, 0.88 km away
Kaikorai, 7.87 km away
Flat Stream - Glenpark, 8.28 km away
Dunback Hill, 11.65 km away
Nichols Rock, 12.31 km away
Green Island, 12.64 km away
Waipiata, 14.54 km away
Titri Central, 15.99 km away
Murphys Creek, 16.29 km away
Billys Ridge, 18.66 km away
Waitahuna 1, 19.25 km away
Akatore, 19.3 km away
Logan Burn, 19.41 km away
Waihemo, 19.51 km away

Maungatua - North Taieri, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate0.0

Titri North, 0.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?true
Directly Connected?true
Co-rupture Count28
Co-rupture Rate6.7633846E-6

Kaikorai, 7.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?true
Directly Connected?true
Co-rupture Count23
Co-rupture Rate0.0

Flat Stream - Glenpark, 8.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate4.9387368E-6

Dunback Hill, 11.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 12.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Green Island, 12.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate0.0

Waipiata, 14.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Titri Central, 15.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate0.0

Murphys Creek, 16.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Billys Ridge, 18.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 1, 19.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Akatore, 19.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate6.7633846E-6

Logan Burn, 19.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waihemo, 19.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NjYuMG9tVVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
