Mohaka: South Details

PropertyValue
Rupture Count67,267
Ruptures Above Sect Min Mag67,261
Ruptures w/ Nonzero Rates35
Magnitude Range[7.08, 8.70]
Length Range[25, 1,119] km
Total Rate4.7904317E-4 /yr
Multi-Fault Rate4.660308E-4 /yr (97.28%)
Directly-Connected Faults12
All Co-Rupturing Faults137

Table Of Contents

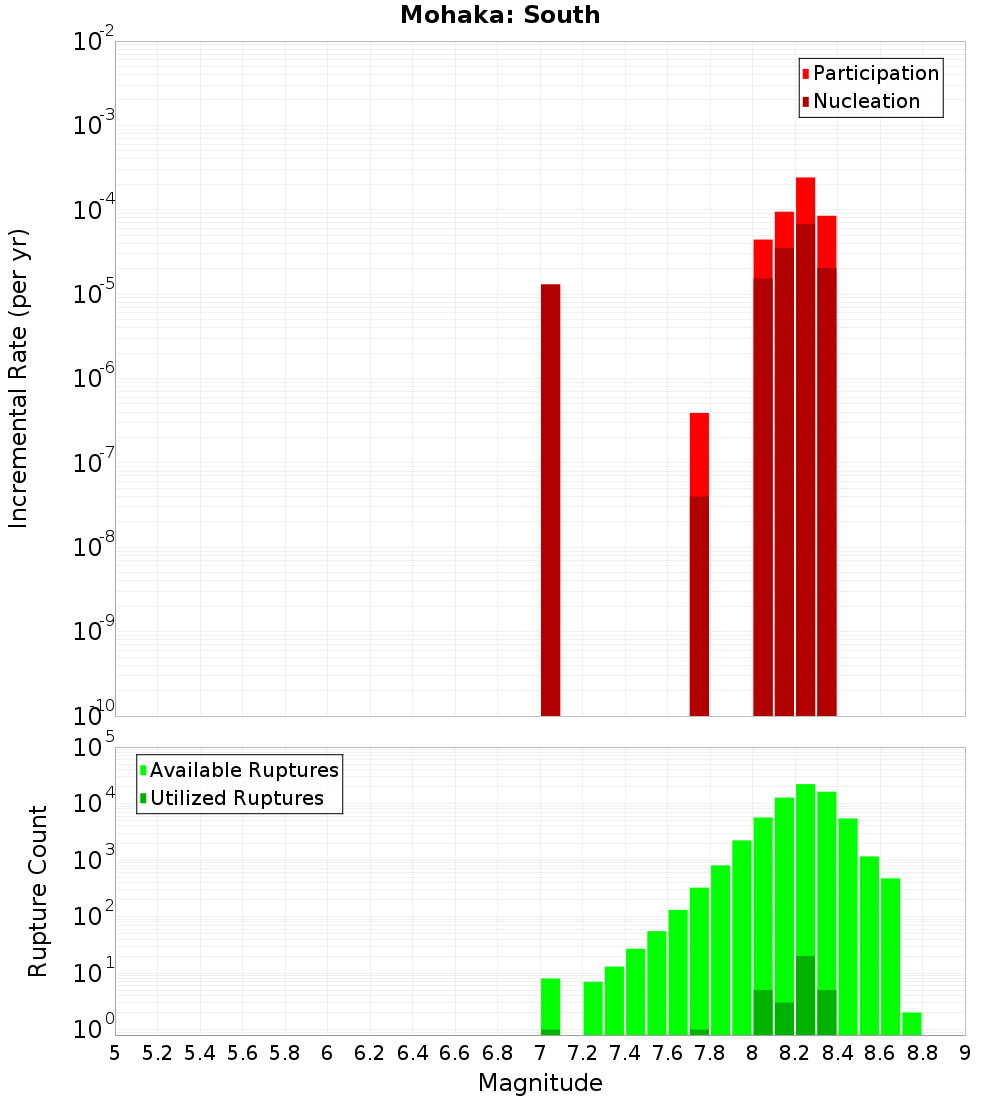

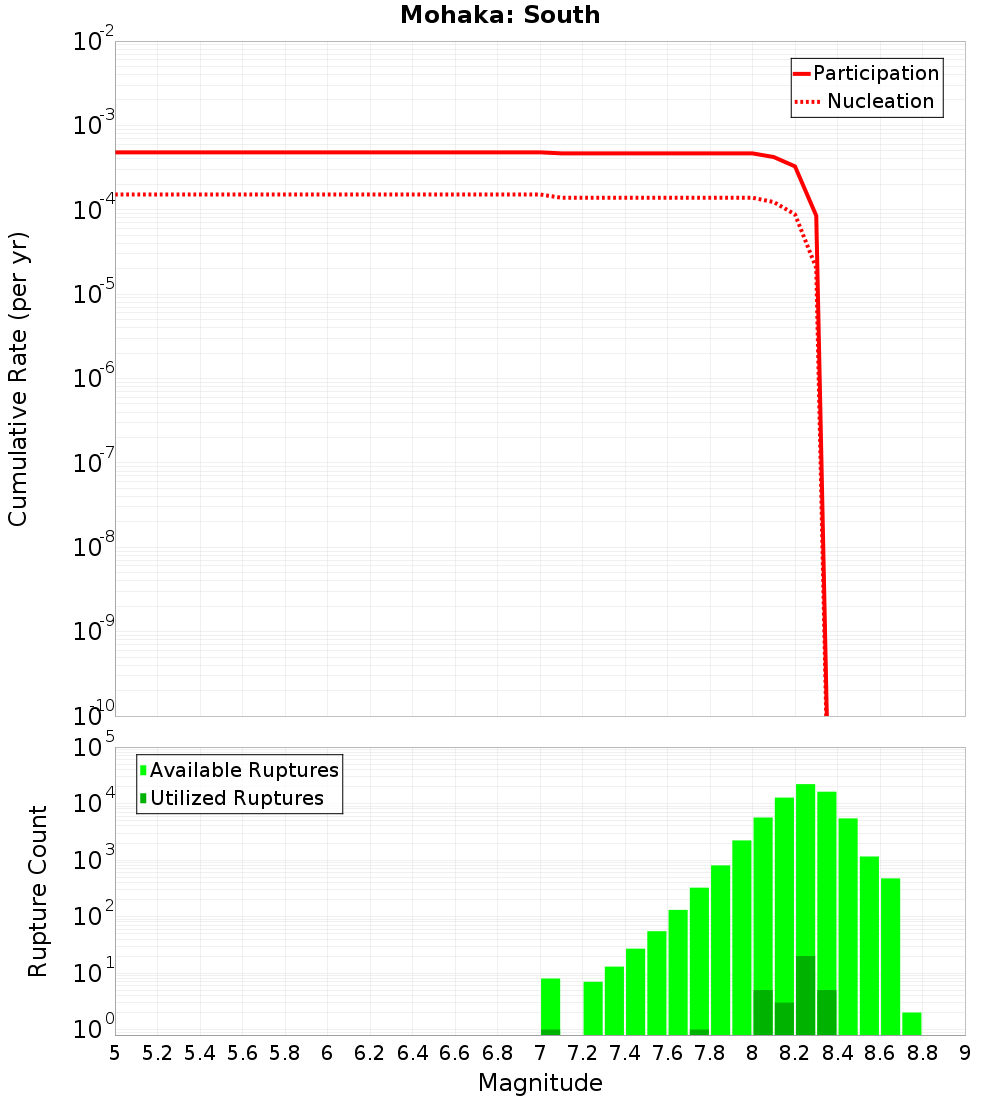

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington: Pahiatua, 0 km awayRuataniwha, 6.61 km away
Mohaka: North, 0 km awayMaunga, 9.06 km away
Ruahine: South, 0 km awayPohangina, 9.44 km away
Wakarara, 0.13 km awayAwanui, 12.7 km away
Rangefront, 0.2 km awayTokomaru, 14.28 km away
Woodville, 0.4 km awayTe Heka, 14.94 km away
Ruahine: Central, 2.68 km awayKaweka, 17.19 km away
Pahiatua, 4.26 km awayWaewaepa, 17.23 km away
Ruahine: North, 4.35 km awayNorthern Ohariu, 18.2 km away
Patoka - Rangiora, 5.52 km awayOruawharo - Mangatoro, 18.37 km away

Wellington: Pahiatua, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count59,755
Co-rupture Rate4.2647563E-4

Mohaka: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count40,822
Co-rupture Rate1.4457188E-4

Ruahine: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count9,661
Co-rupture Rate2.328365E-5

Wakarara, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count5,755
Co-rupture Rate1.7531924E-5

Rangefront, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count7,163
Co-rupture Rate4.4289547E-5

Woodville, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count182
Co-rupture Rate2.5211136E-6

Ruahine: Central, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count8,935
Co-rupture Rate0.0

Pahiatua, 4.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count708
Co-rupture Rate3.910283E-7

Ruahine: North, 4.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count17,937
Co-rupture Rate0.0

Patoka - Rangiora, 5.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count4,098
Co-rupture Rate2.7672623E-4

Ruataniwha, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count461
Co-rupture Rate1.0443375E-6

Maunga, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count304
Co-rupture Rate0.0

Pohangina, 9.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count269
Co-rupture Rate0.0

Awanui, 12.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count836
Co-rupture Rate2.861054E-5

Tokomaru, 14.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count3,682
Co-rupture Rate0.0

Te Heka, 14.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count79
Co-rupture Rate0.0

Kaweka, 17.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waewaepa, 17.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Northern Ohariu, 18.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count9,351
Co-rupture Rate5.3192343E-5

Oruawharo - Mangatoro, 18.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
