NW Cardrona South Details

PropertyValue
Rupture Count102
Ruptures Above Sect Min Mag101
Ruptures w/ Nonzero Rates4
Magnitude Range[7.02, 8.19]
Length Range[19, 246] km
Total Rate1.16120566E-4 /yr
Multi-Fault Rate2.4040687E-6 /yr (2.07%)
Directly-Connected Faults3
All Co-Rupturing Faults20

Table Of Contents

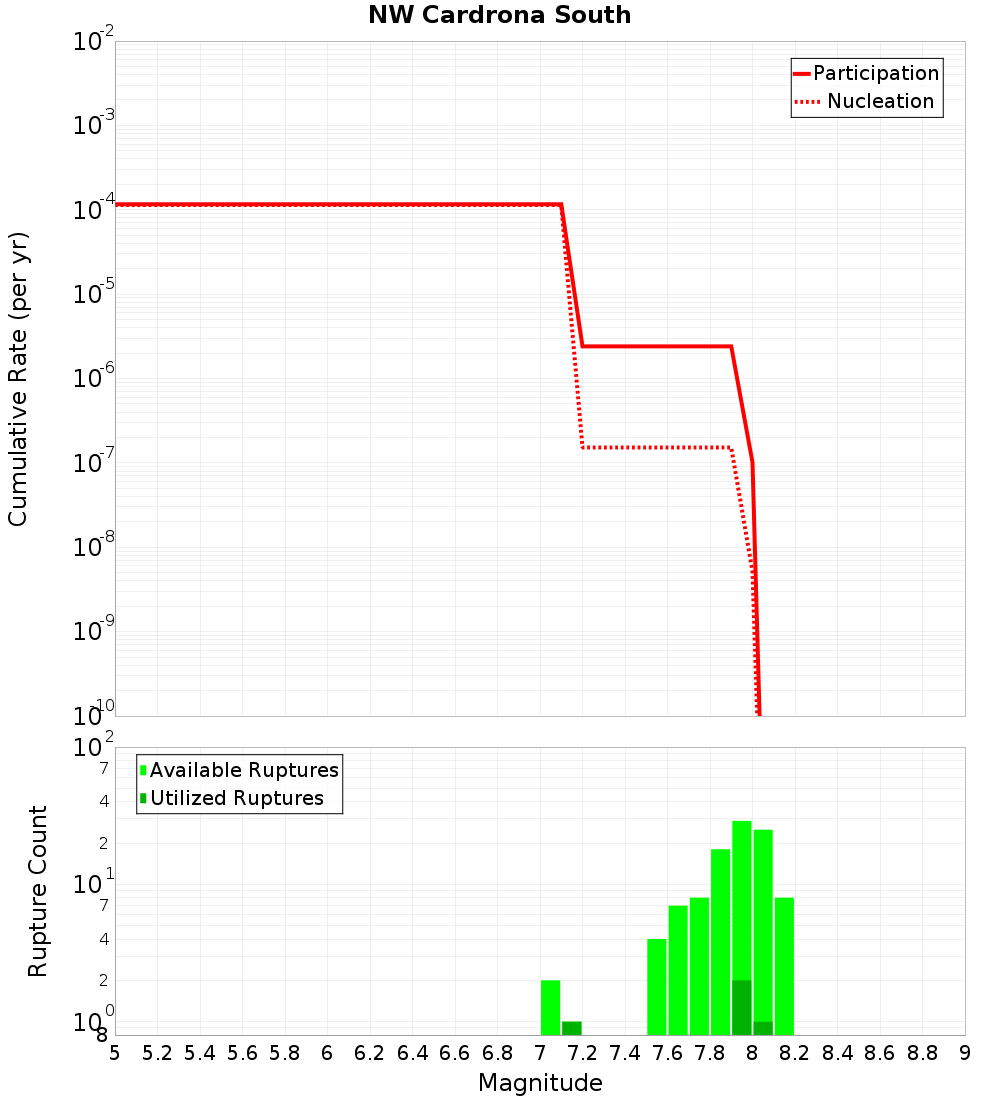

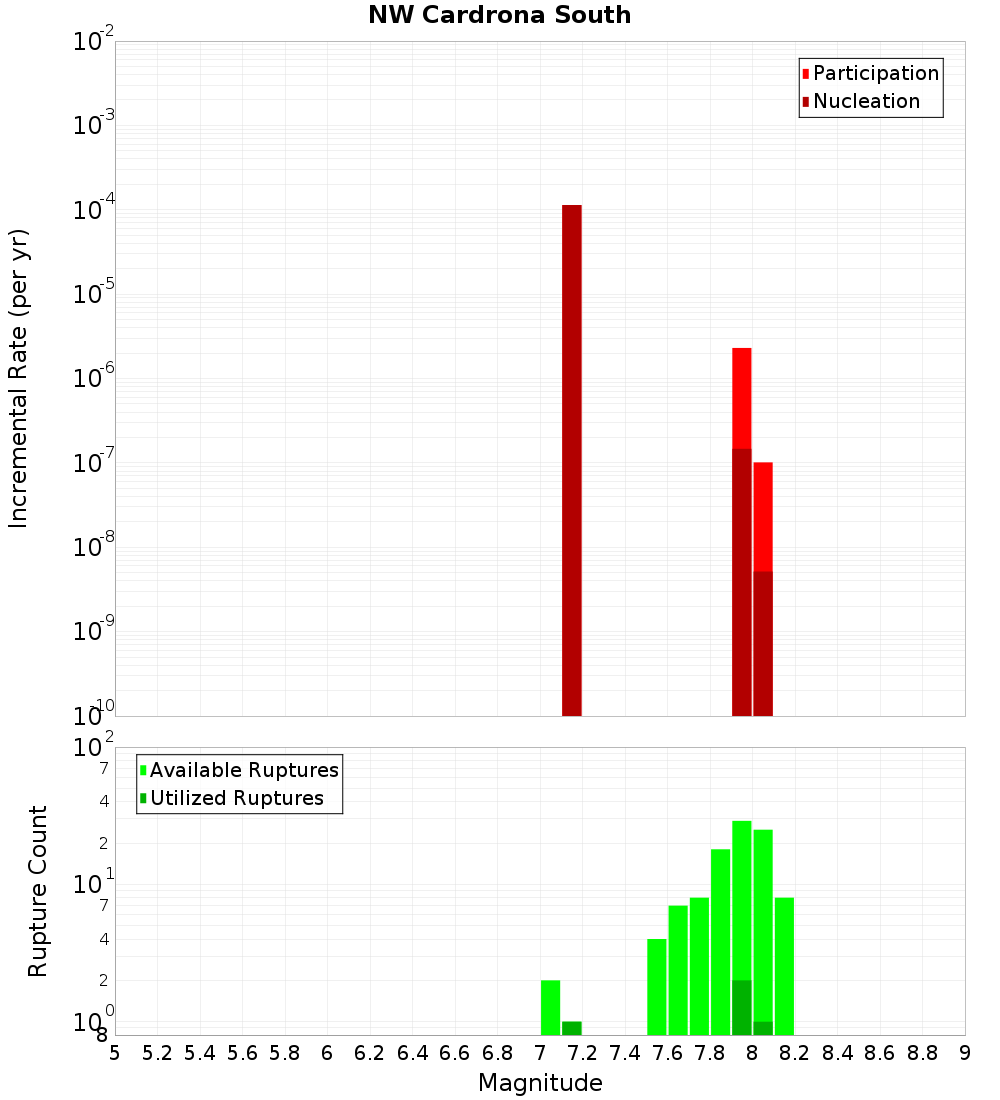

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

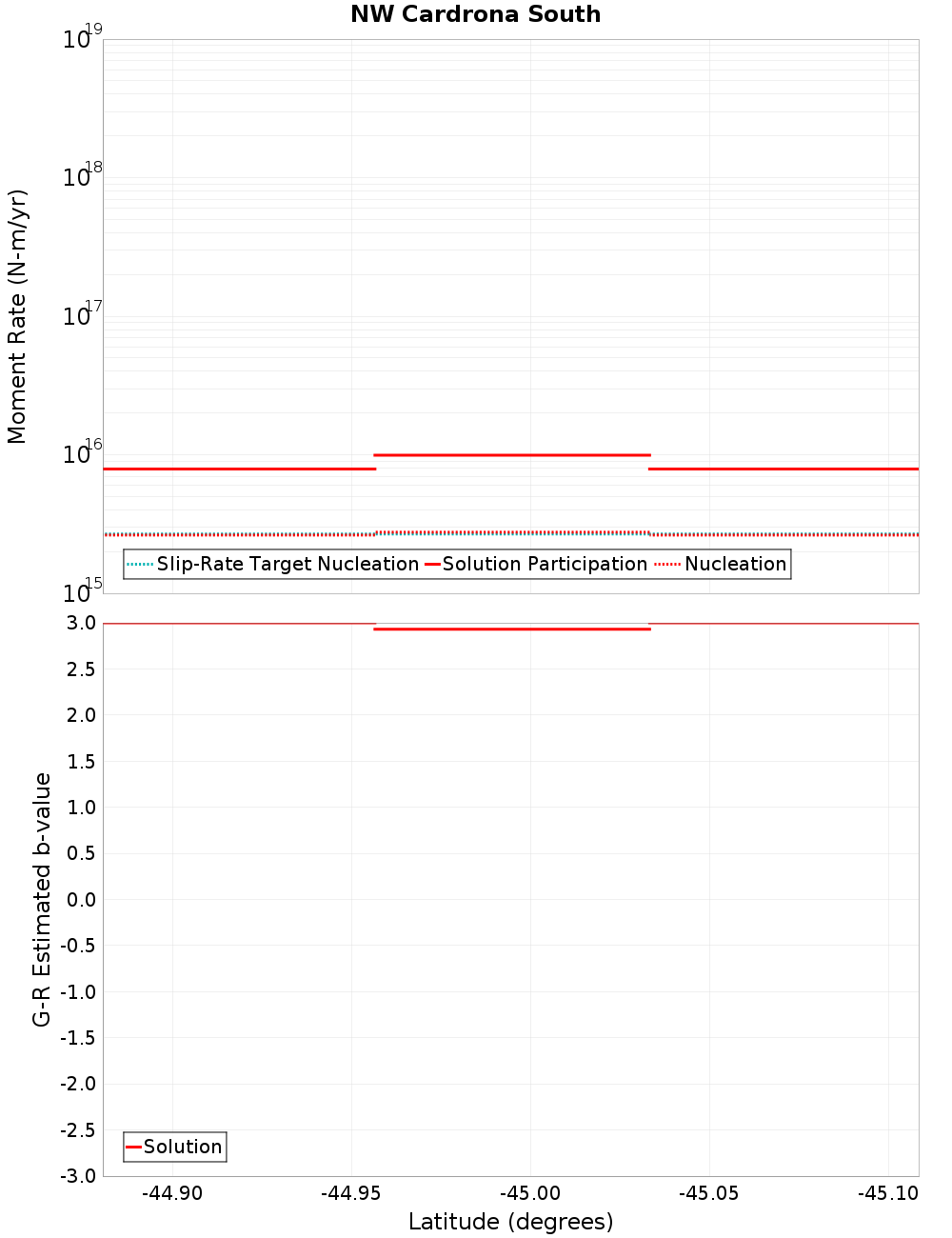

Moment-Rates and b-Values

(top)

Along-strike plot

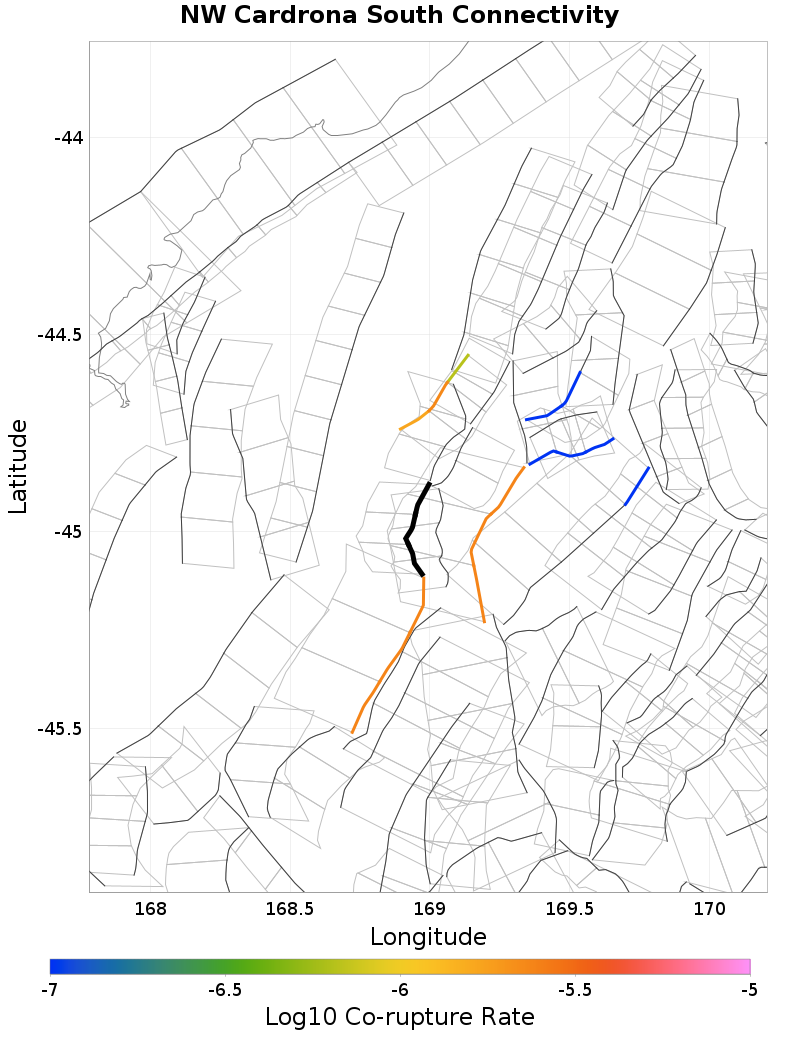

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Nevis, 0.47 km away
Paddys Ridge, 1.01 km away
NW Cardrona North, 1.15 km away
Roaring Meg, 2.76 km away
Pisa, 5.46 km away
Roaring Lion, 10.86 km away
Motatapu, 11.75 km away
West Wakatipu, 12.07 km away
Moonlight South, 16.53 km away
Dunstan, 16.68 km away
Garvie, 18.48 km away
Old Man, 18.78 km away

Nevis, 0.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count50
Co-rupture Rate2.4040687E-6

Paddys Ridge, 1.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

NW Cardrona North, 1.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Roaring Meg, 2.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pisa, 5.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count87
Co-rupture Rate2.4040687E-6

Roaring Lion, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count9
Co-rupture Rate0.0

Motatapu, 11.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate2.302686E-6

West Wakatipu, 12.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Moonlight South, 16.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunstan, 16.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate1.0138282E-7

Garvie, 18.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Old Man, 18.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0
