Rahotu Details

PropertyValue
Rupture Count87
Ruptures Above Sect Min Mag86
Ruptures w/ Nonzero Rates6
Magnitude Range[6.73, 7.87]
Length Range[11, 147] km
Total Rate3.232453E-5 /yr
Multi-Fault Rate3.232453E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults14

Table Of Contents

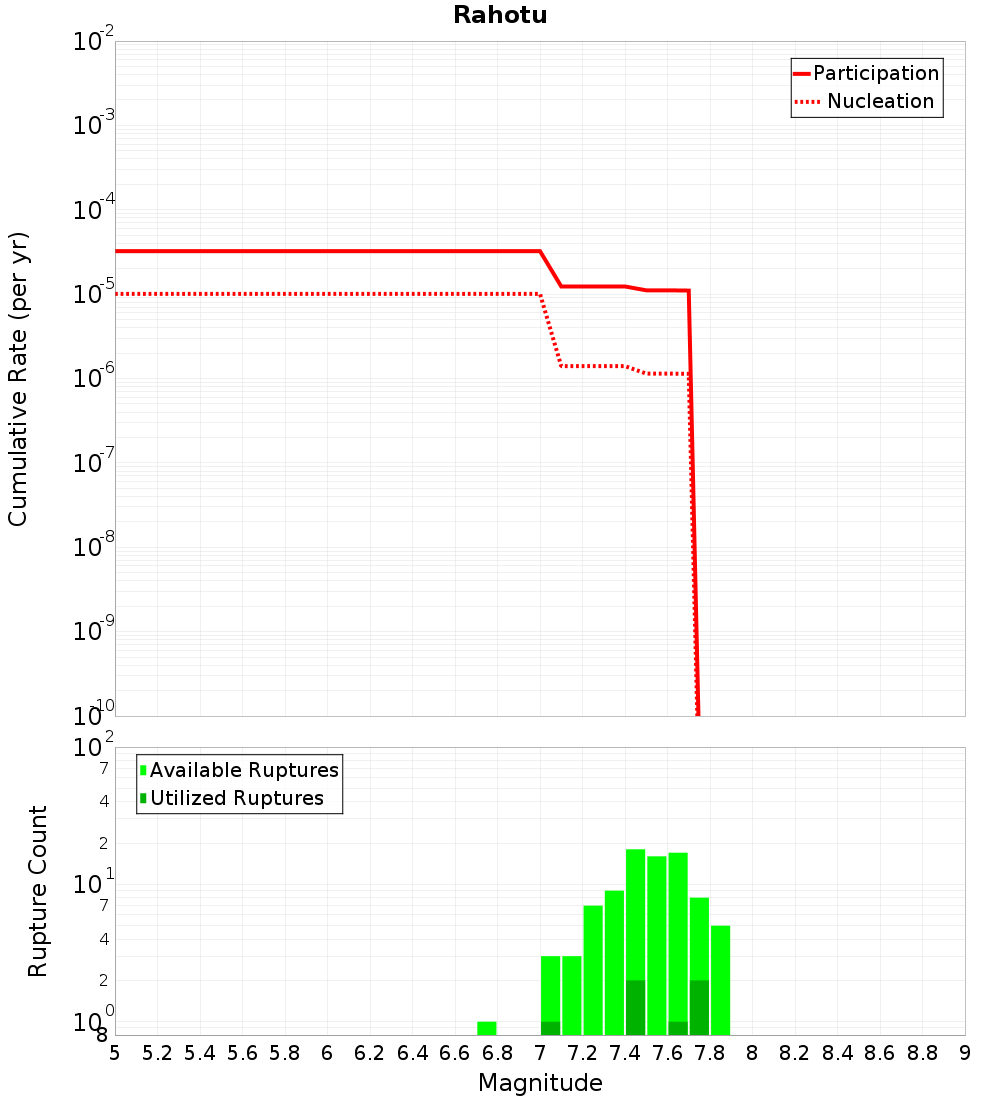

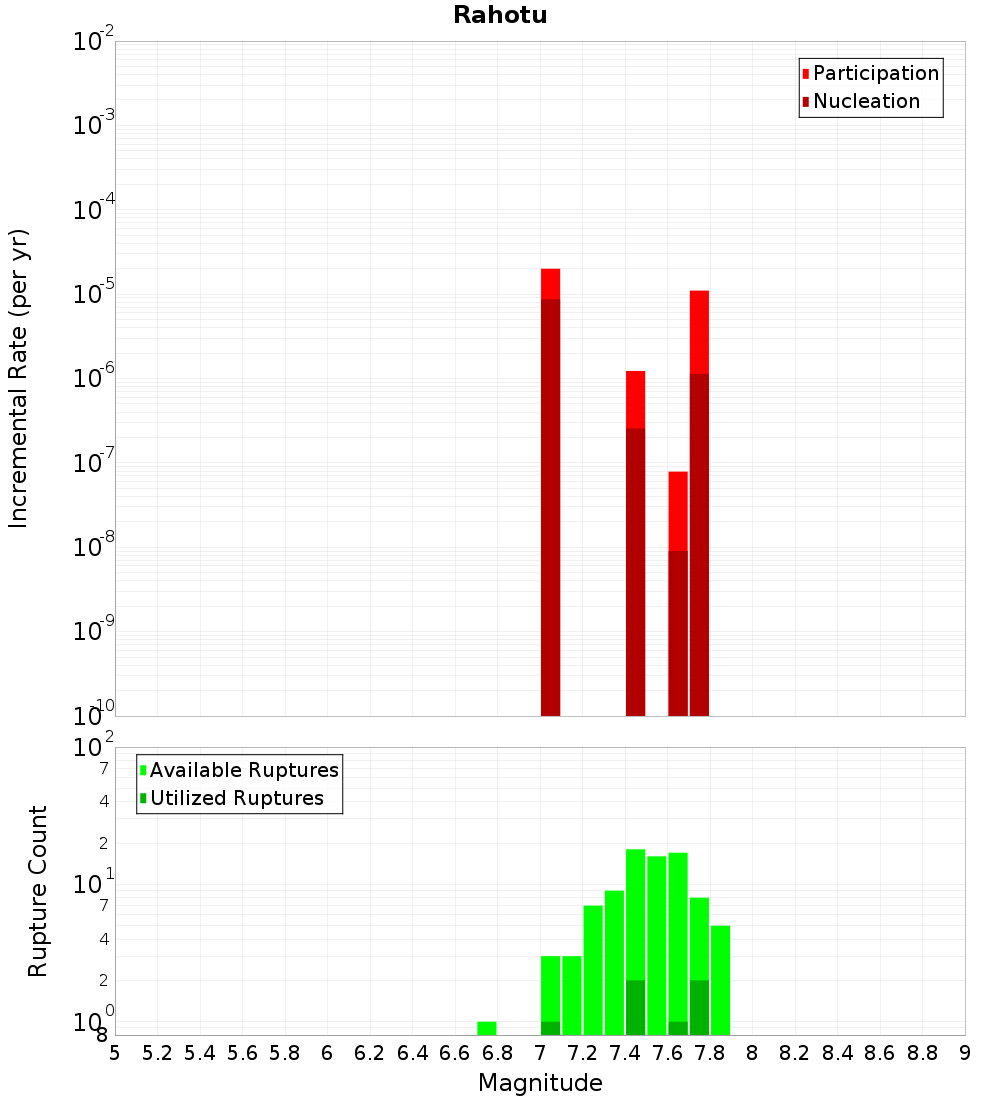

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

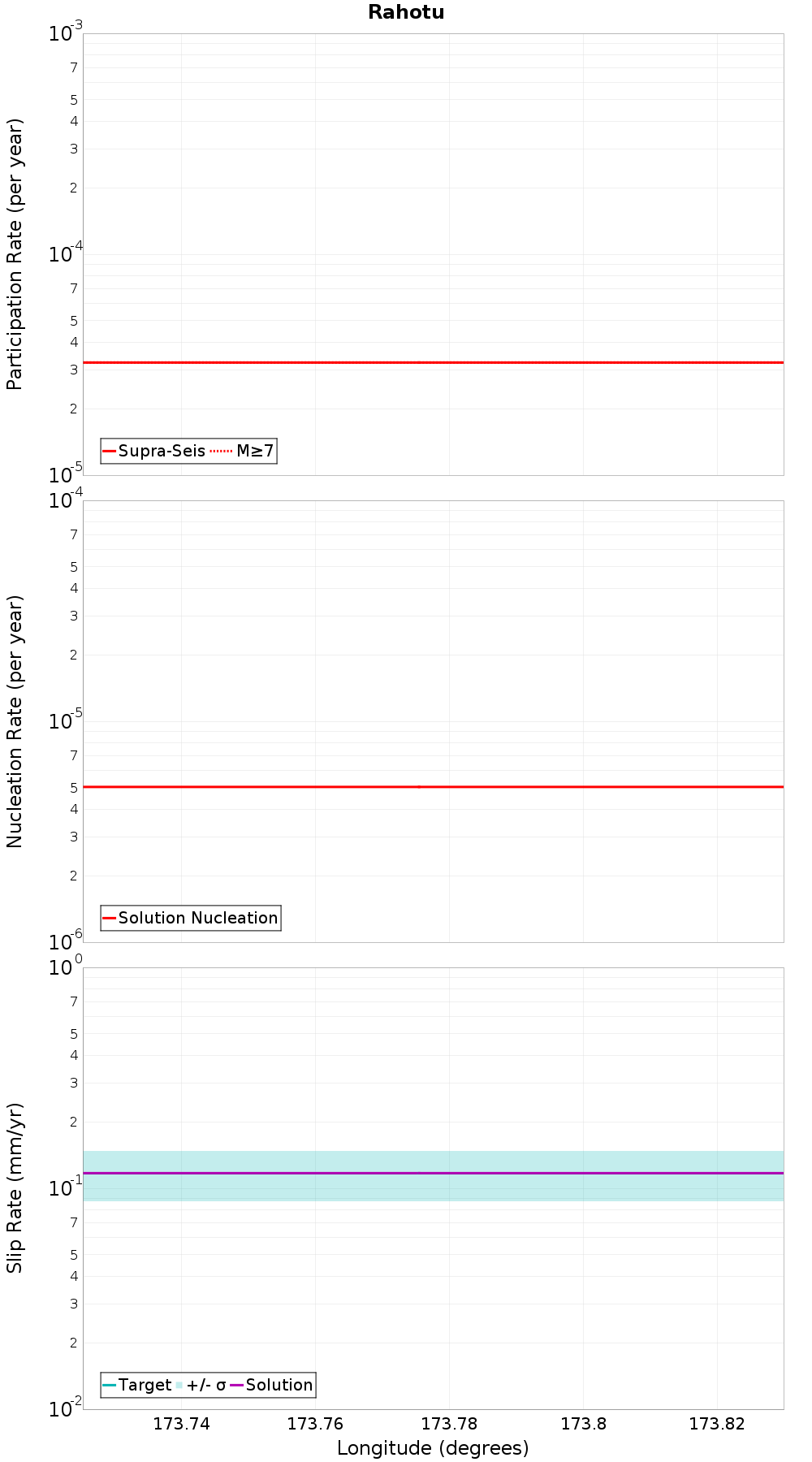

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Oaonui, 0.25 km away
Kiri, 0.4 km away
Ihaia, 0.43 km away
Pihama, 1.64 km away
Cape Egmont: North, 1.9 km away
Manahi 2, 2.03 km away
Warea, 5.06 km away
Manahi 1, 5.59 km away
Cape Egmont: Central, 9.89 km away

Oaonui, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Kiri, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate3.232453E-5

Ihaia, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate0.0

Pihama, 1.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Cape Egmont: North, 1.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count53
Co-rupture Rate9.174262E-6

Manahi 2, 2.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Warea, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count54
Co-rupture Rate0.0

Manahi 1, 5.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count22
Co-rupture Rate3.147905E-6

Cape Egmont: Central, 9.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate1.2322168E-5
