Wairarapa: Needles Details

PropertyValue
Rupture Count52,730
Ruptures Above Sect Min Mag52,729
Ruptures w/ Nonzero Rates59
Magnitude Range[6.95, 8.73]
Length Range[19, 1,119] km
Total Rate0.0012834483 /yr
Multi-Fault Rate0.0012834483 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults160

Table Of Contents

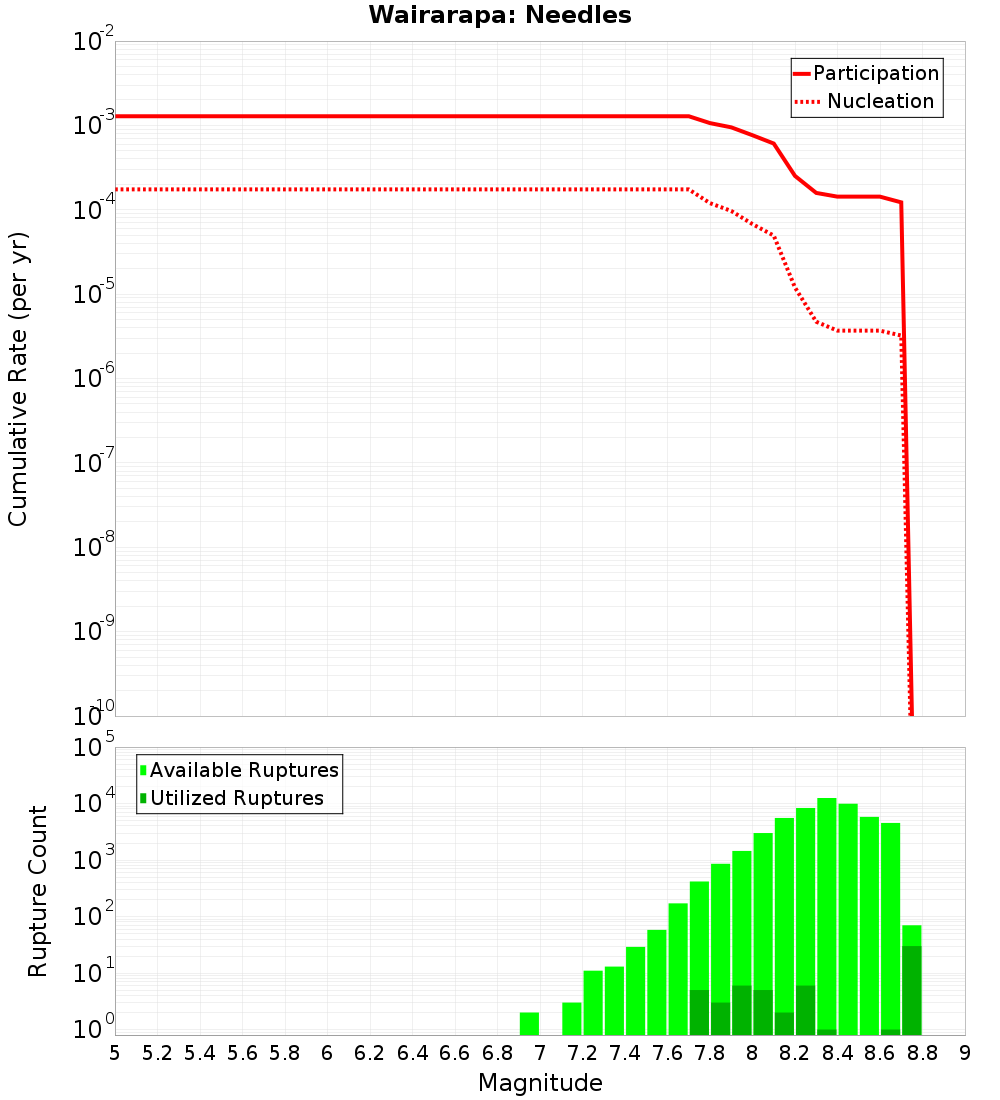

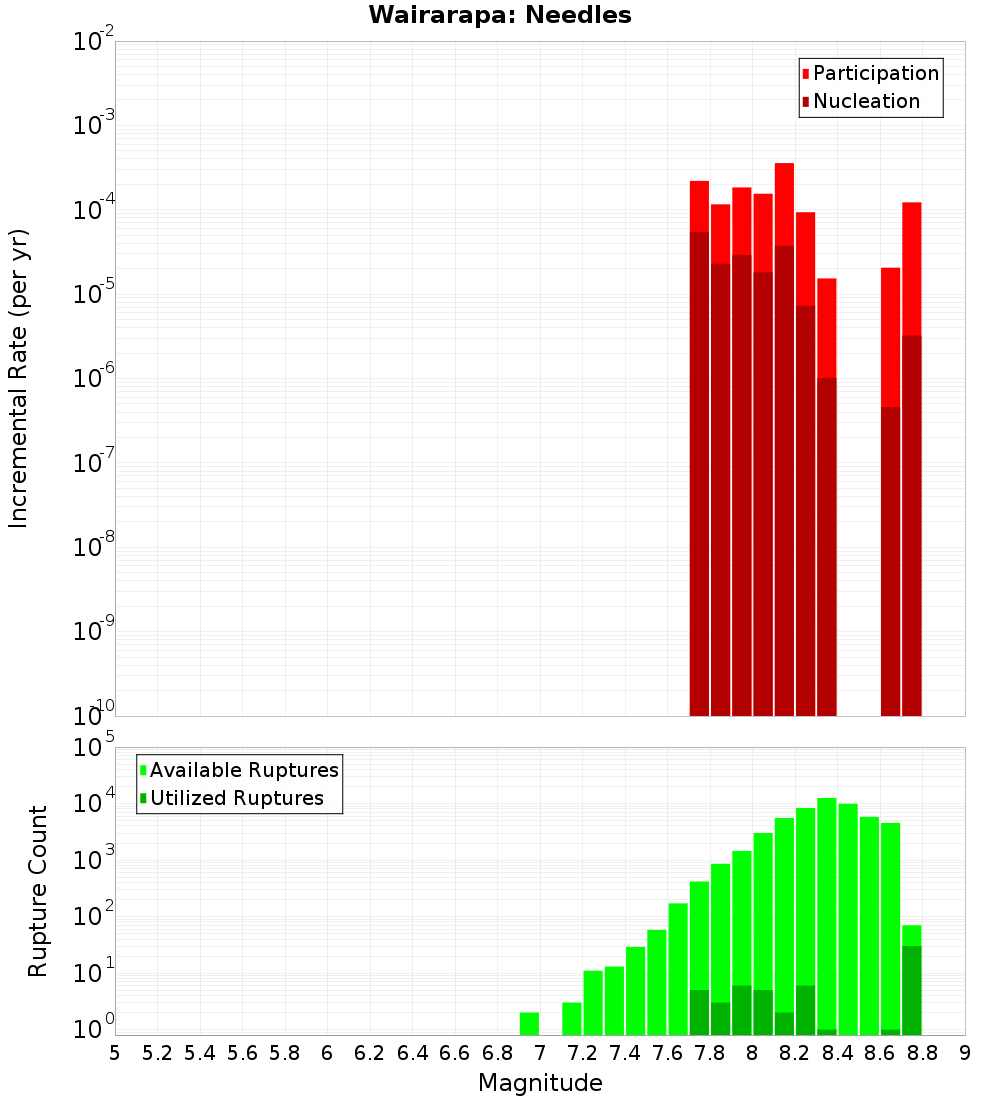

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

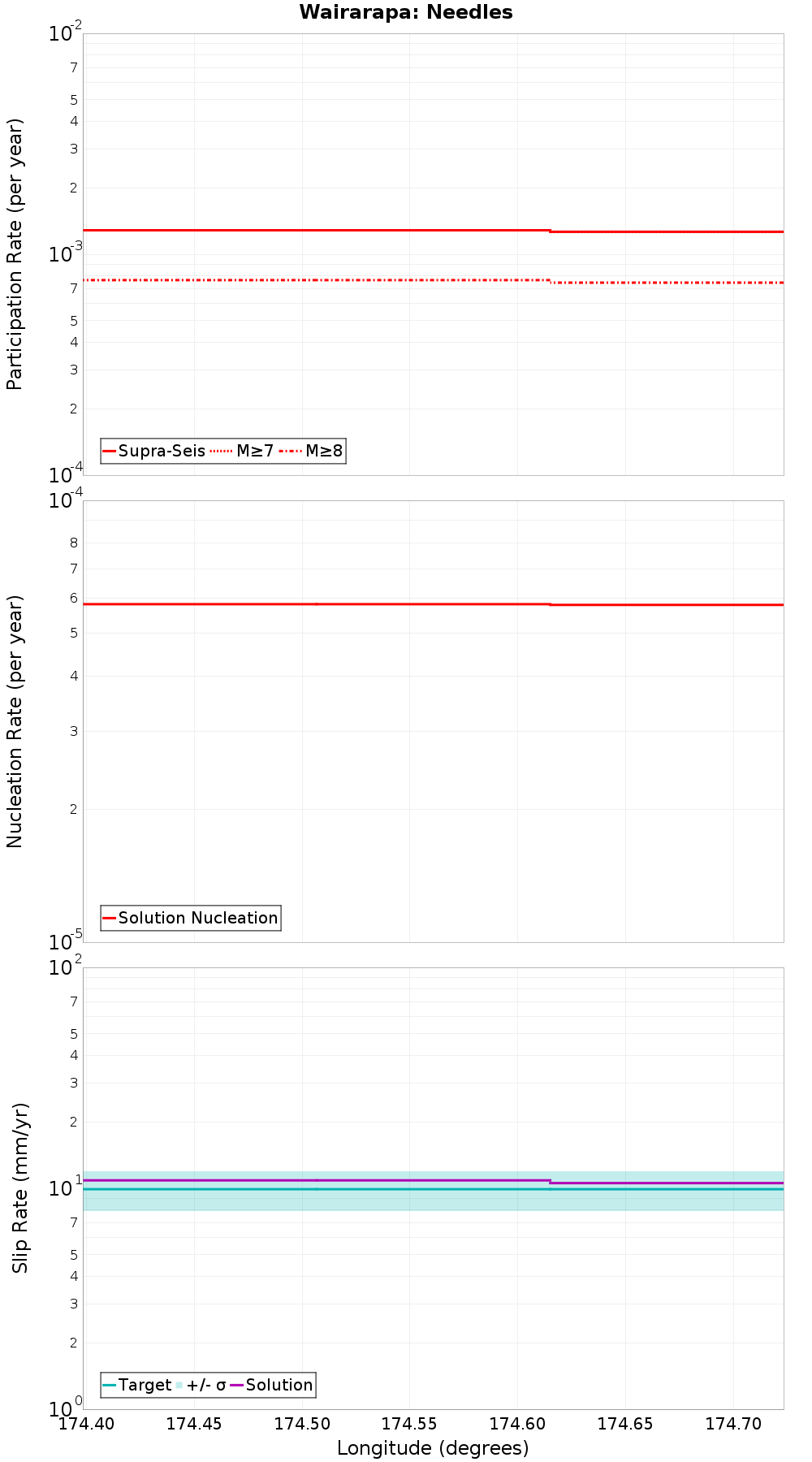

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

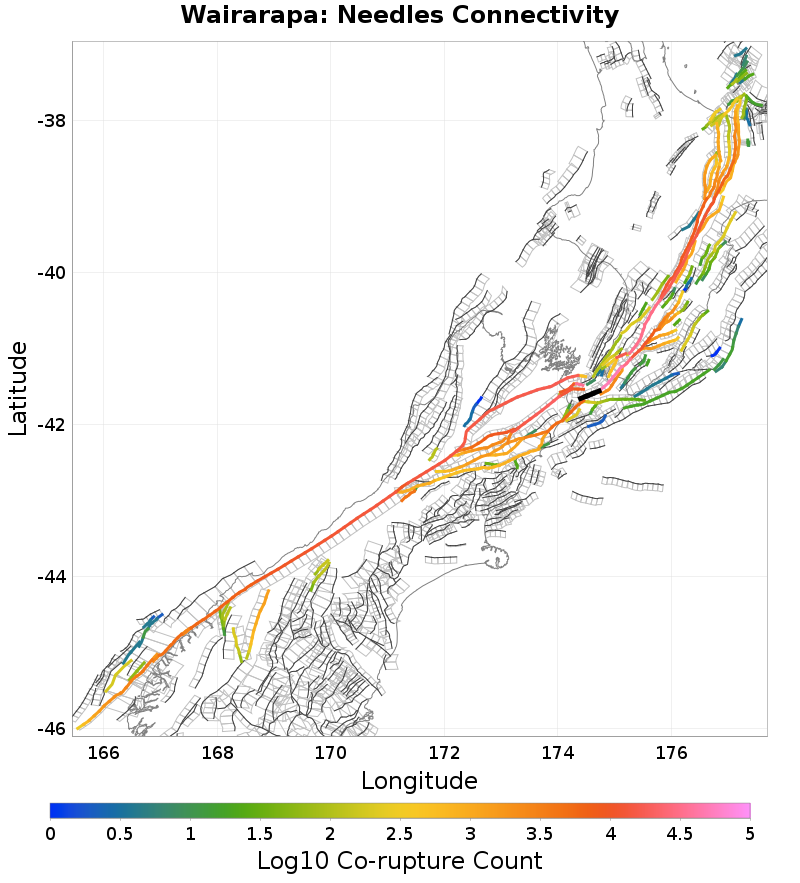

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairarapa: 1, 0 km awayNeedles East 2, 12.75 km away
Cloudy 3, 0.29 km awayVernon 2, 14.03 km away
Wharekauhau, 0.3 km awayWellington Hutt Valley: 1, 14.52 km away
Vernon 4, 0.42 km awayAwatere: Northeast 2, 14.79 km away
Needles, 4.57 km awayOhariu, 14.92 km away
BooBoo, 5.6 km awayCampbell Bank, 15.41 km away
Cloudy 2, 6.58 km awayWellington Hutt Valley: 3, 16.88 km away
Vernon 3, 9.01 km awayWairau 2, 18.8 km away
London Hill, 9.47 km awayOhariu South 1, 19.05 km away
Wairau 3, 9.87 km awayOhariu South 2, 19.11 km away
Cloudy 1, 10.84 km awayVernon 1, 19.36 km away
Wellington Hutt Valley: 2, 12.47 km awayAotea - Evans Bay, 19.45 km away

Wairarapa: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count49,474
Co-rupture Rate0.001200464

Cloudy 3, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count34,927
Co-rupture Rate1.2233575E-4

Wharekauhau, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count3,060
Co-rupture Rate6.240418E-5

Vernon 4, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count8,490
Co-rupture Rate1.5265637E-4

Needles, 4.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count6,240
Co-rupture Rate5.41542E-4

BooBoo, 5.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count196
Co-rupture Rate0.0

Cloudy 2, 6.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count559
Co-rupture Rate0.0

Vernon 3, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count234
Co-rupture Rate8.928208E-5

London Hill, 9.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count62
Co-rupture Rate0.0

Wairau 3, 9.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?true
Co-rupture Count538
Co-rupture Rate4.6691415E-4

Cloudy 1, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count13,448
Co-rupture Rate6.33743E-5

Wellington Hutt Valley: 2, 12.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Needles East 2, 12.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count215
Co-rupture Rate0.0

Vernon 2, 14.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count9,698
Co-rupture Rate6.33743E-5

Wellington Hutt Valley: 1, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Awatere: Northeast 2, 14.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count12,765
Co-rupture Rate8.928208E-5

Ohariu, 14.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count101
Co-rupture Rate0.0

Campbell Bank, 15.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate0.0

Wellington Hutt Valley: 3, 16.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Wairau 2, 18.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count17,512
Co-rupture Rate1.2233575E-4

Ohariu South 1, 19.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 2, 19.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 1, 19.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count122
Co-rupture Rate0.0

Aotea - Evans Bay, 19.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzMuMHNLcUo2
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0
