Puketerata North Details
| Property | Value |
|---|---|
| Rupture Count | 1,684 |
| Ruptures Above Sect Min Mag | 1,663 |
| Ruptures w/ Nonzero Rates | 111 |
| Magnitude Range | [6.32, 7.95] |
| Length Range | [10, 215] km |
| Total Rate | 3.1239877E-4 /yr |
| Multi-Fault Rate | 3.1239877E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 29 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

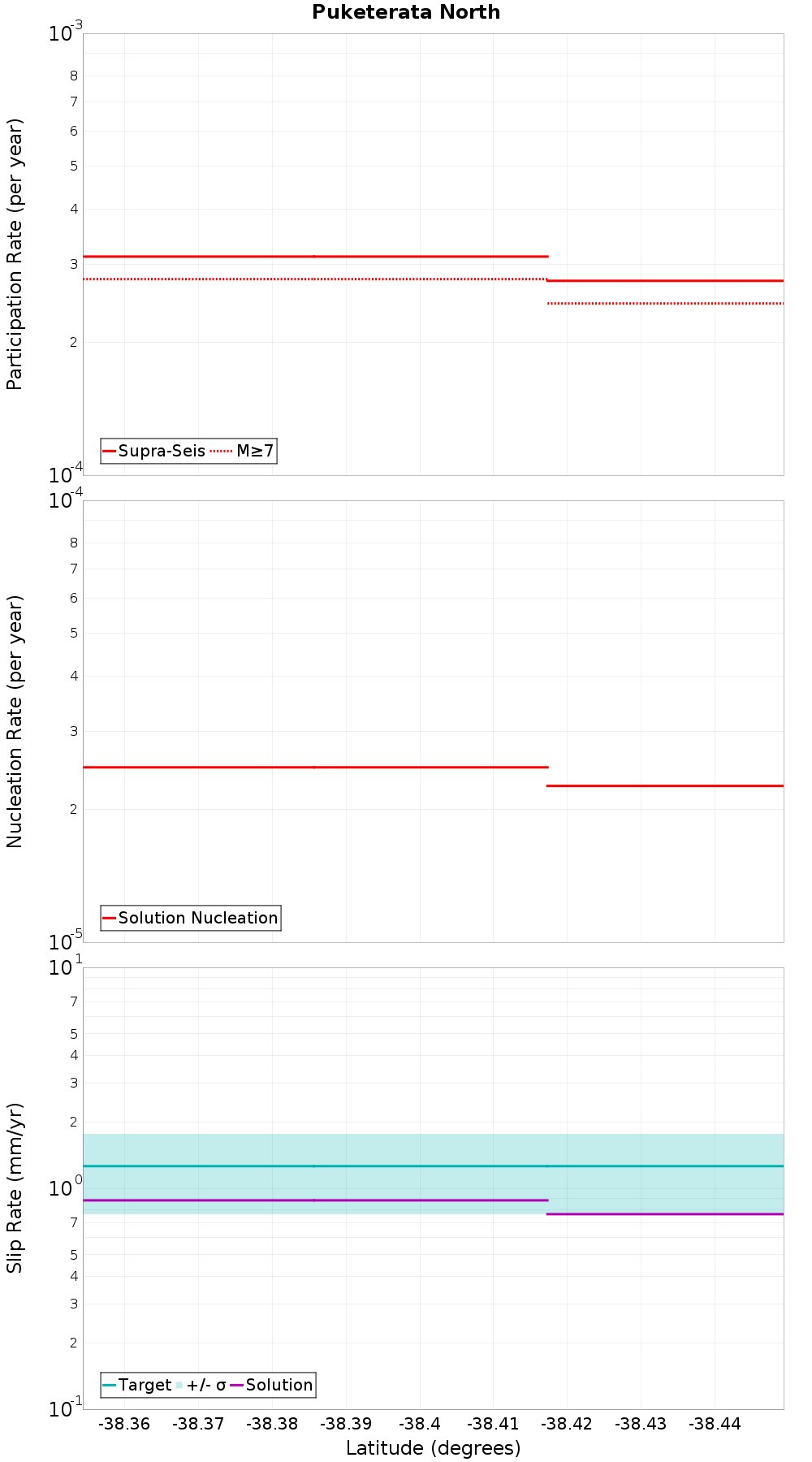

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Puketerata, 0.1 km away |
| Maleme, 0.15 km away |
| Paeroa, 2.13 km away |
| Orakeikorako, 3.3 km away |
| EarthquakeFlat - Tumunui, 7.65 km away |
| Whangamata West, 9.6 km away |
| Kaiapo, 17.13 km away |
Puketerata, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzcuMFVYemNU | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 663 |
| Co-rupture Rate | 1.4456191E-4 |
Maleme, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzcuMFVYemNU | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,374 |
| Co-rupture Rate | 2.4549512E-4 |
Paeroa, 2.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzcuMFVYemNU | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 692 |
| Co-rupture Rate | 9.530909E-5 |
Orakeikorako, 3.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzcuMFVYemNU | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 604 |
| Co-rupture Rate | 1.0960682E-4 |
EarthquakeFlat - Tumunui, 7.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzcuMFVYemNU | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,429 |
| Co-rupture Rate | 1.8218475E-4 |
Whangamata West, 9.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzcuMFVYemNU | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 615 |
| Co-rupture Rate | 1.4247233E-4 |
Kaiapo, 17.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzcuMFVYemNU | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 358 |
| Co-rupture Rate | 8.48356E-5 |
