Ruatoria South 4 Details
| Property | Value |
|---|---|
| Rupture Count | 20 |
| Ruptures Above Sect Min Mag | 18 |
| Ruptures w/ Nonzero Rates | 12 |
| Magnitude Range | [6.82, 7.49] |
| Length Range | [17, 80] km |
| Total Rate | 8.603766E-4 /yr |
| Multi-Fault Rate | 5.8148353E-4 /yr (67.58%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

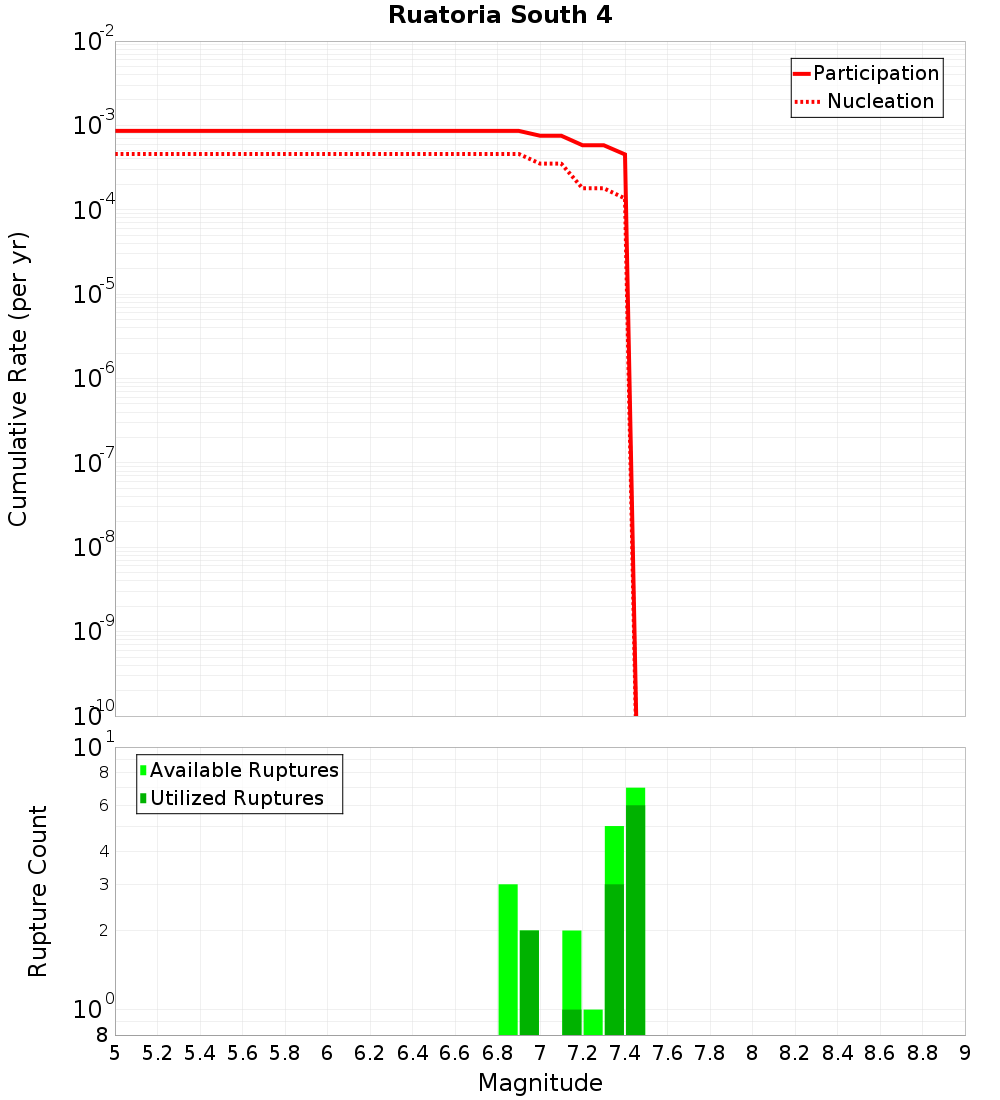

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

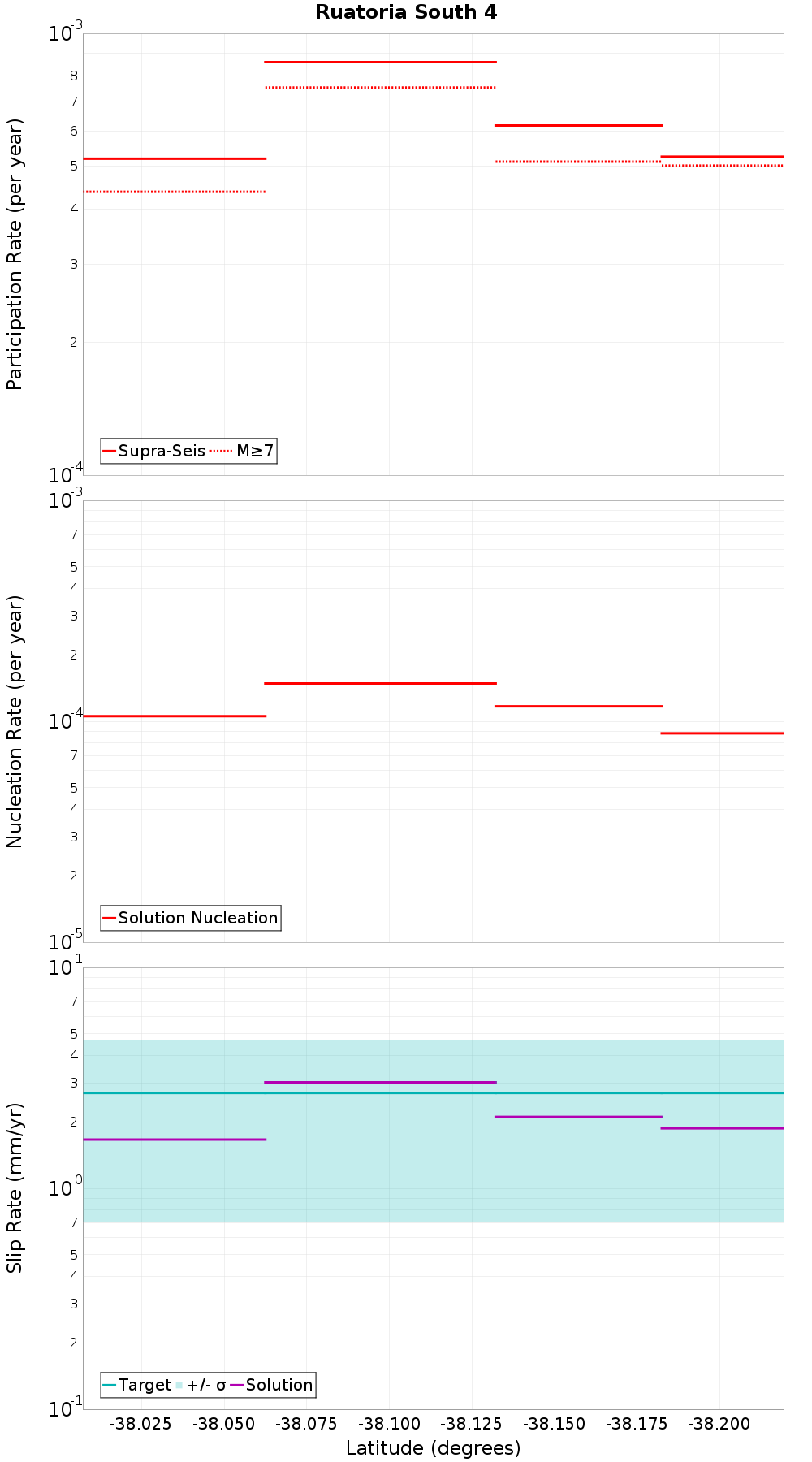

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ruatoria South 3, 3.77 km away |
| Houtunui, 4.74 km away |
| Ariel Bank 2, 14.82 km away |
Ruatoria South 3, 3.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzcuMFVYemNU | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 2.3669327E-5 |
Houtunui, 4.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzcuMFVYemNU | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 5.578142E-4 |
Ariel Bank 2, 14.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4NzcuMFVYemNU | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.2171861E-9 |
