EarthquakeFlat - Tumunui Details
| Property | Value |
|---|---|
| Rupture Count | 5,746 |
| Ruptures Above Sect Min Mag | 5,733 |
| Ruptures w/ Nonzero Rates | 17 |
| Magnitude Range | [6.36, 7.95] |
| Length Range | [10, 215] km |
| Total Rate | 5.681392E-4 /yr |
| Multi-Fault Rate | 5.681392E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 31 |
Table Of Contents

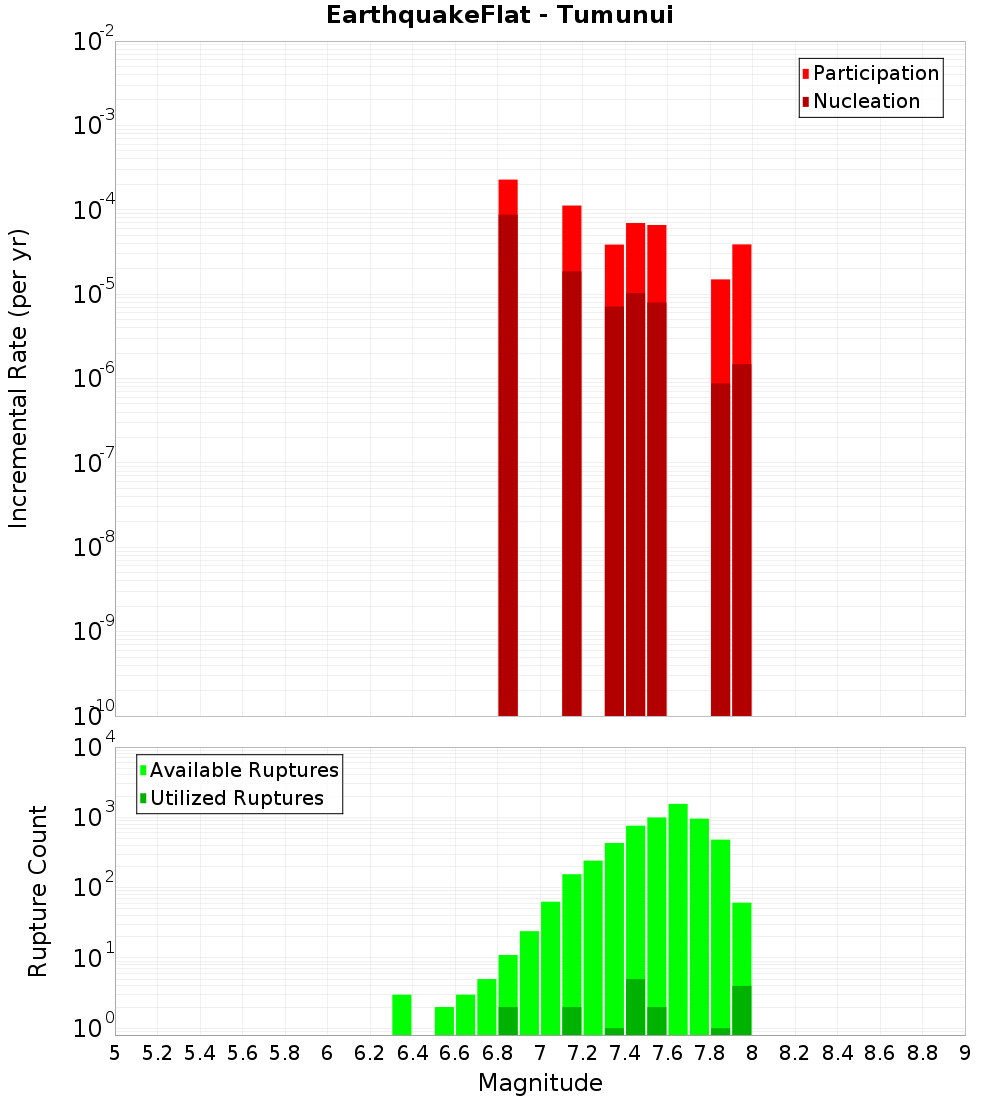

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

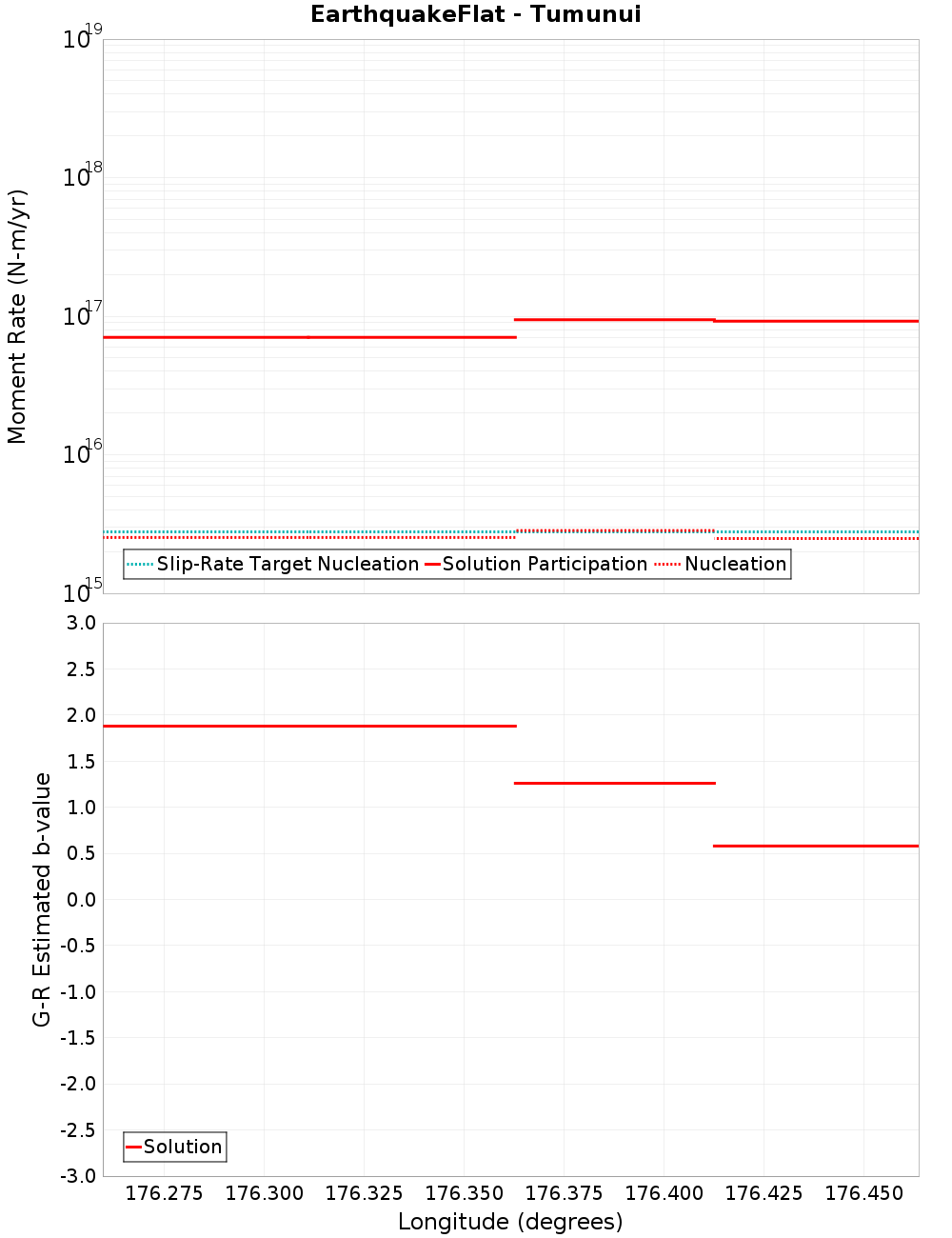

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Maleme, 0.79 km away |
| Paeroa, 1.55 km away |
| Puketerata North, 7.65 km away |
| Braemar, 12.8 km away |
| Orakeikorako, 19.27 km away |
Maleme, 0.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4ODcuMEJ2M3lo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,807 |
| Co-rupture Rate | 4.7262257E-4 |
Paeroa, 1.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4ODcuMEJ2M3lo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,962 |
| Co-rupture Rate | 1.1653164E-4 |
Puketerata North, 7.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4ODcuMEJ2M3lo | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,429 |
| Co-rupture Rate | 1.9086483E-4 |
Braemar, 12.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4ODcuMEJ2M3lo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,453 |
| Co-rupture Rate | 2.2806867E-4 |
Orakeikorako, 19.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4ODcuMEJ2M3lo | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,180 |
| Co-rupture Rate | 1.2915597E-4 |
