Waipukurau - Poukawa Details

PropertyValue
Rupture Count240
Ruptures Above Sect Min Mag236
Ruptures w/ Nonzero Rates27
Magnitude Range[6.88, 8.40]
Length Range[19, 540] km
Total Rate5.6099193E-4 /yr
Multi-Fault Rate4.1171853E-4 /yr (73.39%)
Directly-Connected Faults5
All Co-Rupturing Faults29

Table Of Contents

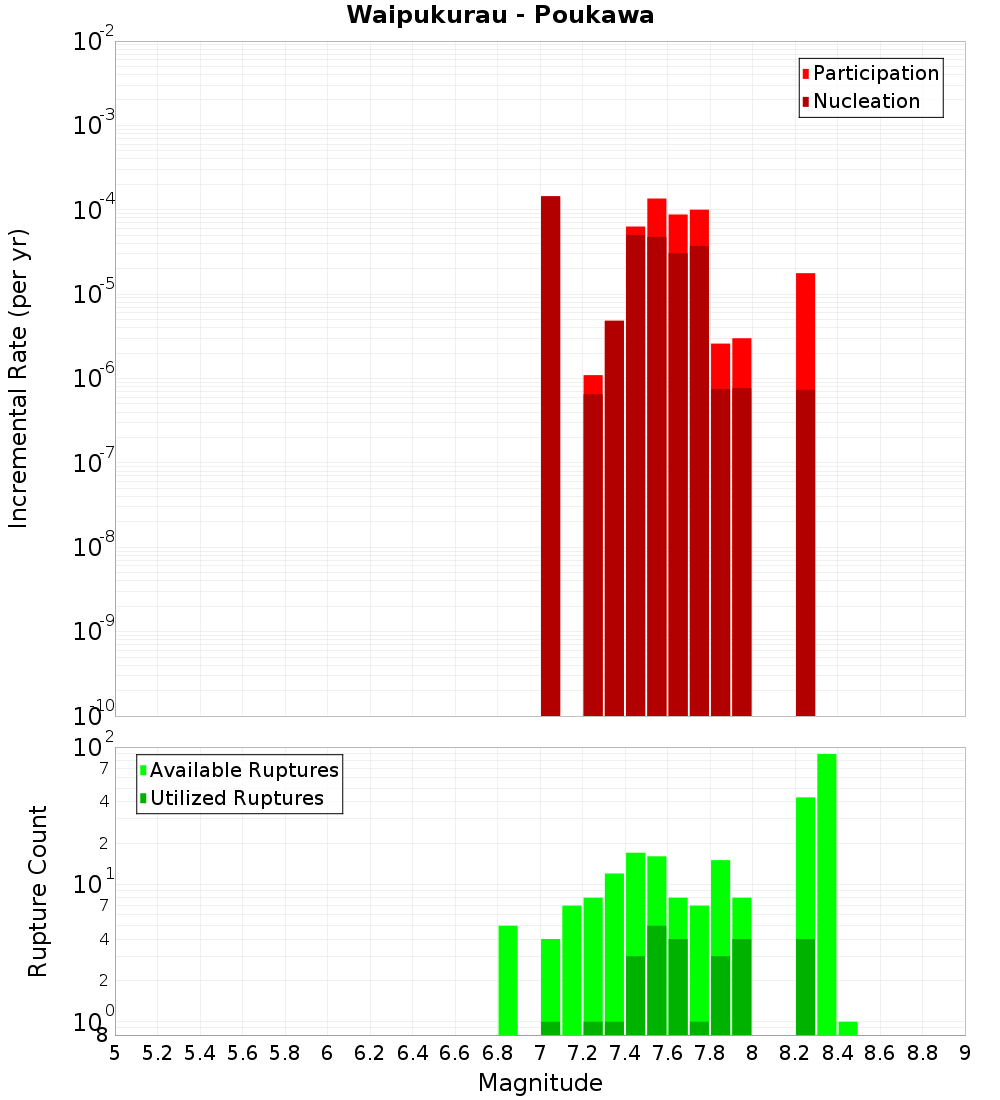

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

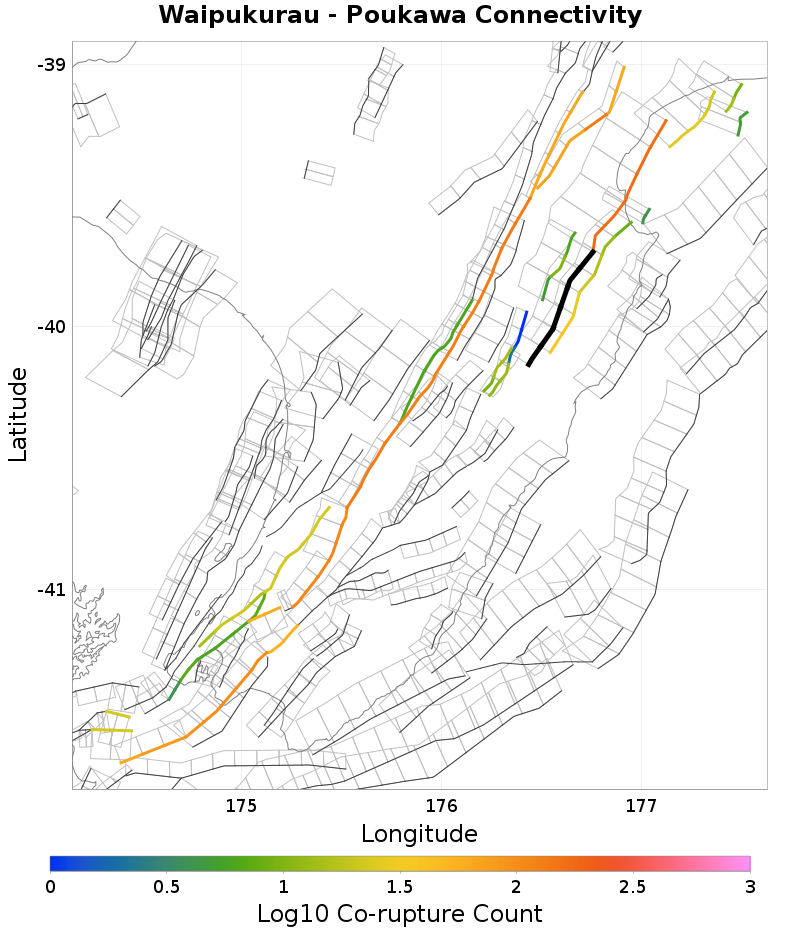

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awanui, 0 km away
Clear Hills - Waikopiro, 0.34 km away
Oruawharo - Mangatoro, 3.21 km away
Tukituki Thrust, 3.57 km away
Te Heka, 5.65 km away
Ruataniwha, 13.21 km away
Maunga, 15.83 km away
Waimarama 1 & 2, 18.7 km away

Awanui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4ODcuMEJ2M3lo
Connected?true
Directly Connected?true
Co-rupture Count170
Co-rupture Rate1.2353643E-4

Clear Hills - Waikopiro, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4ODcuMEJ2M3lo
Connected?true
Directly Connected?true
Co-rupture Count14
Co-rupture Rate3.0840976E-5

Oruawharo - Mangatoro, 3.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4ODcuMEJ2M3lo
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate8.87696E-5

Tukituki Thrust, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4ODcuMEJ2M3lo
Connected?true
Directly Connected?true
Co-rupture Count38
Co-rupture Rate1.919759E-4

Te Heka, 5.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4ODcuMEJ2M3lo
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate1.0310559E-5

Ruataniwha, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4ODcuMEJ2M3lo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maunga, 15.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4ODcuMEJ2M3lo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimarama 1 & 2, 18.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjQ4ODcuMEJ2M3lo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
